Themes in SharePoint 2010 Programmatically Using VS 2010

Today, in this article let’s play around with one of the interesting and most useful concepts in SharePoint 2010.

Introduction



Today, in this article let's play around with one of the interesting and most useful concepts in SharePoint 2010.


Question: What is a theme?



In simple terms "A theme is a collection of property settings that allow you to define the look of pages and controls, and then apply the look consistently across pages in a Web application, across an entire Web application, or across all Web applications on a server".



I think we are now good to go and implement this wonderful concept.



Step 1: Open SharePoint 2010 Central Administration and navigate to aspecific site.

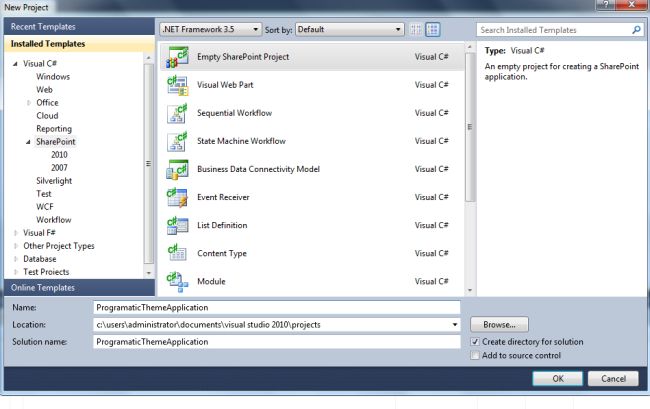

Step 2: Open up Visual Studio 2010 and create an "Empty Sharepoint Project":

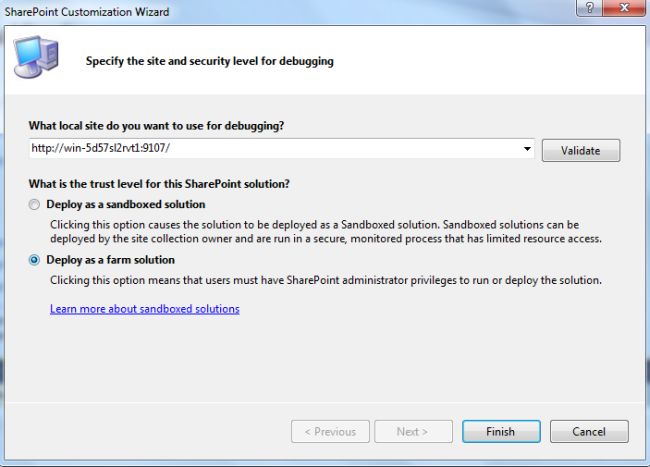

Step 3: Select "Deploy as a farm solution" and click on the "Finish" button. Now an empty project will be created:

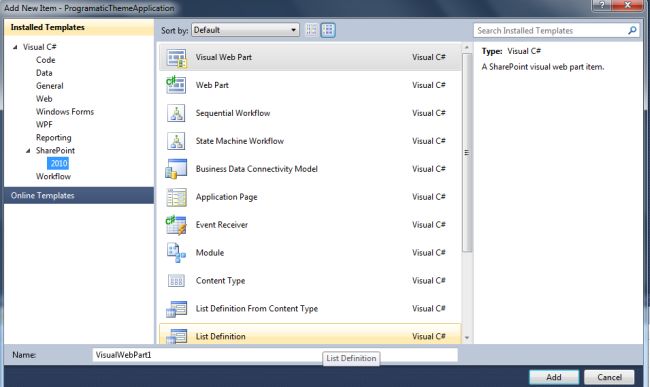

Step 4: Add a new visual webpart for that project.







Step 5: The complete code of visualwebpart1usercontrol.ascx looks like this:



<%@ Assembly Name="$SharePoint.Project.AssemblyFullName$" %>

<%@ Assembly Name="Microsoft.Web.CommandUI, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>

<%@ Register TagPrefix="SharePoint" Namespace="Microsoft.SharePoint.WebControls"

    Assembly="Microsoft.SharePoint, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>

<%@ Register TagPrefix="Utilities" Namespace="Microsoft.SharePoint.Utilities" Assembly="Microsoft.SharePoint, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>

<%@ Register TagPrefix="asp" Namespace="System.Web.UI" Assembly="System.Web.Extensions, Version=3.5.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35" %>

<%@ Import Namespace="Microsoft.SharePoint" %>

<%@ Register TagPrefix="WebPartPages" Namespace="Microsoft.SharePoint.WebPartPages"

    Assembly="Microsoft.SharePoint, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>

<%@  Control Language="C#" AutoEventWireup="true" CodeBehind="VisualWebPart1UserControl.ascx.cs"

    Inherits="ProgramaticThemeApplication.VisualWebPart1.VisualWebPart1UserControl" %>

<div align="center" style="font-family: Verdana; font-weight: bold">

    <table>

        <tr>

            <td>

                <asp:label id="Label1" runat="server" text="Please Enter Theme Name: " forecolor="Brown"></asp:label>

            </td>

            <td>

                <asp:textbox id="TextBox1" runat="server"></asp:textbox>

            </td>

        </tr>

        <tr>

            <td colspan="2">

                <asp:button id="Button1" runat="server" text="Apply New Theme" onclick="Button1_Click"

                    backcolor="Orange" />

            </td>

        </tr>

        <tr>

            <td colspan="2">

                <asp:label id="Label2" runat="server"></asp:label>

            </td>

        </tr>

    </table>

</div>



Step 6: The complete code of visualwebpart1usercontrol.ascx.cs looks like this:



using System;

using System.Web.UI;

using System.Web.UI.WebControls;

using System.Web.UI.WebControls.WebParts;

using Microsoft.SharePoint;

using Microsoft.SharePoint.Utilities;

namespace ProgramaticThemeApplication.VisualWebPart1

{

    public partial class VisualWebPart1UserControl : UserControl

    {

        protected void Page_Load(object sender, EventArgs e)

        {

            TextBox1.Focus();

        }

        protected void Button1_Click(object sender, EventArgs e)

        {

            if (string.IsNullOrEmpty(TextBox1.Text))

            {

                Label2.Text = ""; Label2.ForeColor = System.Drawing.Color.Red;

            }

            else

            {

                SPSite site = new SPSite("http://win-5d57sl2rvt1:9107/");

                SPWeb web = site.OpenWeb();

                ThmxTheme thmxTheme = ThmxTheme.Open(site, "_catalogs/theme/" + TextBox1.Text + ".thmx");

                thmxTheme.ApplyTo(web, false);

                web.Update();

                Label2.Text = TextBox1.Text + " Theme is successfully applied";

                Label2.ForeColor = System.Drawing.Color.Green;

                TextBox1.Text = string.Empty;

            }

        }

    }

}

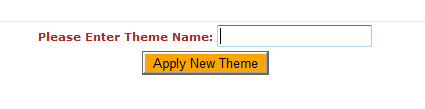

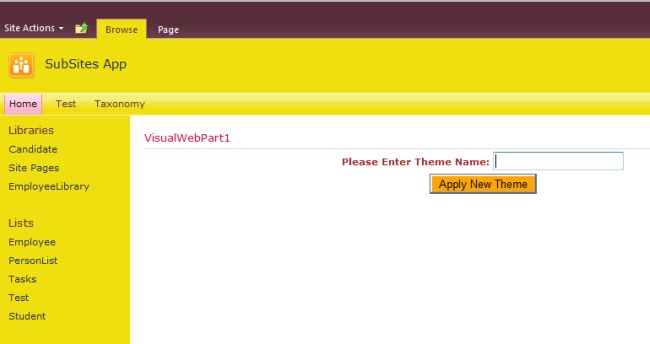

Step 7: Deploy the solution file and add the created webpart to the sharepoint site:

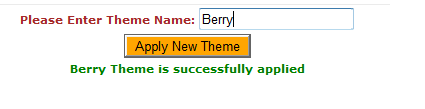

Step 8: Adding new theme:







Step 9: Applied theme site looks like this:







I hope this article is useful for you.
