SharePoint Hosted App Data Manipulation With Office 365 Using Custom JavaScript Library - Part 1

In this article, we are going to learn how to create SharePoint hosted App in office 365. Perform data manipulation using Custom JavaScript Library.

Here are the steps,

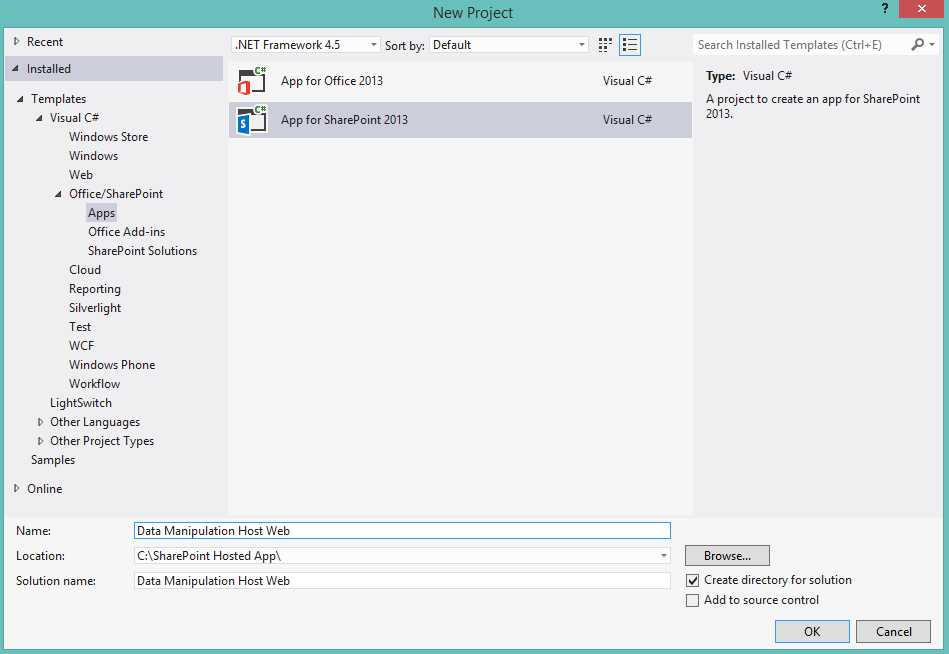

Step 1: Create SharePoint Hosted App with Office 365 account credentials. Open Visual Studio and select New Project as in the following,


 Step 2

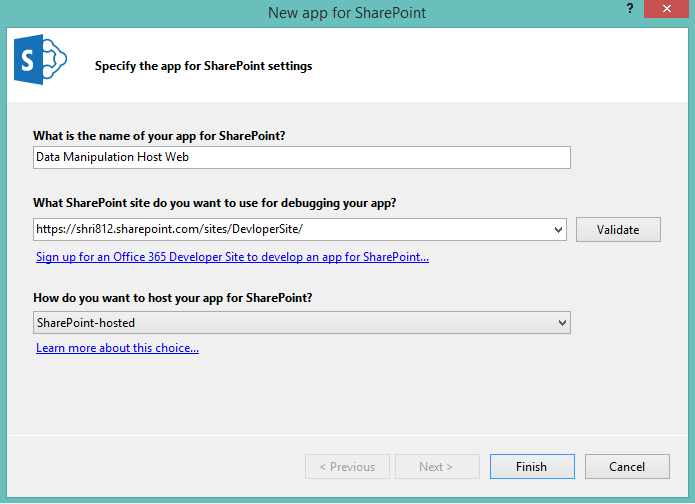

: Specify Site URL & app type to proceed next.

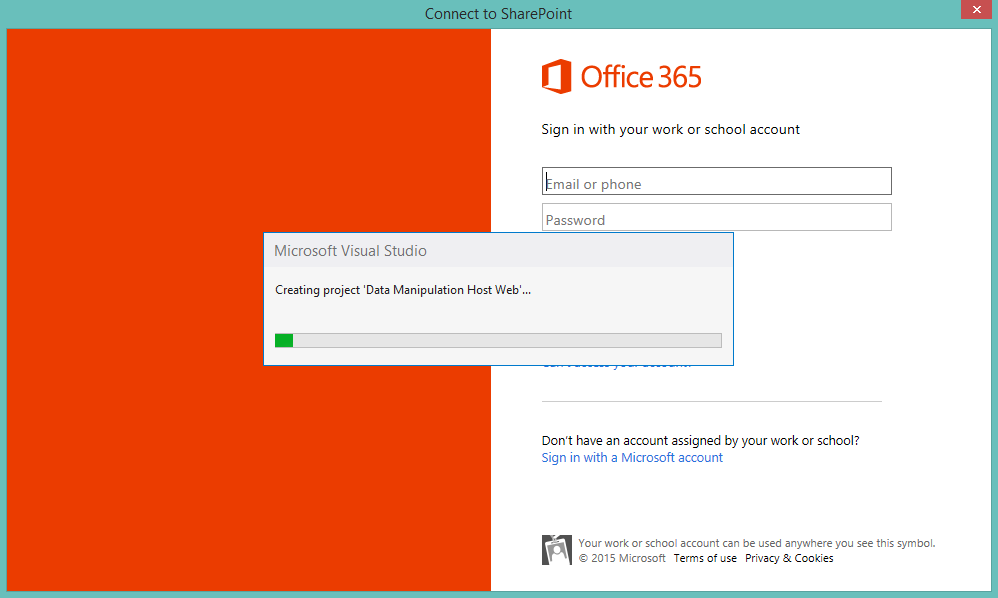

Step 3: Provide Office365 credentials to continue further.


Step 4

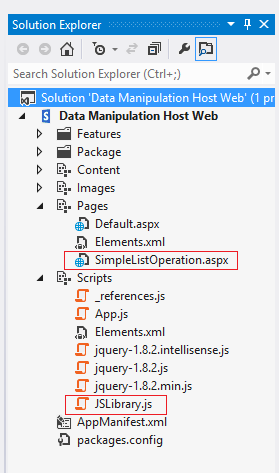

: Project structure is as in the following,

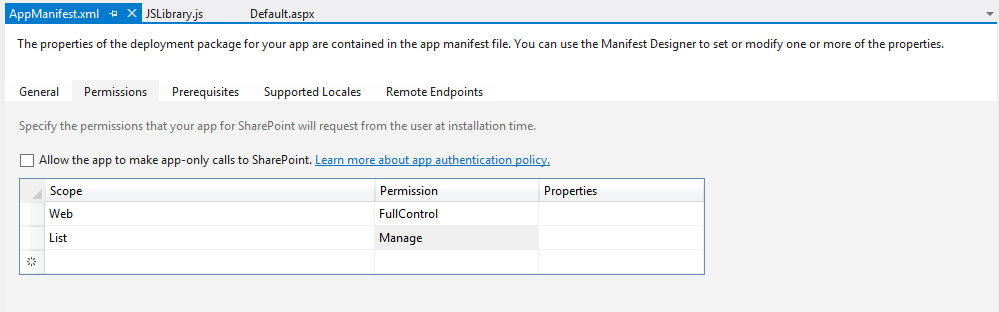

Step 5: We first need to set permission for App, so that we can communicate with site properly.


Step 6

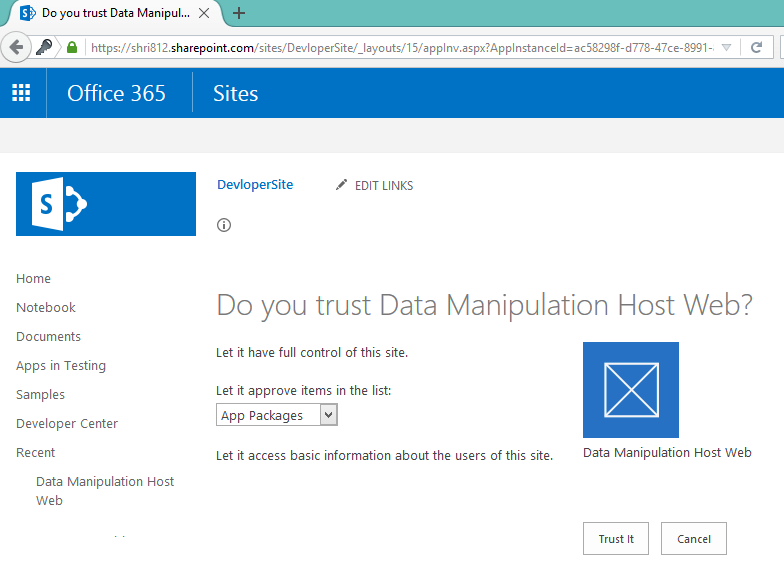

: Deploy the app into Office 365 environment.

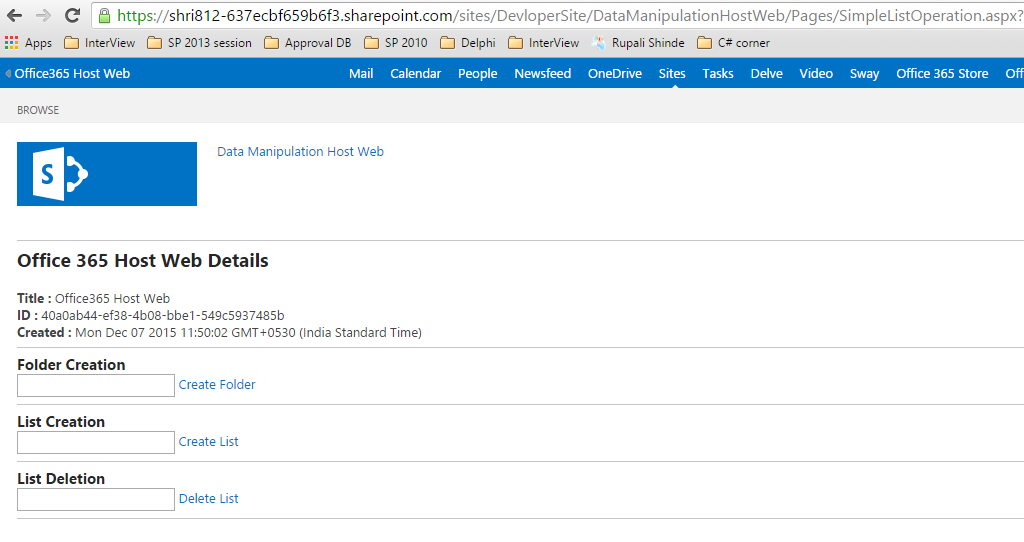

Step 7: User Interface creation code

In this part, we are going to perform simple operation so UI is also very simple as in the following example,

Source Code
  1. <%@ Page Language="C#" MasterPageFile="~masterurl/default.master" Inherits="Microsoft.SharePoint.WebPartPages.WebPartPage, Microsoft.SharePoint, Version=15.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>
  2. <%@ Register TagPrefix="Utilities" Namespace="Microsoft.SharePoint.Utilities" Assembly="Microsoft.SharePoint, Version=15.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>
  3. <%@ Register TagPrefix="WebPartPages" Namespace="Microsoft.SharePoint.WebPartPages" Assembly="Microsoft.SharePoint, Version=15.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>
  4. <%@ Register TagPrefix="SharePoint" Namespace="Microsoft.SharePoint.WebControls" Assembly="Microsoft.SharePoint, Version=15.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>
  5. <asp:Content ContentPlaceHolderID="PlaceHolderAdditionalPageHead" runat="server">
  6.                 <SharePoint:ScriptLink Name="sp.js" runat="server" OnDemand="true" LoadAfterUI="true" Localizable="false" />
  7.                 <script src="../Scripts/jquery-1.8.2.js" type="text/javascript"></script>
  8.                 <script src="../Scripts/JSLibrary.js" type="text/javascript"></script>
  9.             </asp:Content>
  10.             <asp:Content ContentPlaceHolderID="PlaceHolderMain" runat="server">
  11.                 <WebPartPages:WebPartZone runat="server" FrameType="TitleBarOnly" ID="full" Title="loc:full" />
  12.                 <hr />
  13.                 <div>
  14.                     <h2><b>Office 365 Host Web Details</b></h2>
  15.                     <br />
  16.                     <div id="HostwebDetails"></div>
  17.                 </div>
  18.                 <hr />
  19.                 <div>
  20.                     <h3><b>Folder Creation</b></h3>
  21.                     <input type="text" id="txtFolderName" /> <a href="#" onclick="Wingtip.JSOMHostWebCollections.HWCreateFolder()">Create Folder</a> </div>
  22.                 <hr />
  23.                 <div>
  24.                     <h3><b>List Creation</b></h3>
  25.                     <input type="text" id="txtListName" /> <a href="#" onclick="Wingtip.JSOMHostWebCollections.HWCreateList()">Create List</a> </div>
  26.                 <hr />
  27.                 <div>
  28.                     <h3><b>List Deletion</b></h3>
  29.                     <input type="text" id="txtDeletionListName" /> <a href="#" onclick="Wingtip.JSOMHostWebCollections.HWDeleteList()">Delete List</a> </div>
  30.                 <hr/> </asp:Content>
Step 8: Fetch current Web Site details on page load. The following code is used to perform this operation.
  1. var clientContext;
  2. var factory;
  3. var appContextSite;
  4. var web;
  5. var collList;
  6. var itemCreateInfo;
  7. var param1, param2, param3;
  8. var oList, targetList, listFields, oListItem, oField, itemId;
  9. var ExsitingListNameVal;
  10. window.Wingtip = window.Wingtip ||
  11. {}
  12. Wingtip.JSOMHostWebCollections = function()
  13. {
  14.     LoadlayoutsJS = function()
  15.     {
  16.         //debugger
  17.         hostweburl = decodeURIComponent(Wingtip.JSOMHostWebCollections.QSParameter("SPHostUrl"));
  18.         appweburl = decodeURIComponent(Wingtip.JSOMHostWebCollections.QSParameter("SPAppWebUrl"));
  19.         var Sessionhostweburl = sessionStorage.getItem("hostweburl");
  20.         var Sessionappweburl = sessionStorage.getItem("appweburl");
  21.         if (Sessionhostweburl == null || Sessionappweburl == null)
  22.         {
  23.             sessionStorage.setItem("hostweburl", hostweburl);
  24.             sessionStorage.setItem("appweburl", appweburl);
  25.         }
  26.         if (hostweburl == null || appweburl == null || hostweburl == 'undefined' || appweburl == 'undefined')
  27.         {
  28.             hostweburl = sessionStorage.getItem("hostweburl");
  29.             appweburl = sessionStorage.getItem("appweburl");
  30.         }
  31.         var scriptbase = hostweburl + "/_layouts/15/";
  32.         $.getScript(scriptbase + "SP.Runtime.js", function()
  33.         {
  34.             $.getScript(scriptbase + "SP.js", function()
  35.             {
  36.                 $.getScript(scriptbase + "SP.RequestExecutor.js", Wingtip.JSOMHostWebCollections.HWLoadClientContext);
  37.             });
  38.         });
  39.     }
  40.     getQueryStringParameter = function(paramToRetrieve)
  41.     {
  42.         //debugger
  43.         try
  44.         {
  45.             var params = document.URL.split("?")[1].split("&");
  46.             var strParams = "";
  47.             for (var i = 0; i < params.length; i = i + 1)
  48.             {
  49.                 var singleParam = params[i].split("=");
  50.                 if (singleParam[0] == paramToRetrieve) return singleParam[1];
  51.             }
  52.         }
  53.         catch (ex)
  54.         {}
  55.     }
  56.     LoadClientContext = function()
  57.     {
  58.         //debugger
  59.         clientContext = new SP.ClientContext(appweburl);
  60.         factory = new SP.ProxyWebRequestExecutorFactory(appweburl);
  61.         clientContext.set_webRequestExecutorFactory(factory);
  62.         appContextSite = new SP.AppContextSite(clientContext, hostweburl);
  63.         web = appContextSite.get_web();
  64.         clientContext.load(web);
  65.         Wingtip.JSOMHostWebCollections.HWGetTitle();
  66.         //Wingtip.JSOMHostWebCollections.HWCreateFolder("Rupali");
  67.         //Wingtip.JSOMHostWebCollections.HWCreateList("Book");
  68.         //Wingtip.JSOMHostWebCollections.HWDeleteList("Book");
  69.     }
  70.     GetTitle = function()
  71.         {
  72.             //debugger
  73.             web.set_title('Office365 Host Web');
  74.             web.update();
  75.             clientContext.load(web);
  76.             clientContext.executeQueryAsync(Function.createDelegate(this, SPHostWebDetailsSuccessHandler), Function.createDelegate(this, SPHostWebDetailsErrorHandler));
  77.
  78.             function SPHostWebDetailsSuccessHandler()
  79.             {
  80.                 var Result = "";
  81.                 Result = Result + "<b>Title :</b> " + web.get_title() + "<br/>";
  82.                 Result = Result + "<b> ID :</b> " + web.get_id() + "</br>";
  83.                 Result = Result + "<b> Created :</b> " + web.get_created() + "</br>";
  84.                 document.getElementById("HostwebDetails").innerHTML = Result;
  85.             }
  86.
  87.             function SPHostWebDetailsErrorHandler(data, errorCode, errorMessage)
  88.             {
  89.                 alert("fail" + errorMessage);
  90.                 document.getElementById("HostwebTitle").innerText = "Could not complete cross-domain call: " + errorMessage;
  91.             }
  92.         }
  93.         //public interface
  94.     return {
  95.         HWLoadlayoutsJS: LoadlayoutsJS,
  96.         QSParameter: getQueryStringParameter,
  97.         HWLoadClientContext: LoadClientContext,
  98.         HWGetTitle: GetTitle,
  99.         HWCreateFolder: CreateFolder,
  100.         HWCreateList: CreateList,
  101.         HWDeleteList: DeleteList,
  102.         HWEmpty: Empty
  103.     }
  104. }();
  105. $(document).ready(function()
  106. {
  107.     //Load Out Of Box JS file for List Operation
  108.     Wingtip.JSOMHostWebCollections.HWLoadlayoutsJS();
  109. });

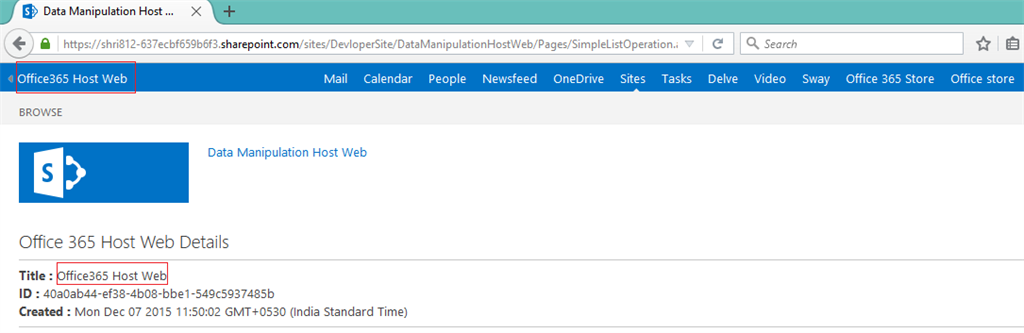

Output


Step 9:
Create folder at site, we can use the following code,
  1. CreateFolder = function()
  2. {
  3.     //debugger
  4.     oList = web.get_lists().getByTitle("Documents");
  5.     itemCreateInfo = new SP.ListItemCreationInformation();
  6.     itemCreateInfo.set_underlyingObjectType(SP.FileSystemObjectType.folder);
  7.     var FolderNameVal = $(txtFolderName).val();
  8.     console.log(FolderNameVal);
  9.     itemCreateInfo.set_leafName(FolderNameVal);
  10.     //itemCreateInfo.set_leafName("My new folder!!!");
  11.     oListItem = oList.addItem(itemCreateInfo);
  12.     oListItem.update();
  13.     clientContext.load(oListItem);
  14.     clientContext.executeQueryAsync(Function.createDelegate(this, CreateFolderSuccessHandler), Function.createDelegate(this, CreateFolderErrorHandler));
  15.
  16.     function CreateFolderSuccessHandler()
  17.     {
  18.         alert("Go to Site Content ->Documents to see your new folder.");
  19.     }
  20.
  21.     function CreateFolderErrorHandler()
  22.     {
  23.         alert("Request failed: " + arguments[1].get_message());
  24.     }
  25. }
Output

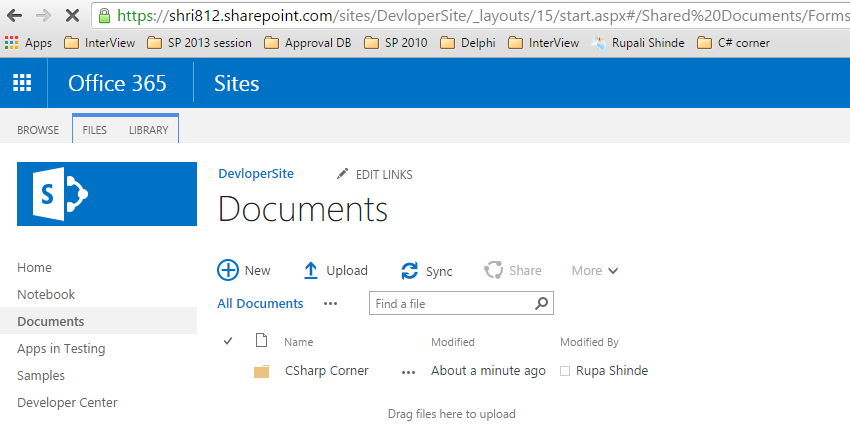

New folder is getting created inside Document folder at root level.


Step 10:
Create List at host web using the following code,
  1. CreateList = function()
  2. {
  3.     //debugger
  4.     var listCreationInfo = new SP.ListCreationInformation();
  5.     var ListNameVal = $(txtListName).val();
  6.     //var ListNameVal = ListName;
  7.     listCreationInfo.set_title(ListNameVal);
  8.     listCreationInfo.set_templateType(SP.ListTemplateType.announcements);
  9.     oList = web.get_lists().add(listCreationInfo);
  10.     clientContext.load(oList);
  11.     oList.set_description(ListNameVal + 'created via JSOM Model ...');
  12.     oList.update();
  13.     clientContext.executeQueryAsync(Function.createDelegate(this, SPHostWebCreateListSuccessHandler), Function.createDelegate(this, SPHostWebCreateListErrorHandler));
  14.
  15.     function SPHostWebCreateListSuccessHandler()
  16.     {
  17.         var result = oList.get_title() + ' List created successfully.';
  18.         alert(result);
  19.     }
  20.
  21.     function SPHostWebCreateListErrorHandler(sender, args)
  22.     {
  23.         alert('Request failed. ' + args.get_message() + '\n' + args.get_stackTrace());
  24.     }
  25. }
Output


Finally list is created at host web.


Step 11:
Delete list at host web using the following code,
  1. DeleteList = function()
  2. {
  3.     // debugger
  4.     var DeleteListNameVal = $(txtDeletionListName).val();
  5.     oList = web.get_lists().getByTitle(DeleteListNameVal);
  6.     oList.deleteObject();
  7.     clientContext.executeQueryAsync(Function.createDelegate(this, DeleteListHostWebSucceeded), Function.createDelegate(this, DeleteListHostWebFailed));
  8.
  9.     function DeleteListHostWebSucceeded()
  10.     {
  11.         alert("Delete List done Successfully ...");
  12.     }
  13.
  14.     function DeleteListHostWebFailed(sender, args)
  15.     {
  16.         alert('Request failed. ' + args.get_message() + '\n StackTrace : ' + args.get_stackTrace());
  17.     }
  18. }
Output


Full Source Code
  1. var clientContext;
  2. var factory;
  3. var appContextSite;
  4. var web;
  5. var collList;
  6. var itemCreateInfo;
  7. var param1, param2, param3;
  8. var oList, targetList, listFields, oListItem, oField, itemId;
  9. var ExsitingListNameVal;
  10. window.Wingtip = window.Wingtip ||
  11. {}
  12. Wingtip.JSOMHostWebCollections = function()
  13. {
  14.     LoadlayoutsJS = function()
  15.     {
  16.         //debugger
  17.         hostweburl = decodeURIComponent(Wingtip.JSOMHostWebCollections.QSParameter("SPHostUrl"));
  18.         appweburl = decodeURIComponent(Wingtip.JSOMHostWebCollections.QSParameter("SPAppWebUrl"));
  19.         var Sessionhostweburl = sessionStorage.getItem("hostweburl");
  20.         var Sessionappweburl = sessionStorage.getItem("appweburl");
  21.         if (Sessionhostweburl == null || Sessionappweburl == null)
  22.         {
  23.             sessionStorage.setItem("hostweburl", hostweburl);
  24.             sessionStorage.setItem("appweburl", appweburl);
  25.         }
  26.         if (hostweburl == null || appweburl == null || hostweburl == 'undefined' || appweburl == 'undefined')
  27.         {
  28.             hostweburl = sessionStorage.getItem("hostweburl");
  29.             appweburl = sessionStorage.getItem("appweburl");
  30.         }
  31.         var scriptbase = hostweburl + "/_layouts/15/";
  32.         $.getScript(scriptbase + "SP.Runtime.js", function()
  33.         {
  34.             $.getScript(scriptbase + "SP.js", function()
  35.             {
  36.                 $.getScript(scriptbase + "SP.RequestExecutor.js", Wingtip.JSOMHostWebCollections.HWLoadClientContext);
  37.             });
  38.         });
  39.     }
  40.     getQueryStringParameter = function(paramToRetrieve)
  41.     {
  42.         //debugger
  43.         try
  44.         {
  45.             var params = document.URL.split("?")[1].split("&");
  46.             var strParams = "";
  47.             for (var i = 0; i < params.length; i = i + 1)
  48.             {
  49.                 var singleParam = params[i].split("=");
  50.                 if (singleParam[0] == paramToRetrieve) return singleParam[1];
  51.             }
  52.         }
  53.         catch (ex)
  54.         {}
  55.     }
  56.     LoadClientContext = function()
  57.     {
  58.         //debugger
  59.         clientContext = new SP.ClientContext(appweburl);
  60.         factory = new SP.ProxyWebRequestExecutorFactory(appweburl);
  61.         clientContext.set_webRequestExecutorFactory(factory);
  62.         appContextSite = new SP.AppContextSite(clientContext, hostweburl);
  63.         web = appContextSite.get_web();
  64.         clientContext.load(web);
  65.         Wingtip.JSOMHostWebCollections.HWGetTitle();
  66.         //Wingtip.JSOMHostWebCollections.HWCreateFolder("Rupali");
  67.         //Wingtip.JSOMHostWebCollections.HWCreateList("Book");
  68.         //Wingtip.JSOMHostWebCollections.HWDeleteList("Book");
  69.     }
  70.     GetTitle = function()
  71.     {
  72.         //debugger
  73.         web.set_title('Office365 Host Web');
  74.         web.update();
  75.         clientContext.load(web);
  76.         clientContext.executeQueryAsync(Function.createDelegate(this, SPHostWebDetailsSuccessHandler), Function.createDelegate(this, SPHostWebDetailsErrorHandler));
  77.
  78.         function SPHostWebDetailsSuccessHandler()
  79.         {
  80.             var Result = "";
  81.             Result = Result + "<b>Title :</b> " + web.get_title() + "<br/>";
  82.             Result = Result + "<b> ID :</b> " + web.get_id() + "</br>";
  83.             Result = Result + "<b> Created :</b> " + web.get_created() + "</br>";
  84.             document.getElementById("HostwebDetails").innerHTML = Result;
  85.         }
  86.
  87.         function SPHostWebDetailsErrorHandler(data, errorCode, errorMessage)
  88.         {
  89.             alert("fail" + errorMessage);
  90.             document.getElementById("HostwebTitle").innerText = "Could not complete cross-domain call: " + errorMessage;
  91.         }
  92.     }
  93.     CreateFolder = function()
  94.     {
  95.         //debugger
  96.         oList = web.get_lists().getByTitle("Documents");
  97.         itemCreateInfo = new SP.ListItemCreationInformation();
  98.         itemCreateInfo.set_underlyingObjectType(SP.FileSystemObjectType.folder);
  99.         var FolderNameVal = $(txtFolderName).val();
  100.         console.log(FolderNameVal);
  101.         itemCreateInfo.set_leafName(FolderNameVal);
  102.         //itemCreateInfo.set_leafName("My new folder!!!");
  103.         oListItem = oList.addItem(itemCreateInfo);
  104.         oListItem.update();
  105.         clientContext.load(oListItem);
  106.         clientContext.executeQueryAsync(Function.createDelegate(this, CreateFolderSuccessHandler), Function.createDelegate(this, CreateFolderErrorHandler));
  107.
  108.         function CreateFolderSuccessHandler()
  109.         {
  110.             alert("Go to Site Content ->Documents to see your new folder.");
  111.         }
  112.
  113.         function CreateFolderErrorHandler()
  114.         {
  115.             alert("Request failed: " + arguments[1].get_message());
  116.         }
  117.     }
  118.     CreateList = function()
  119.     {
  120.         //debugger
  121.         var listCreationInfo = new SP.ListCreationInformation();
  122.         var ListNameVal = $(txtListName).val();
  123.         //var ListNameVal = ListName;
  124.         listCreationInfo.set_title(ListNameVal);
  125.         listCreationInfo.set_templateType(SP.ListTemplateType.announcements);
  126.         oList = web.get_lists().add(listCreationInfo);
  127.         clientContext.load(oList);
  128.         oList.set_description(ListNameVal + 'created via JSOM Model ...');
  129.         oList.update();
  130.         clientContext.executeQueryAsync(Function.createDelegate(this, SPHostWebCreateListSuccessHandler), Function.createDelegate(this, SPHostWebCreateListErrorHandler));
  131.
  132.         function SPHostWebCreateListSuccessHandler()
  133.         {
  134.             var result = oList.get_title() + ' List created successfully.';
  135.             alert(result);
  136.         }
  137.
  138.         function SPHostWebCreateListErrorHandler(sender, args)
  139.         {
  140.             alert('Request failed. ' + args.get_message() + '\n' + args.get_stackTrace());
  141.         }
  142.     }
  143.     DeleteList = function()
  144.     {
  145.         // debugger
  146.         var DeleteListNameVal = $(txtDeletionListName).val();
  147.         oList = web.get_lists().getByTitle(DeleteListNameVal);
  148.         oList.deleteObject();
  149.         clientContext.executeQueryAsync(Function.createDelegate(this, DeleteListHostWebSucceeded), Function.createDelegate(this, DeleteListHostWebFailed));
  150.
  151.         function DeleteListHostWebSucceeded()
  152.         {
  153.             alert("Delete List done Successfully ...");
  154.         }
  155.
  156.         function DeleteListHostWebFailed(sender, args)
  157.         {
  158.             alert('Request failed. ' + args.get_message() + '\n StackTrace : ' + args.get_stackTrace());
  159.         }
  160.     }
  161.
  162.     function Empty()
  163.     {
  164.         console('Hello');
  165.     }
  166.     //public interface
  167.     return {
  168.         HWLoadlayoutsJS: LoadlayoutsJS,
  169.         QSParameter: getQueryStringParameter,
  170.         HWLoadClientContext: LoadClientContext,
  171.         HWGetTitle: GetTitle,
  172.         HWCreateFolder: CreateFolder,
  173.         HWCreateList: CreateList,
  174.         HWDeleteList: DeleteList,
  175.         HWEmpty: Empty
  176.     }
  177. }();
  178. $(document).ready(function()
  179. {
  180.     //Load Out Of Box JS file for List Operation
  181.     Wingtip.JSOMHostWebCollections.HWLoadlayoutsJS();
  182. });
