Runtime Table Creation in WPF

Introduction

This article describes runtime table creation in WPF and shows some basic data operations, such as inserting and deleting records using C# and XAML. The DataGridView control is the most popular control for display data in tabular format in Windows Forms but in WPF we use a DataGrid to display data.

DataGrid is a data shaping component that allows the end user to manage the data and also display the data on the screen. It provides a feature called AutoGenerateColumns that automatically generates columns.

In Visual Studio 2010 DataGrid supports Drag and Drop from a toolbox but in Visual Studio 2008 you need to install the WPF toolkit.

Step 1

First we create a WPF application using the following procedure:

  • Start the Visual Studio.
  • Select "New Project".
  • Select the C# language and "WPF Application".
  • Name the project as "Run time table creation"
  • Click the "OK" button.

Step 2

Now start designing the window using the following procedure:

  • Go to "View" -> "Toolbox".
  • Drag and Drop the 4 text boxes, 4 labels, 3 buttons and 1 DataGird onto the window.
  • Select the label and press F4.
  • Then set the content of the labels as Id, Name, Email and City .
  • Similarly set the content of the buttons as insert, delete and reset text box.
Step 3

After setting , the final source code of  the MainWindow.XAML is given below.

<Window x:Class="Runtime_table_creation.MainWindow"

        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"

        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"

        Title="MainWindow" Height="602" Width="525" Loaded="Window_Loaded" Background="Pink">

    <Grid Width="477">

        <Label Content="Id" Height="28" HorizontalAlignment="Left" Margin="34,50,0,0" Name="label1" VerticalAlignment="Top" />

        <Label Content="Name" Height="28" HorizontalAlignment="Left" Margin="34,107,0,0" Name="label2" VerticalAlignment="Top" />

        <Label Content="Email" Height="28" HorizontalAlignment="Left" Margin="34,161,0,0" Name="label3" VerticalAlignment="Top" />

        <Label Content="City" Height="32" HorizontalAlignment="Left" Margin="34,218,0,0" Name="label4" VerticalAlignment="Top" Width="42" />

        <TextBox Height="28" HorizontalAlignment="Left" Margin="126,50,0,0" Name="textBox1" VerticalAlignment="Top" Width="135" />

        <TextBox Height="28" HorizontalAlignment="Left" Margin="126,107,0,0" Name="textBox2" VerticalAlignment="Top" Width="135"/>



        <TextBox Height="27" HorizontalAlignment="Left" Margin="126,161,0,0" Name="textBox3" VerticalAlignment="Top" Width="140" />

        <Button Content="Insert data" Height="23" HorizontalAlignment="Left" Margin="63,301,0,0" Name="button1" VerticalAlignment="Top" Width="75" Click="button1_Click" />

        <DataGrid AutoGenerateColumns="True" Height="192" HorizontalAlignment="Left" Margin="12,351,0,0" Name="dataGrid1" VerticalAlignment="Top" Width="416" />



        <TextBox Height="32" HorizontalAlignment="Left" Margin="126,218,0,0" Name="textBox4" VerticalAlignment="Top" Width="140" />

        <Button Content="Clear textboxes" Height="23" HorizontalAlignment="Left" Margin="165,301,0,0" Name="button2" VerticalAlignment="Top" Width="110" Click="button2_Click" />

        <Button Content="Delete data" Height="23" HorizontalAlignment="Left" Margin="307,301,0,0" Name="button3" VerticalAlignment="Top" Width="98" Click="button3_Click" />

    </Grid>

</Window>

Step 4

  • Go to the MainWindow.xmal.cs.
  • Add "using System.Data" and "using System.Data.SqlClient" to the namespaces.
  • The MainWindows.Xamls.cs code is given below.

using System;

using System.Collections.Generic;

using System.Linq;

using System.Text;

using System.Windows;

using System.Windows.Controls;

using System.Windows.Data;

using System.Windows.Documents;

using System.Windows.Input;

using System.Windows.Media;

using System.Windows.Media.Imaging;

using System.Windows.Navigation;

using System.Windows.Shapes;

using System.Data;

using System.Data.SqlClient;

namespace Runtime_table_creation

{

    /// <summary>

    /// Interaction logic for MainWindow.xaml

    /// </summary>

    public partial class MainWindow : Window

    {

        public MainWindow()

        {

            InitializeComponent();

        }

        DataTable dt;

        private void Window_Loaded(object sender, RoutedEventArgs e)

        {

            dt = new DataTable("emp");

            DataColumn dc1 = new DataColumn("id", typeof(int));

            DataColumn dc2 = new DataColumn("name", typeof(string));

            DataColumn dc3 = new DataColumn("email", typeof(string));

            DataColumn dc4 = new DataColumn("city", typeof(string));

            dt.Columns.Add(dc1);

            dt.Columns.Add(dc2);

            dt.Columns.Add(dc3);

            dt.Columns.Add(dc4);

            dataGrid1.ItemsSource = dt.DefaultView;

        }

        DataRow dr;

        private void button1_Click(object sender, RoutedEventArgs e)

        {

            dr = dt.NewRow();

            dr[0] = int.Parse(textBox1.Text);

            dr[1] = textBox2.Text;

            dr[2] = textBox3.Text;

            dr[3] = textBox4.Text;

            dt.Rows.Add(dr);

            dataGrid1.ItemsSource = dt.DefaultView;

            textBox1.Focus();



        }



        private void button2_Click(object sender, RoutedEventArgs e)

        {

            textBox1.Clear();

            textBox2.Clear();

            textBox3.Clear();

            textBox4.Clear();



        }



        private void button3_Click(object sender, RoutedEventArgs e)

        {



            dataGrid1.ItemsSource= dt.DefaultView;

            dt.Rows.Remove(dr);

            textBox1.Focus();



        }



    }

}

Output

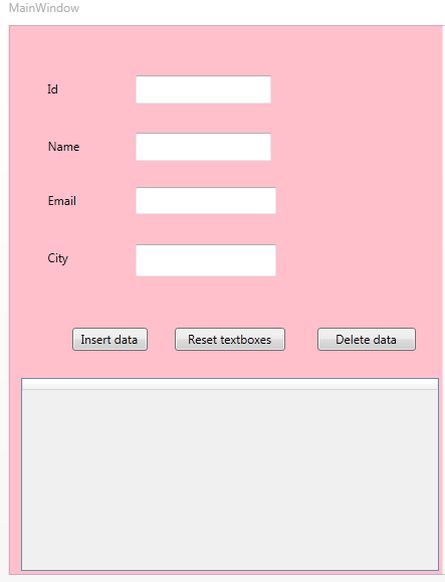

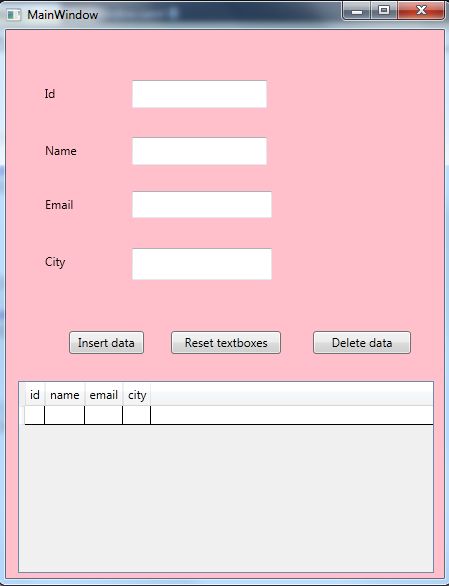

To execute the application, press F5.

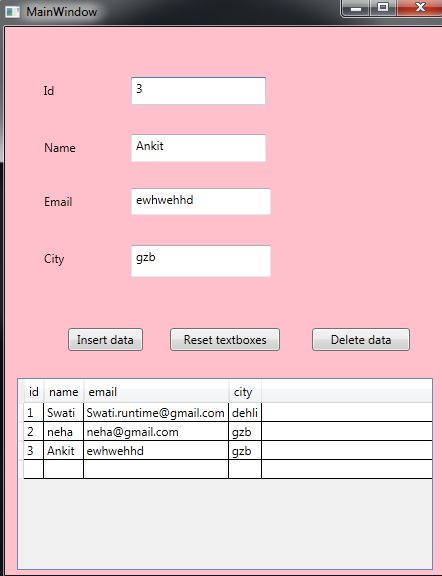

Insert the data into the table.


Delete the data by clicking on the delete button.


Reset the text box on clicking the Reset Textboxes button.
