Searching Records by DropDownList in ASP.NET

Introduction


I am creating a web application to search for records using DropDownList. You will select a name from the DropDownList and it will show all the records on the basis of that selected name. At first, we should have some records. So we create a database and insert some records into the database table.

Create Database
  1. CREATE DATABASE EMP
  2.
  3. USE EMP
  4.
  5. CREATE TABLE EMP_DETAIL
  6. (
  7.         E_ID INT PRIMARY KEY,
  8.         E_NAME VARCHAR(30),
  9.         E_AGE INT,
  10.         E_CITY VARCHAR(30),
  11.         E_DEPARTMENT VARCHAR(20)
  12. )
  13.
  14. INSERT INTO EMP_DETAIL VALUES(11, 'ALOK KUMAR', 24, 'DELHI''IT')
  15. INSERT INTO EMP_DETAIL VALUES(12, 'RAJESH TRIPATHI', 22, 'ALLAHABAD''SALES')
  16. INSERT INTO EMP_DETAIL VALUES(13, 'SATISH KUMAR', 23, 'JHANSI''PRODUCT')
  17. INSERT INTO EMP_DETAIL VALUES(14, 'MANOJ SINGH', 22, 'NOIDA''MARKETING')
  18. INSERT INTO EMP_DETAIL VALUES(15, 'AMIT MAHESHWARI', 25, 'ALLIGARH''IT')
  19. INSERT INTO EMP_DETAIL VALUES(16, 'DEEPAK DWIJ', 24, 'NOIDA''IT'

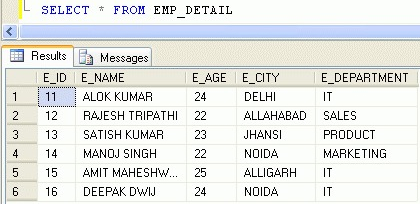

I am showing a screenshot of all records of an EMP_DETAIL table so that it can become easy to understand.
  1. SELECT * FROM EMP_DETAIL

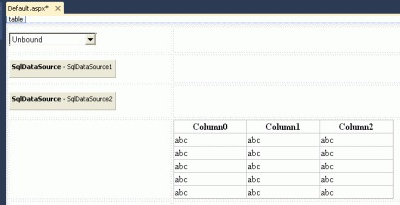

Now, create an ASP.NET web application -> create a DropDownList control, one GridView control, and two SqlDataSources. Your form will look like the following figure.


Now we specify a DataSouce for both SqlDataSources. Follow the given steps.

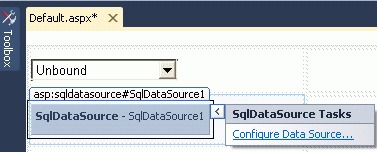

Step 1: Click on the smart tag of SqlDataSource1.


Step 2: Click on Configure Data Source.

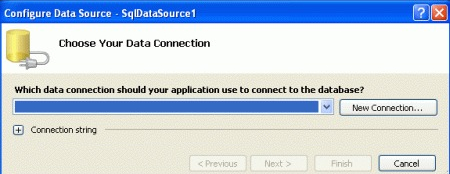

Step 3: A new window will be opened to choose a data connection.

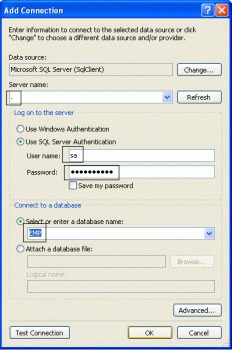

Step 4: Click the New Connection button. A new window will be opened. Write the server name, user name, password, and select your database. Look at the following figure.

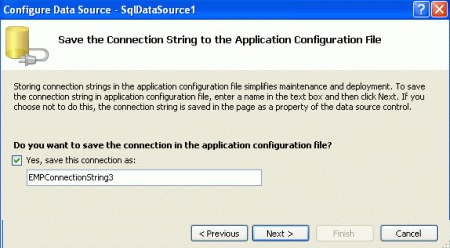

Step 5: Click the ok button. You will be presented with the Configure DataSource wizard. Click the "Next" button. A new window will be opened and it will ask to save the connection string.

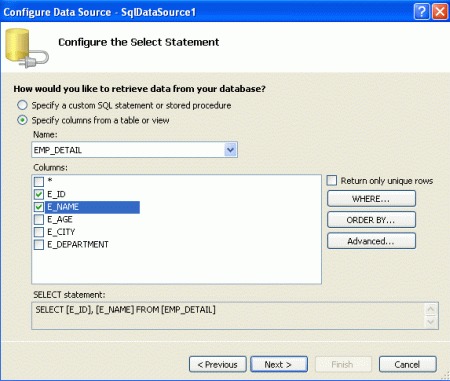

Step 6: Select the Database table and then choose column names by checking the checkboxes.


Step 7: Then click the Next button, then the Finish button.

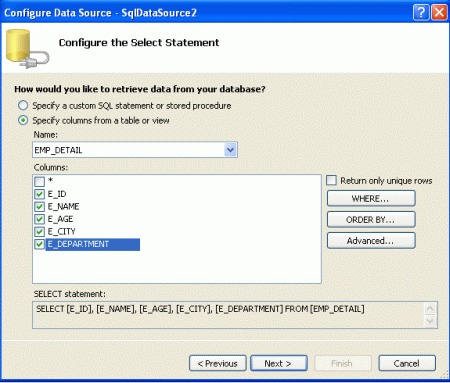

Step 8: Now it's time for SqlDataSource2. Repeat step 1 to step 6. At the 6th step choose all columns by checking all checkboxes.

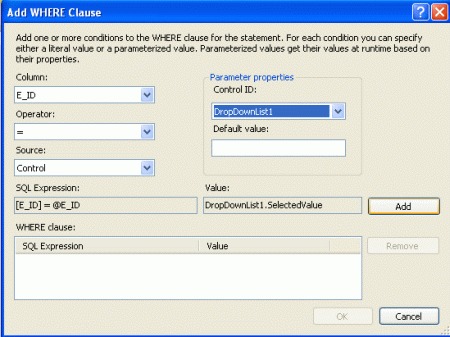

Step 9 : Click the Where button. Select Column ( At which basis you want to show record. I have selected "E_ID" ) -> Select operator ( I have selected "=" ) -> Select source ( I have selected "Control" ) -> Select DropDownList1 ( Or ID of DropDownList ) for Control ID.


Step 10: Click the Add button. Then click the ok button. After this, you will reach the Configure Data Source wizard; click the Add button, then click the Finish button.

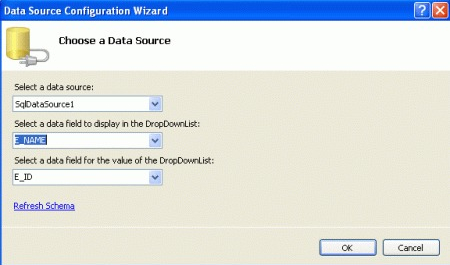

Step 11: Select DropDownList and click at smart tab -> Click at "Choose Data Source". A new window will be opened. Choose Data Source, Select column to display and another column which will be the value of the DropDownList then click the ok button.


Step 12: Select GridView and click at smart tag -> Choose Data Source - SqlDataSource2.


Step 13: Select DropDownList and set its AutoPostBack property to "True".

Run the application.

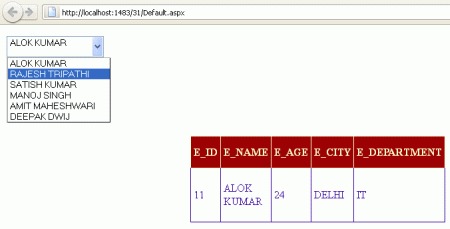

Select another name from DropDownList. Like I am selecting an employee name "Rajesh Tripathi".


It will show all records of that name.
