Xml and Schema Validator

This article shows how to create a simple and generic module for validating XML files with their respective schema files.

1. Introduction

First, I decided to write this article to share some of intuited knowledge, try to help and demonstrate how it is possible to develop a simple and generic module for validating XML files with their respective schema files.

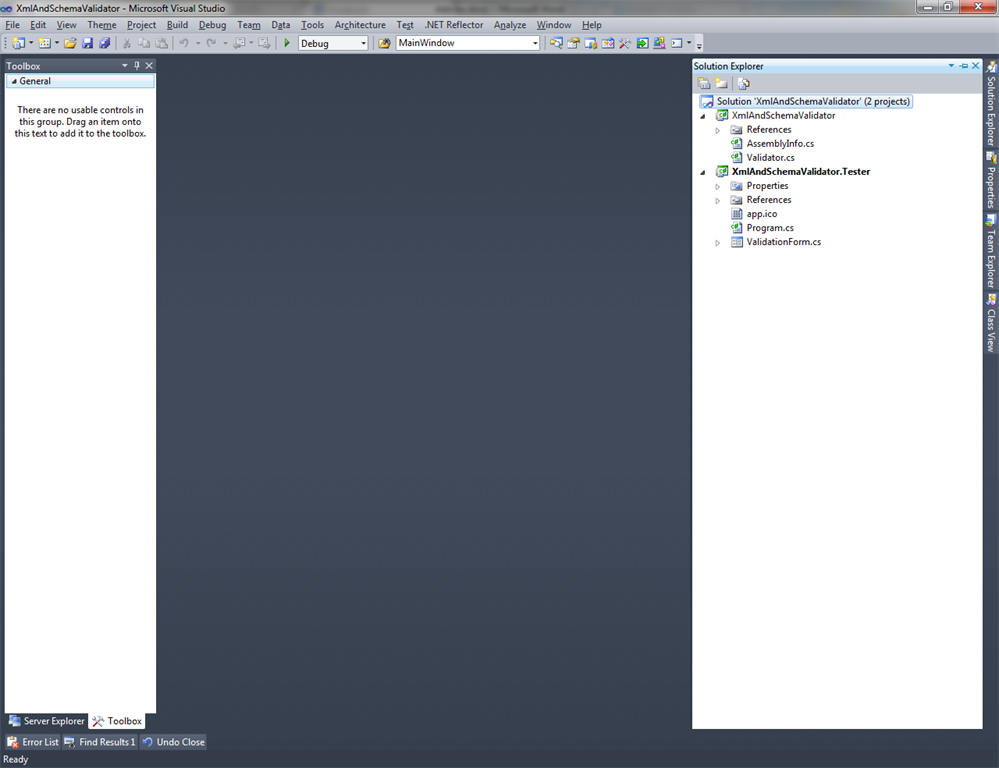

2. Project Structure

3. XmlAndSchemaValidator Class Library Source Code
  1. using System;
  2. using System.Xml;
  3. using System.Xml.Schema;
  4. using System.IO;
  5. using System.Text;
  6.
  7. namespace XmlAndSchemaValidator
  8. {
  9.     public class Validator
  10.     {
  11.         #region Attributes
  12.         private System.Xml.XmlTextReader _XmlTextReader = null;
  13.         private System.Xml.XmlReader _XmlReader = null;
  14.         private System.Xml.XmlReaderSettings _XmlReaderSettings = null;
  15.         private System.Xml.XmlParserContext _XmlParserContext = null;
  16.         private System.Xml.Schema.XmlSchemaSet _XmlSchemaSet = null;
  17.         private string _ValidationError = string.Empty;
  18.         #endregion
  19.
  20.         #region Object Constructor
  21.         public Validator()
  22.         {
  23.             this._XmlSchemaSet = new System.Xml.Schema.XmlSchemaSet();
  24.             this._XmlParserContext = new System.Xml.XmlParserContext(nullnull"", XmlSpace.None);
  25.
  26.             ValidationEventHandler _ValidationEventHandler = new ValidationEventHandler(ValidationErrors);
  27.         }
  28.         #endregion
  29.
  30.         #region Validate
  31.         // This Method will validate a Xml File
  32.         public string Validate(Int32 _EncodingType, FileInfo _XmlFile, XmlNodeType _XmlNodeType, string _Namespace, string _URI)
  33.         {
  34.             System.Text.UTF8Encoding _UTF8Encoding = new System.Text.UTF8Encoding();
  35.             System.Text.UTF32Encoding _UTF32Encoding = new System.Text.UTF32Encoding();
  36.             System.Text.Encoding _Encoding = System.Text.Encoding.GetEncoding("ISO-8859-1");
  37.             Int32 _StartIndex = 0;
  38.             Int32 _EndIndex = 0;
  39.             string _XmlString = string.Empty;
  40.             Byte[] _Buffer = null;
  41.             FileStream _FileStream = null;
  42.
  43.             try
  44.             {
  45.                 // Verifies if the Xml file exists on the filesystem
  46.                 if (_XmlFile.Exists)
  47.                 {
  48.                     try
  49.                     {
  50.                         _FileStream = _XmlFile.OpenRead();
  51.                         _Buffer = new Byte[_FileStream.Length];
  52.
  53.                         _FileStream.Read(_Buffer, 0, _Buffer.Length);
  54.
  55.                         // Read the Xml file content with a pre-determinated encoding
  56.                         switch (_EncodingType.ToString())
  57.                         {
  58.                             case "1":
  59.                                 _XmlString = _UTF8Encoding.GetString(_Buffer);
  60.                                 break;
  61.
  62.                             case "2":
  63.                                 _XmlString = _UTF32Encoding.GetString(_Buffer);
  64.                                 break;
  65.
  66.                             case "3":
  67.                                 _XmlString = _Encoding.GetString(_Buffer);
  68.                                 break;
  69.                         }
  70.
  71.                         _XmlString = _XmlString.Replace("\r""");
  72.                         _XmlString = _XmlString.Replace("\n""");
  73.                         _XmlString = _XmlString.Replace("\t""");
  74.
  75.                         _FileStream.Close();
  76.                     }
  77.                     catch
  78.                     {
  79.                         _FileStream.Close();
  80.                     }
  81.                 }
  82.
  83.                 // Add the NameSpace and the Schema file for validation
  84.                 this._XmlSchemaSet.Add(_Namespace, _URI);
  85.
  86.                 // Creates the XmlTextReader based on the Xml file content
  87.                 this._XmlTextReader = new XmlTextReader(_XmlString, _XmlNodeType, this._XmlParserContext);
  88.                 this._XmlTextReader.Read();
  89.
  90.                 // Setup XmlReaderSettings
  91.                 this._XmlReaderSettings = new System.Xml.XmlReaderSettings();
  92.                 this._XmlReaderSettings.ValidationType = ValidationType.Schema;
  93.                 this._XmlReaderSettings.IgnoreComments = true;
  94.                 this._XmlReaderSettings.IgnoreWhitespace = true;
  95.
  96.                 // Add the NameSpace and the Schema file for validation
  97.                 this._XmlReaderSettings.Schemas.Add(_Namespace, _URI);
  98.
  99.                 // ConformanceLevel Auto indicates that the XML writer should determine the level of conformance
  100.                 this._XmlReaderSettings.ConformanceLevel = ConformanceLevel.Auto;
  101.
  102.                 // Creates a XmlReader based on the information gathered on XmlTextReader and assumes the XmlReaderSettings
  103.                 this._XmlReader = System.Xml.XmlReader.Create(this._XmlTextReader, this._XmlReaderSettings);
  104.
  105.                 // This step will read all Xml file and throw an exception when the
  106.                 // xml file is not valid
  107.                 while (this._XmlReader.Read())
  108.                 {
  109.
  110.                 }
  111.             }
  112.             catch (XmlException _XmlException)
  113.             {
  114.                 this._ValidationError = _XmlException.Message;
  115.             }
  116.             catch (XmlSchemaException _XmlSchemaException)
  117.             {
  118.                 this._ValidationError = _XmlSchemaException.Message;
  119.             }
  120.             catch (Exception _Exception)
  121.             {
  122.                 this._ValidationError = _Exception.Message;
  123.             }
  124.
  125.             // Manipulate the error message
  126.             if (this._ValidationError.Trim().ToString() != string.Empty)
  127.             {
  128.                 _StartIndex = this._ValidationError.IndexOf("An error occurred at");
  129.                 _EndIndex = this._ValidationError.Length - (this._ValidationError.Length - _StartIndex);
  130.
  131.                 if (_StartIndex >= 0)
  132.                     this._ValidationError = this._ValidationError.Substring(0, _EndIndex);
  133.             }
  134.
  135.             return this._ValidationError;
  136.         }
  137.
  138.         // This Method will validate a Xml String
  139.         public string Validate(string _XmlString, XmlNodeType _XmlNodeType, string _Namespace, string _URI)
  140.         {
  141.             Int32 _StartIndex = 0;
  142.             Int32 _EndIndex = 0;
  143.
  144.             try
  145.             {
  146.                 // Add the NameSpace and the Schema file for validation
  147.                 this._XmlSchemaSet.Add(_Namespace, _URI);
  148.
  149.                 // Creates the XmlTextReader based on the Xml file content
  150.                 this._XmlTextReader = new XmlTextReader(_XmlString, _XmlNodeType, this._XmlParserContext);
  151.                 this._XmlTextReader.Read();
  152.
  153.                 // Setup XmlReaderSettings
  154.                 this._XmlReaderSettings = new System.Xml.XmlReaderSettings();
  155.                 this._XmlReaderSettings.ValidationType = ValidationType.Schema;
  156.                 this._XmlReaderSettings.IgnoreComments = true;
  157.                 this._XmlReaderSettings.IgnoreWhitespace = true;
  158.
  159.                 // Add the NameSpace and the Schema file for validation
  160.                 this._XmlReaderSettings.Schemas.Add(_Namespace, _URI);
  161.
  162.                 // ConformanceLevel Auto indicates that the XML writer should determine the level of conformance
  163.                 this._XmlReaderSettings.ConformanceLevel = ConformanceLevel.Auto;
  164.
  165.                 // Creates a XmlReader based on the information gathered on XmlTextReader and assumes the XmlReaderSettings
  166.                 this._XmlReader = System.Xml.XmlReader.Create(this._XmlTextReader, this._XmlReaderSettings);
  167.
  168.                 // This step will read all Xml file and throw an exception when the
  169.                 // xml file is not valid
  170.                 while (this._XmlReader.Read())
  171.                 {
  172.
  173.                 }
  174.             }
  175.             catch (XmlException _XmlException)
  176.             {
  177.                 this._ValidationError = _XmlException.Message;
  178.             }
  179.             catch (XmlSchemaException _XmlSchemaException)
  180.             {
  181.                 this._ValidationError = _XmlSchemaException.Message;
  182.             }
  183.             catch (Exception _Exception)
  184.             {
  185.                 this._ValidationError = _Exception.Message;
  186.             }
  187.
  188.             // Manipulate the error message
  189.             if (this._ValidationError.Trim().ToString() != string.Empty)
  190.             {
  191.                 _StartIndex = this._ValidationError.IndexOf("An error occurred at");
  192.                 _EndIndex = this._ValidationError.Length-(this._ValidationError.Length-_StartIndex);
  193.
  194.                 this._ValidationError = this._ValidationError.Substring(0,_EndIndex);
  195.             }
  196.
  197.             return this._ValidationError;
  198.         }
  199.         #endregion
  200.
  201.         #region Validation Errors
  202.         public static void ValidationErrors(object sender, ValidationEventArgs args)
  203.         {
  204.
  205.         }
  206.         #endregion
  207.     }
  208. }

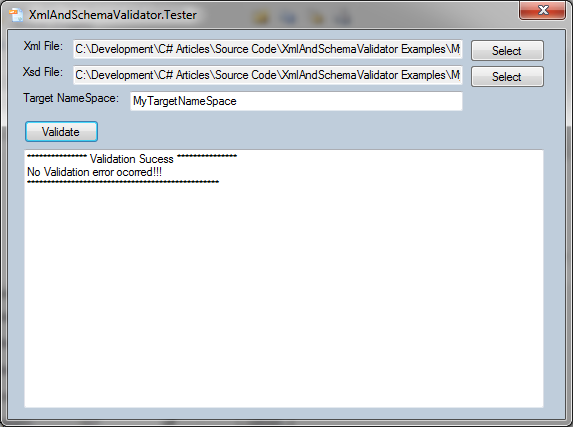

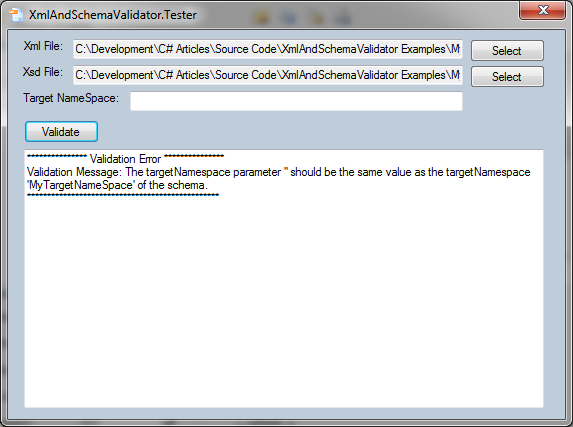

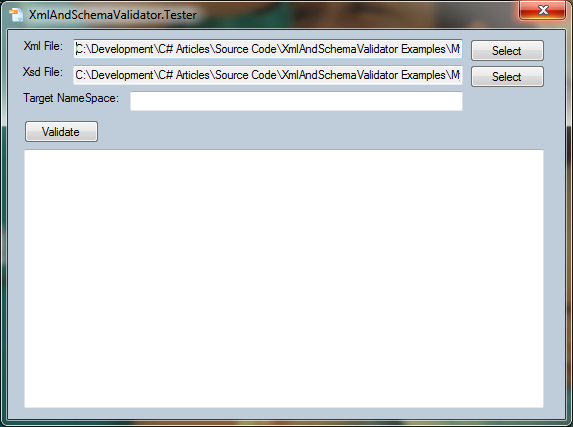

4. XmlAndSchemaValidator Tester Application Validation Windows Form Source Code
  1. using System;
  2. using System.IO;
  3. using System.Collections.Generic;
  4. using System.ComponentModel;
  5. using System.Data;
  6. using System.Drawing;
  7. using System.Linq;
  8. using System.Text;
  9. using System.Windows.Forms;
  10.
  11. namespace XmlAndSchemaValidator.Tester
  12. {
  13.     public partial class ValidationForm : Form
  14.     {
  15.         #region Attibutes
  16.         private DialogResult _DialogResult;
  17.         private XmlAndSchemaValidator.Validator _Validator = null;
  18.         #endregion
  19.
  20.         #region Object Constructor
  21.         public ValidationForm()
  22.         {
  23.             InitializeComponent();
  24.         }
  25.         #endregion
  26.
  27.         #region Events
  28.         #region bntSelectXmlFile_Click
  29.         private void bntSelectXmlFile_Click(object sender, EventArgs e)
  30.         {
  31.             string _ErrorMsg = string.Empty;
  32.
  33.             try
  34.             {
  35.                 this.txtXmlFile.Text = string.Empty;
  36.
  37.                 this.ofdXmlFile = new OpenFileDialog();
  38.                 this.ofdXmlFile.Filter = "Xml Files (*.xml)|*.xml|All Files (*.*)|*.*";
  39.                 this.ofdXmlFile.Title = "Select Xml file for Schema validation";
  40.                 this._DialogResult = this.ofdXmlFile.ShowDialog();
  41.
  42.                 if (this._DialogResult == System.Windows.Forms.DialogResult.OK)
  43.                 {
  44.                     if (this.ofdXmlFile.FileName != string.Empty)
  45.                     {
  46.                         this.txtXmlFile.Text = this.ofdXmlFile.FileName.ToString().Trim();
  47.                     }
  48.                 }
  49.             }
  50.             catch (Exception _Exception)
  51.             {
  52.                 _ErrorMsg = string.Empty;
  53.                 _ErrorMsg = "*************** Error ***************" + "\r\n";
  54.                 _ErrorMsg = _ErrorMsg + " -> Event: bntSelectXmlFile_Click\r\n";
  55.                 _ErrorMsg = _ErrorMsg + " -> Message: " + _Exception.Message.ToString() + "\r\n";
  56.                 _ErrorMsg = _ErrorMsg + " -> Stack Trace: " + _Exception.StackTrace.ToString() + "\r\n";
  57.
  58.                 if (_Exception.InnerException != null)
  59.                 {
  60.                     _ErrorMsg = _ErrorMsg + " -> InnerException Message: " + _Exception.InnerException.Message.ToString() + "\r\n";
  61.                     _ErrorMsg = _ErrorMsg + " -> InnerException Stack Trace: " + _Exception.InnerException.StackTrace.ToString() + "\r\n";
  62.                 }
  63.
  64.                 _ErrorMsg = "*************************************";
  65.
  66.                 MessageBox.Show(_ErrorMsg, "XmlAndSchemaValidator", MessageBoxButtons.OK, MessageBoxIcon.Error);
  67.             }
  68.         }
  69.         #endregion
  70.
  71.         #region bntSelectXsdFile_Click
  72.         private void bntSelectXsdFile_Click(object sender, EventArgs e)
  73.         {
  74.             string _ErrorMsg = string.Empty;
  75.
  76.             try
  77.             {
  78.                 this.txtXsdFile.Text = string.Empty;
  79.
  80.                 this.ofdXsdFile = new OpenFileDialog();
  81.                 this.ofdXsdFile.Filter = "Xsd Files (*.Xsd)|*.Xsd|All Files (*.*)|*.*";
  82.                 this.ofdXsdFile.Title = "Select Xsd file to use in validation";
  83.                 this._DialogResult = this.ofdXsdFile.ShowDialog();
  84.
  85.                 if (this._DialogResult == System.Windows.Forms.DialogResult.OK)
  86.                 {
  87.                     if (this.ofdXsdFile.FileName != string.Empty)
  88.                     {
  89.                         this.txtXsdFile.Text = this.ofdXsdFile.FileName.ToString().Trim();
  90.                     }
  91.                 }
  92.             }
  93.             catch (Exception _Exception)
  94.             {
  95.                 _ErrorMsg = string.Empty;
  96.                 _ErrorMsg = "*************** Error ***************" + "\r\n";
  97.                 _ErrorMsg = _ErrorMsg + " -> Event: bntSelectXsdFile_Click\r\n";
  98.                 _ErrorMsg = _ErrorMsg + " -> Message: " + _Exception.Message.ToString() + "\r\n";
  99.                 _ErrorMsg = _ErrorMsg + " -> Stack Trace: " + _Exception.StackTrace.ToString() + "\r\n";
  100.
  101.                 if (_Exception.InnerException != null)
  102.                 {
  103.                     _ErrorMsg = _ErrorMsg + " -> InnerException Message: " + _Exception.InnerException.Message.ToString() + "\r\n";
  104.                     _ErrorMsg = _ErrorMsg + " -> InnerException Stack Trace: " + _Exception.InnerException.StackTrace.ToString() + "\r\n";
  105.                 }
  106.
  107.                 _ErrorMsg = "*************************************";
  108.
  109.                 MessageBox.Show(_ErrorMsg, "XmlAndSchemaValidator", MessageBoxButtons.OK, MessageBoxIcon.Error);
  110.             }
  111.         }
  112.         #endregion
  113.
  114.         #region bntValidate_Click
  115.         private void bntValidate_Click(object sender, EventArgs e)
  116.         {
  117.             string _ErrorMsg = string.Empty;
  118.             string _ValidatorErrorMsg = string.Empty;
  119.             FileInfo _FileInfo = null;
  120.
  121.             try
  122.             {
  123.                 this.txtValidationResult.Text = string.Empty;
  124.
  125.                 _FileInfo = new FileInfo(this.txtXmlFile.Text);
  126.                 this._Validator = new XmlAndSchemaValidator.Validator();
  127.                 _ValidatorErrorMsg = this._Validator.Validate(3, _FileInfo, System.Xml.XmlNodeType.Element, this.txtTargetNameSpace.Text, this.txtXsdFile.Text);
  128.
  129.                 if (_ValidatorErrorMsg != string.Empty)
  130.                 {
  131.                     _ErrorMsg = string.Empty;
  132.                     _ErrorMsg = "*************** Validation Error ***************" + "\r\n";
  133.                     _ErrorMsg = _ErrorMsg + "Validation Message: " + _ValidatorErrorMsg.ToString() + "\r\n";
  134.                     _ErrorMsg = _ErrorMsg + "************************************************";
  135.
  136.                     this.txtValidationResult.AppendText(_ErrorMsg);
  137.                 }
  138.                 else
  139.                 {
  140.                     _ErrorMsg = string.Empty;
  141.                     _ErrorMsg = "*************** Validation Sucess ***************" + "\r\n";
  142.                     _ErrorMsg = _ErrorMsg + "No Validation error ocorred!!!\r\n";
  143.                     _ErrorMsg = _ErrorMsg + "************************************************";
  144.
  145.                     this.txtValidationResult.AppendText(_ErrorMsg);
  146.                 }
  147.             }
  148.             catch (Exception _Exception)
  149.             {
  150.                 _ErrorMsg = string.Empty;
  151.                 _ErrorMsg = "*************** Error ***************" + "\r\n";
  152.                 _ErrorMsg = _ErrorMsg + " -> Event: bntValidate_Click\r\n";
  153.                 _ErrorMsg = _ErrorMsg + " -> Message: " + _Exception.Message.ToString() + "\r\n";
  154.                 _ErrorMsg = _ErrorMsg + " -> Stack Trace: " + _Exception.StackTrace.ToString() + "\r\n";
  155.
  156.                 if (_Exception.InnerException != null)
  157.                 {
  158.                     _ErrorMsg = _ErrorMsg + " -> InnerException Message: " + _Exception.InnerException.Message.ToString() + "\r\n";
  159.                     _ErrorMsg = _ErrorMsg + " -> InnerException Stack Trace: " + _Exception.InnerException.StackTrace.ToString() + "\r\n";
  160.                 }
  161.
  162.                 _ErrorMsg = _ErrorMsg + "*************************************";
  163.
  164.                 MessageBox.Show(_ErrorMsg, "XmlAndSchemaValidator", MessageBoxButtons.OK, MessageBoxIcon.Error);
  165.             }
  166.         }
  167.         #endregion
  168.         #endregion
  169.     }
  170. }
Finally the tester application should behave like this:


5. Conclution
Thank you for your care provided during reading my article and I hope you have been helped in some way.
