Introduction
Today we are creating a simple calculator Windows Store App using C# and XAML in Visual Studio 2012. This calculator app will simply perform addition, subtraction, multiplication, division and percentage calculation like the Windows Calculator but not like the scientific calculator.
Step 1

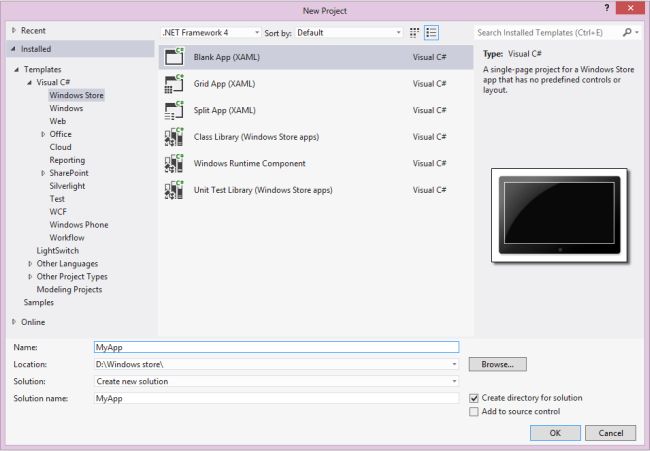

The first step is to create a new Windows Store App.
![New-Windows-Store-Apps.jpg]()
Step 2

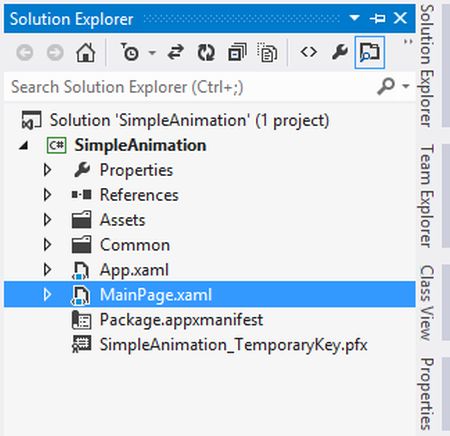

In the second step double-click on "MainPage.xaml":
![Solution-Explorer-Windows-Store-Apps.jpg]()
Step 3
The "MainPage.xaml" is as in the follwoing code:
<Page
x:Class="App2.MainPage"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:local="using:App2"
xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
mc:Ignorable="d">
<Grid Background="{StaticResource ApplicationPageBackgroundThemeBrush}">
<TextBox HorizontalAlignment="Left" TextWrapping="Wrap" Text="" VerticalAlignment="Top" Margin="436,85,0,0" Width="380" x:Name="TextBox" FontWeight="Bold"/>
<TextBox HorizontalAlignment="Left" x:Name="ValuText" TextWrapping="Wrap" Text="" VerticalAlignment="Top" Margin="436,117,0,0" Width="380"/>
<Button Content="Plus" HorizontalAlignment="Left" VerticalAlignment="Top" Margin="436,176,0,0" Width="80" x:Name="BtnPlus" Click="BtnPlus_Click"/>
<Button Content="Subs" HorizontalAlignment="Left" VerticalAlignment="Top" Margin="536,176,0,0" Width="80" x:Name="BtnMinus" Click="BtnMinus_Click"/>
<Button Content="Multi" HorizontalAlignment="Left" VerticalAlignment="Top" Margin="636,176,0,0" Width="80" x:Name="BtnMulti" Click="BtnMulti_Click"/>
<Button Content="Dive" HorizontalAlignment="Left" VerticalAlignment="Top" Margin="736,176,0,0" Width="80" x:Name="BtnDiv" Click="BtnDiv_Click"/>
<Button Content="1" HorizontalAlignment="Left" VerticalAlignment="Top" Margin="436,231,0,0" Width="80" x:Name="Btn1" Click="Btn1_Click"/>
<Button Content="2" HorizontalAlignment="Left" VerticalAlignment="Top" Margin="536,231,0,0" Width="80" x:Name="Btn2" Click="Btn2_Click"/>
<Button Content="3" HorizontalAlignment="Left" VerticalAlignment="Top" Margin="636,231,0,0" Width="80" x:Name="Btn3" Click="Btn3_Click"/>
<Button Content="4" HorizontalAlignment="Left" VerticalAlignment="Top" Margin="436,287,0,0" Width="80" x:Name="Btn4" Click="Btn4_Click"/>
<Button Content="5" HorizontalAlignment="Left" VerticalAlignment="Top" Margin="536,287,0,0" Width="80" x:Name="Btn5" Click="Btn5_Click"/>
<Button Content="6" HorizontalAlignment="Left" VerticalAlignment="Top" Margin="636,287,0,0" Width="80" x:Name="Btn6" Click="Btn6_Click"/>
<Button Content="7" HorizontalAlignment="Left" VerticalAlignment="Top" Margin="436,342,0,0" Width="80" x:Name="Btn7" Click="Btn7_Click"/>
<Button Content="8" HorizontalAlignment="Left" VerticalAlignment="Top" Margin="536,342,0,0" Width="80" x:Name="Btn8" Click="Btn8_Click"/>
<Button Content="9" HorizontalAlignment="Left" VerticalAlignment="Top" Margin="636,342,0,0" Width="80" x:Name="Btn9" Click="Btn9_Click"/>
<Button Content="0" HorizontalAlignment="Left" VerticalAlignment="Top" Margin="436,399,0,0" Width="80" x:Name="Btn0" Click="Btn0_Click"/>
<Button Content="." HorizontalAlignment="Left" VerticalAlignment="Top" Margin="536,399,0,0" Width="80" x:Name="BtnDot" Click="BtnDot_Click"/>
<Button Content="Cancel" HorizontalAlignment="Left" VerticalAlignment="Top" Margin="636,399,0,0" Width="80" x:Name="BtnCan" Click="BtnCan_Click"/>
<Button Content="=" HorizontalAlignment="Left" VerticalAlignment="Top" Margin="736,342,0,0" Height="95" Width="80" x:Name="BtnEqual" Click="BtnEqual_Click"/>
<Button Content="Per" HorizontalAlignment="Left" VerticalAlignment="Top" Margin="736,231,0,0" Width="80" x:Name="BtnPer" Click="BtnPer_Click"/>
<Button Content="Clear" HorizontalAlignment="Left" VerticalAlignment="Top" Margin="736,287,0,0" Width="80" Click="Button_Click_1"/>
</Grid>
</Page>
Step 4
The "MainPage.xaml.cs" is as in the following code:
using System;
using System.Collections.Generic;
using System.IO;
using System.Linq;
using Windows.Foundation;
using Windows.Foundation.Collections;
using Windows.UI.Xaml;
using Windows.UI.Xaml.Controls;
using Windows.UI.Xaml.Controls.Primitives;
using Windows.UI.Xaml.Data;
using Windows.UI.Xaml.Input;
using Windows.UI.Xaml.Media;
using Windows.UI.Xaml.Navigation;
namespace App2
{
public sealed partial class MainPage : Page
{
public MainPage()
{
this.InitializeComponent();
}
protected override void OnNavigatedTo(NavigationEventArgs e)
{
ValuText.IsReadOnly = true;
}
string opration;
double num1, num2, result;
private void Btn1_Click(object sender, RoutedEventArgs e)
{
TextBox.Text = TextBox.Text + "1";
}
private void Btn2_Click(object sender, RoutedEventArgs e)
{
TextBox.Text = TextBox.Text + "2";
}
private void Btn3_Click(object sender, RoutedEventArgs e)
{
TextBox.Text = TextBox.Text + "3";
}
private void Btn4_Click(object sender, RoutedEventArgs e)
{
TextBox.Text = TextBox.Text + "4";
}
private void Btn5_Click(object sender, RoutedEventArgs e)
{
TextBox.Text = TextBox.Text + "5";
}
private void Btn6_Click(object sender, RoutedEventArgs e)
{
TextBox.Text = TextBox.Text + "6";
}
private void Btn7_Click(object sender, RoutedEventArgs e)
{
TextBox.Text = TextBox.Text + "7";
}
private void Btn8_Click(object sender, RoutedEventArgs e)
{
TextBox.Text = TextBox.Text + "8";
}
private void Btn9_Click(object sender, RoutedEventArgs e)
{
TextBox.Text = TextBox.Text + "9";
}
private void Btn0_Click(object sender, RoutedEventArgs e)
{
TextBox.Text = TextBox.Text + "0";
}
private void BtnDot_Click(object sender, RoutedEventArgs e)
{
if(TextBox.Text.Contains("."))
{
TextBox.Text=TextBox.Text;
}
else
{
TextBox.Text=TextBox.Text+".";
}
}
private void BtnPlus_Click(object sender, RoutedEventArgs e)
{
if (TextBox.Text.Length > 0)
{
num1 = double.Parse(TextBox.Text);
opration = "+";
TextBox.Text = "";
ValuText.Text = num1 + "+";
}
}
private void BtnMinus_Click(object sender, RoutedEventArgs e)
{
if (TextBox.Text.Length > 0)
{
num1 = double.Parse(TextBox.Text);
opration = "-";
TextBox.Text = "";
ValuText.Text = num1 + "-";
}
}
private void BtnMulti_Click(object sender, RoutedEventArgs e)
{
if (TextBox.Text.Length > 0)
{
num1 = double.Parse(TextBox.Text);
opration = "*";
TextBox.Text = "";
ValuText.Text = num1 + "*";
}
}
private void BtnDiv_Click(object sender, RoutedEventArgs e)
{
if (TextBox.Text.Length > 0)
{
num1 = double.Parse(TextBox.Text);
opration = "/";
TextBox.Text = "";
ValuText.Text = num1 + "/";
}
}
private void BtnPer_Click(object sender, RoutedEventArgs e)
{
if (TextBox.Text.Length > 0)
{
num1 = double.Parse(TextBox.Text);
opration = "%";
TextBox.Text = "";
ValuText.Text = num1 + "%";
}
}
private void BtnCan_Click(object sender, RoutedEventArgs e)
{
int length = TextBox.Text.Length;
if (length > 0)
{
TextBox.Text = TextBox.Text.Remove(length - 1);
}
else
{
TextBox.Text = TextBox.Text;
}
}
private void Button_Click_1(object sender, RoutedEventArgs e)
{
TextBox.Text = "";
ValuText.Text = "";
}
private void BtnEqual_Click(object sender, RoutedEventArgs e)
{
if (TextBox.Text.Length > 0)
{
num2 = double.Parse(TextBox.Text);
ValuText.Text = "";
switch (opration)
{
case "+":
result = num1 + num2;
TextBox.Text = result.ToString();
break;
case "-":
result = num1 - num2;
TextBox.Text = result.ToString();
break;
case "*":
result = num1 * num2;
TextBox.Text = result.ToString();
break;
case "/":
if (num2 == 0)
{
ValuText.Text = "Cannot divide by zero";
break;
}
else
{
result = num1 / num2;
TextBox.Text = result.ToString();
break;
}
case "%":
num1 = num1 * num2;
result = num1 / 100;
TextBox.Text = result.ToString();
break;
}
}
}
}
}
Step 5

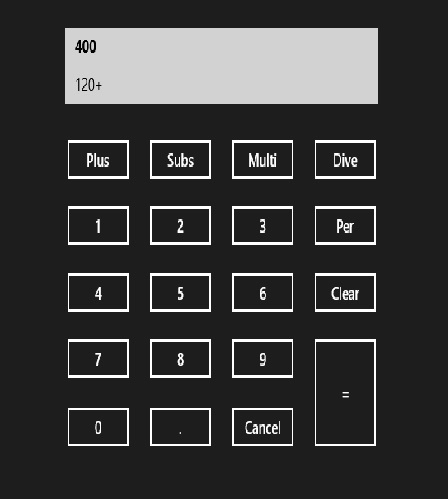

After running the program the output will look as in the following:
![Cal-Result-Windows-Store-Apps.jpg]()
