Adding CustomToast in Android

Introduction


This article shows how to add a CustomToast in Android.

Procedure
  1. Start Eclipse IDE.
  2. Create a new project.
  3. Create a MainActivity.java file.
  4. Create three XML files, for example, activity_main.xml, customtoastt.xml, and hhh.xml for layout design.
  5. Add Textview fields in activity_main.xml, textview, and imageview in the customtoastt.xml layout.
  6. In onTouch function set the code of the custom toast.
The following is the code.

MainActivity.java
  1. package com.example.customtoasttodayyyy;
  2. import android.os.Bundle;
  3. import android.app.Activity;
  4. import android.graphics.Color;
  5. import android.view.Gravity;
  6. import android.view.LayoutInflater;
  7. import android.view.Menu;
  8. import android.view.MotionEvent;
  9. import android.view.View;
  10. import android.view.View.OnTouchListener;
  11. import android.view.ViewGroup;
  12. import android.widget.ImageView;
  13. import android.widget.TextView;
  14. import android.widget.Toast;
  15. public class MainActivity extends Activity implements OnTouchListener {
  16.  TextView tv;
  17.  @Override
  18.  protected void onCreate(Bundle savedInstanceState) {
  19.   super.onCreate(savedInstanceState);
  20.   setContentView(R.layout.activity_main);
  21.   tv = (TextView) findViewById(R.id.textView2);
  22.   tv.setOnTouchListener(this);
  23.  }
  24.  public boolean onTouch(View v, MotionEvent event) {
  25.   Toast t1 = new Toast(this);
  26.   LayoutInflater li = getLayoutInflater();
  27.   View vv = li.inflate(R.layout.customtoastt, (ViewGroup) findViewById(R.id.aa));
  28.   t1.setGravity(Gravity.TOP, 00);
  29.   t1.setDuration(Toast.LENGTH_LONG);
  30.   t1.setView(vv);
  31.   t1.show();
  32.   return false;
  33.  }
activity_main.xml
  1. <RelativeLayout
  2.     xmlns:android="http://schemas.android.com/apk/res/android"
  3.     xmlns:tools="http://schemas.android.com/tools"
  4.     android:layout_width="match_parent"
  5.     android:layout_height="match_parent"
  6.     android:paddingBottom="@dimen/activity_vertical_margin"
  7.     android:paddingLeft="@dimen/activity_horizontal_margin"
  8.     android:paddingRight="@dimen/activity_horizontal_margin"
  9.     android:paddingTop="@dimen/activity_vertical_margin"
  10.     tools:context=".MainActivity" >
  11.
  12.     <TextView
  13.         android:id="@+id/textView1"
  14.         android:layout_width="wrap_content"
  15.         android:layout_height="wrap_content"
  16.         android:text="Good Morning Guyzz click on custom toast" />
  17.
  18.     <TextView
  19.         android:id="@+id/textView2"
  20.         android:layout_width="wrap_content"
  21.         android:layout_height="wrap_content"
  22.         android:layout_below="@+id/textView1"
  23.         android:layout_marginLeft="41dp"
  24.         android:layout_marginTop="102dp"
  25.         android:layout_toRightOf="@+id/textView1"
  26.         android:text="CustomToast"
  27.         android:textAppearance="?android:attr/textAppearanceLarge"/>
  28.
  29. </RelativeLayout>
customtoastt.xml
  1. <?xml version="1.0" encoding="utf-8"?>
  2.
  3. <LinearLayout
  4.     xmlns:android="http://schemas.android.com/apk/res/android"
  5.     android:id="@+id/aa"
  6.     android:layout_width="match_parent"
  7.     android:layout_height="match_parent"
  8.     android:gravity="center"
  9.     android:orientation="vertical" >
  10.
  11.     <ImageView
  12.         android:layout_width="wrap_content"
  13.         android:layout_height="200px"
  14.         android:background="@drawable/desert" />
  15.
  16.     <TextView
  17.         android:layout_width="wrap_content"
  18.         android:layout_height="wrap_content"
  19.         android:text="Hello Abhijeet "
  20.         android:textColor="#ff00cc"
  21.         android:textSize="40px"
  22.         android:textStyle="bold" />
  23.
  24. </LinearLayout>
hhh.xml
  1. <?xml version="1.0" encoding="utf-8"?>
  2.
  3. <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
  4.     android:layout_width="match_parent"
  5.     android:layout_height="match_parent"
  6.     android:orientation="vertical" >
  7.
  8. </LinearLayout>

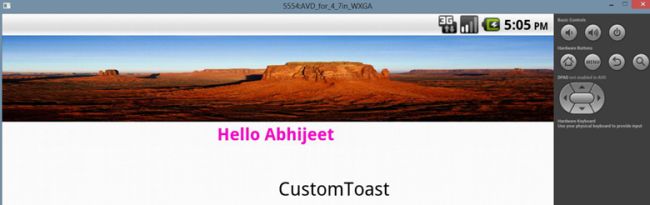

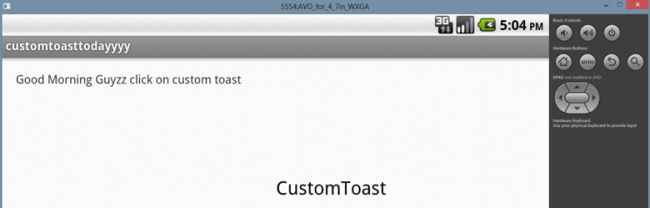

Output
