How to Create Global Broadcast Receiver and Test Service in Android

This article explains how to create a global broadcast receiver as well as to create services in an Android project.

Introduction


This article explains how to create a global broadcast receiver as well as to create services in an Android project. First of all we will create a new project in Android.

Procedure
  1. Start the Eclipse IDE.
  2. Create a new project.
  3. Create a MainActivity.java (here Abhijeet.java) file.
  4. Create a new java file bootstartup.java as in the following:

    1. public class bootstartup extends BroadcastReceiver {
    2.
    3.     @Override
    4.
    5.     public void onReceive(Context context, Intent intent) {
    6.
    7.     // start the service
    8.     Intent service=new Intent(context,TestService.class);
    9.     context.startService(service);
    10. Log.e("com.example.myglobalbroadcastreceiver",
    11. "BroadcastReceived:"+intent.getAction())
    12.
    13.     // start the app
    14. Intent app= new Intent(context,Abhijeet.class);
    15. context.startService(app);
  5. Create a new java file TestService.java as in the following:

    1. public class TestService extends Service {
    2.
    3.             @Override
    4.             public IBinder onBind(Intent arg0) {
    5.                         // TODO Auto-generated method stub
    6.             throw new UnsupportedOperationException("it is not implemented");
    7.             }
    8.
    9.             @Override
    10.             public void onCreate() {
    11.                         // TODO Auto-generated method stub
    12.                         super.onCreate();
    13. Toast.makeText(getApplicationContext(), "abhijeet's Service is created",1).show();
    14.
    15.             }
    16.
    17.             @Override
    18.             public void onDestroy() {
    19.                         // TODO Auto-generated method stub
    20.
    21. Toast.makeText(getApplicationContext(), "Service is destroyed",1).show();
    22.
    23.                         super.onDestroy();
    24.             }
    25.
    26.             @Override
    27.             public int onStartCommand(Intent intent, int flags, int startId) {
    28.                         // TODO Auto-generated method stub
    29.
    30. Toast.makeText(getApplicationContext(), " abhijeet's Service is working",1).show();
    31.
    32. return super.onStartCommand(intent, flags, startId);
    33.             }
  6.  Now add a bootstartup.java file as a receiver.

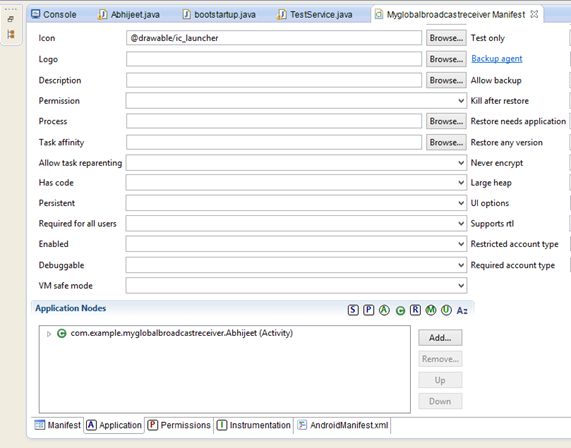

    Step 1: Open the application of the manifest file as in the following:

    Manifest File

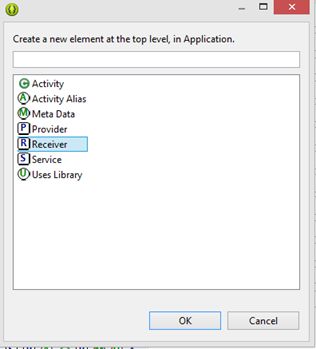

    Step 2: Then click on Add for adding a receiver.

    Adding Reciever

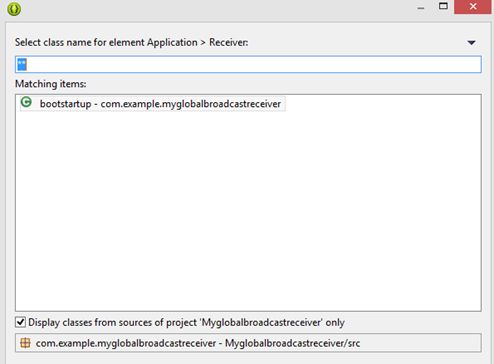

    Step 3: It will automatically search the bootstartup receiver class.

    Reciever Class

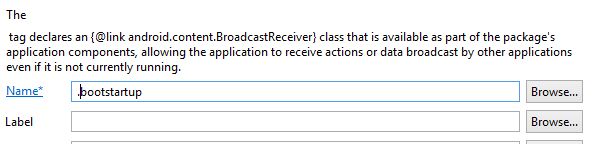

    Step 4: It is very important for making a global receiver that we should provide a name to that receiver such that the name is started with a dot followed by a lower-case letter.

    Global Reciever

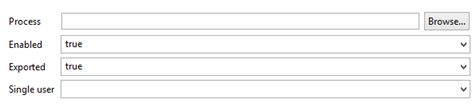

    Step 5: Set the Exported and Enabled properties to true as in the following:

    Enabling Property

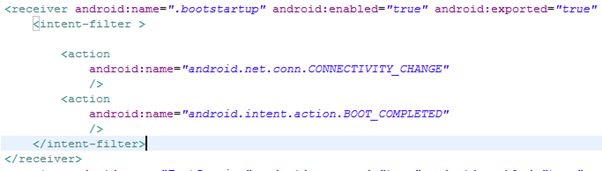

    Step 6: Add actions on the receiver in the manifest file as in the following:

    Adding Actions

  7. Now add a TestService.java file as a Service in the manifest file.

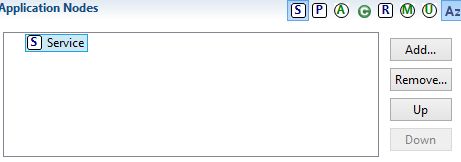

    Step 1: Select Service.

    Select Service

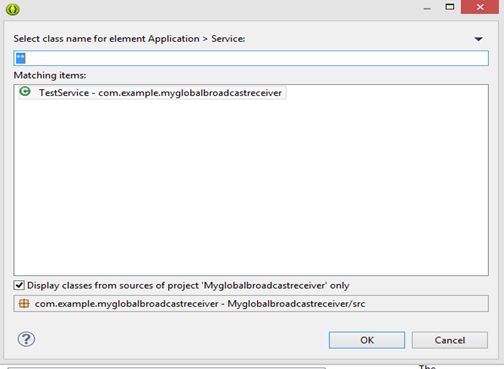

    Step 2: It will automatically search the TestService class.

    Adding Class

    Step 3: Select the true option for the exported and enabled properties as in the following:


    <service android:name="TestService" android:exported="true" android:enabled="true" android:permission="android.permission.INTERNET"></service>

Code

Abhijeet.java

  1. package com.example.myglobalbroadcastreceiver;
  2. import android.support.v7.app.ActionBarActivity;
  3. import android.support.v7.app.ActionBar;
  4. import android.support.v4.app.Fragment;
  5. import android.os.Bundle;
  6. import android.view.LayoutInflater;
  7. import android.view.Menu;
  8. import android.view.MenuItem;
  9. import android.view.View;
  10. import android.view.ViewGroup;
  11. import android.os.Build;
  12.
  13. public class Abhijeet extends ActionBarActivity {
  14.
  15.             @Override
  16.             protected void onCreate(Bundle savedInstanceState) {
  17.                         super.onCreate(savedInstanceState);
  18.                         setContentView(R.layout.activity_abhijeet);
  19.
  20.                         if (savedInstanceState == null) {
  21.                                     getSupportFragmentManager().beginTransaction()
  22.                                                             .add(R.id.container, new PlaceholderFragment()).commit();
  23.                         }
  24.             }
  25.
  26.             @Override
  27.             public boolean onCreateOptionsMenu(Menu menu) {
  28.
  29.                         // Inflate the menu; this adds items to the action bar if it is present.
  30.                         getMenuInflater().inflate(R.menu.abhijeet, menu);
  31.                         return true;
  32.             }
  33.
  34.             @Override
  35.             public boolean onOptionsItemSelected(MenuItem item) {
  36.                         // Handle action bar item clicks here. The action bar will
  37.                         // automatically handle clicks on the Home/Up button, so long
  38.                         // as you specify a parent activity in AndroidManifest.xml.
  39.                         int id = item.getItemId();
  40.                         if (id == R.id.action_settings) {
  41.                                     return true;
  42.                         }
  43.                         return super.onOptionsItemSelected(item);
  44.             }
  45.
  46.             /**
  47.              * A placeholder fragment containing a simple view.
  48.              */
  49.             public static class PlaceholderFragment extends Fragment {
  50.
  51.                         public PlaceholderFragment() {
  52.                         }
  53.                         @Override
  54.                         public View onCreateView(LayoutInflater inflater, ViewGroup container,
  55.                                                 Bundle savedInstanceState) {
  56.                                     View rootView = inflater.inflate(R.layout.fragment_abhijeet,
  57.                                                             container, false);
  58.                                     return rootView;
  59.                         }
  60.             }
  61. }

 bootstartup.java

  1. package com.example.myglobalbroadcastreceiver;
  2. import android.content.BroadcastReceiver;
  3. import android.content.Context;
  4. import android.content.Intent;
  5. import android.util.Log;
  6.
  7. public class bootstartup extends BroadcastReceiver {
  8.
  9.             @Override
  10.
  11.             public void onReceive(Context context, Intent intent) {
  12.                         // TODO Auto-generated method stub
  13.                         // start the service
  14.                         Intent service=new Intent(context,TestService.class);
  15.                         context.startService(service);
  16.                         Log.e("com.example.myglobalbroadcastreceiver","Broadcast Received:"+intent.getAction());
  17.
  18.                         // start the app
  19.                         Intent app= new Intent(context,Abhijeet.class);
  20.                         context.startService(app);
  21.             }
  22. }

TestService.java

  1. package com.example.myglobalbroadcastreceiver;
  2. import android.app.Service;
  3. import android.content.Intent;
  4. import android.os.IBinder;
  5. import android.widget.Toast;
  6.
  7. public class TestService extends Service {
  8.
  9.             @Override
  10.             public IBinder onBind(Intent arg0) {
  11.                         // TODO Auto-generated method stub
  12.                         throw new UnsupportedOperationException("it is not implemented");
  13.             }
  14.
  15.             @Override
  16.             public void onCreate() {
  17.                         // TODO Auto-generated method stub
  18.                         super.onCreate();
  19.                         Toast.makeText(getApplicationContext(), "abhijeet's Service is created",1).show();
  20.             }
  21.
  22.             @Override
  23.             public void onDestroy() {
  24.                         // TODO Auto-generated method stub
  25.                         Toast.makeText(getApplicationContext(), "Service is destroyed",1).show();
  26.                         super.onDestroy();
  27.             }
  28.
  29.             @Override
  30.             public int onStartCommand(Intent intent, int flags, int startId) {
  31.                         // TODO Auto-generated method stub
  32.                         Toast.makeText(getApplicationContext(), " abhijeet's Service is working",1).show();
  33.                         return super.onStartCommand(intent, flags, startId);
  34.             }
  35. }

Output

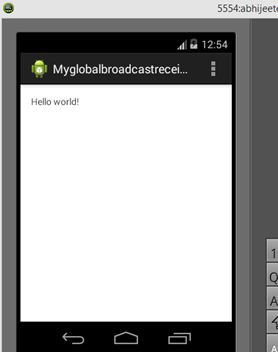

Step 1: Run the Application.

Running Application on Android

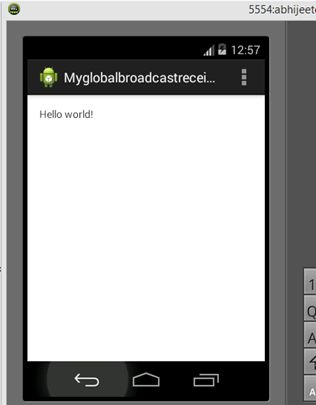

Step 2: Click on the back button.

Clicking on Back Button

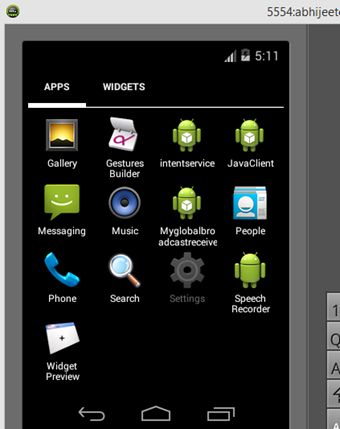

Step 3: Go to Settings.

Settings on Android App

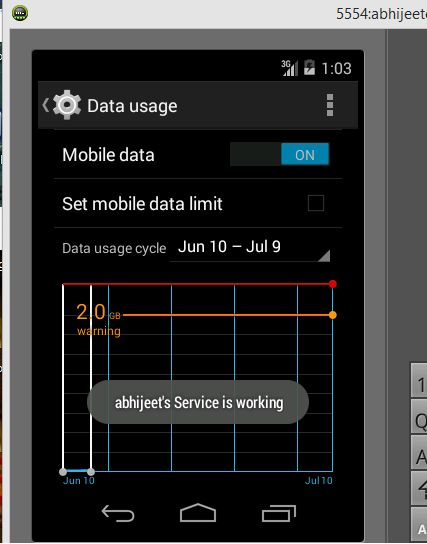

Step 4: Go to Data Usage and turn on the mobile data. We can see that the service is working. It is due to the action used in the receiver.

<action android:name="android.net.conn.CONNECTIVITY_CHANGE"   />

Data Usage of Android App
