Getting Started With ASP.Net MVC

What is ASP.NET MVC?

Model-View-Controller (MVC) is a pattern to separate an application into the following three main components

  1. Model
  2. View
  3. Controller

The ASP.NET MVC framework provides an alternative to the ASP.NET Web Forms pattern for creating web applications. The ASP.NET MVC Framework is a lightweight, highly testable presentation framework that (as with Web Forms-based applications) is integrated with existing ASP.NET features, such as master pages and membership-based authentications. The MVC framework is defined in the System.Web.Mvc assembly. It provides full control over HTML, JavaScript, and CSS. It's the better as well as a recommended approach for large-scale applications where various teams are working together.

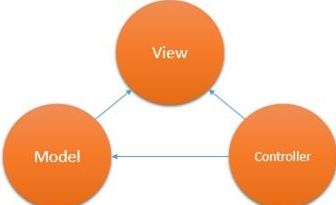

MVC design pattern

MVC design pattern

Advantages of an MVC-Based Web Application

The ASP.NET MVC framework offers the following advantages

  • It makes it very easy to manage complexity by dividing an application into the Model, the view, and the Controller.
  • It does not use view state or server-based forms.
  • Full control over HTML, JavaScript, and CSS.
  • It provides better support for Test-Driven Development (TDD).
  • It works well for Web applications that are supported by large teams of developers and for web designers who need a high degree of control over the application behavior.
  • By default support of Facebook and Google authentication.
  • It is easy to manage a large application by divide in multiple Areas.

ASP.NET MVC reference namespaces

  • System.Web.Mvc: Contains classes and interfaces that support the MVC pattern for ASP.NET Web applications. This namespace includes classes that represent controllers, controller factories, action results, views, partial views, and model binders.
  • System.Web.Mvc.Ajax: Contains classes that support Ajax scripts in an ASP.NET MVC application. The namespace includes support for Ajax scripts and Ajax option settings.
  • System.Web.Mvc.Async: Contains classes and interfaces that support asynchronous actions in an ASP.NET MVC application.
  • System.Web.Mvc.HTML: Contains classes that help render HTML controls in an MVC application. The namespace includes classes that support forms, input controls, links, partial views, and validation.

Difference between ASP.NET MVC and Web Forms


Web Forms ASP.NET
Web forms use Code behind the technique that is divided into two parts.aspx file for View and .aspx.cs/.aspx.vb for Code file An ASP.NET MVC web application is a design pattern that manages the application into separate 3 folders Model, View, Controller
ASP.NET Web Form has server controls ASP.NET MVC has html helpers
ASP.NET Web Form supports view state for state management at client-side ASP.NET MVC does not support view state
ASP.NET Web Forms model follows a Page Life cycle No Page Life cycle like Web Forms. The request cycle is simple in the ASP.NET MVC model
Provides limited control over HTML, JavaScript, and CSS that is necessary in many cases Full control over HTML, JavaScript, and CSS
It's good for small-scale applications with limited team size ASP.NET MVC is a recommended approach for large-scale applications where various teams are working together


ASP.NET MVC application solution

An ASP.NET MVC Application Solution is divided into three minimum folders Model, View, and Controller and also we have more folders to place script files and App_Start and much more.

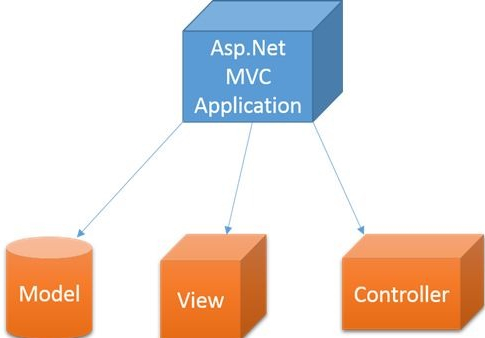

MVC application solution

  1. Model: The Model is used to store Data Classes created by LINQ to SQL or Entity Framework, or may be the reference of Services from WCF or many more. Finally, we just use the Model to represent the Data Schema for a View/Partial View.
  2. View: The View Folder stores the View pages or Partial View Pages for a specific action declared in the Controller Class. The View folder might contain a Shared Folder also in which we can store common pages or user controls that can be used in any controller. Every request for a view or partial view page from an Action method is also checked by the page extension into the Shared Folder.
  3. Controller: The Controller is just used to store some Business Logic Class, the Controller is a collection of only classes and every class is a child class of the System.Web.Mvc.Controller class. A Controller class only contains some Methods known as Action methods that are responsible for returning a View, Partial View, Content, JSON Data, and more.

Actions

Actions are only spatial types of methods for writing the code for a specific task and then are also responsible for returning something to the user and that can be a page/partial page (User Controls). Any action handles the two types of HTTP requests.

  1. [HttpGet]: [HttpGet] actions to handle requests coming directly from the user and we can also say those requests coming for the first time for an Action method.
  2. [HttpPost]: [HttpPost] actions are only called when there is a previous view on the client side and the user submits an HTML Form by a Submit Type button so when that type of action is called it can also return all the control values in a FormCollection Type object from the HTML Form.
    An Action Method may use many types of return types to return various types of info or values to the user. We have many types to return from an Action Method to the user but the maximum time we will use ActionResult because it's a parent type and any other types can be used in an Action Method as a return type.

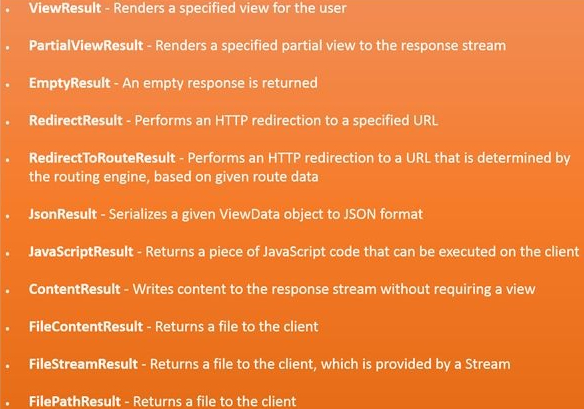

ActionResult is an abstract class that can have several subtypes

ActionResult Subtypes

View result

Areas in ASP.NET MVC

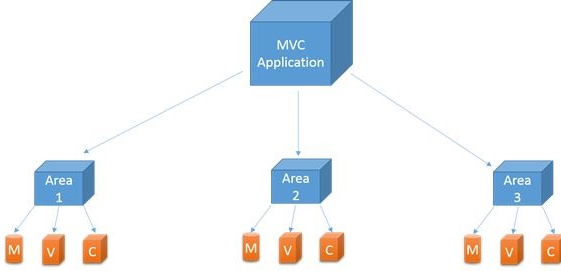

Beginning with ASP.NET MVC 2.0 Microsoft provided a new feature in MVC Applications, Areas. Areas are just used to divide or “isolate” the Modules of a large application in multiple or separated MVCs. Like

MVC result

When you add an area to a project, a route for the area is defined in an AreaRegistration file. The route sends requests to the area based on the request URL. To register routes for areas, you add code to the Global.asax file that can automatically find the area routes in the AreaRegistration file.

AreaRegistration.RegisterAllAreas();

Request Life cycle for an MVC application

In an ASP.NET MVC Application, there is no page life cycle as in ASP.NET Web Forms. We have a Request Life cycle in MVC Applications.

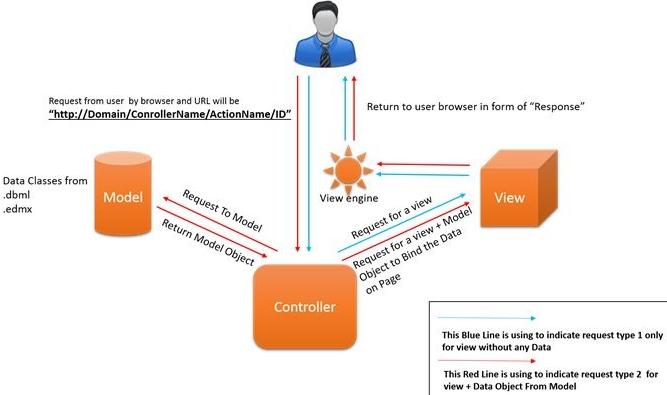

Request life cycle

In the MVC Application, when a user makes a request from the browser, then the request will be handled by IIS, and the request URL will be such as.

Http://SiteName/ControllerName/ActionName/ID

In that picture, I just described the two types of user requests.

  1. Request that returns a view only without data from the Model so when the user requests the request handled by the MVC Handler, then it is redirected to the Controller and then I'll directly call an Action Method that is [HttpGet]. If that method returns an instance of a ViewResult, then it will find the suitable view from the View Directory from the website solution, and then the View Engine (ASPX/RAZOR) will render the view in HTML for the user's browser.
  2. The second Request Type is when a user requests a View + data from the Model, so when the user requests, that request is handled by the MVC Handler and then redirected to the Controller, and then it'll directly call an Action Method that is [HttpGet]. If that method returns an instance of ViewResult with a Model Object, it'll request to the Model Class first for an object that we need to use on the view, then we return an instance of ViewResult “new ViewResult(ModelObject);“ that will be handled by the Model property of the View Class.

Two types of relationships between Views -> Model.

There can be two types of relationships between Views -> Model.

Binding

  1. Dynamic Binding: Dynamic Binding is when we pass an object to a ViewResult class object to return a view but never define the object type on the View page so we can use that object by reference under the inspection of the DLR but can't use any intelligence on Visual Studio at time of using this by the Model property on the view so we can write a dynamic expression only that will run at run time only.
  2. Strongly typed binding: Strongly typed binding is when we pass an object to a ViewResult class object to return a view, and before that, we need to define the type of that object on our view page so that we can handle that object in a type-safe object and can use that object on our view also the intelligence on Visual Studio.

View Engines

View Engines are responsible for rendering the HTML from your views to the browser. The view engine template will have a different syntax for implementation. Currently, there are a few view engines available for MVC, and the top view engines are RAZOR, ASPX, and ASP.NET. Also support some third-party View Engines Like Spark and NHaml.

ASPX

This ASPX is the first view engine for ASP.NET MVC Web Applications. The syntax for writing views with this engine is the same as the ASP.NET WebForms. We need to use “<%: %>” to write some server-side code or if we need to call any object property and all methods view and its parent. We have many view extensions for the pages and all are the same for both server-side languages, either C# or VB-like.

  1. .ASPX: .ASPX is an extension of a view page the same as in ASP.NET websites.
  2. .ASCX: .ASCX is an extension for a partial view in ASP.NET MVC, as is a User Control in ASP.NET.
  3. .Master: .Master is an extension for a Master Page, the same as in ASP.NET.

RAZOR

The Razor view engine is an advanced view engine from Microsoft for ASP.NET MVC that starts with MVC 3 for the first time. Razor uses a “@” character instead of appx's View Engine “<%: %>” and Razor does not require you to explicitly close the code-block; this view engine is parsed intelligently by the run-time to determine what is a presentation element and what is a code element.

In my opinion, Razor is the best view engine available for MVC since it is much cleaner and easier to write and read. This view engine is compatible with unit testing frameworks.

This is the default view engine in MVC 3.0, MVC 4.0, and also in MVC 5.0 for a view page. We have two different page extensions for C#/VB but the same for all types of views, whether we are creating a view, partial view, or Layout (Master) pages.

  • .cshtml: When we are using C# as a default Language in our ASP.NET MVC Applications for all types of pages like View, partial page, and layout page.
  • .vbhtml: When we are using VB as a default Language in our ASP.NET MVC Applications for all types of pages like View, partial page, and layout page.

Thanks

Connect (“Nitin Pandit “);
