Creating an Alert Dialog Box in Android

In this article you will learn how to make an Alert Dialog Box in Android.

Hey guys how are you? Today I will show you how to make an alert dialog box in Android. In this tutorial I am using the class reference here Android.Builder. Let's start.

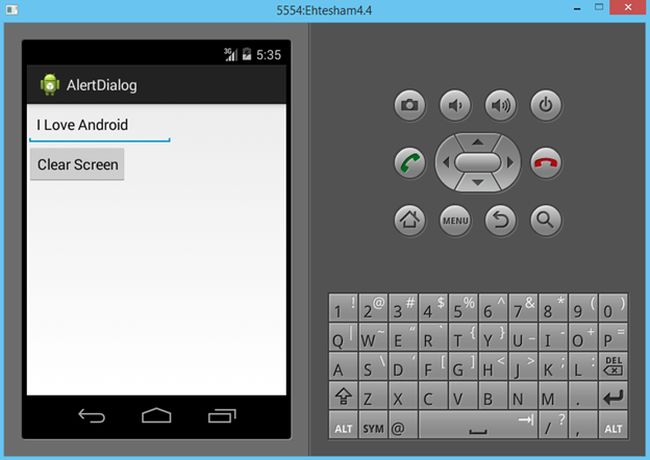

Figure 1

alertDialog in android

Figure 2

enter name in alertDialog in android

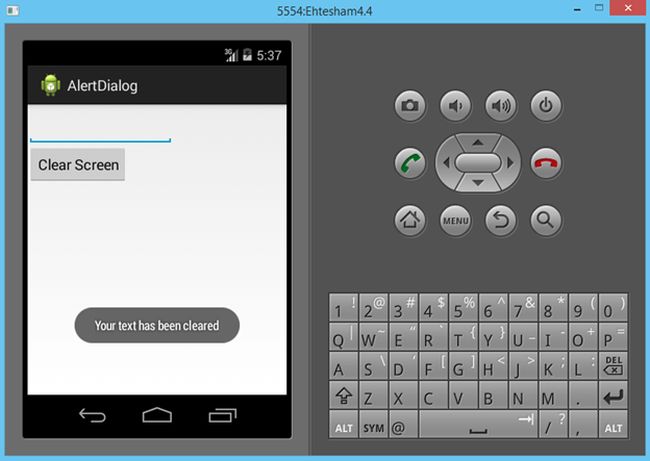

Figure 3

clear screen in android alertDialog


AndroidManifest.xml File

This is your AndroidManifest File; replace it with your own:

  1. <?xml version="1.0" encoding="utf-8"?>
  2. <manifest xmlns:android="http://schemas.android.com/apk/res/android"
  3.     package="com.example.alertdialog"
  4.     android:versionCode="1"
  5.     android:versionName="1.0" >
  6.
  7.     <uses-sdk
  8.         android:minSdkVersion="8"
  9.         android:targetSdkVersion="19" />
  10.
  11.     <application
  12.         android:allowBackup="true"
  13.         android:icon="@drawable/ic_launcher"
  14.         android:label="@string/app_name"
  15.         android:theme="@style/AppTheme" >
  16.         <activity
  17.             android:name="com.example.alertdialog.MainActivity"
  18.             android:label="@string/app_name" >
  19.             <intent-filter>
  20.                 <action android:name="android.intent.action.MAIN" />
  21.
  22.                 <category android:name="android.intent.category.LAUNCHER" />
  23.             </intent-filter>
  24.         </activity>
  25.     </application>
  26.
  27. </manifest>
Main.xml(Layout File)

This is your layout file:
  1. <?xml version="1.0" encoding="utf-8"?>
  2. <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
  3.     android:layout_width="match_parent"
  4.     android:layout_height="match_parent" >
  5.
  6.     <EditText
  7.         android:id="@+id/EditText01"
  8.         android:text="I Love Android"
  9.     android:layout_height="50dip"
  10.     android:layout_width="180dip">
  11.
  12.     </EditText>
  13.
  14.     <Button
  15.     android:id="@+id/Button01"
  16.     android:layout_width="wrap_content"
  17.     android:layout_height="wrap_content"
  18.     android:layout_below="@+id/EditText01"
  19.     android:text="Clear Screen">
  20.
  21.     </Button>
  22.
  23.
  24.
  25.
  26. </RelativeLayout>
MainActivity.java File

This is your main Java file in which you will code it:

package com.example.alertdialog;
  1. package com.example.alertdialog;
  2.
  3. import android.support.v7.app.ActionBarActivity;
  4. import android.support.v7.app.ActionBar;
  5. import android.support.v4.app.Fragment;
  6. import android.app.AlertDialog;
  7. import android.app.Dialog;
  8. import android.content.DialogInterface;
  9. import android.os.Bundle;
  10. import android.view.LayoutInflater;
  11. import android.view.Menu;
  12. import android.view.MenuItem;
  13. import android.view.View;
  14. import android.view.ViewGroup;
  15. import android.widget.Button;
  16. import android.widget.EditText;
  17. import android.widget.Toast;
  18. import android.os.Build;
  19.
  20. public class MainActivity extends ActionBarActivity
  21. {
  22.        Button Clear;
  23.        EditText edit_data;
  24.        //Called when the activity is first created
  25.        @Override
  26.        public void onCreate(Bundle savedInstanceState)
  27.        {
  28.              super.onCreate(savedInstanceState);
  29.              setContentView(R.layout.main);
  30.
  31.              Clear=(Button)findViewById(R.id.Button01);
  32.              edit_data=(EditText)findViewById(R.id.EditText01);
  33.
  34.              Clear.setOnClickListener(new View.OnClickListener()
  35.              {
  36.
  37.                    @Override
  38.                    public void onClick(View v)
  39.                    {
  40.
  41.                         AlertDialog.Builder builder=new AlertDialog.Builder(v.getContext());
  42.                         //Set a title
  43.                         builder.setTitle("Confirm");
  44.                         //Set a message
  45.                         builder.setMessage("Do you want to Clear?");
  46.                         ////Here Set a listener to be called when the positive button of the dialog is pressed.
  47.                         builder.setPositiveButton("OK",new DialogInterface.OnClickListener()
  48.                         {
  49.
  50.                               @Override
  51.                                public void onClick(DialogInterface dialog, int which)
  52.                               {
  53.
  54.                                     //clearing the contents of edittext on click of OK button
  55.                                     edit_data.setText("");
  56.                                     //Displaying a toast message
  57.                                     Toast.makeText(getApplicationContext(), "Your text has been cleared", Toast.LENGTH_LONG).show();
  58.                               }

  59.                          });
  60.                         //Here Set a listener to be called when the negative button of the dialog is pressed.
  61.                          builder.setNegativeButton("Cancel",new DialogInterface.OnClickListener()
  62.                          {
  63.
  64.                               @Override
  65.                               public void onClick(DialogInterface dialog, int which)
  66.                               {
  67.                                      // TODO Auto-generated method stub
  68.                                      dialog.cancel();
  69.                               }
  70.                          });
  71.
  72.                          //Create the dialog
  73.                          AlertDialog alertdialog=builder.create();
  74.
  75.                          //show the alertdialog
  76.                          alertdialog.show();
  77.
  78.                    }
  79.              });
  80.        }
  81.
  82. }
For any queries please comment. I hope you guys will like this article and share this article to the world for sharing knowledge.
