How to Create a Horizontal Hierarchical Menu Using HTML And CSS

Introduction


I am planning to write a series of articles on creating menus in various ways and this is the first one in the series. This article will explain how to create a simple 2-level menu using HTML and CSS only.

We know there are many ways to create an HTML menu but at times, we need to use only HTML/CSS in the project to create a nice menu. So, let's get started.

We will create a HTML structure as below using <ul> and <li> tags. Write the following code in your HTML file where you want to place the menu.
  1. <div class="menu">
  2.     <ul>
  3.         <li><a href="#">Menu 1</a></li>
  4.         <li><a href="#">Menu 2</a>
  5.             <ul>
  6.                 <li><a href="#">Menu 2.1</a></li>
  7.                 <li><a href="#">Menu 2.2</a></li>
  8.                 <li><a href="#">Menu 2.3</a></li>
  9.             </ul>
  10.         </li>
  11.         <li><a href="#">Menu 3</a>
  12.             <ul>
  13.                 <li><a href="#">Menu 3.1</a></li>
  14.                 <li><a href="#">Menu 3.2</a></li>
  15.                 <li><a href="#">Menu 3.3</a></li>
  16.             </ul>
  17.         </li>
  18.     </ul>
  19. </div>
Now, we have the structure ready. Definitely, the current menu does not look good and we will now apply some CSS to make it look beautiful. Write the following code in the <head> section.
  1. <style type="text/css">
  2.     .menu
  3.     {
  4.         width: 500px;
  5.         margin: 0px auto;
  6.         font-family: Arial, Helvetica, sans-serif;
  7.         font-weight: bold;
  8.         font-size: 14px;
  9.     }
  10.     .menu ul li a:link, div ul li a:visited
  11.     {
  12.         display: block;
  13.         background-color: #f1f1f1;
  14.         color: #000;
  15.         text-align: center;
  16.         text-decoration: none;
  17.         padding: 4px;
  18.         border-bottom: 1px solid #fff;
  19.         width: 150px;
  20.     }
  21.     .menu ul li a:hover
  22.     {
  23.         background-color: #ccc;
  24.     }
  25.     .menu ul li ul li a:link, li ul li a:visited
  26.     {
  27.         display: block;
  28.         background-color: #f1f1f1;
  29.         color: #000;
  30.         text-align: center;
  31.         text-decoration: none;
  32.         padding: 4px;
  33.         border-bottom: 1px solid #fff;
  34.         width: 150px;
  35.     }
  36.     .menu ul li ul li a:hover
  37.     {
  38.         background-color: #ccc;
  39.     }
  40.     .menu ul
  41.     {
  42.         list-style-type: none;
  43.         margin: 0px;
  44.         padding: 0px;
  45.     }
  46.     .menu ul li
  47.     {
  48.         float: left;
  49.         margin-left: 5px;
  50.     }
  51.     .menu ul li ul li
  52.     {
  53.         float: none;
  54.         margin-left: 0px;
  55.     }
  56.     .menu ul li ul
  57.     {
  58.         display: none;
  59.     }
  60.     .menu li:hover ul
  61.     {
  62.         display: block;
  63.     }
  64. </style>

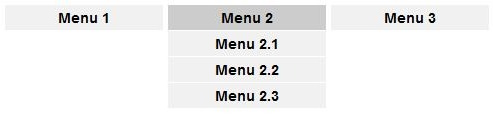

Save the HTML file and double-click on it to view it in the browser. Your menu should look something like the following screenshot.

menu

You can read other parts of this series below:
I hope you like this article! Cheers!
