How to Send an Email With Image in C#

Introduction


This article describes how to send an email with an image in C#. For sending the email, you need to configure the email services on the server.

Note: For more info about configuration read how to configure mail server (http://technet.microsoft.com/en-us/library/cc780996%28v=ws.10%29.aspx).

To explain this article, I will use the following procedure after configuring the server:
  • Create a new website and add a page to it.
  • Add 3 textboxes into the page for receiver Email-ID, subject of Email, and message of Email and a button for sending mail.
  • Write some code on the ".cs" file to send the mail with some Text and an Image at a "button click" event.
The following procedure is the details of the preceding steps.

Step 1

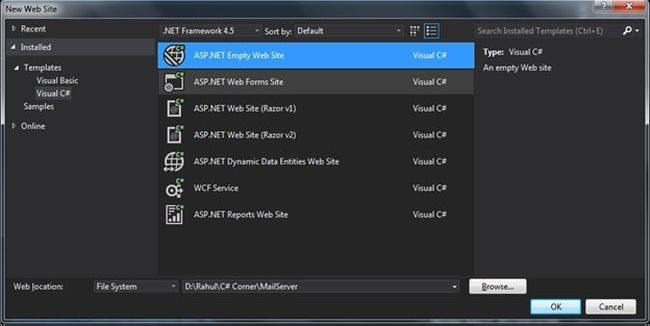

Create a new empty Website named "MailServer".


Step 2

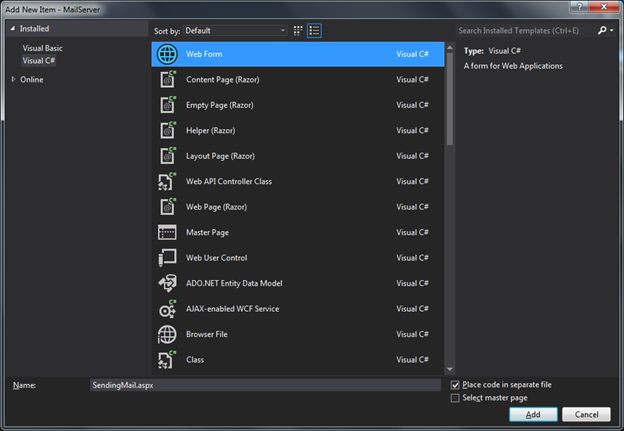

  • Add a new Page named "SendingMail.aspx".


  • Add a Button with the Onclick event (for sending the email) on the page.
    1. <table>
    2.      <tr>
    3.           <td>Mail To:-</td>
    4.           <td>
    5.                <asp:TextBox ID="txtEmail" runat="server" Width="200px">
    6.                </asp:TextBox>
    7.           </td>
    8.      </tr>
    9.      <tr>
    10.           <td>Subject:-</td>
    11.           <td>
    12.                <asp:TextBox ID="txtSubject" runat="server" Width="200px">
    13.                </asp:TextBox>
    14.           </td>
    15.      </tr>
    16.      <tr>
    17.           <td>Message:-</td>
    18.           <td>
    19.                <asp:TextBox ID="txtmessagebody" runat="server" TextMode="MultiLine" Height="200px" Width="400px">
    20.                </asp:TextBox>
    21.           </td>
    22.      </tr>
    23.      <tr>
    24.           <td colspan="2" align="center">
    25.                <asp:Button ID="btn_send" runat="server" Text="Send Mail" OnClick="btn_send_Click" />
    26.           </td>
    27.      </tr>
    28. </table>
  • Add an image named "photo.jpg" into the folder named "Images".

  • Add the 4 namespaces at the top of the ".cs" file.
    1. using System.Net.Mail;
    2. using System.IO;
    3. using System.Text;
    4. using System.Net.Mime;
  • Write the following code to send the email on the click event of the button.
    1.    protected void btn_send_Click(object sender, EventArgs e)
    2.     {
    3.         try
    4.         {
    5.             MailMessage message = new MailMessage();
    6.             message.To.Add(txtEmail.Text);// Email-ID of Receiver
    7.             message.Subject = txtSubject.Text;// Subject of Email
    8.             message.From = new
    9. System.Net.Mail.MailAddress("no-reply@example.com");// Email-ID of Sender
    10.             message.IsBodyHtml = true;
    11.             message.AlternateViews.Add(Mail_Body());
    12.             SmtpClient SmtpMail = new SmtpClient();
    13.             SmtpMail.Host = "Your Host";//name or IP-Address of Host used for SMTP transactions
    14.             SmtpMail.Port = 25;//Port for sending the mail
    15.             SmtpMail.Credentials = new
    16. System.Net.NetworkCredential("""");//username/password of network, if apply
    17.             SmtpMail.DeliveryMethod = SmtpDeliveryMethod.Network;
    18.             SmtpMail.EnableSsl = false;
    19.             SmtpMail.ServicePoint.MaxIdleTime = 0;
    20.             SmtpMail.ServicePoint.SetTcpKeepAlive(true, 2000, 2000);
    21.             message.BodyEncoding = Encoding.Default;
    22.             message.Priority = MailPriority.High;
    23.             SmtpMail.Send(message); //Smtpclient to send the mail message
    24.             Response.Write("Email has been sent");
    25.         }
    26.         catch (Exception ex)
    27.         { Response.Write("Failed"); }
    28.     }
Note: the "SmtpMail.Host" value will be your hosting name or IP Address and the "SmtpMail.Port" will also vary.

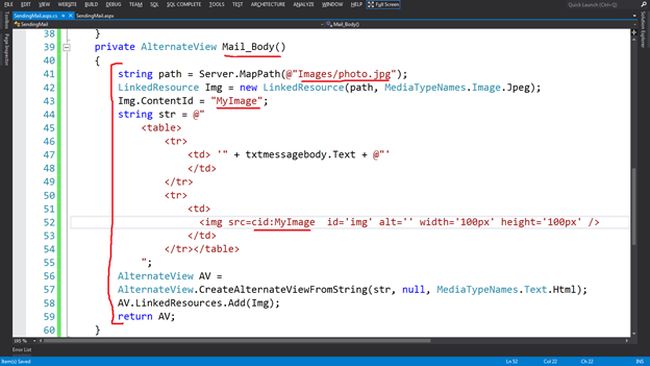

  1. private AlternateView Mail_Body()
  2.     {
  3.         string path = Server.MapPath(@"Images/photo.jpg");
  4.         LinkedResource Img = new LinkedResource(path, MediaTypeNames.Image.Jpeg);
  5.         Img.ContentId = "MyImage";
  6.         string str = @"
  7.             <table>
  8.                 <tr>
  9.                     <td> '" + txtmessagebody.Text + @"'
  10.                     </td>
  11.                 </tr>
  12.                 <tr>
  13.                     <td>
  14.                       <img src=cid:MyImage  id='img' alt='' width='100px' height='100px'/>
  15.                     </td>
  16.                 </tr></table>
  17.             ";
  18.         AlternateView AV =
  19.         AlternateView.CreateAlternateViewFromString(str, null, MediaTypeNames.Text.Html);
  20.         AV.LinkedResources.Add(Img);
  21.         return AV;
  22.     }

Step 3

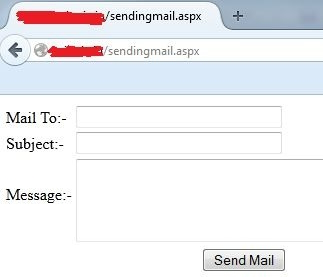

  • Run the page on the server that will be like:

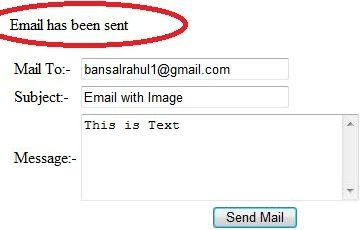

  • After filling in the valid Email ID, Subject of Email, and message of Email, click on the "Send mail" button to send the email.

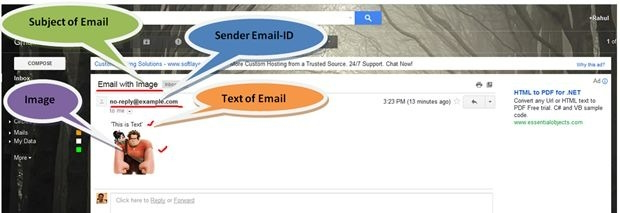

Result: Now you can see that I (the receiver) got the email.
