Print Prescription in C# and Visual Basic

This article explains how to print a prescription in C# and Visual Basic.

Introduction

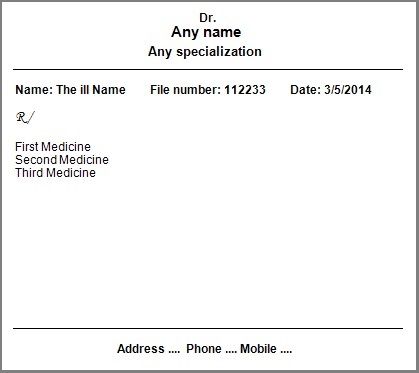

This is a trial to print a Prescription using three controls: PrintPreviewDialog control, PrintDocument control and PrintDialog control.

print

My Project has one form (Form1) and two classes (clsReport and Globals).

Form1: has three text boxes for entering the data of the patient, the patient number and visit date.

Another three text boxes for entering the medication.

Three controls for printing: PrintPreviewDialog, PrintDocument and PrintDialog.

clsReport: has procedures for printing.

Globals: for some variables.

clsReport has the following three procedures:
  1. public void ReadReport()
  2.         {
  3.             try
  4.             {
  5.         // read data from Form1
  6.         // you can get the data from any data file
  7.
  8.                 RepVisitDate = "Date" + ": " + Globals.VisitDate;
  9.                 RepSickName = "Name" + ": " + Globals.illName;
  10.                 RepSickNum = "File number" + ": " + Globals.illNum;
  11.
  12.                 Medicine1 = Globals.FirstMidc;
  13.                 Medicine2 = Globals.SecondMidc;
  14.                 Medicine3 = Globals.ThirdMidc;
  15.             }
  16.             catch
  17.             {
  18.                 MessageBox.Show("Reading Error.");
  19.             }
  20.
  21.         private void ComputeLeftAll(Graphics g)
  22.         {
  23.             //compute the left location of all lines for,
  24.             //Recipe head, Sick data and Medicine.
  25.
  26.             Marginleft = Globals.leftMargin;
  27.             Marginright = Globals.rightMargin;
  28.             RepWid = Globals.ReportWid;
  29.
  30.             int lenWork = (int)g.MeasureString(dcWork, ArialB14).Width;
  31.             int lenDocHead1 = (int)g.MeasureString(DocHead1, ArialB18).Width;
  32.             int lenDocHead2 = (int)g.MeasureString(DocHead2, ArialB16).Width;
  33.
  34.             int lenSickVisit = (int)g.MeasureString(RepVisitDate, ArialB14).Width;
  35.             int lenSickName = (int)g.MeasureString(RepSickName, ArialB14).Width;
  36.             int lenSickNum = (int)g.MeasureString(RepSickNum, ArialB14).Width;
  37.
  38.             int lenRepTail1 = (int)g.MeasureString(RepTail1, ArialB14).Width;
  39.
  40.             xWork = Marginleft + (RepWid - lenWork) / 2;
  41.             xDocHead1 = Marginleft + (RepWid - lenDocHead1) / 2;
  42.             xDocHead2 = Marginleft + (RepWid - lenDocHead2) / 2;
  43.
  44.             xSickName = Marginleft;
  45.             xSickNum = Marginleft + (Marginright - Marginleft - lenSickNum) / 2;
  46.             xSickVisit = Marginright - lenSickName;
  47.
  48.             xRepTail1 = Marginleft + (Marginright - Marginleft - lenRepTail1) / 2;
  49.         }
  50.
  51.         public void DrawReport(Graphics g)
  52.         {
  53.             int CurrentY = Globals.topMargin;
  54.             int CurrentX = Globals.leftMargin;
  55.
  56.             try
  57.             {
  58.                 // for Recipe
  59.                 ArialR14 = new Font("Arial", 14, FontStyle.Regular);
  60.                 int ArialRH14 = (int)(ArialR14.GetHeight(g));
  61.                 // for EyeHorus
  62.                 Font CorsivaFont = new Font("Monotype Corsiva", 18, FontStyle.Italic);
  63.                 int CorsivaHeight = (int)(CorsivaFont.GetHeight(g));
  64.                 // for Name
  65.                 ArialB14 = new Font("Arial", 14, FontStyle.Bold);
  66.                 int ArialBH14 = (int)(ArialB14.GetHeight(g));
  67.                 ArialB16 = new Font("Arial", 16, FontStyle.Bold);
  68.                 int ArialBH16 = (int)(ArialB16.GetHeight(g));
  69.                 ArialB18 = new Font("Arial", 18, FontStyle.Bold);
  70.                 int ArialBH18 = (int)(ArialB18.GetHeight(g));
  71.                 ArialB20 = new Font("Arial", 20, FontStyle.Bold);
  72.                 int ArialBH20 = (int)(ArialB20.GetHeight(g));
  73.
  74.                 ComputeLeftAll(g);
  75.
  76.                 SolidBrush myBrush = new SolidBrush(Color.Black);
  77.
  78.                 CurrentY = CurrentY + ArialRH14;
  79.                 //Draw Report Head:
  80.                 g.DrawString(dcWork, ArialB14, myBrush, xWork, CurrentY); //dcWorkAR
  81.                 CurrentY = CurrentY + ArialBH14;
  82.                 g.DrawString(DocHead1, ArialB18, myBrush, xDocHead1, CurrentY); //DocHeadAR1
  83.                 CurrentY = CurrentY + ArialBH20;
  84.                 g.DrawString(DocHead2, ArialB16, myBrush, xDocHead2, CurrentY); //DocHeadAR2
  85.                 CurrentY = CurrentY + 2 * ArialBH14;
  86.                 // Draw line
  87.                 g.DrawLine(new Pen(Brushes.Black), Marginleft, CurrentY, Marginright, CurrentY);
  88.                 CurrentY = CurrentY + ArialRH14;
  89.                 // Draw Personal Data:
  90.                 g.DrawString(RepSickName, ArialB14, myBrush, xSickName, CurrentY);
  91.                 g.DrawString(RepSickNum, ArialB14, myBrush, xSickNum, CurrentY);
  92.                 g.DrawString(RepVisitDate, ArialB14, myBrush, xSickVisit, CurrentY);
  93.                 CurrentY = CurrentY + 2 * ArialBH14;
  94.                 // Draw EyeHorus:
  95.                 g.DrawString(EyeHorus, CorsivaFont, myBrush, CurrentX, CurrentY);
  96.                 CurrentY = CurrentY + CorsivaHeight;
  97.                 // Draw Recipe:
  98.                 CurrentY = CurrentY + ArialRH14;
  99.                 g.DrawString(Medicine1, ArialR14, myBrush, CurrentX, CurrentY);
  100.                 CurrentY = CurrentY + ArialRH14;
  101.                 g.DrawString(Medicine2, ArialR14, myBrush, CurrentX, CurrentY);
  102.                 CurrentY = CurrentY + ArialRH14;
  103.                 g.DrawString(Medicine3, ArialR14, myBrush, CurrentX, CurrentY);
  104.                 // Go to end of page:
  105.                 CurrentY = Globals.bottomMargin - 4 * ArialRH14;
  106.                 // Draw line
  107.                 g.DrawLine(new Pen(Brushes.Black), Marginleft, CurrentY, Marginright, CurrentY);
  108.                 // Draw Report Tail:
  109.                 CurrentY = CurrentY + ArialRH14;
  110.                 g.DrawString(RepTail1, ArialB14, myBrush, xRepTail1, CurrentY); //RepTail1
  111.
  112.                 ArialB14.Dispose();
  113.                 ArialB16.Dispose();
  114.                 ArialB18.Dispose();
  115.                 ArialB20.Dispose();
  116.                 ArialR14.Dispose();
  117.                 CorsivaFont.Dispose();
  118.                 g.Dispose();
  119.             }
  120.             catch
  121.             {
  122.                 string Msg = "Can't print, no Font!";
  123.                 MessageBox.Show(Msg, "Printing.", MessageBoxButtons.OK, MessageBoxIcon.Exclamation);
  124.             }
  125.         }

Using VB to print Prescription

  1. Public Sub ReadReport()
  2.         Try
  3.     ' read data from Form1
  4.     ' you can get the data from any data file
  5.
  6.             RepVisitDate = "Date" + ": " + VisitDate
  7.             RepSickName = "Name" + ": " + illName
  8.             RepSickNum = "File number" + ": " + illNum
  9.
  10.             Medicine1 = FirstMidc
  11.             Medicine2 = SecondMidc
  12.             Medicine3 = ThirdMidc
  13.         Catch
  14.             MessageBox.Show("Reading Error.")
  15.         End Try
  16.     End Sub
  17.
  18.     Private Sub ComputeLeftAll(ByVal g As Graphics)
  19.         'compute the left location of all lines for,
  20.         'Recipe head, Sick data and Medicine.
  21.
  22.         Dim lenWork As Integer = Convert.ToInt32(g.MeasureString(dcWork, ArialB14).Width)
  23.         Dim lenDocHead1 As Integer = Convert.ToInt32(g.MeasureString(DocHead1, ArialB18).Width)
  24.         Dim lenDocHead2 As Integer = Convert.ToInt32(g.MeasureString(DocHead2, ArialB16).Width)
  25.
  26.         Dim lenSickVisit As Integer = Convert.ToInt32(g.MeasureString(RepVisitDate, ArialB14).Width)
  27.         Dim lenSickName As Integer = Convert.ToInt32(g.MeasureString(RepSickName, ArialB14).Width)
  28.         Dim lenSickNum As Integer = Convert.ToInt32(g.MeasureString(RepSickNum, ArialB14).Width)
  29.
  30.         Dim lenRepTail1 As Integer = Convert.ToInt32(g.MeasureString(RepTail1, ArialB14).Width)
  31.
  32.         xWork = leftMargin + (ReportWid - lenWork) / 2
  33.         xDocHead1 = leftMargin + (ReportWid - lenDocHead1) / 2
  34.         xDocHead2 = leftMargin + (ReportWid - lenDocHead2) / 2
  35.
  36.         xSickName = leftMargin
  37.         xSickNum = leftMargin + (rightMargin - leftMargin - lenSickNum) / 2
  38.         xSickVisit = rightMargin - lenSickName
  39.
  40.         xRepTail1 = leftMargin + (rightMargin - leftMargin - lenRepTail1) / 2
  41.     End Sub
  42.
  43.     Public Sub DrawReport(ByVal g As Graphics)
  44.         Dim CurrentY As Integer = topMargin
  45.         Dim CurrentX As Integer = leftMargin
  46.
  47.         Try
  48.             ' for Recipe
  49.             ArialR14 = New Font("Arial", 14, FontStyle.Regular)
  50.             Dim ArialRH14 As Integer = Convert.ToInt32(ArialR14.GetHeight(g))
  51.             ' for EyeHorus
  52.             Dim CorsivaFont As Font = New Font("Monotype Corsiva", 18, FontStyle.Italic)
  53.             Dim CorsivaHeight As Integer = Convert.ToInt32(CorsivaFont.GetHeight(g))
  54.             ' for Name
  55.             ArialB14 = New Font("Arial", 14, FontStyle.Bold)
  56.             Dim ArialBH14 = Convert.ToInt32(ArialB14.GetHeight(g))
  57.             ArialB16 = New Font("Arial", 16, FontStyle.Bold)
  58.             Dim ArialBH16 As Integer = Convert.ToInt32(ArialB16.GetHeight(g))
  59.             ArialB18 = New Font("Arial", 18, FontStyle.Bold)
  60.             Dim ArialBH18 As Integer = Convert.ToInt32(ArialB18.GetHeight(g))
  61.             ArialB20 = New Font("Arial", 20, FontStyle.Bold)
  62.             Dim ArialBH20 As Integer = Convert.ToInt32(ArialB20.GetHeight(g))
  63.
  64.             ComputeLeftAll(g)
  65.
  66.             Dim myBrush As SolidBrush = New SolidBrush(Color.Black)
  67.
  68.             CurrentY = CurrentY + ArialRH14
  69.             'Draw Report Head:
  70.             g.DrawString(dcWork, ArialB14, myBrush, xWork, CurrentY) 'dcWorkAR
  71.             CurrentY = CurrentY + ArialBH14
  72.             g.DrawString(DocHead1, ArialB18, myBrush, xDocHead1, CurrentY) 'DocHeadAR1
  73.             CurrentY = CurrentY + ArialBH20
  74.             g.DrawString(DocHead2, ArialB16, myBrush, xDocHead2, CurrentY) 'DocHeadAR2
  75.             CurrentY = CurrentY + 2 * ArialBH14
  76.             ' Draw line
  77.             g.DrawLine(New Pen(Brushes.Black), leftMargin, CurrentY, rightMargin, CurrentY)
  78.             CurrentY = CurrentY + ArialRH14
  79.             ' Draw Personal Data:
  80.             g.DrawString(RepSickName, ArialB14, myBrush, xSickName, CurrentY)
  81.             g.DrawString(RepSickNum, ArialB14, myBrush, xSickNum, CurrentY)
  82.             g.DrawString(RepVisitDate, ArialB14, myBrush, xSickVisit, CurrentY)
  83.             CurrentY = CurrentY + 2 * ArialBH14
  84.             ' Draw EyeHorus:
  85.             g.DrawString(EyeHorus, CorsivaFont, myBrush, CurrentX, CurrentY)
  86.             CurrentY = CurrentY + CorsivaHeight
  87.             ' Draw Recipe:
  88.             CurrentY = CurrentY + ArialRH14
  89.             g.DrawString(Medicine1, ArialR14, myBrush, CurrentX, CurrentY)
  90.             CurrentY = CurrentY + ArialRH14
  91.             g.DrawString(Medicine2, ArialR14, myBrush, CurrentX, CurrentY)
  92.             CurrentY = CurrentY + ArialRH14
  93.             g.DrawString(Medicine3, ArialR14, myBrush, CurrentX, CurrentY)
  94.             ' Go to end of page:
  95.             CurrentY = Globals.bottomMargin - 4 * ArialRH14
  96.             ' Draw line
  97.             g.DrawLine(New Pen(Brushes.Black), leftMargin, CurrentY, rightMargin, CurrentY)
  98.             ' Draw Report Tail:
  99.             CurrentY = CurrentY + ArialRH14
  100.             g.DrawString(RepTail1, ArialB14, myBrush, xRepTail1, CurrentY) 'RepTail1
  101.
  102.             ArialB14.Dispose()
  103.             ArialB16.Dispose()
  104.             ArialB18.Dispose()
  105.             ArialB20.Dispose()
  106.             ArialR14.Dispose()
  107.             CorsivaFont.Dispose()
  108.             g.Dispose()
  109.         Catch
  110.             Dim Msg As String = "Can't print, no Font!"
  111.             MessageBox.Show(Msg, "Printing.", MessageBoxButtons.OK, MessageBoxIcon.Exclamation)
  112.         End Try
  113.
  114.     End Sub

Please read the code of Form1 then run the program to see the result.

If you have any idea or if you find any problems then please tell me.
