Asynchronous Programming in Windows Store App

In this article I will explain how to use await operator for asynchronous programming in Windows Store Apps.

Introduction

To work with Asynchronous programming we use the await keyword, and also the "Async" keyword. We call the asynchronous APIs in response to a user's action, such as when the user presses the button etc. In this article I explain how to perform asynchronous programming.

In this article I use an example in which, when I click on the button, it fetches the RSS Feed using the syndication class. This feed includes all the latest articles and their published date of any website; in this example I fetch the RSS feed from the http://www.dotnetheaven.com/ site. The asynchronous method SyndicationClient.RetrieveFeedAsync is used to fetch or download the feed.

To work with it use the following steps.

Step 1

First open Visual Studio 2012 RC in Windows 8. Then click File -> New -> Project. Then select Window Store from Visual C#, and select a blank page in the center tab then give the name of the application and then click ok.

Step 2

Add XAML code to MainPage.xaml as in the following:

<Page

    x:Class="acron.MainPage"

    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"

    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"

    xmlns:local="using:acron"

    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"

    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"

    mc:Ignorable="d">

    <Grid>

        <Grid.Background>

            <LinearGradientBrush EndPoint="0.5,1" StartPoint="0.5,0">

                <GradientStop Color="Black"/>

                <GradientStop Color="#FFD2D710" Offset="1"/>

            </LinearGradientBrush>

        </Grid.Background>

        <StackPanel HorizontalAlignment="Left" VerticalAlignment="Top" Height="96" Width="983" Orientation="Horizontal">

            <Button  Margin="50,50,0,0" Height="50" Width="100"  HorizontalAlignment="Left" VerticalAlignment="Top" Content="Load Titles" Click="Button_Click_1"></Button>

            <TextBlock  Margin="50,50,0,0" Text=" Latest Articles Titles and Their Publish Date of DotNetHeaven.com" HorizontalAlignment="Left" VerticalAlignment="Top" Height="50" Width="750" FontSize="25"></TextBlock>

        </StackPanel>

        <StackPanel Orientation="Horizontal">

            <ListView x:Name="listitems" HorizontalAlignment="Left" Margin="150,150,0,0" ItemsSource="{Binding}" SelectionChanged="listitems_SelectionChanged_1" Width="500">

                <ListView.Background>

                    <LinearGradientBrush EndPoint="0.5,1" StartPoint="0.5,0">

                        <GradientStop Color="Black"/>

                        <GradientStop Color="#FFA3ECF3" Offset="1"/>

                    </LinearGradientBrush>

                </ListView.Background>

                <ListView.ItemTemplate>

                    <DataTemplate>

                        <StackPanel>

                            <TextBlock Text="{Binding Title}" FontSize="20" ></TextBlock>

                            <TextBlock Text="{Binding Date}" FontSize="10"></TextBlock>

                        </StackPanel>

                    </DataTemplate>

                </ListView.ItemTemplate>

            </ListView>

            <WebView x:Name="web" Visibility="Collapsed" Width="1000" Margin="150,150,0,0"></WebView>

        </StackPanel>

    </Grid>

</Page>

Step 3



Right-click on the project in the Solution Explorer to add a class and choose the class from the window that appears and give a name for the class as you want and then click ok.

Step 4

Add the following code in this class:


namespace acron

{

    public class feeddata

    {

     private List<items> items1=new List<items>();

        public List<items> items

        {

            get{

                return this.items1;

            }

        }

    }

    public class items

    {

        public string Title

        {

            get;

            set;

        }

        public DateTime Date

        {

            get;

            set;

        }

        public Uri link

        {

            get;

            set;

        }

    }

}



Step 5

Now add the following namespace in the MainPage.xaml.cs file:


using Windows.Web.Syndication;



Step 6

Now write the following code in the MainPage.xaml.cs file:

namespace acron

{

    public sealed partial class MainPage : Page

    {

        SyndicationFeed feed = new SyndicationFeed();

        public MainPage()

        {

            this.InitializeComponent();

        }

        private void listitems_SelectionChanged_1(object sender, SelectionChangedEventArgs e)

        {

            items I = new items();

            I.link = feed.Items[listitems.SelectedIndex].Links[0].Uri;

            web.Navigate(I.link);

            web.Visibility = Visibility.Visible;

        }

        private async void Button_Click_1(object sender, RoutedEventArgs e)

        {

            SyndicationClient client = new SyndicationClient();

            client.BypassCacheOnRetrieve = true;

            Uri feedUri = new Uri("http://www.dotnetheaven.com/rss/latestarticles.aspx");

            feed = await client.RetrieveFeedAsync(feedUri);

            feeddata feeddata = new feeddata();

            items feeditem = null;

            foreach (SyndicationItem item in feed.Items)

            {

                feeditem = new items();

                feeditem.Title = item.Title.Text;

                feeditem.Date = item.PublishedDate.DateTime;

                feeditem.link = new Uri("http://www.dotnetheaven.com");

                feeddata.items.Add(feeditem);

            }



            listitems.DataContext = feeddata.items;

        }

    }

}

Step 7

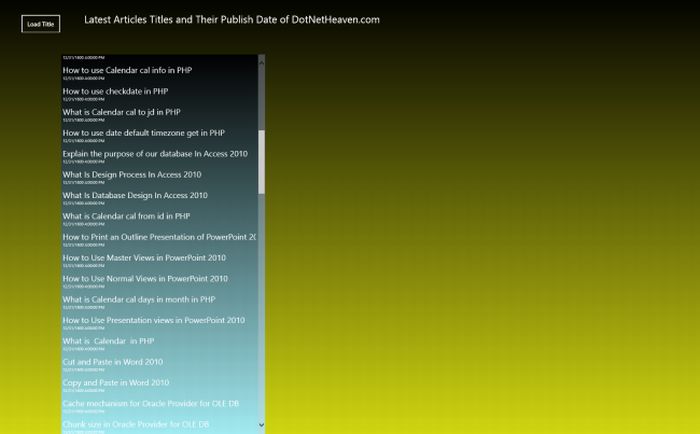

Now Press F5 to run the application. The Screen is displayed with the load button and a simple message. When I click on the button, all the latest feed URLs will be fetched from the site and displayed in the listbox as in:

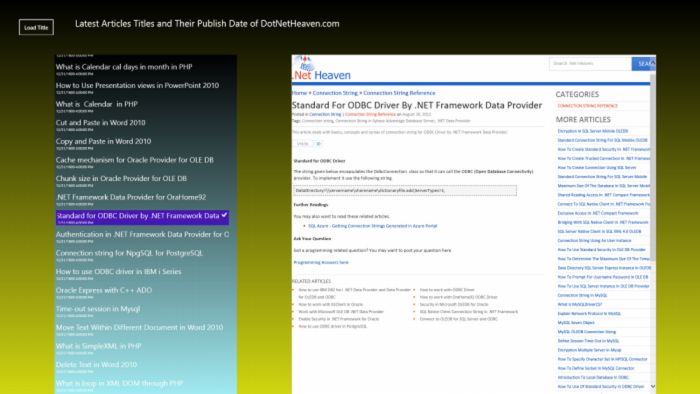

When I click any of these links the specified article will be opened in the Web View as:


Summary

In this article I explained how to use the await keyword to perform asynchronous programming.
