Working With HC-SR04 Ultrasonic Sensor

Introduction


In my previous article I explained working with LM35 Temperature to get accurate room temperature value and in this article, I'll show you how can we work with HC-SR04 Ultrasonic Sensor to get accurate distance of the objects and some other functionalities. etc. Ultrasonic Sensor has many uses in the Medicine field.

Requirements
  • Arduino
  • Bread Board
  • Ultrasonic Sensor (HC-SR04)
  • Led
  • Jumper Wires
  • Ultrasonic Sensor (HC-SR04)

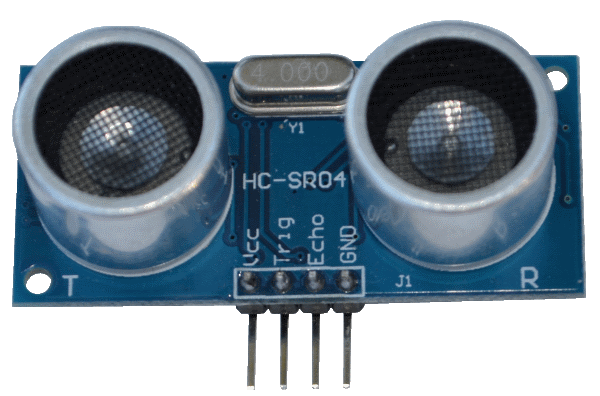

Figure 1: HC-SR04 Ultrasonic Sensor

What Ultrasonic Sensors can do?
  • The HC-SR04 Ultrasonic Sensor uses detection of objects
  • Measurement of length
  • Thickness, amount and destruction of the objects, etc.
Connection
  1. Vcc pin to the 5v
  2. Trig pin to digital pin 5
  3. Echo pin to digital pin 6
  4. Gnd to Gnd
Program
  1. # define echoPin 5 // Echo Pin
  2. # define trigPin 6 // Trigger Pin
  3. # define LedPin 13 // Led
  4. int maxRange = 300; // Maximum range
  5. int minRange = 0; // Minimum range
  6. long dur, dist; // Duration used to calculate distance
  7. void setup()
  8. {
  9.     Serial.begin(9600);
  10.     pinMode(trigPin, OUTPUT);
  11.     pinMode(echoPin, INPUT);
  12.     pinMode(LedPin, OUTPUT);
  13. }
  14. void loop()
  15. {
  16.     digitalWrite(trigPin, LOW);
  17.     delayMicroseconds(2);
  18.     digitalWrite(trigPin, HIGH);
  19.     delayMicroseconds(10);
  20.     digitalWrite(trigPin, LOW);
  21.     dur = pulseIn(echoPin, HIGH);
  22.     dist = dur / 58.2;
  23.     if (dist >= maxRange || dist <= minRange)
  24.     {
  25.         Serial.println("-1");
  26.         digitalWrite(LedPin, HIGH);
  27.     }
  28.     else
  29.     {
  30.         Serial.println(dist);
  31.         digitalWrite(LedPin, LOW);
  32.     }
  33.     delay(50);
  34. }
Output

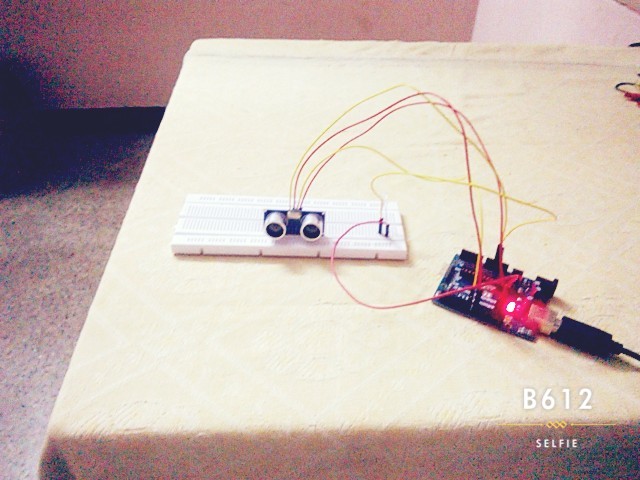

Figure 2: Output

 Explanation
  • #define echoPin, trigpin, ledpin are the variables that take the values of these pins during compile time.
  • And set the maximum range and minimum range duration to find out the distance of the objects.
  • The Setup() function is used to set the pinMode to the trigpin, echopin, and the ledpin.
  • And the  loop() function is used to set our own condition what the Ultrasonic Sensor wants to do.
  • dist = dur/58.2; //Calculate the distance (in cm) based on the speed of sound.
  • if (dist >= maxRange || dist <= minRange) and set the condition to the ultrasonic sensor. Based up on this condition when the object is found in the ultrasonic sensor the led is blink otherwise it will be a static one.

Conclusion


And finally, we conclude that with the ultrasonic sensor we made the object finder.
