Expandable and Collapsible Rows in DataGrid in C# Winforms

Introduction

Here I will describe how to show expandable/collapsible rows in a datagrid in C#.

This is applicable to those cases where we need to display master and child content/rows.

Example Student Table

In this example we have a list of students and inside we have details of student marks as in the following:

student marks

Details View

Details View

Our purpose is to display this type of data using C# Windows Forms.

The expected output in Windows Forms will be:

Expected Output

Forrm

Procedure with code

  1. First we need to create a master and child tables.
  2. To identify the relationship between tables we should have primary and foreign keys in the tables.
  3. Here we are creating a datatable for the master and child tables.
  4. Master table (student).
    1. //Parent table
    2. DataTable dtstudent = new DataTable();
    3. dtstudent.Columns.Add("Student_ID"typeof(int));
    4. dtstudent.Columns.Add("Student_Name"typeof(string));
    5. dtstudent.Columns.Add("Student_RollNo"typeof(string));
  5. Child Table (Student Marks).
    1. //Child table
    2. DataTable dtstudentMarks = new DataTable();
    3. dtstudentMarks.Columns.Add("Student_ID"typeof(int));
    4. dtstudentMarks.Columns.Add("Subject_ID"typeof(int));
    5. dtstudentMarks.Columns.Add("Subject_Name"typeof(string));
    6. dtstudentMarks.Columns.Add("Marks"typeof(int));
  6. Understanding the relationship between master and child table.

    Master and child table

  7. In brief:
    1. dtstudent.StudentID = dtstudentMarks.StudentID
  8. Adding rows to the master table (Student Table):
    1. //Adding Rows
    2. dtstudent.Rows.Add(111, "Devesh""03021013014");
    3. dtstudent.Rows.Add(222, "ROLI""0302101444");
    4. dtstudent.Rows.Add(333, "ROLI Ji""030212222");
    5. dtstudent.Rows.Add(444, "NIKHIL""KANPUR");
  9. Adding rows to the child table (Student Marks table):
    1. // data for devesh ID=111
    2. dtstudentMarks.Rows.Add(111, "01","Physics", 99);
    3. dtstudentMarks.Rows.Add(111, "02","Maths", 77);
    4. dtstudentMarks.Rows.Add(111, "03","C#", 100);
    5. dtstudentMarks.Rows.Add(111, "01","Physics", 99);
    6.
    7.
    8. //data for ROLI ID=222
    9. dtstudentMarks.Rows.Add(222, "01""Physics", 80);
    10. dtstudentMarks.Rows.Add(222, "02""English", 95);
    11. dtstudentMarks.Rows.Add(222, "03""Commerce", 95);
    12. dtstudentMarks.Rows.Add(222, "01""BankPO", 99);
  10. Adding a master and child table to the dataset:
    1. DataSet dsDataset = new DataSet();
    2. dsDataset.Tables.Add(dtstudent);
    3. dsDataset.Tables.Add(dtstudentMarks);
    4. k. Defining relationship between Master and child table
    5. DataRelation Datatablerelation = new DataRelation("DetailsMarks", dsDataset.Tables[0].Columns[0], dsDataset.Tables[1].Columns[0], true);
    6. dsDataset.Relations.Add(Datatablerelation);
  11. Adding a Datagrid control in the Windows Forms form.

    As per the following screen we can add a datagrid to a Windows Forms form by right-clicking the toolbar then choosing the item.

    choose item

  12. Binding the data:
    1. dataGrid1.DataSource = dsDataset.Tables[0];
  13. All the code together:
    1. private void Form1_Load(object sender, EventArgs e)
    2. {
    3. //Parent table
    4. DataTable dtstudent = new DataTable();
    5. // add column to datatable
    6. dtstudent.Columns.Add("Student_ID"typeof(int));
    7. dtstudent.Columns.Add("Student_Name"typeof(string));
    8. dtstudent.Columns.Add("Student_RollNo"typeof(string));
    9.
    10. //Child table
    11. DataTable dtstudentMarks = new DataTable();
    12. dtstudentMarks.Columns.Add("Student_ID"typeof(int));
    13. dtstudentMarks.Columns.Add("Subject_ID"typeof(int));
    14. dtstudentMarks.Columns.Add("Subject_Name"typeof(string));
    15. dtstudentMarks.Columns.Add("Marks"typeof(int));
    16.
    17. //Adding Rows
    18. dtstudent.Rows.Add(111, "Devesh""03021013014");
    19. dtstudent.Rows.Add(222, "ROLI""0302101444");
    20. dtstudent.Rows.Add(333, "ROLI Ji""030212222");
    21. dtstudent.Rows.Add(444, "NIKHIL""KANPUR");
    22.
    23. // data for devesh ID=111
    24. dtstudentMarks.Rows.Add(111, "01","Physics", 99);
    25. dtstudentMarks.Rows.Add(111, "02","Maths", 77);
    26. dtstudentMarks.Rows.Add(111, "03","C#", 100);
    27. dtstudentMarks.Rows.Add(111, "01","Physics", 99);
    28.
    29.
    30. //data for ROLI ID=222
    31. dtstudentMarks.Rows.Add(222, "01""Physics", 80);
    32. dtstudentMarks.Rows.Add(222, "02""English", 95);
    33. dtstudentMarks.Rows.Add(222, "03""Commerce", 95);
    34. dtstudentMarks.Rows.Add(222, "01""BankPO", 99);
    35.
    36. DataSet dsDataset = new DataSet();
    37. //Add two DataTables in Dataset
    38. dsDataset.Tables.Add(dtstudent);
    39. dsDataset.Tables.Add(dtstudentMarks);
    40.
    41. DataRelation Datatablerelation = new DataRelation("DetailsMarks", dsDataset.Tables[0].Columns[0], dsDataset.Tables[1].Columns[0], true);
    42. dsDataset.Relations.Add(Datatablerelation);
    43. dataGrid1.DataSource = dsDataset.Tables[0];

  14. Running the code:

    We will get the following screen having expandable rows in the datagrid.

    datagrid

  15. Expanding a row to see the details.

    Expanding row

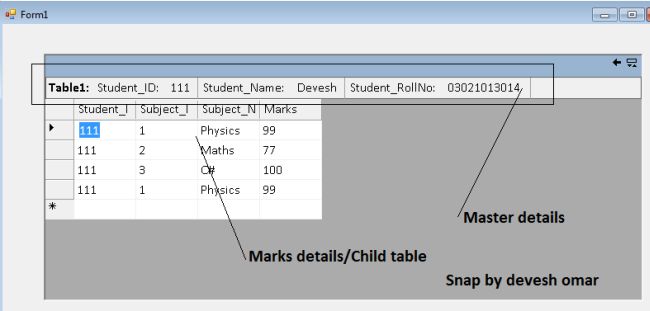

  16. Click on DetailsMarks to get the Marks details.

    DetailsMarks

  17. Details screen for student_Id=222:

    screen

  18. Go to back for Master details.

    Click on the highlighted back button to go to the master detail form.

    master detail form

  19. Main form:

    Main form

Conclusion

We have learned how to show data in a datagrid with a master and child relationship.

Also this code can be used directly in a project but you need to change this code depending on requirements.
