Cross Apply And Outer Apply in SQL Server

In this article you will learn about Apply operator in SQL Server and its types with example. Learn Cross Apply And Outer Apply in SQL Server.

Introduction


The APPLY operator allows us to invoke a table-valued function for each row returned by an outer table expression of a query. The APPLY operator allows us to join two table expressions; the right table expression is processed every time for each row from the left table expression. Left table expression is evaluated first and then right table expression is evaluated against each row of the left table expression for final result-set. The list of columns produced by the APPLY operator is the set of columns in the left input followed by the list of columns returned by the right input.

Now we create two tables, first is Employee and second Project table.

Employee Table
  1. CREATE TABLE Employee
  2. (
  3.    Emp_Id int PRIMARYKEY,
  4.    Emp_Name [nvarchar](max),
  5.    Manager_Id int,
  6.    Project_Id int
  7. )
Now insert some data into Employee table.

 Employee table

Project Table
  1. CREATE TABLE Project
  2. (
  3.    Project_Id int,
  4.    Project_Name [nvarchar](max),
  5.    Department [nvarchar](max)
  6. )

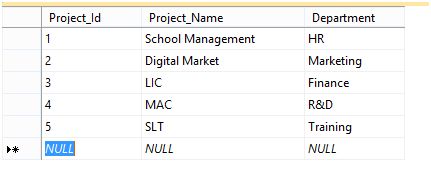

Insert data into project table.

Project table

Forms of Apply

SQL Server contain two forms of Apply: CROSS APPLY and OUTER APPLY.


CROSS APPLY in SQL Server


CROSS APPLY returns only rows from the outer table that produce a result set from the table-valued function. It other words, result of CROSS APPLY doesn’t contain any row of left side table expression for which no result is obtained from right side table expression. CROSS APPLY work as a row by row INNER JOIN.

INNER JOIN Query
  1. SELECT * FROM Project AS PRO
  2. INNER JOIN
  3. Employee AS EMP
  4. ON
  5. PRO.Project_Id=EMP.Project_Id
CROSS APPLY Query
  1. SELECT * FROM Project AS PRO
  2. CROSS APPLY
  3. (SELECT * FROM Employee AS EMP WHERE PRO.Project_Id=EMP.Project_Id) Tab
Above both query produce same result.

CROSS APPLY in SQL Server


OUTER APPLY in SQL Server


OUTER APPLY returns both rows that produce a result set, and rows that do not, with NULL values in the columns produced by the table-valued function. OUTER APPLY work as LEFT OUTER JOIN.

LEFT OUTER JOIN Query
  1. SELECT * FROM Project AS PRO
  2. LEFT OUTER JOIN
  3. Employee AS EMP
  4. ON
  5. PRO.Project_Id=EMP.Project_Id
OUTER APPLY Query
  1. SELECT * FROM Project AS PRO
  2. OUTER APPLY
  3. (SELECT*FROM Employee AS EMP WHERE PRO.Project_Id=EMP.Project_Id) Tab
Above both query produce same result.

OUTER APPLY in SQL Server


APPLY with User Define function


We can perform APPLY operation with a function that may be scalar or table valued function. This function will invoke each row and return result that will be associated with the outer table.

Example 1

Firstly, create a function.
  1. CREATE FUNCTION Return_Info(@Project_IDint)
  2. RETURNS [nvarchar](max)
  3. AS
  4. BEGIN
  5. DECLARE @Info[nvarchar](max);
  6. SET @Info = (SELECT 'Project Name is= ' + Project.Project_Name + 'Deratment is= ' + Project.Department FROM Project WHERE Project.Project_Id = @Project_ID)
  7. RETURN @Info
  8. END
Above function will return a scalar value that is the combine result of Department column and Project column.

Now we perform APPLY on this function.
  1. SELECT * FROM dbo.Employee AS EMP
  2. CROSS APPLY(select [dbo].[Return_Info](EMP.Project_Id))Tab(Project_Id)
Output

APPLY with User Define function

Example 2

Firstly, create a table valued function.
  1. CREATE FUNCTION [dbo].[fun_Return_Info](@Project_IDint)
  2. RETURNS @Tab TABLE
  3. (
  4.    Project_Idint,
  5.    Project_Namenvarchar(max),
  6.    Department nvarchar(max)
  7. )
  8. AS
  9. BEGIN
  10. INSERT INTO @Tab
  11. (
  12.    Project_Id,
  13.    Project_Name,
  14.    Department
  15. )
  16. SELECT*FROM dbo.ProjectAS PRO WHERE PRO.Project_Id>@Project_ID
  17. RETURN
  18. END
Above function return information of all project that that’s Project_Id is greater than given Project_id.
  1. SELECT EMP.Project_Id,COUNT(EMP.Project_Id) AS [Total] FROM dbo.Employee AS EMP
  2. OUTER APPLY
  3. [fun_Return_Info](EMP.Project_Id)
  4. GROUP BY EMP.Project_Id
Output

id


APPLY with TOP Command

  1. SELECT * FROM
  2. (SELECT PRO.*,EMP.Emp_Name,EMP.Emp_Id,EMP.Manager_Id,ROW_NUMBER()OVER(Partition By PRO.Project_Id Order By PRO.Project_Id)as Rank FROM dbo.Project AS PRO
  3. LEFT OUTER JOIN
  4. dbo.Employee AS EMP
  5. ON
  6. PRO.Project_Id=EMP.Project_Id)Tab1
  7. WHERE Tab1.Rank<=2

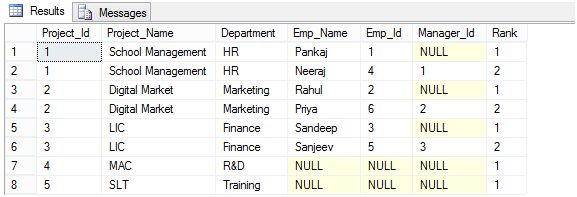

Output

runAPPLY with TOP Command

Above query return top Employee details for each project. We can perform same operation using APPLY.
  1. SELECT PRO.*,Tab.* FROM dbo.Project AS PRO
  2. OUTER APPLY(SELECTTOP 2 EMP.Emp_Name,EMP.Emp_Id,EMP.Manager_Id Fromd bo.Employee AS EMP WHERE EMP.Project_Id=PRO.Project_Id)Tab
Above query produce same result as previous query.

Example 3
  1. DECLARE @Tab TABLE
  2. (
  3.    [State] [nvarchar](max),
  4.    City [nvarchar](max)
  5. )
  6.
  7. INSERT INTO @Tab
  8. SELECT 'Rajasthan','Alwar,Laipur,Ajmer,Kota' UNION ALL
  9. SELECT 'Haryana','Hisar,Jhajjar,Rohtak' UNION ALL
  10. SELECT 'Maharaster','Mumbai,Pune'
  11.
  12. SELECT * FROM @Tab AS [@TA]
Output

APPLY with TOP Command

Suppose we have a table that contain State name and City names but city names are stored in comma separated manner, now we want to split each city name. For this we can use APPLY Method as below.

For this we create a function that split city name and return a table that contain the list of city names.
  1. ALTER FUNCTION SplitString(@Input NVARCHAR(MAX))
  2. RETURNS @Output TABLE(City NVARCHAR(1000))
  3. AS
  4. BEGIN
  5. DECLARE @Index int;
  6. SET @Input = @Input + ',';
  7. WHILE(LEN(@Input) > 0)
  8. BEGIN
  9. SET @Index = CHARINDEX(',', @Input);
  10. INSERT INTO @Output(City)
  11. VALUES(SUBSTRING(@Input, 0, @Index))
  12. SET @Input = SUBSTRING(@Input, @Index + 1, LEN(@Input));
  13. END
  14. RETURN
  15. END
Now we use this function to split the city name.
  1. DECLARE @Tab TABLE
  2. (
  3. [State] [nvarchar](max),
  4. City [nvarchar](max)
  5. )
  6.
  7. INSERT INTO @Tab
  8. SELECT 'Rajasthan','Alwar,Laipur,Ajmer,Kota' UNION ALL
  9. SELECT 'Haryana','Hisar,Jhajjar,Rohtak' UNION ALL
  10. SELECT 'Maharaster','Mumbai,Pune'
  11.
  12. SELECT T.State,Tab.*FROM @Tab AS T
  13. OUTERAPPLY dbo.SplitString(T.City)Tab
Output

APPLY with TOP Command

Thanks for reading the article.
