Inserting Start Transaction in QTP Tool in Testing

During the test run, the Start Transaction signals the beginning of the time measurement. You define the beginning of a transaction in the Start Transaction dialog box by choosing it from the Insert-Start Transaction button.


To insert a transaction:
  1. Click the step where you want the transaction timing to begin. The page is displayed in the Active Screen tab.

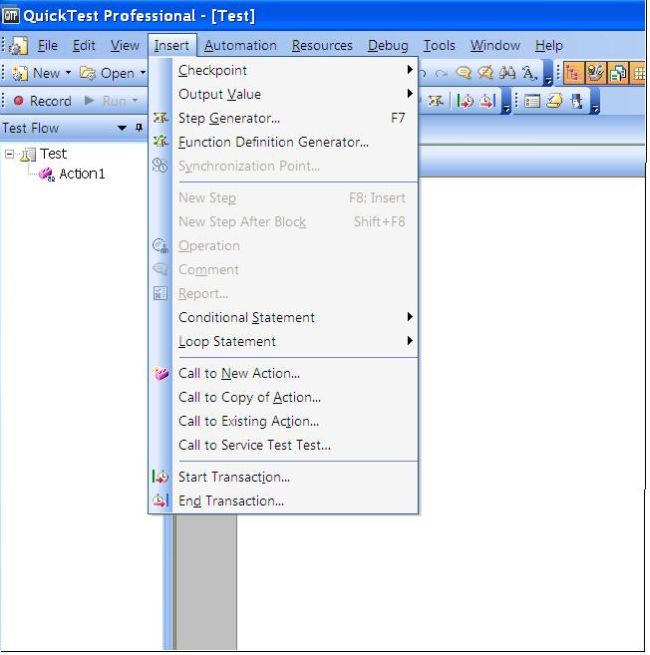

  2. Click the Start Transaction button or choose Insert > Start Transaction. The Start Transaction dialog box opens.

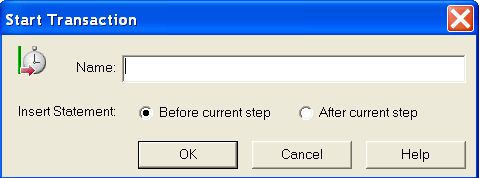

    Clipboard 4.jpg

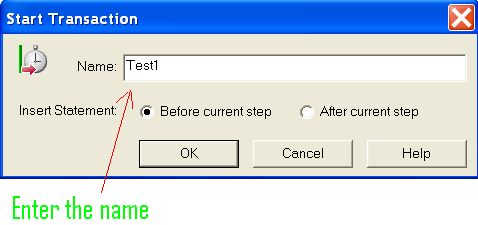

  3. Enter a meaningful name in the Name box.

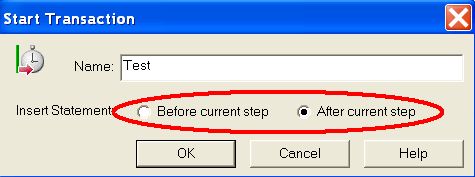

  4. Decide where you want the transaction timing to begin.

    To insert a transaction before the current step, select Before Current Step.


    To insert a transaction after the current step, select After Current Step.

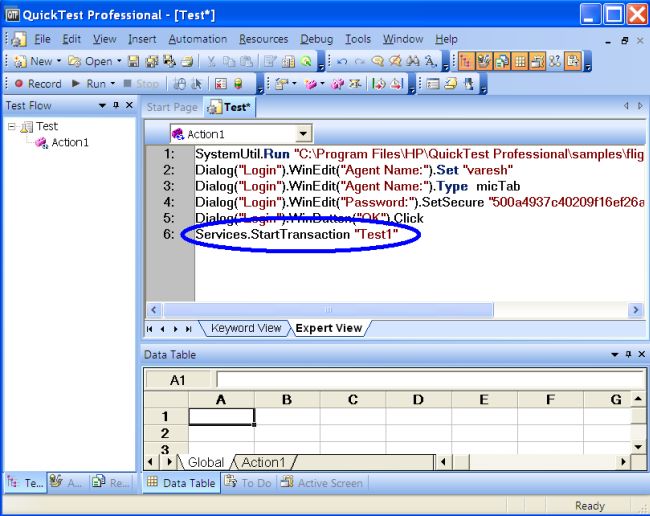

  5. Click OK. A Start Transaction step is added to the Keyword View.
