Finding Features Packed in SharePoint Solution

Features

A Feature is a container of various defined extensions for SharePoint Server 2010 and is composed of a set of XML files that are deployed to front-end Web servers and application servers. You can deploy a Feature as part of a solution package and you can individually activate a Feature in SharePoint Server sites.

Features are packages of functionality that you can activate and deactivate in a SharePoint Farm. They have the following four possible scopes.

Farm: A Farm level feature, as the name suggests, is something that affects the entire Farm.

Web Application: A web application feature can be activated so that it only affects a single web application and a typical example is a feature that modifies the web.config file.

Site: A site scoped feature can be activated so that it only affects a site collection, an example being the deployment of a master page to the master pages catalogue.

Web: Finally, a web scoped feature can be activated for a single site, for instance setting the default master page for that site.

Features make it easier to activate or deactivate functionality in the course of a deployment and administrators can easily transform the template or definition of a site by turning on or turning off a specific Feature in the user interface.

Feature packed in SP solution

The following piece of code finds the feature packed in given solution:
  1. $solution = ""
  2.
  3. [string]$solution = Read-Host "Enter the Solution name: [e.g. MyCustomSolution.wsp]"
  4.
  5. try {
  6.     Write-Verbose "Getting solution features ..."
  7.
  8.     $features = @()
  9.
  10.     $solution1 = Get-SPSolution -Identity $solution -ErrorAction SilentlyContinue
  11.
  12.     foreach ($grp in Get-SPFeature | where {$_.SolutionID -eq $solution1.id} | Group-Object SolutionId) {
  13.     foreach ($fd in $grp.Group | sort DisplayName ) {
  14.         $feature = New-Object -TypeName PSObject -Property @{
  15.         SolutionName = $solution1.Name
  16.         SolutionId = $solution1.Id
  17.         FeatureName = $fd.DisplayName
  18.         FeatureId = $fd.Id
  19.         FeatureScope = $fd.Scope
  20.         }
  21.         $features += $feature
  22.         }
  23.         }
  24.         Write-Output $features
  25.
  26.       }
  27. catch [Exception] {
  28.     Write-Error $Error[0]
  29.     $err = $_.Exception
  30.     while ( $err.InnerException ) {
  31.         $err = $err.InnerException
  32.         Write-Output $err.Message
  33.         }
  34.       }
Complete Code
  1. $LogTime = Get-Date -Format yyyy-MM-dd_hh-mm
  2. $LogFile = ".\FeaturePackedInSolutionPatch-$LogTime.rtf"
  3.
  4. # Add SharePoint PowerShell Snapin
  5.
  6.
  7. if ( (Get-PSSnapin -Name Microsoft.SharePoint.PowerShell -ErrorAction SilentlyContinue) -eq $null ) {
  8.     Add-PSSnapin Microsoft.SharePoint.Powershell
  9. }
  10.
  11. $scriptBase = split-path $SCRIPT:MyInvocation.MyCommand.Path -parent
  12. Set-Location $scriptBase
  13.
  14.
  15. #Deleting any .rtf files in the scriptbase location
  16. $FindRTFFile = Get-ChildItem $scriptBase\*.* -include *.rtf
  17. if($FindRTFFile)
  18. {
  19.     foreach($file in $FindRTFFile)
  20.         {
  21.             remove-item $file
  22.         }
  23. }
  24.
  25.
  26. start-transcript $logfile
  27.
  28.
  29. $solution = ""
  30.
  31. [string]$solution = Read-Host "Enter the Solution name: [e.g. MyCustomSolution.wsp]"
  32.
  33. try {
  34.     Write-Verbose "Getting solution features ..."
  35.
  36.     $features = @()
  37.
  38.     $solution1 = Get-SPSolution -Identity $solution -ErrorAction SilentlyContinue
  39.
  40.     foreach ($grp in Get-SPFeature | where {$_.SolutionID -eq $solution1.id} | Group-Object SolutionId) {
  41.     foreach ($fd in $grp.Group | sort DisplayName ) {
  42.         $feature = New-Object -TypeName PSObject -Property @{
  43.         SolutionName = $solution1.Name
  44.         SolutionId = $solution1.Id
  45.         FeatureName = $fd.DisplayName
  46.         FeatureId = $fd.Id
  47.         FeatureScope = $fd.Scope
  48.         }
  49.         $features += $feature
  50.         }
  51.         }
  52.         Write-Output $features
  53.
  54.       }
  55. catch [Exception] {
  56.     Write-Error $Error[0]
  57.     $err = $_.Exception
  58.     while ( $err.InnerException ) {
  59.         $err = $err.InnerException
  60.         Write-Output $err.Message
  61.         }
  62.       }
  63.
  64. Stop-transcript

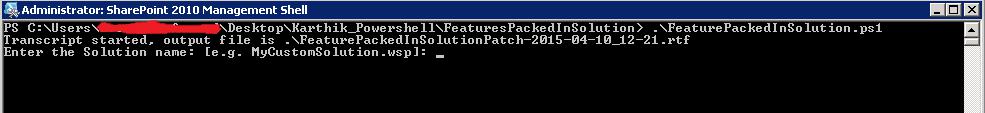

Execution procedure
  1. Download and copy the script to the SharePoint server.
  2. Launch the SharePoint management console.
  3. Navigate to the script path and execute it.


Enter the solution name.

Conclusion

Thus this article outlines how to find the features packed in the given SharePoint 2010 solution using a PowerShell script.
