ASP.NET WEB API With Entity Framework 6 Code First Technique - Part 4

Before proceeding to this article, please go through my previous articles:

In this article we are going to learn how to call ASP.NET WEB API from .NET Application.

Create One Employee model class in the project

  1. public class Employee
  2. {
  3.     [Key]
  4.     public int EmployeeId
  5.     {
  6.         get;
  7.         set;
  8.     }
  9.     public string FirstName
  10.     {
  11.         get;
  12.         set;
  13.     }
  14.     public string LastName
  15.     {
  16.         get;
  17.         set;
  18.     }
  19.     public int Age
  20.     {
  21.         get;
  22.         set;
  23.     }
  24. }



Create a Context class in the project:

  1. public class CRUDAPIContext : DbContext
  2.    {
  3.        public CRUDAPIContext() : base("name=CRUDAPIContext")
  4.        {
  5.        }
  6.
  7.        public System.Data.Entity.DbSet<CRUDAPI.Models.Employee> Employees { getset; }
  8.    }
The Employees Controller class
  1. public class EmployeesController : ApiController
  2.     {
  3.         private CRUDAPIContext db = new CRUDAPIContext();
  4.
  5.         // GET: api/Employees
  6.         public IQueryable<Employee> GetEmployees()
  7.         {
  8.             return db.Employees;
  9.         }
  10.
  11.         // GET: api/Employees/5
  12.         [ResponseType(typeof(Employee))]
  13.         public async Task<IHttpActionResult> GetEmployee(int id)
  14.         {
  15.             Employee employee = await db.Employees.FindAsync(id);
  16.             if (employee == null)
  17.             {
  18.                 return NotFound();
  19.             }
  20.
  21.             return Ok(employee);
  22.         }
  23.
  24.         // PUT: api/Employees/5
  25.         [ResponseType(typeof(void))]
  26.         public async Task<IHttpActionResult> PutEmployee(int id, Employee employee)
  27.         {
  28.             if (!ModelState.IsValid)
  29.             {
  30.                 return BadRequest(ModelState);
  31.             }
  32.
  33.             if (id != employee.EmployeeId)
  34.             {
  35.                 return BadRequest();
  36.             }
  37.
  38.             db.Entry(employee).State = EntityState.Modified;
  39.
  40.             try
  41.             {
  42.                 await db.SaveChangesAsync();
  43.             }
  44.             catch (DbUpdateConcurrencyException)
  45.             {
  46.                 if (!EmployeeExists(id))
  47.                 {
  48.                     return NotFound();
  49.                 }
  50.                 else
  51.                 {
  52.                     throw;
  53.                 }
  54.             }
  55.
  56.             return StatusCode(HttpStatusCode.OK);
  57.         }
  58.
  59.         // POST: api/Employees
  60.         [ResponseType(typeof(Employee))]
  61.         public async Task<IHttpActionResult> PostEmployee(Employee employee)
  62.         {
  63.             if (!ModelState.IsValid)
  64.             {
  65.                 return BadRequest(ModelState);
  66.             }
  67.
  68.             db.Employees.Add(employee);
  69.             await db.SaveChangesAsync();
  70.
  71.             return CreatedAtRoute("DefaultApi"new { id = employee.EmployeeId }, employee);
  72.         }
  73.
  74.         // DELETE: api/Employees/5
  75.         [ResponseType(typeof(Employee))]
  76.         public async Task<IHttpActionResult> DeleteEmployee(int id)
  77.         {
  78.             Employee employee = await db.Employees.FindAsync(id);
  79.             if (employee == null)
  80.             {
  81.                 return NotFound();
  82.             }
  83.
  84.             db.Employees.Remove(employee);
  85.             await db.SaveChangesAsync();
  86.
  87.             return Ok(employee);
  88.         }
  89. }
  90. }

SQL Table




Our API’s are ready, so now we can call these API from the .NET Application. In my case I’m taking a console Application.

Create one console Application:

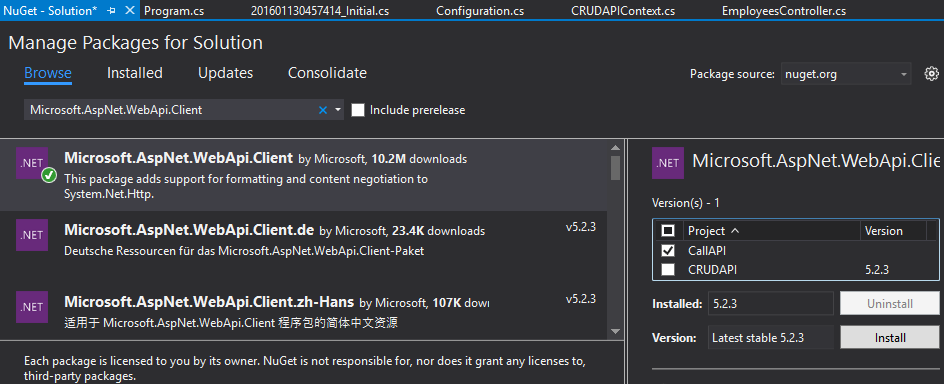

Installing the WEB API Client libraries:

Use NuGet Package Manager to install the Web API Client Libraries package for Console Application or else use Install –Package Microsoft.AspNet.WebApi.Client command in package manager console.



Create a Model class in Console Application

  1. public class Employee
  2. {
  3.     public int EmployeeId
  4.     {
  5.         get;
  6.         set;
  7.     }
  8.     public string FirstName
  9.     {
  10.         get;
  11.         set;
  12.     }
  13.     public string LastName
  14.     {
  15.         get;
  16.         set;
  17.     }
  18.     public int Age
  19.     {
  20.         get;
  21.         set;
  22.     }
  23. }

Call GetEmployees API Action from Console Application using HTTP Client

HTTP Client:

It is a class which is from System.Net.Http Namespace and provides a base class for sending HTTP requests and receiving HTTP responses from a resource identified by a URI.

Example

  1. class Program
  2.   {
  3.       static void Main(string[] args)
  4.       {
  5.           ApiCall().Wait();
  6.       }
  7.       static async Task ApiCall()
  8.       {
  9.           using (var client = new HttpClient())
  10.           {
  11.
  12.               HttpResponseMessage response =  client.GetAsync("http://localhost:57135/api/Employees/1").Result;
  13.               if (response.IsSuccessStatusCode)
  14.               {
  15.
  16.                   Employee emp = await response.Content.ReadAsAsync<Employee> ();
  17.
  18.                   Console.WriteLine("{0}\t{1}\t{2}\t{3}", emp.EmployeeId, emp.FirstName, emp.LastName, emp.Age);
  19.                   Console.ReadKey();
  20.
  21.               }
  22.           }
  23.       }
  24.   }

Result



Call Employees POST API Action
  1. class Program
  2.     {
  3.         static void Main(string[] args)
  4.         {
  5.             ApiCall();
  6.         }
  7.         static void ApiCall()
  8.         {
  9.             using (var client = new HttpClient())
  10.             {
  11.                 //HTTP POST
  12.
  13.                 var addEmp = new Employee() { FirstName = "John", LastName = "Miller", Age = 25 };
  14.                 HttpResponseMessage response =  client.PostAsJsonAsync("http://localhost:57135/api/Employees", addEmp).Result;
  15.                 Console.WriteLine("{0}\t{1}""StatusCode:", response.StatusCode);
  16.                 Console.ReadKey();
  17.
  18.
  19.             }
  20.         }
  21.     }
Result



Reflection in SQL Table



Call Employees PUT API Action
  1. class Program
  2.    {
  3.        static void Main(string[] args)
  4.        {
  5.            ApiCall();
  6.        }
  7.        static void ApiCall()
  8.        {
  9.            using (var client = new HttpClient())
  10.            {
  11.                //HTTP PUT
  12.
  13.                var updateEmp = new Employee() {EmployeeId=3, FirstName = "John", LastName = "Miller", Age = 27 };
  14.
  15.                HttpResponseMessage response =  client.PutAsJsonAsync("http://localhost:57135/api/Employees/3", updateEmp).Result;
  16.                Console.WriteLine("{0}\t{1}""StatusCode:", response.StatusCode);
  17.                Console.ReadKey();
  18.
  19.            }
  20.         }
  21.         }
Result



 Reflection in SQL Table



Call Employees Delete API Action
  1. class Program
  2.     {
  3.         static void Main(string[] args)
  4.         {
  5.             ApiCall();
  6.         }
  7.         static void ApiCall()
  8.         {
  9.             using (var client = new HttpClient())
  10.             {
  11.                 //HTTP DELETE
  12.
  13.                 HttpResponseMessage response =  client.DeleteAsync("http://localhost:57135/api/Employees/3").Result;
  14.                 Console.WriteLine("{0}\t{1}""StatusCode:", response.StatusCode);
  15.                 Console.ReadKey();
  16.
  17.             }
  18.         }
  19.     }
Result



Reflection in SQL Table



I hope you enjoyed this article. Your valuable feedback, question, or comments about this article are always welcomed.
