SQL Join in LINQ (LINQ to Entity / LINQ to SQL)

This article explains various types of joins in LINQ query. Learn Inner join, Outer Join, Left Outer join, Right Outer join, Full outer join, Cross Join, Group Join in LINQ query.

Introduction


SQL joins are used to get data from two or more tables, based on the logical relationships between the tables. There are mainly the following four types of joins available with SQL Server:
  1. Inner join
  2. Outer Join

    • Left Outer join
    • Right Outer join
    • Full outer join

  3. Cross Join
  4. Group Join
joins

LINQ is a full-featured query language. LINQ also offers JOIN operations. In this article, I will explain how to do these joins in LINQ.

Example

I have two tables: EmployeeMaster and DepartmentMaster. The relation between these two tables and dummy data for the tables are as shown below.

two tables

Department table

Department table

Employee table

Employee table


Inner Join in LINQ


An inner join returns only those records that exist in the tables. Using the "join" keyword we can do an inner join using a LINQ query.

C# syntax
  1. using (JoinEntities Context = new JoinEntities())
  2. {
  3.     var innerJoin = from e in Context.EmployeeMasters
  4.     join d in Context.DepartmentMasters on e.DepartmentId equals d.DepartmentId
  5.     select new
  6.     {
  7.         EmployeeCode = e.Code,
  8.         EmployeeName = e.Name,
  9.         DepartmentName = d.Name
  10.     };
  11.     Console.WriteLine("Employee Code\tEmployee Name\tDepartment Name");
  12.     foreach (var data in innerJoin)
  13.     {
  14.        Console.WriteLine(data.EmployeeCode + "\t\t" + data.EmployeeName + "\t" + data.DepartmentName);
  15.     }
  16. }
Output

Inner Join in LINQ


Left outer join in LINQ


A Left Outer join returns all records from the left table and the matching record from the right table. If there are no matching records in the right table then it returns null. If we want to do a Left Outer join in LINQ then we must use the keyword "into" and method "DefaultIfEmpty".

C# syntax
  1. using (JoinEntities Context = new JoinEntities())
  2. {
  3.     var leftOuterJoin = from e in Context.EmployeeMasters
  4.     join d in Context.DepartmentMasters on e.DepartmentId equals d.DepartmentId into dept
  5.     from department in dept.DefaultIfEmpty()
  6.     select new
  7.     {
  8.         EmployeeCode = e.Code,
  9.         EmployeeName = e.Name,
  10.         DepartmentName = department.Name
  11.     };
  12.     Console.WriteLine("Employee Code\tEmployee Name\tDepartment Name");
  13.     foreach (var data in leftOuterJoin)
  14.     {
  15.         Console.WriteLine(data.EmployeeCode + "\t\t" + data.EmployeeName + "\t" + data.DepartmentName);
  16.     }
  17. }
Output

Left outer join in LINQ


Right outer join in LINQ


A right outer join is not possible with LINQ. LINQ only supports left outer joins. If we swap the tables and do a left outer join then we can get the behavior of a right outer join.

C# syntax
  1. using (JoinEntities Context = new JoinEntities())
  2. {
  3.     var rightOuterJoin = from d in Context.DepartmentMasters
  4.     join e in Context.EmployeeMasters on d.DepartmentId equals e.DepartmentId into emp
  5.     from employee in emp.DefaultIfEmpty()
  6.     select new
  7.     {
  8.         EmployeeCode = employee.Code,
  9.         EmployeeName = employee.Name,
  10.         DepartmentName = d.Name
  11.     };
  12.     Console.WriteLine("Employee Code\tEmployee Name\tDepartment Name");
  13.     foreach (var data in rightOuterJoin)
  14.     {
  15.         Console.WriteLine(data.EmployeeCode + "\t\t" + data.EmployeeName + "\t" + data.DepartmentName);
  16.     }

Output

Right outer join in LINQ


Full outer join in LINQ


A full outer join is a logical union of a left outer join and a right outer join. LINQ does not support full outer joins directly, the same as right outer joins.

C# syntax
  1. using (JoinEntities Context = new JoinEntities())
  2. {
  3.     var leftOuterJoin = from e in Context.EmployeeMasters
  4.     join d in Context.DepartmentMasters on e.DepartmentId equals d.DepartmentId into dept
  5.     from department in dept.DefaultIfEmpty()
  6.     select new
  7.     {
  8.         EmployeeCode = e.Code,
  9.         EmployeeName = e.Name,
  10.         DepartmentName = department.Name
  11.     };
  12.     var rightOuterJoin = from d in Context.DepartmentMasters
  13.     join e in Context.EmployeeMasters on d.DepartmentId equals e.DepartmentId into emp
  14.     from employee in emp.DefaultIfEmpty()
  15.     select new
  16.     {
  17.         EmployeeCode = employee.Code,
  18.         EmployeeName = employee.Name,
  19.         DepartmentName = d.Name
  20.     };
  21.     leftOuterJoin = leftOuterJoin.Union(rightOuterJoin);
  22.     Console.WriteLine("Employee Code\tEmployee Name\tDepartment Name");
  23.     foreach (var data in leftOuterJoin)
  24.     {
  25.         if(!string.IsNullOrEmpty(data.EmployeeCode))
  26.         Console.WriteLine(data.EmployeeCode + "\t\t" + data.EmployeeName + "\t" + data.DepartmentName);
  27.         else
  28.         Console.WriteLine(data.EmployeeCode + "\t\t" + data.EmployeeName + "\t\t" + data.DepartmentName);
  29.     }

Output

Full outer join in LINQ


Cross Join in LINQ


A cross join is also known as a Cartesian Join. This join does not require any condition in the join but LINQ does not allow using the "join" keyword without any condition. Using two from clauses we can do a cross join.

C# syntax
  1. using (JoinEntities Context = new JoinEntities())
  2. {
  3.     var crossJoin = from e in Context.EmployeeMasters
  4.     from d in Context.DepartmentMasters
  5.     select new
  6.     {
  7.         EmployeeCode = e.Code,
  8.         EmployeeName = e.Name,
  9.         DepartmentName = d.Name
  10.     };
  11.     Console.WriteLine("Employee Code\tEmployee Name\tDepartment Name");
  12.     foreach (var data in crossJoin)
  13.     {
  14.         Console.WriteLine(data.EmployeeCode + "\t\t" + data.EmployeeName + "\t" + data.DepartmentName);
  15.     }

Output

Cross Join in LINQ


Group join in LINQ


Generally, in SQL, a group join can be done using a "Group by" clause. There are two ways to do a group join in LINQ.

1. Using INTO keyword

C# syntax
  1. using (JoinEntities Context = new JoinEntities())
  2. {
  3.     var groupJoin = from d in Context.DepartmentMasters
  4.     join e in Context.EmployeeMasters on d.DepartmentId equals e.DepartmentId into emp
  5.     select new
  6.     {
  7.         DeparmentCode = d.Code,
  8.         DeparmentName = d.Name,
  9.         Employee = emp
  10.     };
  11.     foreach (var data in groupJoin)
  12.     {
  13.         Console.WriteLine("Department:" + data.DeparmentCode + " - " + data.DeparmentName);
  14.         if (data.Employee != null && data.Employee.Count() > 0)
  15.         {
  16.         Console.WriteLine("Employee Code\tEmployee Name");
  17.         foreach (var empData in data.Employee)
  18.         {
  19.             Console.WriteLine(empData.Code + "\t\t" + empData.Name);
  20.         }
  21.     }
  22.     else
  23.     {
  24.     Console.WriteLine("Department has no employee.");
  25.     }
  26.         Console.WriteLine("");
  27.         Console.WriteLine("");
  28.     }

2. Using sub query
  1. using (JoinEntities Context = new JoinEntities())
  2. {
  3.     var groupJoin = from d in Context.DepartmentMasters
  4.     select new
  5.     {
  6.         DeparmentCode = d.Code,
  7.         DeparmentName = d.Name,
  8.         Employee = (from e in Context.EmployeeMasters
  9.         where e.DepartmentId == d.DepartmentId
  10.         select e)
  11.     };
  12.     foreach (var data in groupJoin)
  13.     {
  14.         Console.WriteLine("Department:" + data.DeparmentCode + " - " + data.DeparmentName);
  15.         var employees = data.Employee as IEnumerable<EmployeeMaster>;
  16.         if (employees != null && employees.Count()> 0)
  17.         {
  18.             Console.WriteLine("Employee Code\tEmployee Name");
  19.             foreach (var empData in employees)
  20.             {
  21.                Console.WriteLine(empData.Code + "\t\t" + empData.Name);
  22.             }
  23.        }
  24.        else
  25.        {
  26.            Console.WriteLine("Department has no employee.");
  27.        }
  28.        Console.WriteLine("");
  29.        Console.WriteLine("");
  30.     }
  31. }

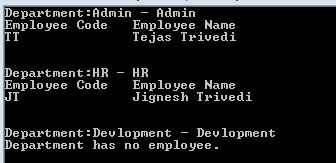

Output

Group join in LINQ


Summary


This article may help you to implement a join in LINQ.
