Configure and Create App in SharePoint 2013

Using this article, I am explaining the procedure to include App configuration as well as App development.

As we know SharePoint 2013 has introduced an App Model approach and everyone is eager to develop the app. Using this article, I am explaining the procedure to include App configuration as well as App development.

Section 1: Configuring App in SharePoint 2013

  1. Create DNS entry for App

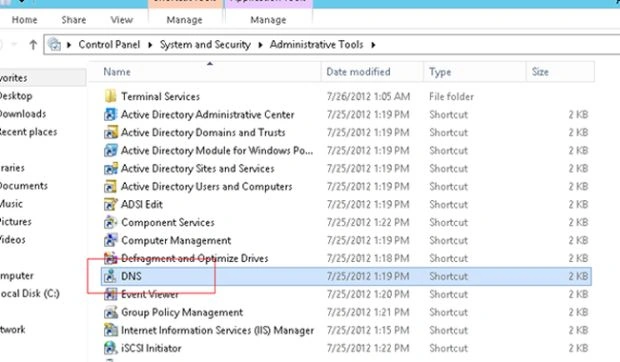

    Go to Administrative Tools then click on "DNS":

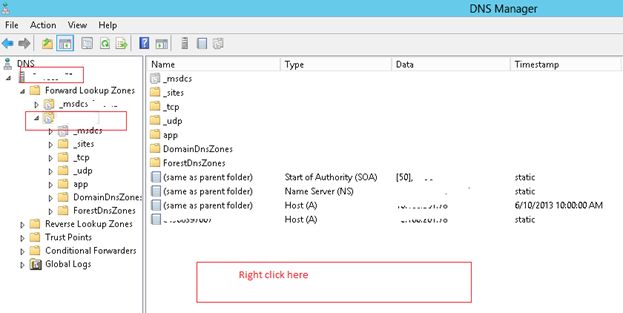

    See the following screen:

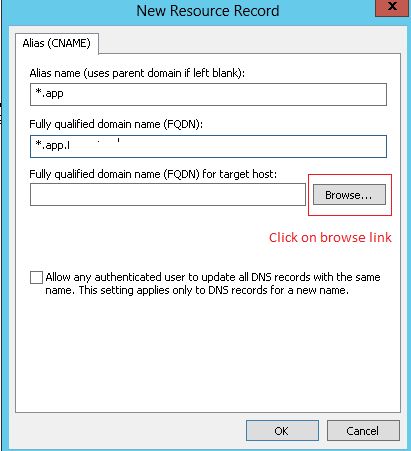

    Right-click then select "Create New Alias(CName)". Refer to the following screen:

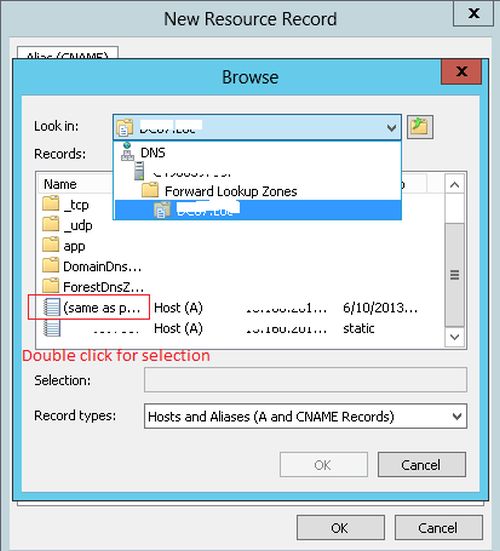

    Select "same as parent" as in the following screen:

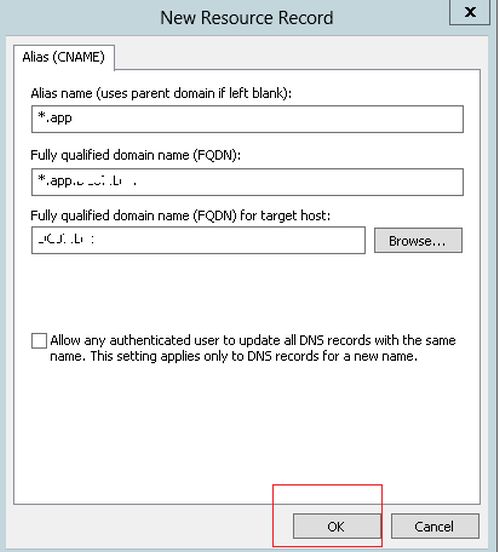

    Your final screen should be as in the following, click "Ok":


  2. DisableLoopbackCheck in regedit (to avoid authentication prompt)

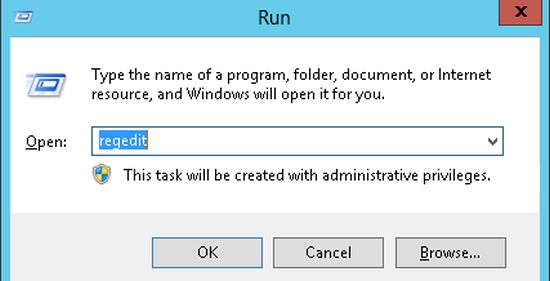

    Open the Registry window:

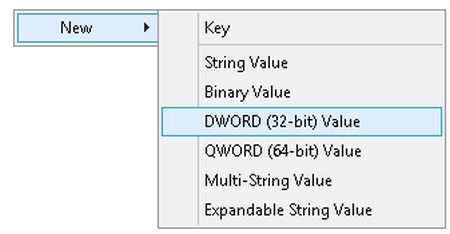

    Go to "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Lsa" and right-click and select:

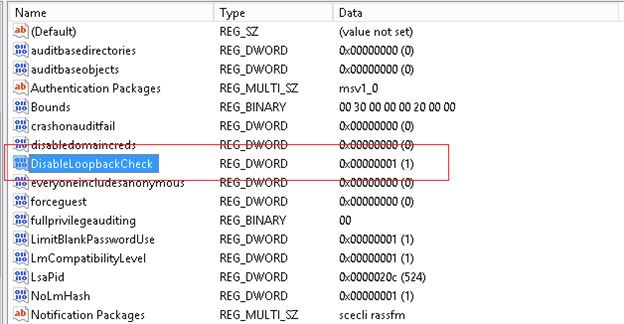

    Rename "DisableLoopbackCheck" and right-click on "modify" and change the value to "1". The final output should look as in the following:


  3. Check timer job to check spadmin & sptimer services

    PowerShell script:
    net start spadminv4
    net start sptimerv4

  4. Set App Domain

    PowerShell script:
    Set-SPAppDomain "<Domain name>"

  5. Check Appservices and Subscription services

    PowerShell script:

    Get-SPServiceInstance | where{$_.GetType().Name -eq "AppManagementServiceInstance" -or $_.GetType().Name -eq "SPSubscriptionSettingsServiceInstance"} | Start-SPServiceInstance
    And ensure service:
    Get-SPServiceInstance | where{$_.GetType().Name -eq "AppManagementServiceInstance" -or $_.GetType().Name -eq "SPSubscriptionSettingsServiceInstance"}

  6. Configuring SPSubscriptionService

    PowerShell script:
    $account = Get-SPManagedAccount "<Farm Account>"
    $appPoolSubSvc = New-SPServiceApplicationPool -Name SettingsServiceAppPool –Account$account
    $appPoolAppSvc = New-SPServiceApplicationPool -Name AppServiceAppPool -Account $account
    $appSubSvc = New-SPSubscriptionSettingsServiceApplication –ApplicationPool $appPoolSubSvc –Name SettingsServiceApp –DatabaseName SettingsServiceDB
    $proxySubSvc = New-SPSubscriptionSettingsServiceApplicationProxy –ServiceApplication $appSubSvc

  7. Configure AppManagement ServiceInstance

    PowerShell script:
    $appAppSvc = New-SPAppManagementServiceApplication -ApplicationPool $appPoolAppSvc -Name AppServiceApp -DatabaseName AppServiceDB
    $proxyAppSvc = New-SPAppManagementServiceApplicationProxy -ServiceApplication $appAppSvc

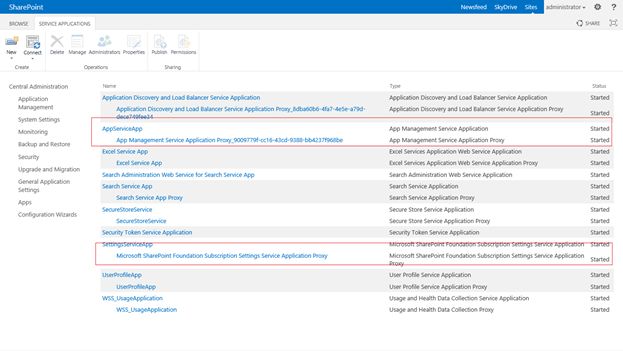

    After performing step 6 and 7, In Central Administration site go to Application Management -> Manage Service Applications. You will able to see:


  8. Configure tenant for hosting SharePoint 2013 Apps

    PowerShell script:
    Set-SPAppSiteSubscriptionName -Name "app" -Confirm:$false

  9. Configure App URL in Central Administration

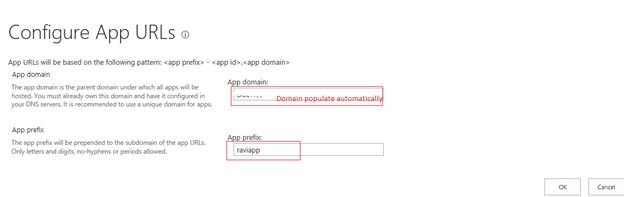

    In Central Administration site go to "Apps" -> "Configure App Url's":

Section 2: Develop SharePoint Hosted App using VS2012

After completing Section 1 of this article, we are ready for creating apps in SharePoint 2013. I will explain the procedure for creating a hello world app in SharePoint 2013.

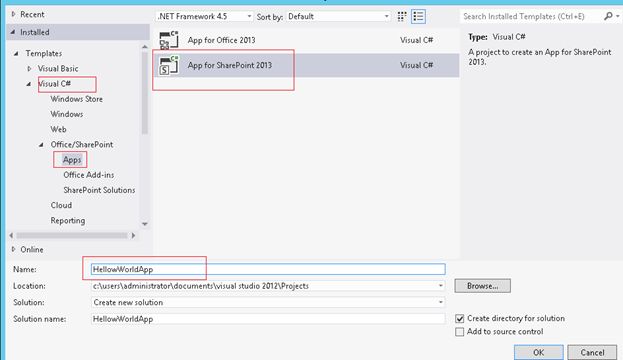

  1. Open Visual Studio 2012, create a new project then select the language C# then the template "SharePoint Apps". Give it the name "HellowWorldApp". Click "Ok".

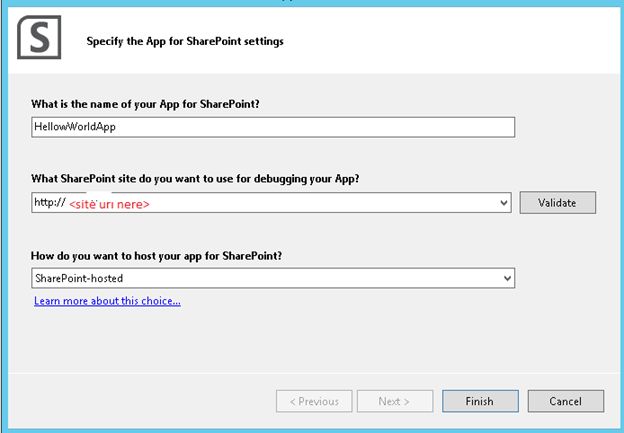

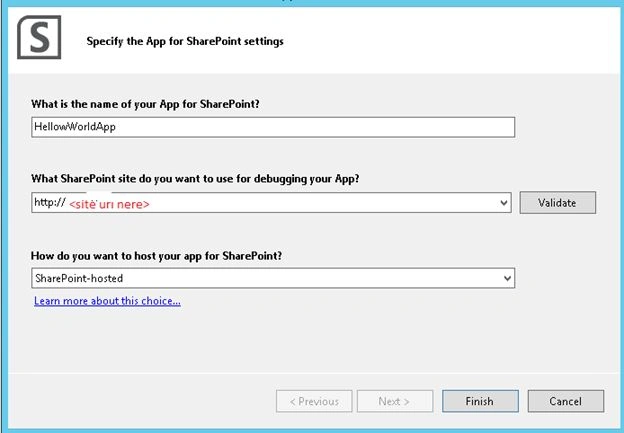

  2. Select "SharePoint Hosted App" and click on "Finish":

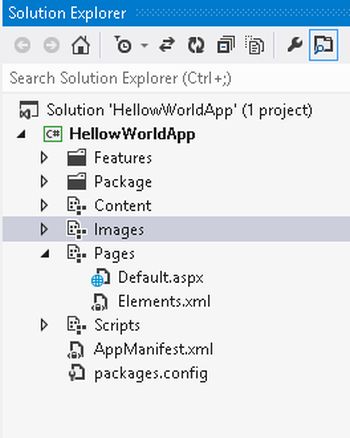

  3. The folder structure should look as in the following:


  4. Click on "Scripts\App.js". Add some text in it as in the following:


  5. Click on "Deploy" to deploy the solution. You are done with your first SharePoint 2013 App.

Section 3: Verify your app

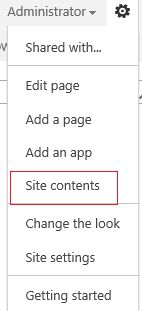

  1. Open the site where your App is deployed. For example "Team Site". Click on "Site Action" - "Site Contents":

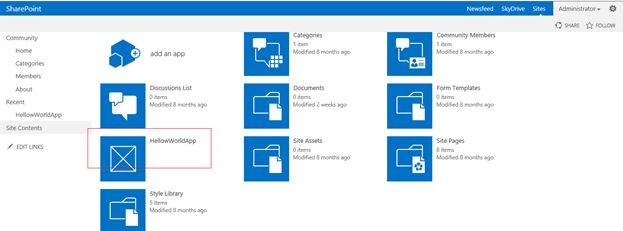

  2. Under Site Content, you will able to see the app you created, "HellowWorldApp". Click on "HellowWorldApp".

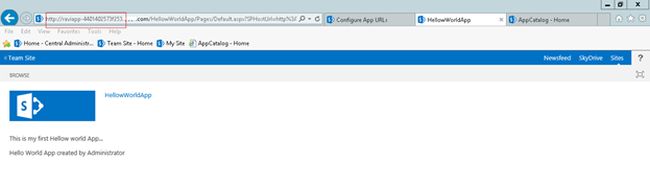

  3. Here is my app:


You can learn more about the basics of Apps from the MSDN link:

http://msdn.microsoft.com/en-us/library/fp179930.aspx

Hope you liked my Article... happy Learning.
