Accessing Excel Databases using ADO.NET

This article has been excerpted from the book "A Programmer's Guide to ADO.NET in C#".

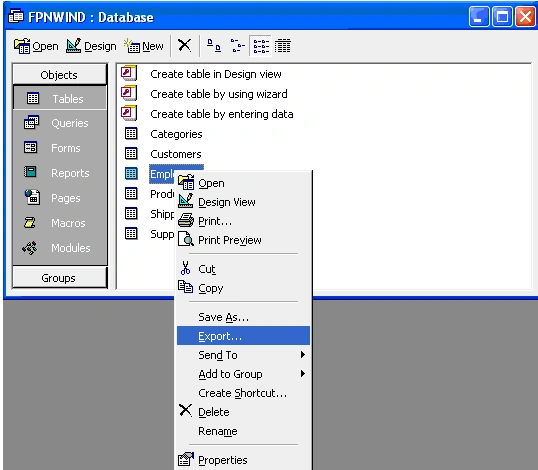

The next example will show you how to connect with Excel databases. To test this sample, if you don't have an Excel database, you can export data from your Northwind database. As you can see from figure 11-33, You can export the Employees table from Microsoft Access by right-clicking on the table and selecting the Export option or by selecting File > Export.


Figure 11-33: Exporting the Employees table as an Excel spreadsheet

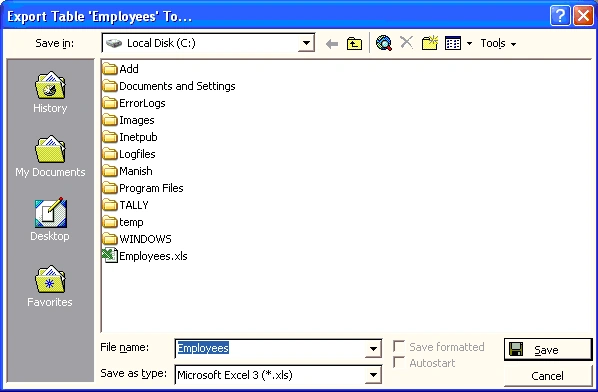

When you export, make sure you have selected the Microsoft Excel 97-2000 (*.xls) option in the Save as type drop-down list (see Figure 11-34).


Figure 11-34: Saving the Employees table as an Excel spreadsheet

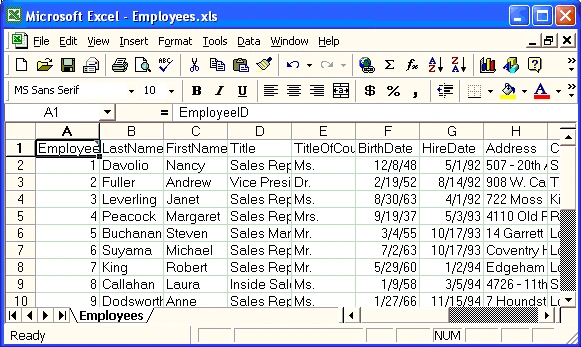

Now if you open Employees.xls, it looks like figure 11-35.


Figure 11-35: Employees.xls data view

Again you can access the Excel database either using an ODBC DSN or bypassing the database name directly in the connection string. In this sample, you're passing the database name directly:
  1. string ConnnectionString = @"Driver={Microsoft Excel Driver (*.xls)};DBQ=c:\Employees.xls"
After that, the code should be familiar to you. It's the same steps as creating a data adapter, selecting some field of the table, filling a dataset from the data adapter, and binding data with the data-bound controls. Listing 11-4 shows the full source code.

Listing 11-4: Accessing Employees.xls using the ODBC data provider
  1. private void Form1_Load(object sender, System.EventArgs e) {
  2.     // Connection string for ODBC Excel Driver
  3.     string ConnectionString =
  4.         @ "Driver={Microsoft Excel Driver (*.xls)};DBQ=c:\Employees.xls";
  5.     OdbcConnection conn = new OdbcConnection(ConnectionString);
  6.     // Table in Excel can be thought of as sheets and are queried as shown
  7.     string sql = "Select EmployeeID, FirstName, LastName FROM Employees";
  8.     conn.Open();
  9.     OdbcDataAdapter da = new OdbcDataAdapter(sql, conn);
  10.     DataSet ds = new DataSet();
  11.     da.Fill(ds, "Employees");
  12.     dataGrid1.DataSource = ds.DefaultViewManager;
  13.     listBox1.DataSource = ds.DefaultViewManager;
  14.     listBox1.DisplayMember = "Employees.FirstName";

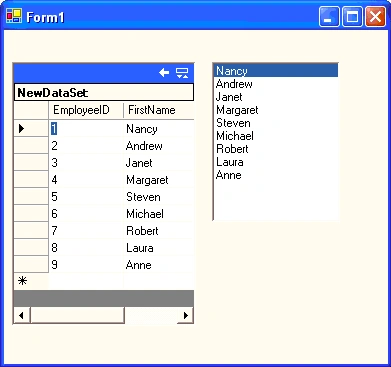

The output of Listing 11-4 looks like figure 11-36.


Figure 11-36: Output of Listing 11-4


Conclusion


Hope this article would have helped you in understanding Accessing Excel Databases using ADO.NET. See my other articles on the website on ADO.NET.
