Export Data Into Excel in a Pre-defined Template Using StreamWriter

Exporting data into Excel is a common requirement. In this article, I will explain the exportation of data into Excel in a pre-defined Excel template.

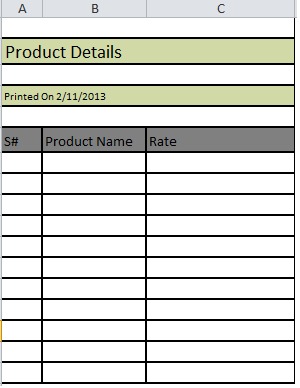

For exporting data into a pre-defined Excel sheet, we will create an Excel sheet (as in the following) in the folder "ExcelTemplates" with the file name "Reports-ProductDetails.xls":


Create a table called Product:
  1. CREATE TABLE[dbo]. [Product](
  2.     [product_id][int] IDENTITY(1, 1) NOT NULL,
  3.     [product_name][nvarchar](maxNULL,
  4.     [product_rate][money] NULL
  5. ON[PRIMARY] TEXTIMAGE_ON[PRIMARY]
  6. GO;

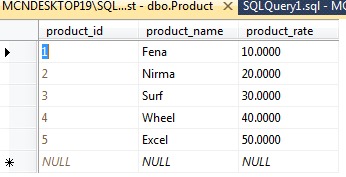

Added some records:


Page design code:
  1. <form id="form1" runat="server">
  2.      <div>
  3.           <asp:GridView ID="GridView1" runat="server" AllowPaging="True" AutoGenerateColumns="False" CellPadding="4" DataSourceID="SqlDataSource1" ForeColor="#333333" GridLines="None">
  4.                <AlternatingRowStyle BackColor="White" />
  5.                <Columns>
  6.                     <asp:BoundField DataField="product_id" HeaderText="Product Id" InsertVisible="False" ReadOnly="True" SortExpression="product_id" />
  7.                     <asp:BoundField DataField="product_name" HeaderText="Product Name" SortExpression="product_name" />
  8.                     <asp:BoundField DataField="product_rate" HeaderText="Product Rate" SortExpression="product_rate" />
  9.                </Columns>
  10.                <EditRowStyle BackColor="#2461BF" />
  11.                <FooterStyle BackColor="#507CD1" Font-Bold="True" ForeColor="White" />
  12.                <HeaderStyle BackColor="#507CD1" Font-Bold="True" ForeColor="White" />
  13.                <PagerStyle BackColor="#2461BF" ForeColor="White" HorizontalAlign="Center" />
  14.                <RowStyle BackColor="#EFF3FB" />
  15.                <SelectedRowStyle BackColor="#D1DDF1" Font-Bold="True" ForeColor="#333333" />
  16.                <SortedAscendingCellStyle BackColor="#F5F7FB" />
  17.                <SortedAscendingHeaderStyle BackColor="#6D95E1" />
  18.                <SortedDescendingCellStyle BackColor="#E9EBEF" />
  19.                <SortedDescendingHeaderStyle BackColor="#4870BE" />
  20.           </asp:GridView>
  21.      </div>
  22.      <asp:SqlDataSource ID="SqlDataSource1" runat="server" ConnectionString="<%$ ConnectionStrings:TestConnectionString %>" SelectCommand="SELECT * FROM [Product]"></asp:SqlDataSource>
  23.      <asp:Button ID="Button1" runat="server" OnClick="Button1_Click" Text="Export to Excel" />
  24. </form>

Now here is the code to export the data using a StreamWriter object:

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.UI;
  6. using System.Web.UI.WebControls;
  7. using System.IO;
  8. using System.Data;
  9. using System.Data.SqlClient;
  10. using System.Configuration;
  11.
  12. public partial class ExporttoExcel: System.Web.UI.Page {
  13.     SqlConnection con = new SqlConnection(ConfigurationManager.ConnectionStrings["TestConnectionString"].ConnectionString);
  14.     protected void Page_Load(object sender, EventArgs e) {
  15.         GridView1.DataBind();
  16.     }
  17.     protected void Button1_Click(object sender, EventArgs e) {
  18.         SqlCommand command = new SqlCommand();
  19.         command.CommandText = "SELECT * FROM Product";
  20.         command.CommandType = CommandType.Text;
  21.         command.Connection = con;
  22.         SqlDataAdapter da = new SqlDataAdapter(command);
  23.         DataSet ds = new DataSet();
  24.         da.Fill(ds, "ProductDetails");
  25.         if (ds.Tables[0].Rows.Count < 0)
  26.             return;
  27.         var fpath = string.Empty;
  28.         if (Directory.Exists(Server.MapPath("ExcelTemplates")) == false)
  29.             Directory.CreateDirectory(Server.MapPath("ExcelTemplates"));
  30.         fpath = Server.MapPath("ExcelTemplates/Reports-ProductDetails" + Session.SessionID + ".xls");
  31.         if (File.Exists(fpath) == false)
  32.             File.Create(fpath).Close();
  33.         else
  34.             File.Create(fpath).Close();
  35.         if (fpath.Trim() != string.Empty)
  36.             DataSetToExcel(ds, fpath, "");
  37.     }
  38.     void DataSetToExcel(DataSet dsExport, string path, string tableName) {
  39.         if (path == string.Empty)
  40.             return;
  41.         StreamWriter SWriter = new StreamWriter(path);
  42.         string str = string.Empty;
  43.         Int32 colspan = dsExport.Tables[0].Columns.Count;
  44.         str += "<Table border=2><TR><TD align='center' colspan=" + Convert.ToString(colspan) + ">" + tableName + "</TD></tr>";
  45.         str += "<tr><TD align='left' bgcolor='#D1DAA7' style='font-size:18px' colspan=" + Convert.ToString(colspan) + ">" + tableName + "Product Details</TD></tr>";
  46.         str += "<tr></tr><tr><TD align='left' bgcolor='#D1DAA7' style='font-size:10px' colspan=" + Convert.ToString(colspan) + ">" + tableName + " Printed On  " + DateTime.Now.Date + "</TD></tr><tr></TR>";
  47.         foreach(DataColumn DBCol in dsExport.Tables[0].Columns) {
  48.             str += "<TD bgcolor='808080'>" + DBCol.ColumnName + "</TD>";
  49.         }
  50.         str += "</TR>";
  51.         foreach(DataRow DBRow in dsExport.Tables[0].Rows) {
  52.             str += "<TR>";
  53.             foreach(DataColumn DBCol in dsExport.Tables[0].Columns) {
  54.                 str += "<TD>" + Convert.ToString(DBRow[DBCol.ColumnName]) + "</TD>";
  55.             }
  56.             str += "</TR>";
  57.         }
  58.         str += "</TABLE>";
  59.         SWriter.WriteLine(str);
  60.         SWriter.Flush();
  61.         SWriter.Close();
  62.         if (path.Length > 5)
  63.             DownloadFile(path);
  64.     }
  65.     void DownloadFile(string FPath) {
  66.         String strRequest = Request.QueryString["file"];
  67.         FileInfo file = new FileInfo(FPath);
  68.         if (file.Exists) {
  69.             Response.Clear();
  70.             Response.AddHeader("Content-Disposition""attachment; filename=" + file.Name);
  71.             Response.AddHeader("Content-Length", file.Length.ToString());
  72.             Response.ContentType = "application/octet-stream";
  73.             Response.WriteFile(file.FullName);
  74.             Response.End();
  75.         } else {
  76.             Response.Write("This file does not exist.");
  77.         }
  78.     }

After exporting the data into Excel, the report looks like this:


Happy coding!
