Image Comparison using C#

I am proud to present to you our unique image comparison application in C#.Net. C# .Net provides a good support for processing on the image, and the purpose of this article is not to give you a lot of insight into the image processing, rather it is written to help you start your image processing career using C#.

Let's create a project and compare two images using this application. to do this follows the given steps:

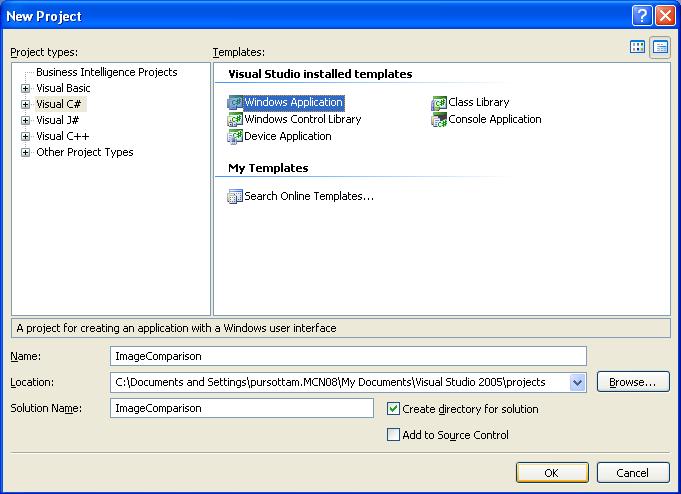

Step 1: In Visual studio 2005. click on file menu -> New -> Project then the following dialogbox will appear.


Figure 1:

Step 2: Now drag and drop the following tools on the Form from toolbox.

Two LinkLable
One Button
Two OpenFileDialog
ProgressBar
PictureBox


Figure 2:

Step 3: Go to properties window and design the form as you want.

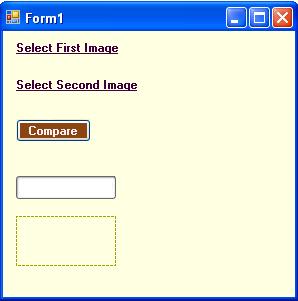

Figure 3:

Step 4: Double click on form and write the following line on the form_load.

  1. private void Form1_Load(object sender, EventArgs e)
  2. {
  3.     progressBar1.Visible = false;
  4.     pictureBox1.Visible = false;
  5. }
Step 5: Add namespace
  1. using System.IO;

Step 6: Write the following line on the linkLabel1_LinkClicked event

  1. private void linkLabel1_LinkClicked(object sender, LinkLabelLinkClickedEventArgs e)
  2. {
  3.     openFileDialog1.FileName = "";
  4.     openFileDialog1.Title = "Images";
  5.     openFileDialog1.Filter = "All Images|*.jpg; *.bmp; *.png";
  6.     openFileDialog1.ShowDialog();
  7.     if (openFileDialog1.FileName.ToString() != "")
  8.     {
  9.         fname1 = openFileDialog1.FileName.ToString();
  10.     }
  11. }

Step 7: Write the following line on the linkLabel2_LinkClicked event

  1. private void linkLabel2_LinkClicked(object sender, LinkLabelLinkClickedEventArgs e)
  2. {
  3.     openFileDialog2.FileName = "";
  4.     openFileDialog2.Title = "Images";
  5.     openFileDialog2.Filter = "All Images|*.jpg; *.bmp; *.png";
  6.     openFileDialog2.ShowDialog();
  7.     if (openFileDialog2.FileName.ToString() != "")
  8.     {
  9.         fname2 = openFileDialog2.FileName.ToString();
  10.     }
  11. }

Step 8: Finally write the follwoing code in the button click event.

  1. private void button1_Click(object sender, EventArgs e)
  2. {
  3.     progressBar1.Visible = true;
  4.     string img1_ref, img2_ref;
  5.     img1 = new Bitmap(fname1);
  6.     img2 = new Bitmap(fname2);
  7.     progressBar1.Maximum = img1.Width;
  8.     if (img1.Width == img2.Width && img1.Height == img2.Height)
  9.     {
  10.         for (int i = 0; i < img1.Width; i++)
  11.         {
  12.             for (int j = 0; j < img1.Height; j++)
  13.             {
  14.                 img1_ref = img1.GetPixel(i, j).ToString();
  15.                 img2_ref = img2.GetPixel(i, j).ToString();
  16.                 if (img1_ref != img2_ref)
  17.                 {
  18.                     count2++;
  19.                     flag = false;
  20.                     break;
  21.                 }
  22.                 count1++;
  23.             }
  24.             progressBar1.Value++;
  25.         }
  26.         if (flag == false)
  27.         MessageBox.Show("Sorry, Images are not same , " + count2 + " wrong pixels found");
  28.         else
  29.         MessageBox.Show(" Images are same , " + count1 + " same pixels found and " + count2 + " wrong pixels found");
  30.     }
  31.     else
  32.     MessageBox.Show("can not compare this images");
  33.     this.Dispose();
  34. }

Step 9: Now debug the application. When you compare same images like as follows:


Img 1:


Img 2:

Then the following output will occur.

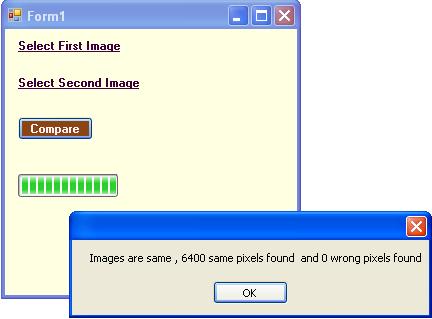

Figure 4:

Step 10: When you compare different images like as follows:


Img 3_Different:

Then the following output will occur.

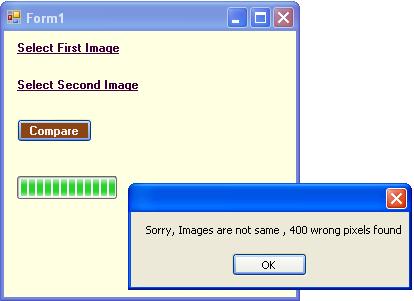

Figure 5:
