Database Driven Menu Item in ASP.Net

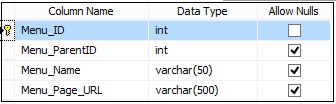

The following is my menu item data table in design mode:

sql database

The following is the script of my table:

  1. CREATE TABLE [dbo].[tbl_Menu](
  2.     [Menu_ID] [int] IDENTITY(1,1) NOT NULL,
  3.     [Menu_ParentID] [int] NULL,
  4.     [Menu_Name] [varchar](50) NULL,
  5.     [Menu_Page_URL] [varchar](500) NULL,
  6.  CONSTRAINT [PK_tbl_Menu] PRIMARY KEY CLUSTERED
  7. (
  8.     [Menu_ID] ASC
  9. )WITH (PAD_INDEX  = OFF, STATISTICS_NORECOMPUTE  = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS  = ON, ALLOW_PAGE_LOCKS  = ON) ON [PRIMARY]
  10. ) ON [PRIMARY]
  11.
  12. GO

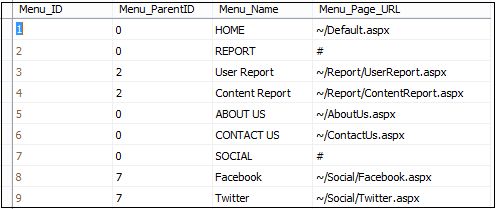

Now the data in my tbl_Menu table:

tbl_menu table

Here in this application I am using a Master Pager to provide a consistent look in the entire application. So I wrote code to generate a menu item from the database in MasterPage.master.cs.

The following is my MasterPage.Master:

  1. <%@ Master Language="C#" AutoEventWireup="true" CodeBehind="MasterPage.master.cs" Inherits="MenuFromDB.MasterPage" %>
  2.
  3. <!DOCTYPE html>
  4.
  5. <html xmlns="http://www.w3.org/1999/xhtml">
  6. <head runat="server">
  7.     <title></title>
  8.     <link href="StyleSheetMenu.css" rel="stylesheet" />
  9.     <link href="StyleSheet.css" rel="stylesheet" />
  10.     <asp:ContentPlaceHolder ID="head" runat="server">
  11.     </asp:ContentPlaceHolder>
  12. </head>
  13. <body>
  14.     <form id="form1" runat="server">
  15.         <div>
  16.             <table cellpadding="1" cellspacing="1" width="880px" align="center" class="BlueBorder"
  17.                    style="background: White;">
  18.                 <tr>
  19.                     <td style="height: 100px; background-color: skyblue; padding-left: 10px;">
  20.                         <span style="font-size: 20pt; font-weight: bold; color: blue;">Data Base Driven Menu Item In ASP.NET C#</span>
  21.                     </td>
  22.                 </tr>
  23.                 <tr>
  24.                     <td style="background-color: orange; padding-left: 1px;">
  25.                         <asp:Menu ID="MenuFromDB" runat="server" Orientation="Horizontal">
  26.                             <levelmenuitemstyles>
  27.                                 <asp:menuitemstyle cssclass="Parent_Menu" />
  28.                                 <asp:menuitemstyle cssclass="level_menu" />
  29.                             </levelmenuitemstyles>
  30.                             <staticselectedstyle cssclass="selected" />
  31.                         </asp:Menu>
  32.                     </td>
  33.                 </tr>
  34.                 <tr>
  35.                     <td style="padding-top: 40px; padding-bottom: 80px; padding-left: 10px">
  36.                         <asp:ContentPlaceHolder ID="ContentPlaceHolder1" runat="server">
  37.                         </asp:ContentPlaceHolder>
  38.                     </td>
  39.                 </tr>
  40.             </table>
  41.
  42.         </div>
  43.     </form>
  44. </body>
  45. </html>
Now the MasterPage.Master.cs is:
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.UI;
  6. using System.Web.UI.WebControls;
  7. using System.IO;
  8. using System.Data;
  9. using System.Data.SqlClient;
  10. using System.Configuration;
  11.
  12. namespace MenuFromDB
  13. {
  14.     public partial class MasterPage : System.Web.UI.MasterPage
  15.     {
  16.         SqlDataAdapter da;
  17.         DataSet ds = new DataSet();
  18.         DataTable dt = new DataTable();
  19.
  20.         protected void Page_Load(object sender, EventArgs e)
  21.         {
  22.             if (!Page.IsPostBack)
  23.             {
  24.                 dt = GetMenuDataFromDB(0);
  25.                 PopulateMenu(dt, 0, null);
  26.             }
  27.         }
  28.
  29.         public DataTable GetMenuDataFromDB(int MenuParentID)
  30.         {
  31.             SqlConnection con = new SqlConnection();
  32.             ds = new DataSet();
  33.             con.ConnectionString = @"Data Source=MyPC\SqlServer2k8; Initial Catalog=Test; Integrated Security=true;";
  34.             SqlCommand cmd = new SqlCommand("SELECT *  FROM tbl_Menu WHERE Menu_ParentID='" + MenuParentID + "'", con);
  35.
  36.             da = new SqlDataAdapter(cmd);
  37.             da.Fill(ds);
  38.             con.Open();
  39.             cmd.ExecuteNonQuery();
  40.             con.Close();
  41.
  42.             return ds.Tables[0];
  43.         }
  44.
  45.         private void PopulateMenu(DataTable dt, int Menu_Parent_ID, MenuItem Parent_MenuItem)
  46.         {
  47.             string currentPage = Path.GetFileName(Request.Url.AbsolutePath);
  48.             foreach (DataRow row in dt.Rows)
  49.             {
  50.                 MenuItem menuItem = new MenuItem
  51.                 {
  52.                     Value = row["Menu_Id"].ToString(),
  53.                     Text = row["Menu_Name"].ToString(),
  54.                     NavigateUrl = row["Menu_Page_URL"].ToString(),
  55.                     Selected = row["Menu_Page_URL"].ToString().EndsWith(currentPage, StringComparison.CurrentCultureIgnoreCase)
  56.                 };
  57.                 if (Menu_Parent_ID == 0)
  58.                 {
  59.                     MenuFromDB.Items.Add(menuItem);
  60.                     DataTable dtChildMenu = new DataTable();
  61.                     dtChildMenu = this.GetMenuDataFromDB(int.Parse(menuItem.Value));
  62.                     PopulateMenu(dtChildMenu, int.Parse(menuItem.Value), menuItem);
  63.                 }
  64.                 else
  65.                 {
  66.                     Parent_MenuItem.ChildItems.Add(menuItem);
  67.                 }
  68.             }
  69.         }
  70.     }
  71. }

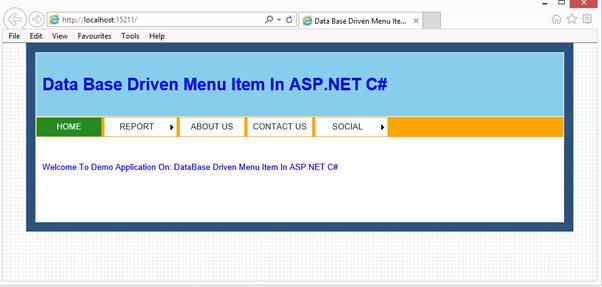

Now run the application.

demo application

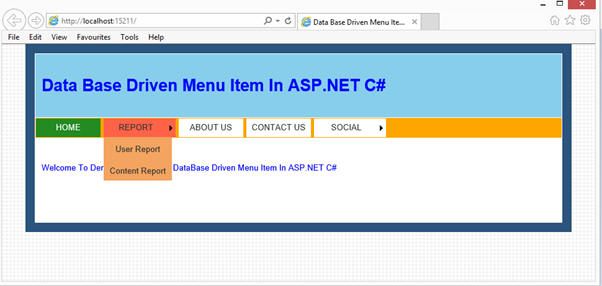

report menuitem

Now hover on any menu and see the child menu.

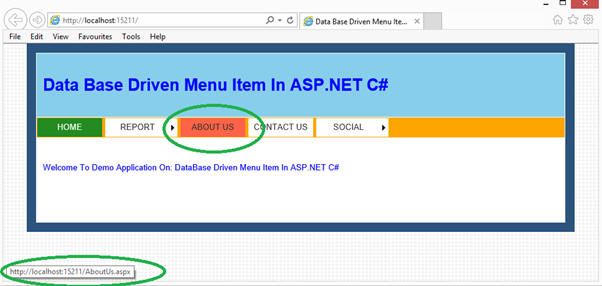

aboutus menuitem

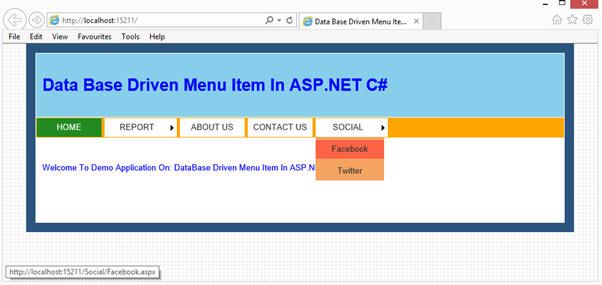

social tab menuitem
