JQuery: Fill DropDown and Show Records in GridView Format in ASP.Net

This article shows how to bind a drop down list in ASP.NET using jQuery and how to show data on selecting a value from the drop down list in a GridView format using jQuery.

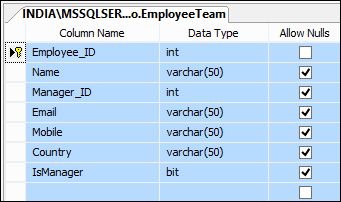

The following is the table in design mode.

table design
Figure 1

The following is the script of my table:

  1. CREATE TABLE [dbo].[EmployeeTeam](
  2.     [Employee_ID] [int] IDENTITY(1,1) NOT NULL,
  3.     [Name] [varchar](50) NULL,
  4.     [Manager_ID] [intNULL,
  5.     [Email] [varchar](50) NULL,
  6.     [Mobile] [varchar](50) NULL,
  7.     [Country] [varchar](50) NULL,
  8.     [IsManager] [bitNULL,
  9.  CONSTRAINT [PK_EmployeeTeam] PRIMARY KEY CLUSTERED
  10. (
  11.     [Employee_ID] ASC
  12. )WITH (PAD_INDEX  = OFF, STATISTICS_NORECOMPUTE  = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS  = ON, ALLOW_PAGE_LOCKS  = ONON [PRIMARY]
  13. ON [PRIMARY]
  14.
  15. GO
  16.
  17. SET ANSI_PADDING OFF
  18. GO
The following is the data in my table:

Data in My Table
Figure 2.

Here in this you can see I have employee records with its Manager Id. So in the drop down I will see only Manage and on selecting Manager from the drop down I will show their team information in the GridView.

Now create a Visual Studio solution as in the following:

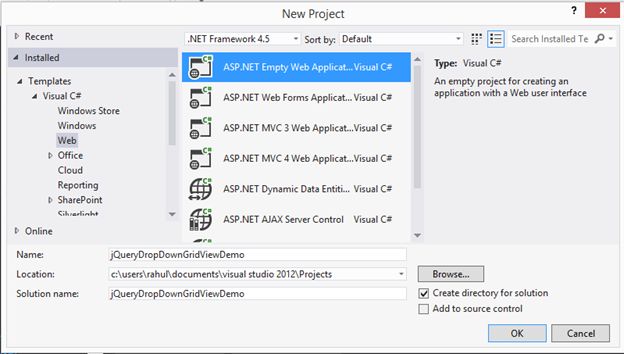

create a Visual Studio Solution
Figure 3

Now add a jQuery reference. For that, right-click on the project in Solution Explorer and click Manage NuGet Packages.

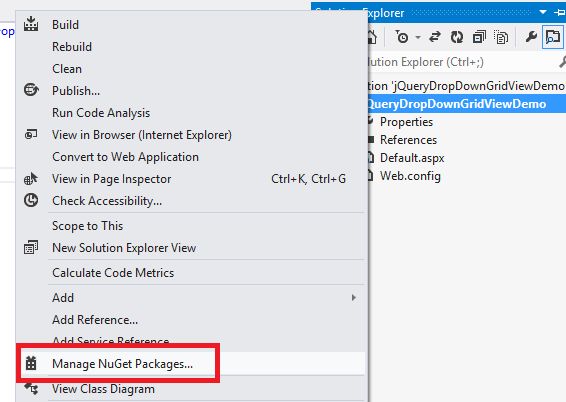

manage nuGet Packages
Figure 4

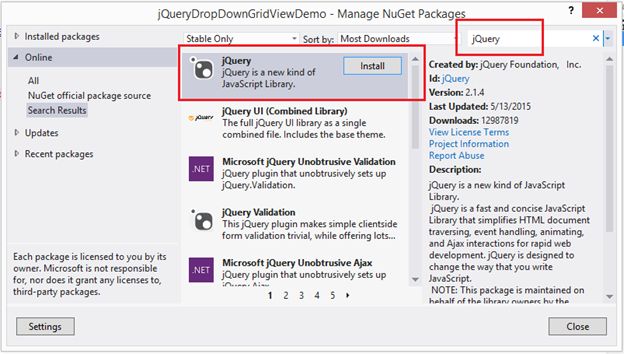

jQuery install
Figure 5

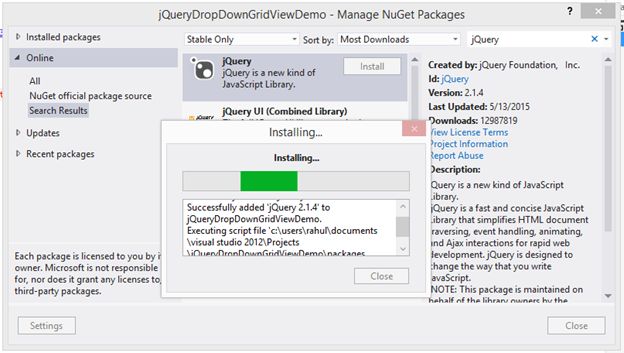

install
Figure 6

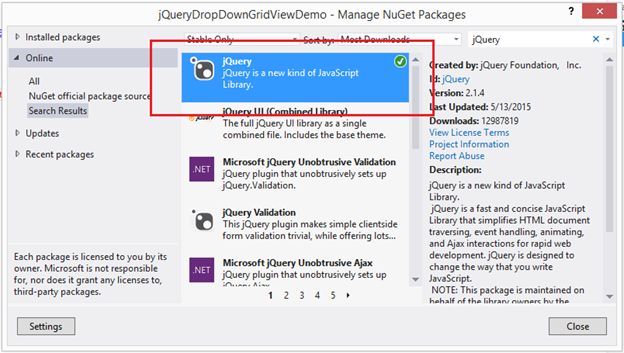

jQuery package
Figure 7

Now add a new class to your project's EmployeeDetails.cs with the following code:
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5.
  6. namespace jQueryDropDownGridViewDemo
  7. {
  8.     public class EmployeeDetails
  9.     {
  10.         public int Employee_ID { getset; }
  11.         public string Name { getset; }
  12.         public int Manager_ID { getset; }
  13.         public string Email { getset; }
  14.         public string Mobile { getset; }
  15.         public string Country { getset; }
  16.     }
  17. }

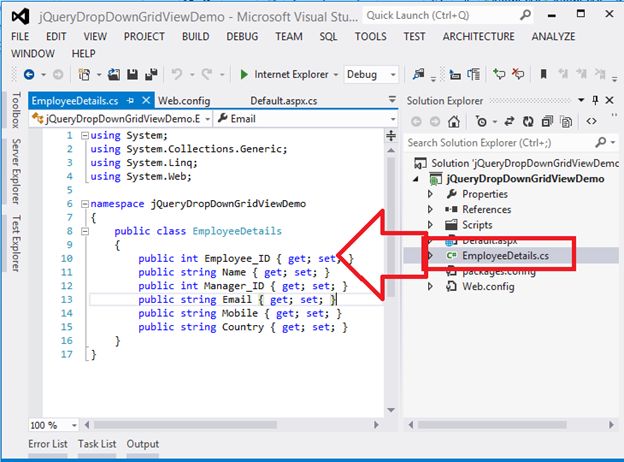

EmployeeDetails
Figure 8

The following is my aspx:
  1. <%@ Page Language="C#" AutoEventWireup="true" CodeBehind="Default.aspx.cs" Inherits="jQueryDropDownGridViewDemo.Default" %>
  2.
  3. <!DOCTYPE html>
  4.
  5. <html xmlns="http://www.w3.org/1999/xhtml">
  6. <head runat="server">
  7.     <title></title>
  8.     <script src="Scripts/jquery-2.1.4.min.js"></script>
  9.     <script type="text/javascript">
  10.         $(document).ready(function () {
  11.             $.ajax({
  12.                 type: "POST",
  13.                 contentType: "application/json; charset=utf-8",
  14.                 url: "Default.aspx/BindAllManager",
  15.                 data: "{}",
  16.                 dataType: "json",
  17.                 success: function (data) {
  18.                     $("#ddlManager").append($("<option></option>").val('0').html("-- Select Manager --"));
  19.                     $.each(data.d, function (key, value) {
  20.                         $("#ddlManager").append($("<option></option>").val(value.Employee_ID).html(value.Name));
  21.                     });
  22.                 },
  23.                 error: function (result) {
  24.                     alert("Error");
  25.                 }
  26.             });
  27.
  28.             //Capturing Selection Index change of Manager Drop Down List
  29.             $('#ddlManager').change(function () {
  30.                 var SelectedText = $(this).find(":selected").text();
  31.                 var SelectedValue = $(this).val();
  32.
  33.                 if (SelectedValue == "0")
  34.                 {
  35.                     $('#dvRecords').empty();
  36.                     alert("Please Select Manager");
  37.                     return false;
  38.                 }
  39.                 $('#dvRecords').empty();
  40.
  41.                 var JSONObject = { "ManagerID": SelectedValue };
  42.                 var jsonData = JSON.stringify(JSONObject);
  43.
  44.                 //Filling Grid View
  45.                 $.ajax({
  46.                     type: 'POST',
  47.                     contentType: "application/json; charset=utf-8",
  48.                     url: 'Default.aspx/BindManagerEmployee',
  49.                     data: jsonData,
  50.                     dataType: 'JSON',
  51.                     success: function (response) {
  52.                         $('#dvRecords').append("<table style='width:100%;'><tr><td></td></tr><tr style='background-color:orange; color:white;'><th style='width:100px;  text-align:center;'>Employee ID </th><th style='width:160px;  text-align:center;'>Name </th><th style='width:160px; text-align:center;'>Email </th><th style='width:50px; text-align:right; padding-right:70px;'>Mobile </th><th style='width:130px; text-align:left;'>Country </th></tr>")
  53.                         for (var i = 0; i < response.d.length; i++) {
  54.                             $('#dvRecords').append("<tr style='background-color:yellow; font-family:verdana; font-size:12pt;'><td style='width:140px;'>" + response.d[i].Employee_ID + "</td><td style='width:200px;'>" + response.d[i].Name + "</td><td style='width:220px;'>" + response.d[i].Email + "</td><td style='width:140px; text-align:left;'>" + response.d[i].Mobile + "</td><td style='width:120px; text-align:left;'>" + response.d[i].Country + "</td></tr>")
  55.                         }; $('#dvRecords').append("</table>")
  56.
  57.                     },
  58.                     error: function () {
  59.                         alert("Error");
  60.                     }
  61.                 });
  62.             });
  63.             return false;
  64.         });
  65.
  66.     </script>
  67. </head>
  68. <body>
  69.     <form id="form1" runat="server">
  70.
  71.         <table style="width: 100%; background-color: skyblue; border: solid 10px Red; padding: 10px;">
  72.             <tr>
  73.                 <td colspan="2" style="height: 40px; background-color: red; color: white; font-family: Verdana; font-size: 17pt; font-weight: bold; text-align: center;">jQuery: Showing Records On Selecting Value From Drop Down List
  74.                 </td>
  75.             </tr>
  76.             <tr style="height: 40px; background-color: greenyellow; color: blue; font-family: Verdana; font-size: 14pt; text-align: center;">
  77.                 <td>
  78.                     <asp:Label ID="lnlManager" runat="server" Text="Select Manager => "></asp:Label></td>
  79.                 <td>
  80.                     <asp:DropDownList ID="ddlManager" runat="server" Font-Bold="true" Width="200px" Height="30px"></asp:DropDownList>
  81.                 </td>
  82.
  83.             </tr>
  84.             <tr>
  85.                 <td></td>
  86.             </tr>
  87.             <tr>
  88.                 <td colspan="2">
  89.                     <div id="dvRecords" runat="server"></div>
  90.                 </td>
  91.             </tr>
  92.         </table>
  93.
  94.
  95.
  96.     </form>
  97. </body>
  98. </html>
Here is the aspx.cs code:
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Data;
  4. using System.Linq;
  5. using System.Web;
  6. using System.Web.Services;
  7. using System.Web.UI;
  8. using System.Web.UI.WebControls;
  9. using System.Data.SqlClient;
  10. using System.Configuration;
  11. namespace jQueryDropDownGridViewDemo
  12. {
  13.     public partial class Default : System.Web.UI.Page
  14.     {
  15.         protected void Page_Load(object sender, EventArgs e)
  16.         {
  17.
  18.         }
  19.
  20.         [WebMethod]
  21.         public static EmployeeDetails[] BindAllManager()
  22.         {
  23.             List<EmployeeDetails> details = new List<EmployeeDetails>();
  24.             DataTable dtManager = new DataTable();
  25.
  26.
  27.             using (SqlConnection con = new SqlConnection(ConfigurationManager.ConnectionStrings["EMPCON"].ConnectionString))
  28.             {
  29.                 SqlCommand cmd = new SqlCommand();
  30.                 SqlDataAdapter da = new SqlDataAdapter();
  31.                 cmd = new SqlCommand("Select * from EmployeeTeam WHERE IsManager=1", con);
  32.                 da.SelectCommand = cmd;
  33.                 da.Fill(dtManager);
  34.             }
  35.
  36.             foreach (DataRow dtrow in dtManager.Rows)
  37.             {
  38.                 EmployeeDetails logs = new EmployeeDetails();
  39.                 logs.Employee_ID = Convert.ToInt32(dtrow["Employee_ID"].ToString());
  40.                 logs.Name = dtrow["Name"].ToString();
  41.                 details.Add(logs);
  42.             }
  43.             return details.ToArray();
  44.         }
  45.
  46.         [WebMethod]
  47.         public static List<EmployeeDetails> BindManagerEmployee(int ManagerID)
  48.         {
  49.             List<EmployeeDetails> details = new List<EmployeeDetails>();
  50.             DataTable dtManager = new DataTable();
  51.
  52.
  53.             using (SqlConnection con = new SqlConnection(ConfigurationManager.ConnectionStrings["EMPCON"].ConnectionString))
  54.             {
  55.                 SqlCommand cmd = new SqlCommand();
  56.                 SqlDataAdapter da = new SqlDataAdapter();
  57.                 cmd = new SqlCommand("Select * from EmployeeTeam WHERE Manager_ID='" + ManagerID + "'", con);
  58.                 da.SelectCommand = cmd;
  59.                 da.Fill(dtManager);
  60.             }
  61.
  62.             foreach (DataRow dtrow in dtManager.Rows)
  63.             {
  64.                 EmployeeDetails logs = new EmployeeDetails();
  65.                 logs.Employee_ID = Convert.ToInt32(dtrow["Employee_ID"].ToString());
  66.                 logs.Name = dtrow["Name"].ToString();
  67.                 logs.Email = dtrow["Email"].ToString();
  68.                 logs.Mobile = dtrow["Mobile"].ToString();
  69.                 logs.Country = dtrow["Country"].ToString();
  70.                 details.Add(logs);
  71.             }
  72.             return details;
  73.         }
  74.     }
  75. }
I defined my connection string in the web.config file as in the following:
  1. <?xml version="1.0"?>
  2. <!--
  3.   For more information on how to configure your ASP.NET application, please visit
  4.   http://go.microsoft.com/fwlink/?LinkId=169433
  5.   -->
  6. <configuration>
  7.     <system.web>
  8.       <compilation debug="true" targetFramework="4.5" />
  9.       <httpRuntime targetFramework="4.5" />
  10.     </system.web>
  11.   <connectionStrings>
  12.     <add name="EMPCON" connectionString="Data Source=INDIA\MSSQLServer2k8;Initial Catalog=TestDB;Integrated Security=True"/>
  13.   </connectionStrings>
  14. </configuration>

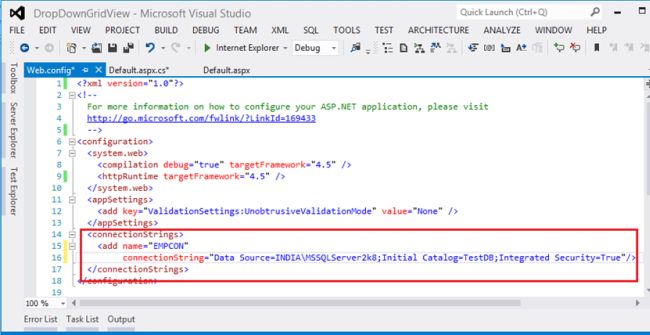

code
Figure 9

Now run your application:

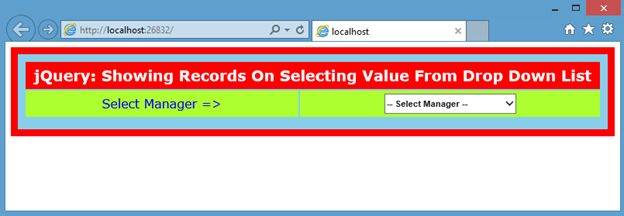

select value
Figure 10

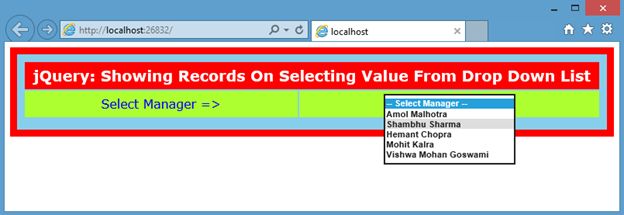

select manager name
Figure 11

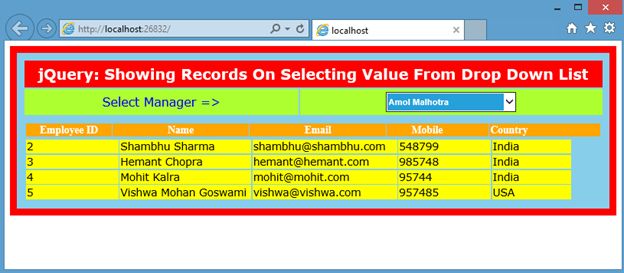

showingt record
Figure 12

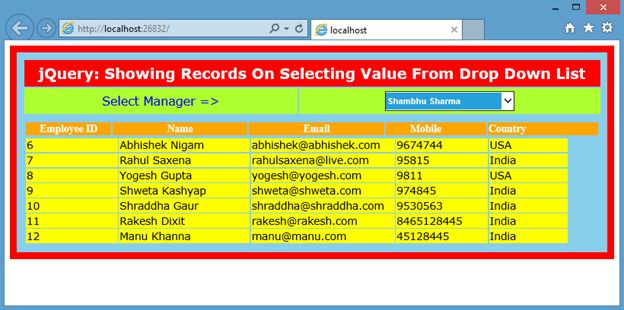

select manager
Figure 13

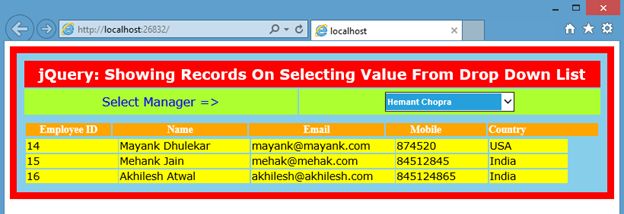

emp id
Figure 14

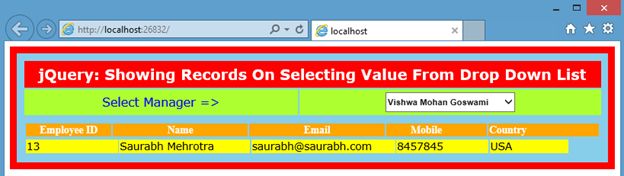

jQuery
Figure 15
