Implementing SQL Paging in ASP.Net

The question is, why do we need SQL Paging when we already have built-in paging functionality in Grid View. Sometimes it's not a good habit to load all the data over the network, but instead to transfer only the data required, to improve performance. For that we have SQL paging. Pass only a Page Index and Page Size to load the required data.

The following is my data table structure from which I am fetching the data:

table design
                                       Image 1.

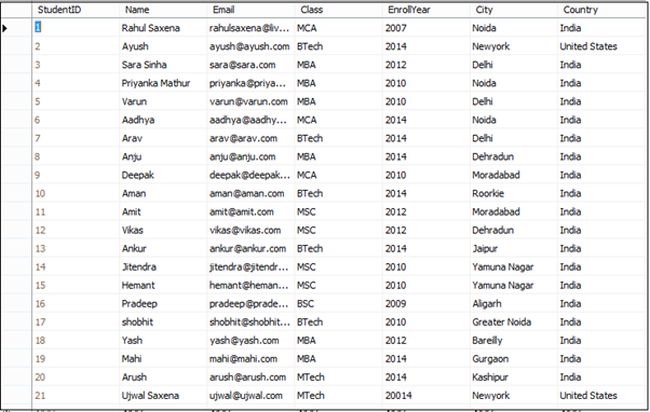

Data in my table:

My Table
                                                                          Image 2.

To do this, I created the following Stored Procedure:

Stored Procedure
                                                                          Image 3.

My Stored Procedure is:

  1. ALTER PROCEDURE [dbo].[GetStudentData]
  2. (
  3.       @PageIndex INT = 1,
  4.       @PageSize INT = 10,
  5.       @RecordCount INT OUTPUT
  6. )
  7. AS
  8. BEGIN
  9.       SET NOCOUNT ON;
  10.       SELECT ROW_NUMBER() OVER
  11.       (
  12.          ORDER BY StudentID ASC
  13.           )AS RowNumber
  14.           ,StudentID
  15.           ,Name
  16.           ,Email
  17.           ,Class,EnrollYear,City  INTO #Results FROM Student
  18.
  19.       SELECT * FROM #Results
  20.       WHERE RowNumber BETWEEN(@PageIndex -1) * @PageSize + 1 AND(((@PageIndex -1) * @PageSize + 1) + @PageSize) - 1
  21.
  22.       SELECT @RecordCount = COUNT(*) FROM #Results
  23.
  24.       DROP TABLE #Results
  25. END
Now the aspx is:
  1. <%@ Page Language="C#" AutoEventWireup="true" CodeBehind="SQLPagingInGridView.aspx.cs" Inherits="SQLPaging.SQLPagingInGridView" %>
  2. <!DOCTYPE html>
  3. <html xmlns="http://www.w3.org/1999/xhtml">
  4. <head runat="server">
  5.     <title>SQL Paging Implementation in ASP.NET</title>
  6. </head>
  7. <body>
  8.     <form id="form1" runat="server">
  9.         <div>
  10.             <table style="border: solid 15px blue; width: 100%; vertical-align: central;">
  11.                 <tr>
  12.                     <td style="padding-left: 50px; padding-top: 20px; padding-bottom: 20px; background-color: skyblue; font-size: 20pt; color: orangered;">SQL Paging Implementation in ASP.NET C#
  13.                     </td>
  14.                 </tr>
  15.                 <tr>
  16.                     <td style="text-align: left; padding-left: 50px; border: solid 1px red;">
  17.                         <asp:GridView ID="GridViewStudent" runat="server" AutoGenerateColumns="False" Width="70%"
  18.                             BackColor="White" BorderColor="#3366CC" BorderStyle="None" BorderWidth="1px" CellPadding="4" GridLines="Both">
  19.                             <Columns>
  20.                                 <asp:BoundField DataField="Name" HeaderText="Student Name" />
  21.                                 <asp:BoundField DataField="Class" HeaderText="Class" />
  22.                                 <asp:BoundField DataField="EnrollYear" HeaderText="Enroll Year" />
  23.                                 <asp:BoundField DataField="City" HeaderText="City" />
  24.                             </Columns>
  25.                             <FooterStyle BackColor="#99CCCC" ForeColor="#003399" />
  26.                             <HeaderStyle BackColor="#003399" Font-Bold="True" ForeColor="#CCCCFF" />
  27.                             <PagerStyle BackColor="#99CCCC" ForeColor="#003399" HorizontalAlign="Left" />
  28.                             <RowStyle BackColor="White" ForeColor="#003399" />
  29.                             <SelectedRowStyle BackColor="#009999" Font-Bold="True" ForeColor="#CCFF99" />
  30.                             <SortedAscendingCellStyle BackColor="#EDF6F6" />
  31.                             <SortedAscendingHeaderStyle BackColor="#0D4AC4" />
  32.                             <SortedDescendingCellStyle BackColor="#D6DFDF" />
  33.                             <SortedDescendingHeaderStyle BackColor="#002876" />
  34.                         </asp:GridView>
  35.                         <br />
  36.                         <asp:Repeater ID="rptPager" runat="server">
  37.                             <ItemTemplate>
  38.                                 <asp:LinkButton ID="lnkPage" runat="server" Text='<%#Eval("Text") %>' CommandArgument='<%# Eval("Value") %>'
  39.                                     Enabled='<%# Eval("Enabled") %>' OnClick="lnkbtn_PageIndexChanged"></asp:LinkButton>
  40.                             </ItemTemplate>
  41.                         </asp:Repeater>
  42.                     </td>
  43.                 </tr>
  44.             </table>
  45.         </div>
  46.     </form>
  47. </body>
  48. </html>
My ASPX.CS code is:
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Data;
  4. using System.Data.SqlClient;
  5. using System.Linq;
  6. using System.Web;
  7. using System.Web.UI;
  8. using System.Web.UI.WebControls;
  9.
  10. namespace SQLPaging
  11. {
  12.     public partial class SQLPagingInGridView : System.Web.UI.Page
  13.     {
  14.         int PageSize = 10;
  15.
  16.         protected void Page_Load(object sender, EventArgs e)
  17.         {
  18.             if (!Page.IsPostBack)
  19.                 GetStudentData(1, PageSize);
  20.         }
  21.
  22.         SqlDataAdapter da;
  23.         DataSet ds = new DataSet();
  24.
  25.         public void GetStudentData(int PageIndex, int PageSize)
  26.         {
  27.             using (SqlConnection con = new SqlConnection(@"Data Source=MYPC\SqlServer2k8; Initial Catalog=SchoolManagement; Integrated Security=true;"))
  28.             {
  29.                 using (SqlCommand cmd = new SqlCommand("[GetStudentData]", con))
  30.                 {
  31.                     cmd.CommandType = CommandType.StoredProcedure;
  32.                     cmd.Parameters.AddWithValue("@PageIndex", PageIndex);
  33.                     cmd.Parameters.AddWithValue("@PageSize", PageSize);
  34.                     cmd.Parameters.Add("@RecordCount", SqlDbType.Int, 4);
  35.                     cmd.Parameters["@RecordCount"].Direction = ParameterDirection.Output;
  36.                     da = new SqlDataAdapter(cmd);
  37.                     da.Fill(ds);
  38.                     con.Open();
  39.                     cmd.ExecuteNonQuery();
  40.
  41.                     if (ds.Tables[0].Rows.Count > 0)
  42.                     {
  43.                         GridViewStudent.DataSource = ds.Tables[0];
  44.                         GridViewStudent.DataBind();
  45.                     }
  46.                     int recordCount = Convert.ToInt32(cmd.Parameters["@RecordCount"].Value);
  47.                     this.PopulatePager(recordCount, PageIndex);
  48.                 }
  49.             }
  50.         }
  51.
  52.         private void PopulatePager(int recordCount, int currentPage)
  53.         {
  54.             double dblPageCount = (double)((decimal)recordCount / (PageSize));
  55.             int pageCount = (int)Math.Ceiling(dblPageCount);
  56.             List<ListItem> pages = new List<ListItem>();
  57.             if (pageCount > 0)
  58.             {
  59.                 pages.Add(new ListItem("FIRST >> ", "1", currentPage > 1));
  60.                 for (int i = 1; i <= pageCount; i++)
  61.                 {
  62.                     pages.Add(new ListItem(i.ToString(), i.ToString(), i != currentPage));
  63.                 }
  64.                 pages.Add(new ListItem(" << LAST", pageCount.ToString(), currentPage < pageCount));
  65.             }
  66.             rptPager.DataSource = pages;
  67.             rptPager.DataBind();
  68.         }
  69.
  70.         protected void lnkbtn_PageIndexChanged(object sender, EventArgs e)
  71.         {
  72.             int pageIndex = int.Parse((sender as LinkButton).CommandArgument);
  73.             GetStudentData(pageIndex, PageSize);
  74.         }
  75.     }
  76. }
Now run the application.

sql paging
                                                                        Image 4.

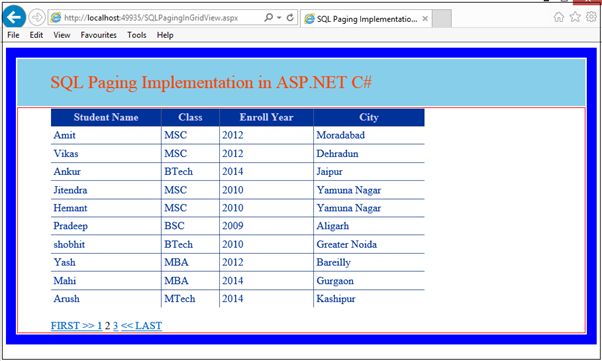

Application
                                                                        Image 5.

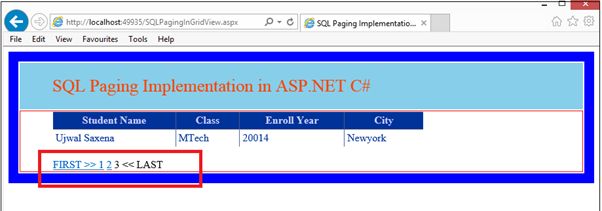

first last
                                                                     Image 6.
