Take Backup of a DataBase By Coding

In this article, I am going to show how we can show all Data Server in a network and on selecting a Data Server, how to show all DataBase of that selected Data Server and how to take backup of selected database on a particular location by code.

Show all DataServer, Show all database of a selected DataServer and take backup of a selected database.

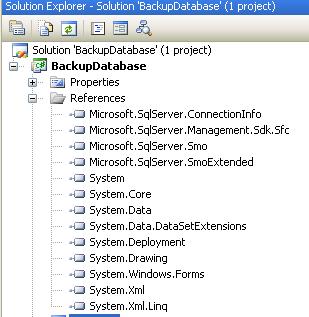

These are the reference list..


Image 1.

This is my c# code
  1. using System;
  2. using System.Collections.Generic;
  3. using System.ComponentModel;
  4. using System.Data;
  5. using System.Drawing;
  6. using System.Linq;
  7. using System.Text;
  8. using System.Windows.Forms;
  9. using Microsoft.SqlServer.Server;
  10. using Microsoft.SqlServer.Management.Smo;
  11. using Microsoft.SqlServer.Management;
  12. using System.IO;
  13. namespace WindowsFormsApplication1
  14. {
  15.     public partial class Form1 : Form
  16.     {
  17.         public Form1()
  18.         {
  19.             InitializeComponent();
  20.         }
  21.         private void Form1_Load(object sender, EventArgs e)
  22.         {
  23.             GetAllServer();
  24.         }
  25.         //To Get All Server
  26.         private void GetAllServer()
  27.         {
  28.             DataTable dt = SmoApplication.EnumAvailableSqlServers(false);
  29.             if (dt.Rows.Count > 0)
  30.             {
  31.                 foreach (DataRow dr in dt.Rows)
  32.                 {
  33.                     comboBoxServer.Items.Add((dr["Name"]));
  34.                 }
  35.             }
  36.         }
  37.         //To Get All DataBase of a Selected Server
  38.         private void GetAllDataBase()
  39.         {
  40.             System.Data.SqlClient.SqlConnection SqlCon = new System.Data.SqlClient.SqlConnection("server=" + comboBoxServer.SelectedItem.ToString() + ";uid=" + textBoxUid.Text + ";pwd=" + textBoxPassword.Text + ";");
  41.             SqlCon.Open();
  42.             System.Data.SqlClient.SqlCommand SqlCom = new System.Data.SqlClient.SqlCommand();
  43.             SqlCom.Connection = SqlCon;
  44.             SqlCom.CommandType = CommandType.StoredProcedure;
  45.             SqlCom.CommandText = "sp_databases";
  46.             System.Data.SqlClient.SqlDataReader SqlDR;
  47.             SqlDR = SqlCom.ExecuteReader();
  48.             while (SqlDR.Read())
  49.             {
  50.                 comboBoxDatabaseList.Items.Add(SqlDR.GetString(0));
  51.             }
  52.         }
  53.         //To Take Backup
  54.         private void TakeBackUp(string BackupDBName, string FileNamePath)
  55.         {
  56.             try
  57.             {
  58.                 if (textBoxUid.Text != "" && textBoxPassword.Text != "")
  59.                 {
  60.                     Server sqlServerInstance = new Server(new Microsoft.SqlServer.Management.Common.ServerConnection(new System.Data.SqlClient.SqlConnection("Data Source=" + comboBoxServer.SelectedItem.ToString() + ";Initial Catalog=" + comboBoxDatabaseList.SelectedItem.ToString() + "; uid=" + textBoxUid.Text + "; pwd=" + textBoxPassword.Text + ";")));
  61.                     Backup objBackup = new Backup();
  62.                     objBackup.Devices.AddDevice(FileNamePath, DeviceType.File);
  63.                     objBackup.Database = BackupDBName;
  64.                     objBackup.Action = BackupActionType.Database;
  65.                     objBackup.SqlBackup(sqlServerInstance);
  66.                     MessageBox.Show("The backup of database " + "'" + BackupDBName + "'" + " completed sccessfully""Microsoft SQL Server Management Studio", MessageBoxButtons.OK, MessageBoxIcon.Information);
  67.                 }
  68.                 else
  69.                 {
  70.                     MessageBox.Show("Please enter userId and password");
  71.                 }
  72.             }
  73.             catch (Exception ex)
  74.             {
  75.                 MessageBox.Show(ex.Message);
  76.             }
  77.         }
  78.         private void button1_Click(object sender, EventArgs e)
  79.         {
  80.             if (comboBoxDatabaseList.SelectedIndex > 0)
  81.             {
  82.                 if (textBoxBackFileName.Text != "")
  83.                 {
  84.                     TakeBackUp(comboBoxDatabaseList.SelectedItem.ToString(), "D:\\" + textBoxBackFileName.Text + ".bak");
  85.                 }
  86.                 else
  87.                 {
  88.                     MessageBox.Show("Please type a name for backup file");
  89.                 }
  90.
  91.             }
  92.             else
  93.             {
  94.                 MessageBox.Show("Please select a database to backup");
  95.             }
  96.         }
  97.         private void button2_Click(object sender, EventArgs e)
  98.         {
  99.             this.Dispose();
  100.         }
  101.         private void comboBoxServer_SelectedIndexChanged(object sender, EventArgs e)
  102.         {
  103.             comboBoxDatabaseList.Items.Clear();
  104.             textBoxUid.Text = "";
  105.             textBoxPassword.Text = "";
  106.             MessageBox.Show("Enter UserId And Password to connect this DataSource.");
  107.         }
  108.         private void buttonConnectDb_Click(object sender, EventArgs e)
  109.         {
  110.             if (comboBoxServer.SelectedIndex > 0)
  111.             {
  112.                 if (textBoxUid.Text != "" && textBoxPassword.Text != "")
  113.                 {
  114.                     GetAllDataBase();
  115.                     MessageBox.Show("Successfully Connected.");
  116.                 }
  117.                 else
  118.                 {
  119.                     MessageBox.Show("Please enter userId and password");
  120.                 }
  121.             }
  122.             else
  123.             {
  124.                 MessageBox.Show("Please select a Server to connect");
  125.             }
  126.         }
  127.     }
  128. }
When running the application


Image 2.

After successfully connecting select database and type the name of backup file this backup file will save in D Drive(You can change the location).


Image 3.


Image 4.
