Broadcast Real-Time SQL Data Using SignalR

Here you will learn how to broadcast SQL data using SignalR. When a database field changes you don't need to refresh or reload the page, it will be automatically broadcast.

SignalR: SignalR is an ASP.NET server library for adding real-time functionality to a web application. This includes client libraries for JavaScript and other clients.

Getting started

To get started with SignalR:

  • Start Visual Studio 2013
  • Create a new website
  • Provide the name and location of website
  • Click "Next"

Install SignalR

Click "Tools" | "Library Package Manager" | "Package Manager Console" and run the command: "install-package Microsoft.AspNet.SignalR".


Screenshot 1

Or install using the NuGet package Manager. Do that by right-clicking on "Project" and click on "Manage Nuget packages" and search for "SignalR" then click "Install".


Screenshot 2

This is my database table screenshot.


Screenshot 3

Now create a connection string in web.config.

<connectionStrings>
<
add name="DefaultConnection" connectionString="data source=SERVER-NAME;
database=DATABASENAME;user id =USERID;password=PASSOWRD
"
providerName="System.Data.SqlClient" />
</
connectionStrings>

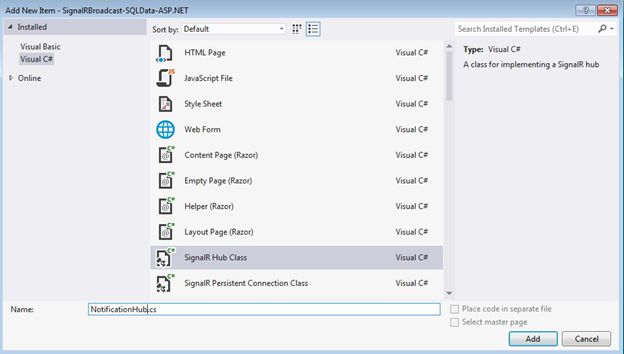

Now add a new hub class as in the following:


Screenshot 4

NotificationHub.cs

using Microsoft.AspNet.SignalR;

using Microsoft.AspNet.SignalR.Hubs;



[HubName("notificationHub")]

public class NotificationHub : Hub

{

    private static readonly ConcurrentDictionary<stringUser> Users = new ConcurrentDictionary
   <
stringUser>(StringComparer.InvariantCultureIgnoreCase);

    #region Methods

    /// <summary>

    /// Provides the handler for SignalR OnConnected event

    /// supports async threading

    /// </summary>

    /// <returns></returns>

    public override Task OnConnected()

    {

        string profileId = "111"//Context.QueryString["id"];

        string connectionId = Context.ConnectionId;

        var user = Users.GetOrAdd(profileId, _ => new User

        {

            ProfileId = profileId,

            ConnectionIds = new HashSet<string>()

        });

        lock (user.ConnectionIds)

        {

            user.ConnectionIds.Add(connectionId);

            Groups.Add(connectionId, user.ProfileId);

        }

        return base.OnConnected();

    }



    /// <summary>

    /// Provides the handler for SignalR OnDisconnected event

    /// supports async threading

    /// </summary>

    /// <returns></returns>

    public override Task OnDisconnected()

    {

        string profileId = Context.QueryString["id"];

        string connectionId = Context.ConnectionId;

        User user;

        Users.TryGetValue(profileId, out user);

        if (user != null)

        {

            lock (user.ConnectionIds)

            {

                user.ConnectionIds.RemoveWhere(cid => cid.Equals(connectionId));

                Groups.Remove(connectionId, user.ProfileId);

                if (!user.ConnectionIds.Any())

                {

                    User removedUser;

                    Users.TryRemove(profileId, out removedUser);

                }

            }

        }

        return base.OnDisconnected();

    }

    /// <summary>

    /// Provides the handler for SignalR OnReconnected event

    /// supports async threading

    /// </summary>

    /// <returns></returns>

    public override Task OnReconnected()

    {

        return base.OnReconnected();

    }

    /// <summary>

    /// Provides the facility to send individual user notification message

    /// </summary>

    /// <param name="profileId">

    /// Set to the ProfileId of user who will receive the notification

    /// </param>

    /// <param name="message">

    /// set to the notification message

    /// </param>

    public void Send(string profileId, string message)

    {

        //Clients.User(profileId).send(message);

    }

    /// <summary>

    /// Provides the facility to send group notification message

    /// </summary>

    /// <param name="username">

    /// set to the user groupd name who will receive the message

    /// </param>

    /// <param name="message">

    /// set to the notification message

    /// </param>

    public void SendUserMessage(String username, String message)

    {

        Clients.Group(username).sendUserMessage(message);

    }

    /// <summary>

    /// Provides the ability to get User from the dictionary for passed in profileId

    /// </summary>

    /// <param name="profileId">

    /// set to the profileId of user that need to be fetched from the dictionary

    /// </param>

    /// <returns>

    /// return User object if found otherwise returns null

    /// </returns>

    private User GetUser(string profileId)

    {

        User user;

        Users.TryGetValue(profileId, out user);

        return user;

    }

    /// <summary>

    /// Provide theability to get currently connected user

    /// </summary>

    /// <returns>

    /// profileId of user based on current connectionId

    /// </returns>

    public IEnumerable<string> GetConnectedUser()

    {

        return Users.Where(x =>

        {

            lock (x.Value.ConnectionIds)

            {

                return !x.Value.ConnectionIds.Contains(Context.ConnectionId, StringComparer.InvariantCultureIgnoreCase);

            }

        }).Select(x => x.Key);

    }

    #endregion

    Int16 totalNewMessages = 0;

    Int16 totalNewCircles = 0;

    Int16 totalNewJobs = 0;

    Int16 totalNewNotification = 0;

    [HubMethodName("sendNotifications")]

    public string SendNotifications()

    {

        using (var connection = new SqlConnection(ConfigurationManager.ConnectionStrings["DefaultConnection"].ConnectionString))

        {

            string query = "SELECT  NewMessageCount, NewCircleRequestCount, NewNotificationsCount, NewJobNotificationsCount FROM [dbo].[Modeling_NewMessageNotificationCount] WHERE UserProfileId=" + "62021";

            connection.Open();

            using (SqlCommand command = new SqlCommand(query, connection))

            {

                try {

                command.Notification = null;

                DataTable dt = new DataTable();

                SqlDependency dependency = new SqlDependency(command);

                dependency.OnChange += new OnChangeEventHandler(dependency_OnChange);

                if (connection.State == ConnectionState.Closed)

                    connection.Open();

                var reader = command.ExecuteReader();

                dt.Load(reader);

                if (dt.Rows.Count > 0)

                {

                    totalNewMessages = Int16.Parse(dt.Rows[0]["NewMessageCount"].ToString());

                    totalNewCircles = Int16.Parse(dt.Rows[0]["NewCircleRequestCount"].ToString());

                    totalNewJobs = Int16.Parse(dt.Rows[0]["NewJobNotificationsCount"].ToString());

                    totalNewNotification = Int16.Parse(dt.Rows[0]["NewNotificationsCount"].ToString());

                }

                connection.Close();

            }

            catch(Exception ex)

            {

                throw;

            }

            }

        }

        IHubContext context = GlobalHost.ConnectionManager.GetHubContext<NotificationHub>();

        return context.Clients.All.RecieveNotification(totalNewMessages, totalNewCircles, totalNewJobs, totalNewNotification);

    }

    private void dependency_OnChange(object sender, SqlNotificationEventArgs e)

    {

        if (e.Type == SqlNotificationType.Change)

        {

            NotificationHub nHub = new NotificationHub();

            nHub.SendNotifications();

        }

    }

}

Startup.cs

[assembly: OwinStartup("TestingConfiguration", typeof(EmployeeStartup))]
public class EmployeeStartup
{

   public
void Configuration(IAppBuilder app)
   {
      app.MapSignalR();
   }
}

User.cs

#region Properties
/// <summary>
/// Property to get/set ProfileId
///
</summary>
   public
string ProfileId
   {

      get
;
      set
;
   }

   ///
<summary>
   ///
Propoerty to get/set multiple ConnectionId
   ///
</summary>
   public
HashSet<string> ConnectionIds
   {

      get
;
      set
;
   }

   #endregion

}

Index.html

<head>

    <title>New Notifications</title>

    <script src="Scripts/jquery-1.6.4.min.js"></script>

    <script src="Scripts/jquery.signalR-2.0.2.min.js"></script>

    <script src="signalr/hubs"></script>

    <script type="text/javascript">

        $(function () {

            // Declare a proxy to reference the hub.

            var notifications = $.connection.notificationHub;

            debugger;

            // Create a function that the hub can call to broadcast messages.

            notifications.client.recieveNotification = function (totalNewMessages, totalNewCircles, totalNewJobs, totalNewNotifications) {

                // Add the message to the page.

                $('#spanNewMessages').text(totalNewMessages);

                $('#spanNewCircles').text(totalNewCircles);

                $('#spanNewJobNotifications').text(totalNewJobs);

                $('#spanNewNotifications').text(totalNewNotifications);

            };

            // Start the connection.

            $.connection.hub.start().done(function () {

                notifications.server.sendNotifications();

            }).fail(function (e) {

                alert(e);

            });

            //$.connection.hub.start();

        });

    </script>

</head>

<body>

    <h1>Broadcast Realtime SQL data using SignalR</h1>

    <div>

        <p>You have <span id="spanNewMessages">0</span> New Message Notification.</p>

        <p>You have <span id="spanNewCircles">0</span> New Circles Notification.</p>

        <p>You have <span id="spanNewJobNotifications">0</span> New Job Notification.</p>

        <p>You have <span id="spanNewNotifications">0</span> New Notification.</p>

    </div>

</body>


Global.asax

void Application_Start(object sender, EventArgs e)
{

   // Code that runs on application startup

   System.Data.SqlClient.
SqlDependency.Start(ConfigurationManager.
   ConnectionStrings[
"DefaultConnection"].ConnectionString);
}

void
Application_End(object sender, EventArgs e)
{

   // Code that runs on application shutdown

   System.Data.SqlClient.
SqlDependency.Stop(ConfigurationManager.
   ConnectionStrings[
"DefaultConnection"].ConnectionString);
}

Now run the application.


Screenshot 5

Now let me change the notification from 5 to 50 in the database and without refreshing or reloading the page.


Screenshot 6
