Implement Custom SuiteLinks Delegate Control In SharePoint 2013


It is a new delegate control introduced in SharePoint 2013. If you are looking to add a new link just next to “Sites, NewsFeed, SkyDrive” etc, on the top bar of your SharePoint site you can now do that with a new delegate control "SuiteLinksDelegate". The SuiteLinksDelegate control will allow us to modify the default links,

For Example: To add our own links, in the "suit links".

Header before


Step 1: Create One Empty SharePoint Project and provide the Solution Name and choose the Solution Path and click OK.

Step 2: Deploy the Solution as Farm Solution. Provide the Url in next screen and validate the connection.

Step 3: Add New UserControl to the Project from the Templates and provide a Name to it, in our case it is “MyCustomSuiteLinksDelegate


Now our Solution Explorer looks as follows,

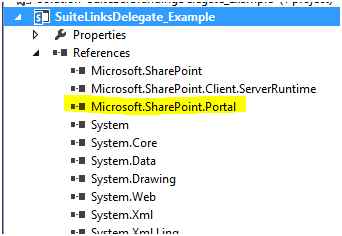

Step 4: Add reference to Microsoft.SharePoint.Portal dll.

Solution Explorer
Ensure your control inherits from MySuiteLinksUserControl like this:
public partial class MyCustomSuiteLinksDelegate: MySuiteLinksUserControl

Step 5: Code snippet for the ascx.cs file.
  1. using System;
  2. using System.Web.UI;
  3. using System.Web.UI.WebControls;
  4. using System.Web.UI.WebControls.WebParts;
  5. using Microsoft.SharePoint;
  6. using Microsoft.SharePoint.Utilities;
  7. using Microsoft.SharePoint.WebControls;
  8. using System.Globalization;
  9. using System.IO;
  10. using System.Collections;
  11. using Microsoft.SharePoint.Portal;
  12. using Microsoft.SharePoint.Portal.WebControls;
  13. namespace SuiteBarBrandingDelegate_Example.ControlTemplates.SuiteLinksDelegate_Example
  14. {
  15.     public partial class MyCustomSuiteLinksDelegate: MySuiteLinksUserControl
  16.     {
  17.         protected void Page_Load(object sender, EventArgs e)
  18.         {}
  19.         protected override void Render(HtmlTextWriter writer)
  20.         {
  21.             writer.RenderBeginTag(HtmlTextWriterTag.Style);
  22.             writer.Write(".ms-core-suiteLinkList {display: inline-block;}");
  23.             writer.RenderEndTag();
  24.             writer.AddAttribute(HtmlTextWriterAttribute.Class, "ms-core-suiteLinkList");
  25.             writer.RenderBeginTag(HtmlTextWriterTag.Ul);
  26.             RenderSuiteLink(writer, "http://AboutUs/""About Us""lnkSearchLink"false);
  27.             RenderSuiteLink(writer, "http://ContactUs/""Contact Us""lnkSearchLink"false);
  28.             RenderSuiteLink(writer, "http://Feedback""Requisition Manager""lnkSearchLink"false);
  29.             writer.RenderEndTag();
  30.             base.Render(writer);
  31.         }
  32.     }
  33. }
Step 6: Add Elements.xml file to the Solution, provide the name and click Add.


Step 7: Click on elements.xml file and paste the following code snippet inside the elements tag.
  1. <?xml version="1.0" encoding="utf-8"?>
  2.     <Elements xmlns="">
  3.         <!-- Adding DelegateControl reference to our custom SuiteSuiteLinksDelegate Control -->
  4.         <Control ControlSrc="/_controltemplates/15/SuiteLinksDelegate_Example\MyCustomSuiteSuiteLinksDelegate.ascx" Id="SuiteLinksDelegate" Sequence="90" /> </Elements>
Step 8: Final step is to build and deploy, then the SharePoint text will override with the Text of the portal.

The final outcome will look as in the following,
