Form Input Progress Bar Using JQuery

In this article we are going to create a fancy progress bar for an input form with limited characters using jQuery.

Introduction

In this article we are going to create a fancy progress bar for an input form with limited characters using jQuery. We are using a script which allows you to restrict the number of characters inside a form element (ie: Textarea) while displaying a progress bar on the remaining characters beneath it.

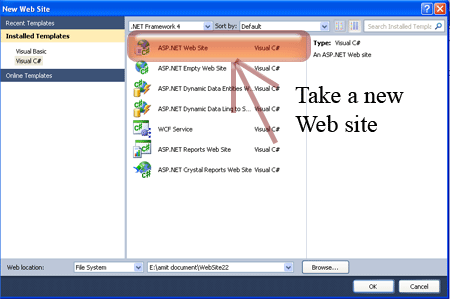

Step 1: First we have to create a web Application.

  • Go to Visual Studio 2010.
  • New--> And select the web Application.
  • Give it's a name whatever you want.
  • Click OK.

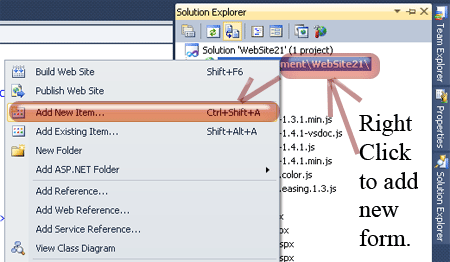

Step 2: Secondly you have to add a new page to the website.

  • Go to the Solution Explorer.
  • Right-click on the Project name.

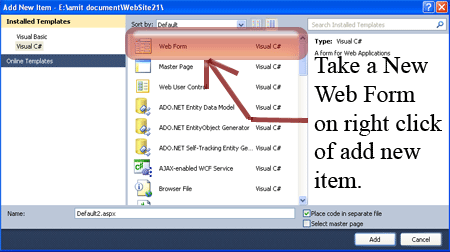

  • Select add new item.
  • Add new web page and give it a name.
  • Click OK.



Step 3: In this step we will see how to add style sheet code. Whenever we write the style sheet code you have to be careful that it is written inside the <style></style> tags and you have to place it inside the head section.

Style Code:

<style type="text/css">
        .progress
        {
            width: 2px;
            height: 15px;
            color: black;
            font-size: 14px;
            overflow: hidden;
            background-color: red;
            padding-left: 6px;
        }
</
style
>

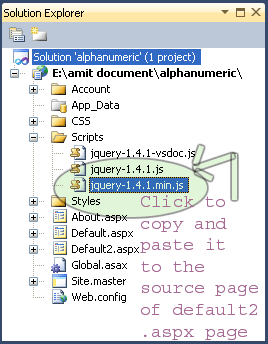

Step 4: In this step we have to write the script reference to the aspx page; let us see from where you have to write the script code.


Step 5: Let us see the script code you have to add inside the <script></script> tags and will be paced either in the head section or body section as you prefer.

<script type="text/javascript" src="Scripts/jquery-1.4.1.min.js"></script>

Step 6: In this step we have to write the jQuery code which is given below.

<script type="text/JavaScript">
        function textCounter(field, counter, maxlimit, linecounter) {
            // text width//
            var fieldWidth = parseInt(field.offsetWidth);
            var charcnt = field.value.length;
            // trim the extra text
            if (charcnt > maxlimit) {
                field.value = field.value.substring(0, maxlimit);
            }
            else {
                // progress bar percentage
                var percentage = parseInt(100 - ((maxlimit - charcnt) * 100) / maxlimit);
                document.getElementById(counter).style.width = parseInt((fieldWidth * percentage) / 100) + "px";
                document.getElementById(counter).innerHTML = "Limit: " + percentage + "%"
                // color correction on style from CCFFF -> CC0000
                setcolor(document.getElementById(counter), percentage, "background-color");
            }
        }
        function setcolor(obj, percentage, prop) {
            obj.style[prop] = "rgb(80%," + (100 - percentage) + "%," + (100 - percentage) + "%)";
        }
</script>

Step 7: Let us see the Body code of the Default2.aspx page.

Body Code:

<body bgcolor="#0000FF">
    <form>
    <textarea rows="5" cols="40" name="maxcharfield" id="maxcharfield" onkeydown="textCounter(this,'progressbar1',20)"
    onkeyup="textCounter(this,'progressbar1',20)" onfocus="textCounter(this,'progressbar1',20)"></textarea><br />
    <div id="progressbar1" class="progress">
    </div>
    <script>textCounter(document.getElementById("maxcharfield"), "progressbar1", 20)</script>
    </form
>
</body>

Step 8: In this step we will see the complete code of the Default2.aspx page which is given below.

Code:

<%@ Page Language="C#" AutoEventWireup="true" CodeFile="Default2.aspx.cs" Inherits="Default2" %>
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
<head runat="server">
<title>Textarea input progress bar using jQuery</title>
<script type="text/javascript" src="Scripts/jquery-1.4.1.min.js"></script>
<script type="text/JavaScript">
        function textCounter(field, counter, maxlimit, linecounter) {
            // text width//
            var fieldWidth = parseInt(field.offsetWidth);
            var charcnt = field.value.length;
            // trim the extra text
            if (charcnt > maxlimit) {
                field.value = field.value.substring(0, maxlimit);
            }
            else {
                // progress bar percentage
                var percentage = parseInt(100 - ((maxlimit - charcnt) * 100) / maxlimit);
                document.getElementById(counter).style.width = parseInt((fieldWidth * percentage) / 100) + "px";
                document.getElementById(counter).innerHTML = "Limit: " + percentage + "%"
                // color correction on style from CCFFF -> CC0000
                setcolor(document.getElementById(counter), percentage, "background-color");
            }
        }
        function setcolor(obj, percentage, prop) {
            obj.style[prop] = "rgb(80%," + (100 - percentage) + "%," + (100 - percentage) + "%)";
        }
</script>
<
style type="text/css">
        .progress
        {
            width: 2px;
            height: 15px;
            color: black;
            font-size: 14px;
            overflow: hidden;
            background-color: red;
            padding-left: 6px;
        }
</
style
>
</head>
<
body bgcolor="#0000FF">
    <form>
    <textarea rows="5" cols="40" name="maxcharfield" id="maxcharfield" onkeydown="textCounter(this,'progressbar1',20)"
    onkeyup="textCounter(this,'progressbar1',20)" onfocus="textCounter(this,'progressbar1',20)"></textarea><br />
    <div id="progressbar1" class="progress">
    </div>
    <script>textCounter(document.getElementById("maxcharfield"), "progressbar1", 20)</script>
    </form
>
</body>
</
html>

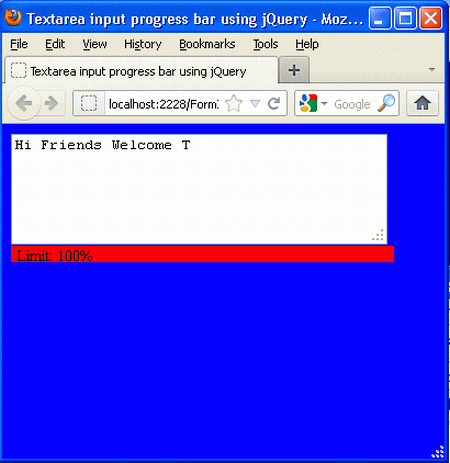

Step 9: In this step we are going to run the Default2.aspx page by pressing F5.


Now enter text inside the Textarea; you will see.


See the effect.




Once the progress bar is completed 100% you can not write anything inside the Textarea.
