View database structure using C#

This article describes an easy approach for examining all of the tables, views, and columns in a database.

Introduction

This article describes an easy approach to examining all of the tables, views, and columns in a database, the article is written to describe an example application that may be used to connect to a database (Oracle, SQL Server, or MS Access), view that database's tables and views, and drill down into each table or view to generate a list of all of its contained columns. Further, the application will allow the user to examine the definition associated with each column (e.g., its data type, caption, default value, etc.) through a context menu option.

The application does not serve any particular purpose and has only a few key methods associated with it. While the application does not perform any sort of useful task, the application could be used to form the basis for some useful tool, such as one that would map the fields in one database table to the fields in another database table, or it could be used as the basis for a tool that allowed a user to formulate an ad hoc query using a developer defined query builder.

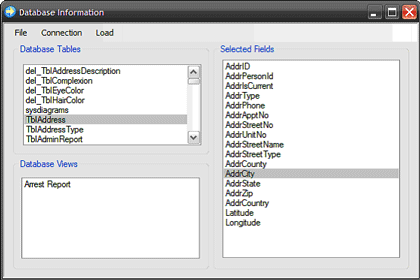

Figure 1: The demonstration application running

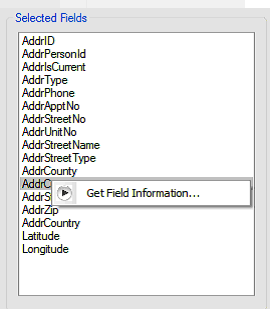

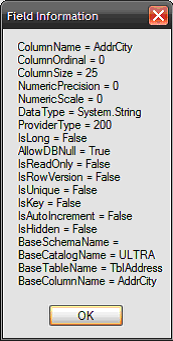

Figure 2: Pulling up information on a specific field

Getting Started:

In order to get started, unzip the included project and open the solution in the Visual Studio 2005 environment. In the solution explorer, you should note three significant files:

  • frmDataDisplay.cs: Containing the main application and most of the code.
  • frmConnect.cs: Containing a dialog used to connect to a database.

Application Properties:

The application properties are used to store elements of the connection string as well as the connection string itself. In the project, open up the properties and select the settings tab to see the collection of properties used in this application. The scope of each property is set to "User" which will allow application users to set and save the properties between uses of the application. Each value is set to temp initially. The property names describe the purpose of each specific property; for example "ConnString", as you can probably guess, is used to hold the connection string property.


Figure 3: Application Properties

Connection Dialog.

The connection dialog is contained in frmConnect.cs; this dialog is used to capture the variables necessary to create a viable connection to an Oracle, SQL Server, or MS Access database. The dialog contains a tabbed pane with three panels, one for each connection type. Each panel contains all of the controls necessary to generate a connection. The user may test the connections from this dialog, and once the user accepts the dialog, the connection information will be persisted and made available to the application.


Figure 4: Connection Dialog with SQL Server Options Displayed

The code is pretty simple, if you'd care to open the code view up in the IDE you will see that the code file begins as follows:

using System;
using System.Collections;
using System.Configuration;
using System.ComponentModel;
using System.Data;
using System.Data.OleDb;
using System.Drawing;
using System.Text;
using System.Windows.Forms;

The class begins with the import of the required libraries; most notably the System.Data and System.Data.OleDb libraries are required to interact with the three database types used by the application (Oracle, Access, and SQL Server).

Following the imports, the namespace and class are defined and a default constructor added.

namespace DBSpy
{
    public partial class frmConnect : Form
    {
        /// <summary>
        /// Default constructor
        /// </summary>
        public frmConnect()
        {
            InitializeComponent();
        }

Next up is the button click event handler for the button used to save a defined connection to an Oracle database as property settings made available across the application. The handler saves all of the user defined elements of the connection string as well as the formatted connection string itself and also tests the connection string to make sure that it works. The code is annotated to describe what is happening in each section of the code.

        /// <summary>

        /// Store the Oracle settings and test the connection

        /// string

        /// </summary>

        /// <param name="sender"></param>

        /// <param name="e"></param>

        private void btnOracleOK_Click(object sender, EventArgs e)

        {

            // Future use; if a current data model and database

            // type need to be identified and saved with the connect

            // string to identify its purpose

            Properties.Settings.Default.CurrentDataModel = "MyOracle";

            Properties.Settings.Default.CurrentDatabaseType = "Oracle";



            // Set the actual connection string properties into

            // the application settings

            Properties.Settings.Default.ProviderString = txtOracleProvider.Text;

            Properties.Settings.Default.Password = txtOraclePassword.Text;

            Properties.Settings.Default.UserID = txtOracleUserID.Text;

            Properties.Settings.Default.ServerName = txtOracleDBname.Text;



            // Set the connection string

            Properties.Settings.Default.ConnString = "Provider=" +Properties.Settings.Default.ProviderString + ";Password=" +
            Settings.Default.Password + ";User ID="+Properties.Settings.Default.UserID + ";Data Source=" + Properties.Settings
            .Default.ServerName;


            // Save the property settings

            Properties.Settings.Default.Save();



            //Test Connection

            if (Properties.Settings.Default.ConnString != string.Empty)

            {

                using (OleDbConnection conn = new OleDbConnection(Properties.Settings.Default.ConnString))

                {

                    try

                    {

                        // test with an open attempt

                        conn.Open();

                        this.Dispose();

                    }

                    catch (Exception ex)

                    {

                        // if the connection fails, inform the user

                        // so they can fix the properties

                        MessageBox.Show(ex.Message, "Connection Error");

                    }

                }

            }

        }

The next section of the code is used to handle the Oracle connection string test; even though attempts to save the connection properties also tests the connection, this method is made available to allow the user to test a connection and view whether or not the connection string passes. Again, the code is annotated to describe each section of the code.


        /// <summary>

        /// Test the Oracle Connection String

        /// </summary>

        /// <param name="sender"></param>

        /// <param name="e"></param>

        private void btnOracleTest_Click(object sender, EventArgs e)

        {

            try

            {

                // Future use; if a current data model and database

                // type need to be identified and saved with the connect

                // string to identify its purpose

                Properties.Settings.Default.CurrentDataModel = "MyOracle";

                Properties.Settings.Default.CurrentDatabaseType = "Oracle";



                // Set the actual connection string properties into

                // the application settings

                Properties.Settings.Default.ProviderString = txtOracleProvider.Text;
                Properties.Settings.Default.Password = txtOraclePassword.Text;

                Properties.Settings.Default.UserID = txtOracleUserID.Text;

                Properties.Settings.Default.ServerName = txtOracleDBname.Text;


                // Set the connection string

                Properties.Settings.Default.ConnString = "Provider="+ Properties.Settings.Default.ProviderString + ";Password="
                +Properties .Settings.Default.Password + ";User ID="+ Properties.Settings.Default.UserID + ";Data Source="
                + Properties.Settings.Default.ServerName;



                // Save the property settings

                Properties.Settings.Default.Save();

            }

            catch (Exception ex)

            {

                MessageBox.Show(ex.Message, "Error saving connection informaiton");

            }

            //Test Connection

            if (Properties.Settings.Default.ConnString != string.Empty)

            {

                using (OleDbConnection conn = new OleDbConnection(Properties.Settings.Default.ConnString))

                {

                    try

                    {

                        // test the connection with an open attempt

                        conn.Open();

                        MessageBox.Show("Connection attempt successful.","Connection Test");

                    }

                    catch (Exception ex)

                    {

                        // inform the user if the connection fails

                        MessageBox.Show(ex.Message, "Connection Error");

                    }

                }

            }

        }

The next method is merely used to close the form if the user decides to cancel the operation.


        /// <summary>

        /// Close the form

        /// </summary>

        /// <param name="sender"></param>

        /// <param name="e"></param>

        private void btnOracleCancel_Click(object sender, EventArgs e)

        {

            this.Dispose();
        }


The next bit of code handles the check changed event for the integrated security check box control found on the SQL Server tab.  If the control is checked, the user name and password are not used and the connection string will be formatted to use integrated security.


        /// <summary>

        /// SQL Server

        /// Configure for the use of integrated

        /// security

        /// </summary>

        /// <param name="sender"></param>

        /// <param name="e"></param>

        private void cbxIntegratedSecurity_CheckedChanged(object sender, EventArgs e)

        {

            // if the user has checked the SQL Server connection

            // option to use integrated security, configure the

            //user ID and password controls accordingly


            if (cbxIntegratedSecurity.Checked == true)

            {

                txtSqlServerUserID.Text = string.Empty;

                txtSqlServerPassword.Text = string.Empty;

                txtSqlServerUserID.Enabled = false;

                txtSqlServerPassword.Enabled = false;

            }

            else

            {

                txtSqlServerUserID.Enabled = true;

                txtSqlServerPassword.Enabled = true;

            }
        }


The next event handler closes the form if the user decides to cancel the operation.


        /// <summary>

        /// Close the form

        /// </summary>

        /// <param name="sender"></param>

        /// <param name="e"></param>

        private void btnSQLserverCancel_Click(object sender, EventArgs e)

        {

            this.Dispose();
        }


The next section of code is used to test the SQL Server connection string; it functions much the same as does the Oracle connection test with the only exception being that it formats the connection string differently based upon the user's selection of the Use Integrated Security check box control.


        /// <summary>

        /// Test the SQL Server connection string

        /// based upon the user supplied settings

        /// </summary>

        /// <param name="sender"></param>

        /// <param name="e"></param>

        private void btnSqlServerTest_Click(object sender, EventArgs e)

        {

            try

            {

                // Future use; if a current data model and database

                // type need to be identified and saved with the connect

                // string to identify its purpose

                Properties.Settings.Default.CurrentDataModel = "MySqlServer";

                Properties.Settings.Default.CurrentDatabaseType = "SqlServer";


                // Set the properties for the connection string

                Properties.Settings.Default.ProviderString = txtSqlServerProvider.Text;

                Properties.Settings.Default.Password = txtSqlServerPassword.Text;

                Properties.Settings.Default.UserID = txtSqlServerUserID.Text;

                Properties.Settings.Default.ServerName = txtSqlServerDBName.Text;

                Properties.Settings.Default.InitialCatalog = txtSqlServerInitialCat.Text;



                // configure the connection string based upon the use

                // of integrated security

                if (cbxIntegratedSecurity.Checked == true)

                {

                    Properties.Settings.Default.ConnString = "Provider=" + Properties.Settings.Default.ProviderString + ";Data
                    Source="
+ Properties.Settings.Default.ServerName + ";Initial Catalog="
                    Properties.Settings.Default.InitialCatalog + ";Integrated Security=SSPI;";

                }

                else

                {

                    Properties.Settings.Default.ConnString = "Provider=" +Properties.Settings.Default.ProviderString +
                    ";Password="+Properties.Settings.Default.Password+ ";User ID=" + Properties.Settings.Default.UserID

                    + ";Data Source=" +Properties.Settings.Default.ServerName + ";Initial Catalog="

+ Properties.Settings.Default.InitialCatalog;

                }



                // Save the property settings

                Properties.Settings.Default.Save();

            }

            catch (Exception ex)

            {

                // inform the user if the connection was not saved

                MessageBox.Show(ex.Message, "Error saving connection information");

            }


            //Test Connection

            if (Properties.Settings.Default.ConnString != string.Empty)

            {

                using (OleDbConnection conn = new OleDbConnectionProperties.Settings.Default.ConnString))

                {

                    try

                    {

                        // test the connection with an open attempt

                        conn.Open();

                        MessageBox.Show("Connection Attempt Successful.", "Connection Test");

                    }

                    catch (Exception ex)

                    {

                        // inform the user if the connection test failed

                        MessageBox.Show(ex.Message, "Connection Test");

                    }

                }

            }
        }


The following event handler sets the connection string and tests the SQL Server connection as defined by the user's entries into the form.


        private void btnSqlServerOK_Click(object sender, EventArgs e)

        {

            try

            {

                // Future use; if a current data model and database

                // type need to be identified and saved with the connect

                // string to identify its purpose

                Properties.Settings.Default.CurrentDataModel = "MySqlServer"
                Properties.Settings.Default.CurrentDatabaseType = "SqlServer";


                // Set the properties for the connection

                Properties.Settings.Default.ProviderString = txtSqlServerProvider.Text;

                Properties.Settings.Default.Password = txtSqlServerPassword.Text;

                Properties.Settings.Default.UserID = txtSqlServerUserID.Text;

                Properties.Settings.Default.ServerName = txtSqlServerDBName.Text;

                Properties.Settings.Default.InitialCatalog = txtSqlServerInitialCat.Text;



                // configure the connection string based upon

                // the use of integrated security

                if (cbxIntegratedSecurity.Checked == true)

                {

                    Properties.Settings.Default.ConnString = "Provider=" +Properties.Settings.Default.ProviderString +";Data Source="
                    + Properties. Settings. Default.ServerName +";Initial Catalog=" +Properties.Settings.Default.InitialCatalog +";
                    Integrated Security=SSPI;"
;

                }

                else

                {

                    Properties.Settings.Default.ConnString = "Provider=" + Properties .Settings.Default.ProviderString Password=
                    "
+ Properties.Settings.Default.Password + ";User ID=" + Properties.Settings.Default.UserID +";Data Source=" +
                    Properties.Settings.Default.ServerName + ";Initial Catalog=" +Properties.Settings.Default.InitialCatalog;

                }


                // Save the property settings

                Properties.Settings.Default.Save();

            }

            catch (Exception ex)

            {

                // inform the user if the connection information was not

                // saved

                MessageBox.Show(ex.Message, "Error saving connection information.");

            }

            //Test Connection

            if (Properties.Settings.Default.ConnString != string.Empty)

            {

                using (OleDbConnection conn = new OleDbConnection(Properties.Settings.Default.ConnString))

                {

                    try

                    {

                        // test the connection with an open attempt

                        conn.Open();

                        this.Dispose();

                    }

                    catch (Exception ex)

                    {

                        // inform the user if the connection was not saved

                        MessageBox.Show(ex.Message, "Connection Test");

                    }

                }

            }
        }


The next event handler closes the form if the user decides to cancel the operation.


    /// <summary>

    /// Close the form

    /// </summary>

    /// <param name="sender"></param>

    /// <param name="e"></param>

    private void btnAccessCancel_Click(object sender, EventArgs e)

    {

        this.Dispose();
    }


This event handler is used to open an open file dialog used to allow the user to navigate to and select an Access database.


    /// <summary>

    /// Browse for an access database

    /// </summary>

    /// <param name="sender"></param>

    /// <param name="e"></param>

    private void btnBrowse_Click(object sender, EventArgs e)

    {

        OpenFileDialog openFile = new OpenFileDialog();

        openFile.Title = "MS Access Database";
        openFile.DefaultExt = "mdb";

        openFile.Filter = "Access Database (*.mdb)|*mdb";

        openFile.ShowDialog();

        txtAccessDBname.Text = openFile.FileName;
    }


The next bit of code is used to test a connection to an Access database.


        /// <summary>

        /// Test an MS Access database connection

        /// </summary>

        /// <param name="sender"></param>

        /// <param name="e"></param>

        private void btnAccessTest_Click(object sender, EventArgs e)

        {

            try

            {

                // Future use; if a current data model and database

                // type need to be identified and saved with the connect

                // string to identify its purpose

                Properties.Settings.Default.CurrentDataModel = "MyAccess";

                Properties.Settings.Default.CurrentDatabaseType = "Access";


                // Set the access database connection properties

                Properties.Settings.Default.ProviderString = txtAccessProvider.Text;

                Properties.Settings.Default.Password = txtAccessPassword.Text;

                Properties.Settings.Default.UserID = txtAccessUserID.Text;

                Properties.Settings.Default.ServerName = txtAccessDBname.Text;


                // Set the access database connection string

                Properties.Settings.Default.ConnString = "Provider=" + Properties.Settings.Default.ProviderString +";Password="+
                Properties.Settings.Default.Password + ";User ID=" +Properties.Settings.Default.UserID +";Data Source=" +
                Properties.Settings.Default.ServerName;


                // Save the properties

                Properties.Settings.Default.Save();

            }

            catch (Exception ex)

            {

                // inform the user if the connection could not be saved

                MessageBox.Show(ex.Message, "Error saving connection information.");

            }

            //Test Connection

            if (Properties.Settings.Default.ConnString != string.Empty)

            {

                using (OleDbConnection conn = new OleDbConnection(Properties.Settings.Default.ConnString))

                {

                    try

                    {

                        // test the connection with an open attempt

                        conn.Open();

                        MessageBox.Show("Access connection test successful","Connection Test");

                    }

                    catch (Exception ex)

                    {

                        // inform the user if the connection failed

                        MessageBox.Show(ex.Message, "Connection Error");

                    }

                }

            }
        }


The next event handler is used to persist and test a connection string for an MS Access database.


        /// <summary>

        /// Persist and test an Access database connection

        /// </summary>

        /// <param name="sender"></param>

        /// <param name="e"></param>

        private void btnAccessOK_Click(object sender, EventArgs e)

        {

            try

            {

                // Future use; if a current data model and database

                // type need to be identified and saved with the connect

                // string to identify its purpose

                Properties.Settings.Default.CurrentDataModel = "MyAccess";

                Properties.Settings.Default.CurrentDatabaseType = "Access";



                // Set the access database connection properties

                Properties.Settings.Default.ProviderString = txtAccessProvider.Text;

                Properties.Settings.Default.Password = txtAccessPassword.Text;

                Properties.Settings.Default.UserID = txtAccessUserID.Text;

                Properties.Settings.Default.ServerName = txtAccessDBname.Text;



                // Set the access database connection string

                Properties.Settings.Default.ConnString = "Provider=" + Properties.Settings.Default.ProviderString +";Password=
                "+Properties.Settings.Default.Password+";User ID="
+ Properties.Settings.Default.UserID + ";Data Source="
                +Properties.Settings.Default.ServerName;


                // Save the properties

                Properties.Settings.Default.Save();

            }

            catch (Exception ex)

            {

                // Inform the user if the connection was not saved

                MessageBox.Show(ex.Message, "Error saving connection information.");

            }


            //Test Connection



            if (Properties.Settings.Default.ConnString != string.Empty)

            {

                using (OleDbConnection conn = new OleDbConnection(Properties.Settings.Default.ConnString))

                {

                    try

                    {

                        // test the database connection string with an open

                        // attempt

                        conn.Open();

                        this.Dispose();

                    }

                    catch (Exception ex)

                    {

                        // inform the user if the connection failed

                        MessageBox.Show(ex.Message, "Connection Error");

                    }

                }

            }

        }

    }
}


The Data Display Form

The main application is contained in the frmDataDisplay.cs class. This form is used to gain access to the connection dialog, and to load the database information into the form's controls. The form is structured with a menu at the top; this menu contains the options to exit the application, to create a new connection, to view the current connection, and to load the schema information for the current database associated with the connection.

In the main area of the form, there are three group boxes, one contains a list box control used to display the tables contained in the current database, one contains a list box control used to display the views contained in the current database, and one contains a list box used to display the columns contained in any view or table selected from the table or view list box controls.

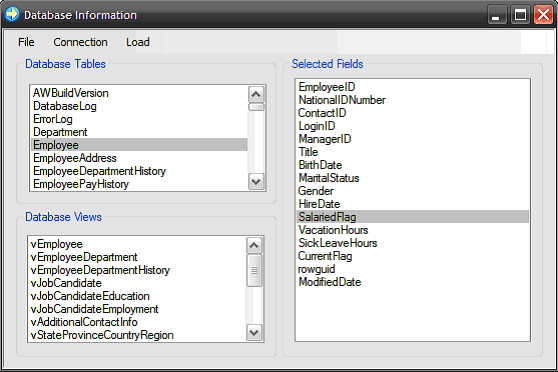

Figure 5:  The Main Form with an SQL Server Connection Active

The class starts out with the following code used to import the required libraries:


using System;

using System.Collections;

using System.Configuration;

using System.ComponentModel;

using System.Data;

using System.Data.OleDb;

using System.Drawing;

using System.Text;

using System.Windows.Forms;

The next section of code declares the namespace, some local variables, and the default constructor. The array lists are used to contain the views and tables displayed on this form.



namespace DBSpy

{

    public partial class frmDataDisplay : Form

    {

#region Declarations

        public string mSelectedTable;

        private bool mTableSelected;

        ArrayList arrViews;

        ArrayList arrTables;

#endregion


        /// <summary>

        /// default constructor

        /// </summary>

        public frmDataDisplay()

        {

            InitializeComponent();

        }

The next section of code defines a method used to capture and store the table and view names for the database identified by the connection string. The schema is stored in a data table populated with the results of calling the connection's GetOleDbSchemaTable method. This method is called twice; once to obtain the list of views and once to obtain the list of tables; these items are then added to new instances of the array lists used to hold the view and table lists. The code is annotated and should be pretty straight forward.


        /// <summary>

        /// Populate to arrays with list of all of the tables and views used

       /// in the database defined by the current connection string

       /// </summary>

       public void StoreTableAndViewNames()

       {

           // temporary holder for the schema information for the current

           // database connection

           DataTable SchemaTable;



           // used to hold a list of views and tables

           arrViews = new ArrayList();

           arrTables = new ArrayList();



           // clean up the menu so the menu item does not

           // hang while this function executes

           this.Refresh();



           // make sure we have a connection

           if (Properties.Settings.Default.ConnString != string.Empty)

           {

               // start up the connection using the current connection

               // string

               using (OleDbConnection conn = new OleDbConnection(Properties.Settings.Default.ConnString))

               {

                   try

                   {

                       // open the connection to the database

                       conn.Open();



                       // Get the Tables

                       SchemaTable = conn.GetOleDbSchemaTable(OleDbSchemaGuid.Tables, new Object[] { null, null, null,TABLE}



                       // Store the table names in the class scoped array

                       // list of table names

                       for (int i = 0; i < SchemaTable.Rows.Count; i++)

                       {

                           arrTables.Add(SchemaTable.Rows[i]. ItemArray[2].ToString());

                       }



                       // Get the Views

                       SchemaTable = conn.GetOleDbSchemaTable(OleDbSchemaGuid.Tables, new Object[] { null, null, null,"VIEW" });



                       // Store the view names in the class scoped array

                       // list of view names

                       for (int i = 0; i < SchemaTable.Rows.Count; i++)

                       {

                           arrViews.Add(SchemaTable.Rows[i].

                           ItemArray[2].ToString());

                       }

                   }

                   catch (Exception ex)

                   {

                       // break and notify if the connection fails

                       MessageBox.Show(ex.Message, "Connection Error");

                   }

               }

          }
      }

The next method is used to close the main form and terminate the application.


      /// <summary>

      /// Close the form

      /// </summary>

      /// <param name="sender"></param>

      /// <param name="e"></param>

      private void CloseToolStripMenuItem_Click(object sender, EventArgs e)

      {

          // dispose of this form

          this.Dispose();
      }


The next method is used to create an instance of the connection form.  Once displayed, the user may define a new connection string.


      /// <summary>

      /// Open a new connection to a database - present the connection

      /// string builder

      /// form so the user can define a connection

      /// </summary>

      /// <param name="sender"></param>

      /// <param name="e"></param>

      private void OpenANewConnectionToolStripMenuItem_Click(object sender, EventArgs e)

      {

          // open an instance the connect form so the user

          // can define a new connection

          frmConnect f = new frmConnect();

          f.Show();
      }


This method is used to display the value stored for the connection string in the application's settings


      /// <summary>

      /// Display the current connection string to the user

      /// </summary>

      /// <param name="sender"></param>

      /// <param name="e"></param>

      private void ViewCurrentConnectionToolStripMenuItem_Click(object sender, EventArgs e)

      {

          // display the current connection string

          MessageBox.Show(Properties.Settings.Default.ConnString, "Current Connection");
      }


Based upon the current connection string, this method will recover the tables and views for the current database connection and will display those items in the form's table and view list view controls.


      /// <summary>

      /// Get and display the current tables and views contained in the

      /// database

      /// pointed to by the connection string

      /// </summary>

      /// <param name="sender"></param>

      /// <param name="e"></param>

      private void LoadDataForCurrentConnectionToolStripMenuItem_Click(object sender, EventArgs e)

      {

          // get tables and views

          StoreTableAndViewNames();



          // clear internal lists

          lstTables.Items.Clear();

          lstViews.Items.Clear();



          // update the lists from the arrays holding the

          // tables and views

          lstTables.Items.AddRange(arrTables.ToArray());

          lstViews.Items.AddRange(arrViews.ToArray());

      }
The next method will display the list of columns displayed for the last selected table.

      private void lstTables_SelectedIndexChanged(object sender, EventArgs e)
      {
          mTableSelected = true;
          string tblName;
          try
          {
              tblName = lstTables.SelectedItem.ToString();
          }
          catch
          {
              return;
          }
          // make sure we have a connection

          if (Properties.Settings.Default.ConnString != string.Empty)

          {

              // start up the connection using the current connection

              // string

              using (OleDbConnection conn = new OleDbConnection(Properties.Settings.Default.ConnString))

              {

                  try

                  {

                      // open the connection to the database

                      conn.Open();

                      lstFields.Items.Clear();



                      DataTable dtField =conn.GetOleDbSchemaTable(OleDbSchemaGuid.Columns, new object[]{null,null,blName});

                      foreach (DataRow dr in dtField.Rows)

                      {
                          lstFields.Items.Add(dr["COLUMN_NAME"].ToString());

                      }

                  }

                  catch (Exception ex)

                  {

                      MessageBox.Show(ex.Message, "Connection Error");

                  }

              }

          }

          else

          {

              MessageBox.Show("There is no connection string current defined.", "Connection String");

          }
      }


The next method will display the list of columns displayed for the last selected view.


      private void lstViews_SelectedIndexChanged(object sender, EventArgs e)

      {

          mTableSelected = false;

          string tblName;

          try

          {

              tblName = lstViews.SelectedItem.ToString();

          }

          catch

          {

              return;

          }

          // make sure we have a connection

          if (Properties.Settings.Default.ConnString != string.Empty)

          {

              // start up the connection using the current connection

              // string

              using (OleDbConnection conn = new OleDbConnection(Properties.Settings.Default.ConnString))

              {

                  try

                  {

                      // open the connection to the database

                      conn.Open();

                      lstFields.Items.Clear();



                      // get the schema table

                      DataTable dtField =conn.GetOleDbSchemaTable(OleDbSchemaGuid.Columns, new object[]{null, null, tblName});



                      // read the column names into the fields list

                      foreach (DataRow dr in dtField.Rows)

                      {

                         lstFields.Items.Add(dr["COLUMN_NAME"].ToString());

                      }

                   }
                   catch (Exception ex)

                   {

                       MessageBox.Show(ex.Message, "Connection Error");

                   }

              }

          }

          else

          {

              MessageBox.Show("There is no connection string current defined.", "Connection String");

          }
      }


This method will display the field information associated with the last selected column for the last selected view or table.


      /// <summary>

      /// Collect and display the field information for a selected column

      /// name

      /// </summary>

      /// <param name="sender"></param>

      /// <param name="e"></param>

      private void GetFieldInformationToolStripMenuItem_Click(object sender, EventArgs e)

      {

          try

          {

              using (OleDbConnection conn = new OleDbConnection(Properties.Settings.Default.ConnString))

              {

                  string sSql = string.Empty;



                  if (mTableSelected == true)

                  {

                      sSql = "SELECT [" + lstFields.SelectedItem.ToString().Trim() + "] FROM ["+ lstTables.SelectedItem.ToString
                      ().Trim()+ "]";

                  }

                  else

                  {

                      sSql = "SELECT [" + lstFields.SelectedItem.ToString().Trim() + "] FROM [" + lstViews.SelectedItem.ToString.Trim
                      () + "]";

                  }



                  OleDbCommand cmd = new OleDbCommand(sSql, conn);

                  conn.Open();



                  OleDbDataReader rdr = cmd.ExecuteReader(CommandBehavior.KeyInfo);

                  DataTable schemaTable = rdr.GetSchemaTable();

                  StringBuilder sb = new StringBuilder();



                  foreach (DataRow myField in schemaTable.Rows)

                  {

                      foreach (DataColumn myProperty in schemaTable.Columns)

                      {

                          sb.Append(myProperty.ColumnName + " = " + myField[myProperty].ToString()+Environment.NewLine);

                      }



                      // report

                      MessageBox.Show(sb.ToString(), "Field Information");



                      // burn the reader

                      rdr.Close();



                      // exit

                      return;

                  }

              }

          }

          catch

          {

              MessageBox.Show("Unable to attach to this table with current user; check database security permissions.",
              "Field information
");

          }

      }

  }
}

Summary

This application is intended to demonstrate one approach to building an application capable of viewing the contents of a database dynamically and based strictly upon making a connection to either an MS Access, Oracle, or SQL Server database. It is not the only way to accomplish this task, it is just one way to do it. You can easily modify the approach to use other connection types, or to add new connection types, and you can modify the application to display information that I did not address in this demonstration.
