All about Machine Learning

This is the tenth tutorial in the series. In this tutorial, we will be studying Machine Learning. Machine learning is the scientific study of algorithms and statistical models that computer systems use to perform a specific task without using explicit instructions, relying on patterns and inference instead

Introduction


In the previous article, we studied Artificial Intelligence, its functions, and its python implementations. In this article, we will be studying Machine Learning. One thing that I believe is that if we are able to correlate anything with us or our life, there are greater chances of understanding the concept. So I will try to explain everything by relating it to humans.


What is Machine Learning?


Machine learning is the scientific study of algorithms and statistical models that computer systems use to perform a specific task without using explicit instructions, relying on patterns and inference instead. It is seen as a subset of artificial intelligence.

Machine learning is an application of artificial intelligence (AI) that provides systems the ability to automatically learn and improve from experience without being explicitly programmed. Machine learning focuses on the development of computer programs that can access data and use it to learn for themselves.

"A computer program is said to learn from experience E with respect to some class of tasks T and performance measure P, if its performance at tasks in T, as measured by P, improves with experience E."

The meaning of the above statement can be understood as:
In the case of Spam Detection, Task T is detecting a mail as spam or not, Performance measure P is how much mails are correctly detected as spam and Experience E is the number of mails detected as spam and not-a spam. So, if the number of false-positive results decreases continuously on each iteration, then it can be said that the system is learning to classify emails as spam and not-a spam.

Another example could be, Alexa, amazon's NLP service, Task T is to execute the given command, Performance Measure P is the extent to which Alexa is able to "understand" our commands and Experience E is the number of times the given command is executed rightly. So, if Alexa's command execution capabilities improve with time and it is able to develop a better "understanding" of what "humans" means.


How do we do Machine Learning?


I would explain machine learning in layman's terms in the following way,

I dont know how many of you remember the way we were taught A-Z in our kindergarten. For those who dont remember, we were told to, again and again, write A to Z, till the time we were able to recall the name by seeing the diagram of that. In the same way, we train machines, where the machines are given x amount of data points, and the machine tries to form a relationship among those data points, this what I did in my school life, I had a problem learning chemical periodic table so my teacher gave me an algorithm to learn i.e. "LiBeB CNOFNe NaMgAl SiPSClAr", with this I was able to learn 1st eighteen elements in chronological order.

ML algorithms tend "overfit" data i.e they do not allow any other value to fit into the relationship equation, this is what we do, for example, I had an argument with someone, so its human nature to think that the other person does not understand us or do not want to understand us.


Some Basic Terms



Data Science


Data science is a multi-disciplinary field that uses scientific methods, processes, algorithms, and systems to extract knowledge and insights from structured and unstructured data. Data science is the same concept as data mining and big data: "use the most powerful hardware, the most powerful programming systems, and the most efficient algorithms to solve problems".

Data science is a "concept to unify statistics, data analysis, machine learning, and their related methods" in order to "understand and analyze actual phenomena" with data. It employs techniques and theories drawn from many fields within the context of mathematics, statistics, computer science, and information science. Turing award winner Jim Gray imagined data science as a "fourth paradigm" of science (empirical, theoretical, computational and now data-driven) and asserted that "everything about science is changing because of the impact of information technology" and the data deluge.


Data Mining


Data mining is the process of discovering patterns in large data sets involving methods at the intersection of machine learning, statistics, and database systems. Data mining is an interdisciplinary subfield of computer science and statistics with an overall goal to extract information (with intelligent methods) from a data set and transform the information into a comprehensible structure for further use. Data mining is the analysis step of the "knowledge discovery in databases" process or KDD. Aside from the raw analysis step, it also involves database and data management aspects, data pre-processing, model and inference considerations, interestingness metrics, complexity considerations, post-processing of discovered structures, visualization, and online updating


Statistical Learning


Statistical learning theory is a framework for machine learning drawing from the fields of statistics and functional analysis. Statistical learning theory deals with the problem of finding a predictive function based on data. Statistical learning theory has led to successful applications in fields such as computer vision, speech recognition, bioinformatics, and baseball.


Knowledge Discovery in Databases(KDD)


Knowledge discovery describes the process of automatically searching large volumes of data for patterns that can be considered knowledge about the data. It is often described as deriving knowledge from the input data. Knowledge discovery developed out of the data mining domain and is closely related to it both in terms of methodology and terminology.

The most well-known branch of data mining is knowledge discovery, also known as knowledge discovery in databases (KDD). Just as many other forms of knowledge discovery it creates abstractions of the input data.

The knowledge discovery in databases (KDD) process is commonly defined with the stages:
  1. Selection
  2. Pre-processing
  3. Transformation
  4. Data mining
  5. Interpretation/evaluation

What can be called Data? How data can be used?


Everything and anything can be called data. Data is an abstract term, which can be used for each and every type of data. The amount of data that is generated on a daily basis can be estimated by seeing the following figures:
  1. Google: processed 24 Peta Bytes of data every data per day
  2. Facebook: 10 million photos uploaded every hour
  3. Youtube: 1 hour of video uploaded every second
  4. Twitter: 400 million tweets per day
  5. Astronomy: Satellite Data is in hundreds of petabytes
Note: 1 petabyte is 1 million megabytes or 1 quadrillion bytes or 1000 trillion bytes or 1e-15 bytes

So from the above values, you can very easily understand that on a daily basis we produce around 1 GB or GigaByte of Data. Even the above-written figures are also a type of data.


Which data is converted into information?


The theoretical definition of Information is facts provided or learned about something or someone or we can say data can be said to be information if it is "useful to me". Information is an abstract term, i.e. for example, if I am a manager and I have to review the work of my team, so the data of work done will become information for me, while on the other hand, this same data may have no value for a person who is not an employee of the same company.

Another example of the same can be you are currently reading this article, the data written in this article is "information" to you, but for a person who dont intends to learn about ML, this is mear data.

So I would conclude by saying "Everything is information and not everything is information" .


How can information be converted into knowledge?


The theoretical definition of knowledge is facts, information, and skills acquired through experience or education; the theoretical or practical understanding of a subject or we can say is knowledge is the "information" that we use to transform a "theoretical concept" into "practically feasible product".

For Example, you are currently reading this article, and if you use this "information" to implement it and produce an observable and notable product than this information is said to be converted into knowledge.

For instance, you study linear regression and you used the algorithm to make a classifier that can differentiate between an animal and a human, then that means that you converted your "linear regression" information into "knowledge".


Advantages/ Features of ML

  1. It is used in a variety of applications such as banking and financial sector, healthcare, retail, publishing and social media, robot locomotion, game playing, etc.
  2. It is used by Google and Facebook to push relevant advertisements based on the user's past search behavior.
  3. It has capabilities to handle multi-dimensional and multi-variety data in dynamic or uncertain environments.
  4. It allows time cycle reduction and efficient utilization of resources.
  5. Due to machine learning, there are tools available to provide continuous quality improvement in large and complex process environments.
  6. Source programs such as Rapidminer helps in the increased usability of algorithms for various applications.

Disadvantages/Shortcomings of ML

  1. The acquisition of relevant data is a major challenge. Based on different algorithms data need to be processed before providing as input to respective algorithms. This has a significant impact on results to be achieved or obtained.
  2. Interpretation of results is also a major challenge to determine the effectiveness of machine learning algorithms.
  3. Based on which action to be taken and when to be taken, various machine learning techniques are needed to be tried.
  4. The next level of machine learning technology is being researched.

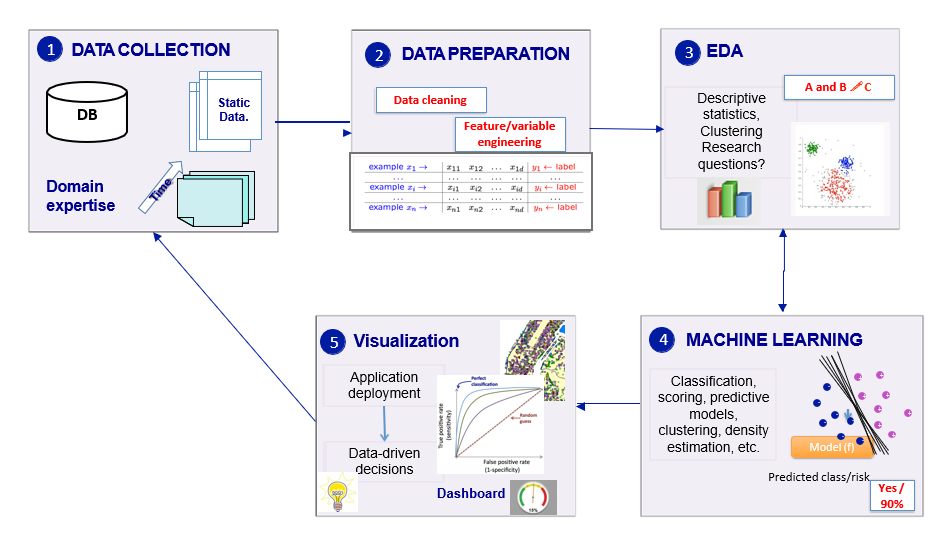

The Data Science Process


datascience

1. Data Collection


this process involves, collection of data using various tools like interviews, questionnaires, one-to-one interactions, group discussions, online surveys, surfing the web. Our motive during this process is that the data so collected can be directly be converted into information.


2. Data Preparation


This process involves, cleaning of data i.e. removing or replacing empty values and null values with placeholder value, re-arranging the data in the specified format, and feature/variable engineering i.e selecting the required features/variables, interpolation, and scaling of features/variables.


3. EDA


Exploratory Data Analysis refers to the critical process of performing initial investigations on data so as to discover patterns, spot anomalies, to test hypotheses and to check assumptions with the help of summary statistics and graphical representations.


4. Machine Learning


Here, we tried to generate a model that can be used to represent a relationship between the given data. It also involves training the machine to be able to understand data and perform required operations.


5. Data Visualization


Data visualization refers to the techniques used to communicate data or information by encoding it as visual objects (e.g., points, lines or bars) contained in graphics. The goal is to communicate information clearly and efficiently to users. It is one of the steps in data analysis or data science. This visualization can be of a mathematical, graphical or an inference.


Types of Machine Learning



1. Supervised Learning


When an algorithm learns from example data and associated target responses that can consist of numeric values or string labels, such as classes or tags, in order to later predict the correct response when posed with new examples comes under the category of Supervised learning. This approach is indeed similar to human learning under the supervision of a teacher. The teacher provides good examples for the student to memorize, and the student then derives general rules from these specific examples.


List of Supervised Learning algorithms


Algorithm Name Description Type
Linear regression Finds a way to correlate each feature to the output to help predict future values. Regression
Logistic regression Extension of linear regression that's used for classification tasks. The output variable 3is binary (e.g., only black or white) rather than continuous (e.g., an infinite list of potential colors) Classification
Decision tree Highly interpretable classification or regression model that splits data-feature values into branches at decision nodes (e.g., if a feature is a color, each possible color becomes a new branch) until a final decision output is made Regression Classification
Naive Bayes The Bayesian method is a classification method that makes use of the Bayesian theorem. The theorem updates the prior knowledge of an event with the independent probability of each feature that can affect the event. Regression Classification
Support vector machine Support Vector Machine, or SVM, is typically used for the classification task. SVM algorithm finds a hyperplane that optimally divided the classes. It is best used with a non-linear solver. Regression (not very common) Classification
Random forest The algorithm is built upon a decision tree to improve the accuracy drastically. Random forest generates many times simple decision trees and uses the 'majority vote' method to decide on which label to return. For the classification task, the final prediction will be the one with the most vote; while for the regression task, the average prediction of all the trees is the final prediction. Regression Classification
AdaBoost Classification or regression technique that uses a multitude of models to come up with a decision but weighs them based on their accuracy in predicting the outcome Regression Classification
Gradient-boosting trees Gradient-boosting trees is a state-of-the-art classification/regression technique. It is focusing on the error committed by the previous trees and tries to correct it. Regression Classification


2. Unsupervised Learning


Whereas when an algorithm learns from plain examples without any associated response, leaving to the algorithm to determine the data patterns on its own. This type of algorithm tends to restructure the data into something else, such as new features that may represent a class or a new series of un-correlated values. They are quite useful in providing humans with insights into the meaning of data and new useful inputs to supervised machine learning algorithms.

As a kind of learning, it resembles the methods humans use to figure out that certain objects or events are from the same class, such as by observing the degree of similarity between objects. Some recommendation systems that you find on the web in the form of marketing automation are based on this type of learning.


List of Supervised Learning algorithms


Algorithm Description Type
K-means clustering Puts data into some groups (k) that each contains data with similar characteristics (as determined by the model, not in advance by humans) Clustering
Gaussian mixture model A generalization of k-means clustering that provides more flexibility in the size and shape of groups (clusters Clustering
Hierarchical clustering Splits clusters along a hierarchical tree to form a classification system.Can be used for Cluster loyalty-card customer Clustering
Recommender system Help to define the relevant data for making a recommendation. Clustering
PCA/T-SNE Mostly used to decrease the dimensionality of the data. The algorithms reduce the number of features to 3 or 4 vectors with the highest variances. Dimension Reduction


3. Reinforcement Learning


It is a type of learning, where the labels are not given but the training is done based on the positive and negative feedback i.e. for each, false-positive outcome system gets negative feedback and for a true positive, the system gets positive feedback.

Errors help you learn because they have a penalty added (cost, loss of time, regret, pain, and so on), teaching you that a certain course of action is less likely to succeed than others. An interesting example of reinforcement learning occurs when computers learn to play video games by themselves.

In this case, an application presents the algorithm with examples of specific situations, such as having the gamer stuck in a maze while avoiding an enemy. The application lets the algorithm know the outcome of actions it takes, and learning occurs while trying to avoid what it discovers to be dangerous and to pursue survival.

Reinforcement Learning Supervised Learning
Reinforcement learning is all about making decisions sequentially. In simple words, we can say that the out depends on the state of the current input and the next input depends on the output of the previous input In Supervised learning, the decision is made on the initial input or the input given at the start
In Reinforcement learning decision is dependent, So we give labels to sequences of dependent decisions Supervised learning the decisions are independent of each other so labels are given to each decision.
Example: Chess game Example: Object recognition


Types of Reinforcement Learning


There are two types of Reinforcement:

1. Positive

Positive Reinforcement is defined as when an event, occurs due to a particular behavior, increases the strength and the frequency of the behavior. In other words, it has a positive effect on behavior.

Advantages of reinforcement learning are:
  1. Maximizes Performance
  2. Sustain Change for a long period of time
Disadvantages of reinforcement learning:
  1. Too much Reinforcement can lead to an overload of states which can diminish the results
2. Negative

Negative Reinforcement is defined as the strengthening of behavior because a negative condition is stopped or avoided.

Advantages of reinforcement learning:
  1. Increases Behavior
  2. Provide defiance to a minimum standard of performance
Disadvantages of reinforcement learning:
  1. It Only provides enough to meet up the minimum behavior

4. Semi-Supervised Learning


Where an incomplete training signal is given: a training set with some (often many) of the target outputs missing. There is a special case of this principle known as Transduction where the entire set of problem instances is known at learning time, except that part of the targets is missing.

Practical Applications of Semi-Supervised Learning
  1. Protein Sequence Classification: Inferring the function of proteins typically requires active human intervention.
  2. Web Content Classification: Organizing the knowledge available in billions of web pages will advance different segments of AI. Unfortunately, that task typically requires human intervention to classify the content.

Application of Machine learning


1. Augmentation

Machine learning, which assists humans with their day-to-day tasks, personally or commercially without having complete control of the output. Such machine learning is used in different ways such as Virtual Assistant, Data analysis, software solutions. The primary user is to reduce errors due to human bias.

2. Automation

Machine learning, which works entirely autonomously in any field without the need for any human intervention. For example, robots performing the essential process steps in manufacturing plants.

3. Finance Industry

Machine learning is growing in popularity in the finance industry. Banks are mainly using ML to find patterns inside the data but also to prevent fraud.

4. Government organization

The government makes use of ML to manage public safety and utilities. Take the example of China with massive face recognition. The government uses Artificial intelligence to prevent jaywalker.

5. Healthcare industry

Healthcare was one of the first industries to use machine learning with image detection.

6. Marketing

Broad use of AI is done in marketing thanks to abundant access to data. Before the age of mass data, researchers develop advanced mathematical tools like Bayesian analysis to estimate the value of a customer. With the boom of data, the marketing department relies on AI to optimize the customer relationship and marketing campaign.


Transfer Learning


Transfer learning is a machine learning method where a model developed for a task is reused as the starting point for a model on a second task.

It is a popular approach in deep learning where pre-trained models are used as the starting point on computer vision and natural language processing tasks given the vast compute and time resources required to develop neural network models on these problems and from the huge jumps in the skill that they provide on related problems.

Two common approaches are as follows:
  1. Develop a Model Approach
  2. Pre-trained Model Approach
transfer_learning


Types of Machine Learning Algorithms



1. Regression


Regression models are used to predict a continuous value. Predicting prices of a house given the features of house like size, price etc is one of the common examples of Regression. It is a supervised technique.
  1. Simple Linear Regression
  2. Polynomial Regression
  3. Support Vector Regression
  4. Decision Tree Regression
  5. Random Forest Regression

2. Clustering


Clustering is the task of dividing the population or data points into a number of groups such that data points in the same groups are more similar to other data points in the same group and dissimilar to the data points in other groups. It is basically a collection of objects on the basis of similarity and dissimilarity between them. Types:
  1. K-Means Clustering
  2. Mean-Shift Clustering
  3. Density-Based Spatial Clustering of Applications with Noise (DBSCAN)
  4. Expectation-Maximization (EM) Clustering using Gaussian Mixture Models (GMM)
  5. Agglomerative Hierarchical Clustering

3. Decision Tree


Decision Tree Analysis is a general, predictive modeling tool that has applications spanning a number of different areas. In general, decision trees are constructed via an algorithmic approach that identifies ways to split a data set based on different conditions. It is one of the most widely used and practical methods for supervised learning. Decision Trees are a non-parametric supervised learning method used for both classification and regression tasks. The goal is to create a model that predicts the value of a target variable by learning simple decision rules inferred from the data features. Types:
  1. ID3 (Iterative Dichotomiser 3)
  2. C4.5 (successor of ID3)
  3. CART (Classification And Regression Tree)
  4. CHAID (CHi-squared Automatic Interaction Detector). ...
  5. MARS: extends decision trees to handle numerical data better.
  6. Conditional Inference Trees.

4. Association Learning Rule


Association rule learning is a rule-based machine learning method for discovering interesting relations between variables in large databases. It is intended to identify strong rules discovered in databases using some measures of interestingness. Association rule mining finds interesting associations and relationships among large sets of data items. This rule shows how frequently an itemset occurs in a transaction. A typical example is a Market Based Analysis. Rules do not tie back a users’ different transactions over time to identify relationships. A list of items with unique transaction IDs (from all users) is studied as one group. This is helpful in the placement of products on aisles.


5. Artificial Neural Network


Artificial neural networks (ANN) or connectionist systems are computing systems that are inspired by, but not identical to, biological neural networks that constitute animal brains. Such systems "learn" to perform tasks by considering examples, generally without being programmed with task-specific rules. An ANN is based on a collection of connected units or nodes called artificial neurons, which loosely model the neurons in a biological brain. Each connection, like the synapses in a biological brain, can transmit a signal to other neurons. An artificial neuron that receives a signal then processes it and can signal neurons connected to it. For example, in image recognition, they might learn to identify images that contain cats by analyzing example images that have been manually labeled as "cat" or "no cat" and using the results to identify cats in other images.


6. Induction Logic Programming


Inductive Logic Programming (ILP), is a subfield of machine learning that learns computer programs from data, where the programs and data are logic programs. It may also be explained as a form of supervised machine learning which uses logic programming (primarily Prolog) as a uniform representation for background knowledge, examples, and induced theories. ILP is preferred over other machine learning approaches because of its easy comprehensibility, intelligibility, and ability to include additional information in the learning problem.


7. Support Vector Machine


Support Vector Machine (SVM) is a supervised machine learning algorithm which can be used for both classification or regression challenges. However, it is mostly used in classification problems. In this algorithm, we plot each data item as a point in n-dimensional space (where n is number of features you have) with the value of each feature being the value of a particular coordinate. Then, we perform classification by finding the hyper-plane that differentiate the two classes very well.


8. Similarity and Metric Learning


Similarity learning is an area of supervised machine learning in artificial intelligence. It is closely related to regression and classification, but the goal is to learn from a similarity function that measures how similar or related two objects are. It has applications in ranking, in recommendation systems, visual identity tracking, face verification, and speaker verification.

Metric learning is the task of learning a distance function over objects. A metric or distance function has to obey four axioms: non-negativity, identity of indiscernibles, symmetry and subadditivity (or the triangle inequality).


9. Bayesian Networks


Bayesian inference is a method of statistical inference in which Bayes' theorem is used to update the probability for a hypothesis as more evidence or information becomes available. Bayesian inference is an important technique in statistics, and especially in mathematical statistics. Bayesian learning treats model parameters as random variables


10. Representation Learning


In machine learning, feature learning or representation learning[1] is a set of techniques that allows a system to automatically discover the representations needed for feature detection or classification from raw data. This replaces manual feature engineering and allows a machine to both learn the features and use them to perform a specific task.

Feature learning is motivated by the fact that machine learning tasks such as classification often require input that is mathematically and computationally convenient to process.


11. Sparse Matrix Learning


A sparse matrix is a matrix that is comprised of mostly zero values. Sparse matrices are distinct from matrices with mostly non-zero values, which are referred to as dense matrices. This type of learning is mostly done for optimization in machine learning.


Conclusion


In this article, we studied machine learning, how do we do machine learning, basic terms, what can be called data?, how to convert data into information?, how to convert information into knowledge?, advantages/features of ML, disadvantages/shortcomings of ML, data science process, types of machine learning, applications of ML, transfer learning and types of ML algorithms. Hope you were able to understand each and everything. For any doubts, please comment on your query.

In the next article, we will learn about Deep Learning.

Congratulations!!! you have climbed your next step in becoming a successful ML Engineer.
