Introduction
Active-passive architecture is a high-availability design pattern where one primary "active" node handles all production traffic and operations, while identical "passive" or standby nodes remain idle but synchronized with the active node's state. Upon detecting a failure in the active node such as hardware crash, network outage, or overload the system automatically or manually promotes a passive node to active status, minimizing service disruption. This setup prioritizes reliability over resource utilization, commonly used in databases, web services, and critical applications like financial systems. Passive nodes stay warm through replication but don't process live requests until failover occurs.
Problems Solved
Active-passive architecture addresses single points of failure in mission-critical systems by providing seamless continuity during outages, reducing recovery time objectives (RTO) to seconds or minutes. It solves issues like unplanned downtime from server crashes, software bugs, or maintenance, ensuring business operations persist without data loss if replication is synchronous. This model is ideal for stateful applications where consistent data handling is paramount, avoiding split-brain scenarios common in multi-active setups.
Downtime Reduction: Limits outages to failover duration, often under 30 seconds with automation.
Data Integrity: Ensures passive nodes mirror active state, preventing loss during switches.
Simplified Scaling: Easier to manage than active-active for read-heavy workloads.
Cost-Effective Redundancy: Utilizes standby resources only when needed.
Compliance Needs: Meets regulatory uptime requirements (e.g., 99.99%) for sectors like healthcare.
Implementation
To implement active-passive, deploy identical hardware/software stacks for active and passive nodes, configure a load balancer or virtual IP for traffic routing, and set up replication for data/state sync via tools like database mirroring or shared storage. Use monitoring agents to send heartbeats; on failure detection, trigger failover scripts to reassign VIP and activate standby. Test regularly with chaos engineering to validate switchover. Start small with VMs in cloud environments like AWS Auto Scaling or Kubernetes for easier management.
Node Provisioning: Duplicate servers with same OS, app versions, and configs.
Replication Setup: Use async/sync mirroring (e.g., MySQL replication) for data consistency.
Health Monitoring: Implement heartbeat via tools like Pacemaker or Consul.
Failover Automation: Script VIP floating with Keep alive or HAProxy.
Testing Drills: Simulate failures quarterly to measure RTO/RPO.
Sequence Diagram
![seq]()

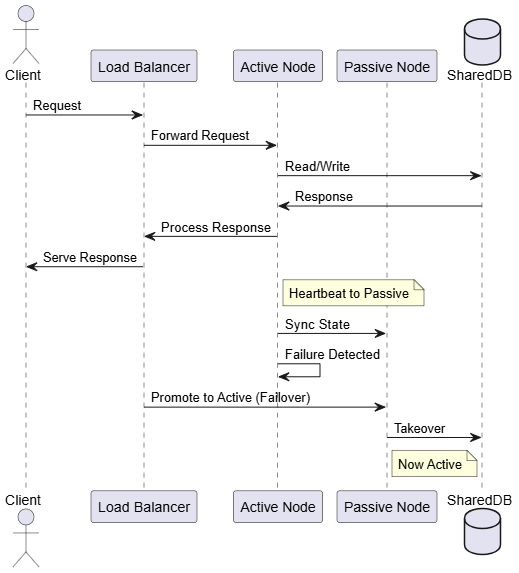

This sequence illustrates normal request flow to the active node with state sync to passive, followed by failover on active failure. The load balancer detects issues via health checks, redirects traffic, and promotes passive seamlessly. Shared storage ensures no data gaps. Heartbeats prevent false positives in detection.
Request Handling: Client traffic routes solely to active via LB.
State Sync: Continuous replication keeps passive updated.
Failure Trigger: Heartbeat loss activates failover logic.
Promotion: Passive assumes VIP, processes pending requests.
Post-Failover: Original active repairs in background as new passive.
Component Diagram
The component diagram shows modular structure with load balancer routing to active node, both accessing shared storage for consistency. Monitor agent oversees health, enabling failover. Local caches optimize active performance; passive mirrors without serving.
![comp]()
Load Balancer Role: Directs traffic, health-checks active.
Shared Storage: Central data source for both nodes.
App Servers: Identical binaries, active-only execution.
Monitor Agent: Detects/promotes via heartbeats.
Caches: Ephemeral, rebuilt on failover.
Deployment Diagram

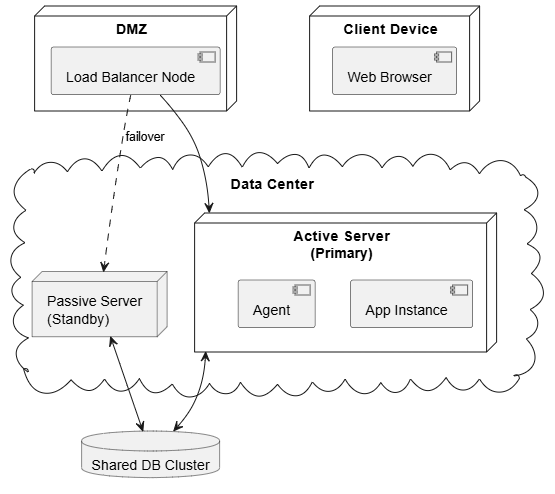

Deployment visualizes physical nodes: DMZ load balancer fronts active server in data center, passive standby ready. Shared DB ensures persistence. Agents enable monitoring across network zones for secure, scalable HA.
![depl]()
Physical Nodes: Servers as deployment targets.
Network Zones: DMZ isolates balancer from internal cluster.
Artifact Placement: App/DB on respective hardware.
Connections: Failover links, bidirectional DB access.
Scalability: Add passive nodes horizontally.
Advantages
High Reliability: Standby ensures near-zero unplanned downtime via rapid failover.
Simpler Management: Single active reduces sync conflicts vs. active-active.
Cost Savings: Idle passives optimize spend until needed.
Predictable Behavior: No load balancing complexity during normal ops.
Easy Testing: Isolate failovers without production impact.
Data Safety: Sync replication upholds ACID properties.
Summary
Active-passive architecture delivers robust high availability through redundancy and automated failover, balancing simplicity with reliability for stateful apps. While resource underutilization is a trade-off, its failover speed and ease make it foundational for enterprise systems, enhanced by tools like Kubernetes or cloud managed services.
