Introduction:
This article describes a quick and simple approach to
creating a custom web control used to display multimedia files within an ASP.NET
page. Whilst the article and demonstration project are focused upon the
presentation of multimedia files, the basic idea is applicable to any sort of
object that you may wish to embed within an ASP.NET 2.0 page.
It is entirely possible to code the page to display
multimedia files without using a custom control, having the control handy
simplifies the process to the point where someone using it need only drop it
onto the page and set a couple of properties within the IDE (or at runtime) to
bring multimedia to the page.
At the heart of the control lies the Microsoft Windows
Media Player control and for that reason, this custom control will handle any
file or streaming media source that the Media Player control itself can handle.
The example provided demonstrates the use of the control to display streaming
audio and video from a web cam and to display stored contain accessible through
a URL.
Since the Media Player is an ActiveX control, be advised that the browser may
flag the control as a security risk to the end user. The demonstration web site
included in this project includes four external sources of multimedia data; two
were gleaned from California's Monterey Bay Aquarium which provides web cam
feeds of several of its display areas; in the example, one control is pointed to
the penguin cam and the other to the aviary cam; both are fun and interesting to
look at. Also, when they are feeding and handling the penguins in front of a
group you can listen to the speaker talk about the penguins (which are from
South Africa). The aviary shows different types of seashore birds in a natural
environment and it can be interesting to watch as well.
The other two controls are used to display a couple of
rather odd television commercials for VW automobiles; these stored videos are
made available through the popular You Tube web site (which seems to have quite
a lot of odd and often humorous clips available for viewing). If you do not have
a broadband connection, you may wish to consider dropping all but one of the
controls from the demo page.

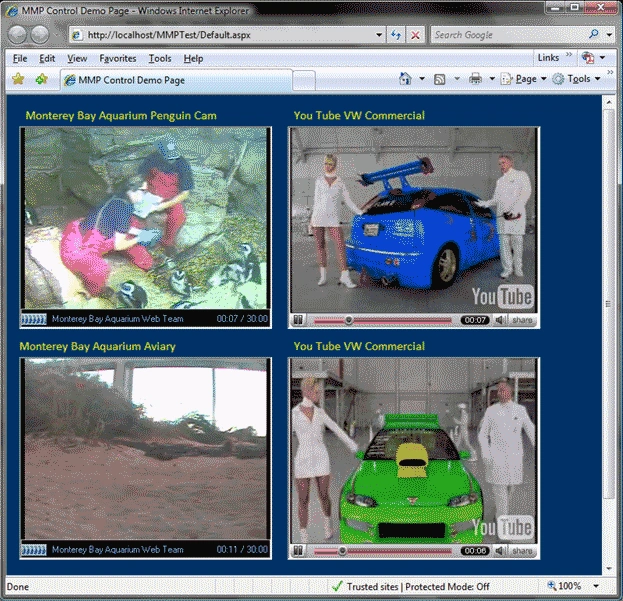

Figure 1. A demonstration of four controls in
simultaneous use.
Getting Started:
In order to get started, open up the Visual Studio 2005
IDE and start a new project. From the new project dialog (Figure 1), under
project types, select the "Windows" node from beneath "Visual Basic", then
select the "Web Control Library" template in the right hand pane. Key in "MMP"
for the project and then click "OK". (Note: all of the files are included with
the project and you may opt to use those files in lieu of recreating everything
from scratch)
Once the project has opened; right click on the
solution and click on the "Add" menu option, and then select "New Item". When
the "Add New Item" dialog appears (Figure 2), select the "Web Custom Control"
template, after selecting the template, key "MediaPlayer.vb" into the name field
and then click "Add" to close the dialog. You may now delete the default web
control that was created when the project was originally initialized from the
template.
At this point, we should have an open web control
library project with a single web control named "MediaPlayer.vb" in that
project. One last step prior to writing the code for this project will be to add
in one needed reference. To add this reference, double click on the "My Project"
icon in the solution explorer to open "My Project", from here, select the
"References" tab, and then click the "Add" button. When the "Add Reference"
dialog opens, select the .NET tab, and search down the list until you find the
"System.Design" reference. Select this library and click on the "OK" button.

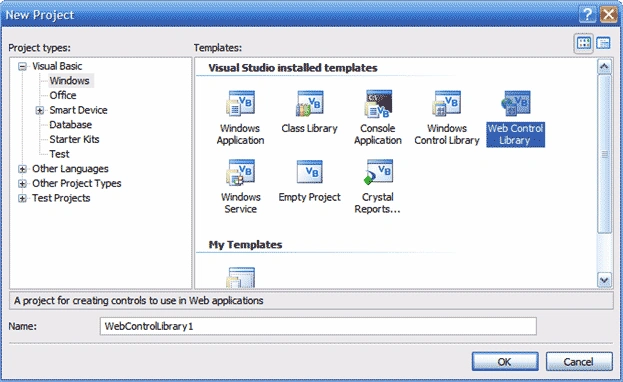

Figure 2. Visual Studio 2005 New Project Dialog

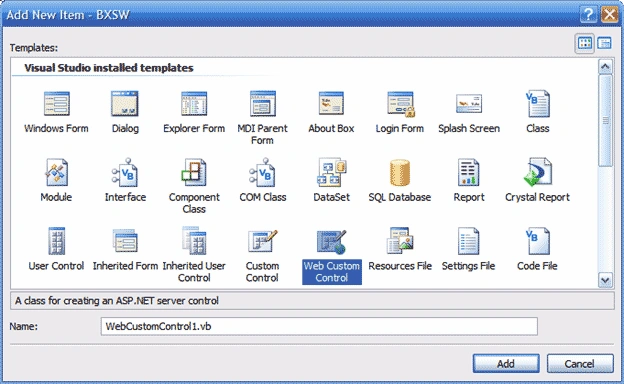

Figure 3: Add New Item Dialog
Navigate back to the "MediaPlayer.vb" file and, at the
top of the file, confirm that the projects imports match the following:
Imports
System
Imports
System.Collections.Generic
Imports
System.ComponentModel
Imports
System.Text
Imports
System.Web
Imports
System.Web.UI
Imports
System.Web.UI.WebControls
<ToolboxData("<{0}:MediaPlayer
runat=server></{0}:MediaPlayer>")> _
Public
Class MediaPlayer
Inherits WebControl
We are now ready to add the code necessary to make this
control functional. First off, we need to create some private member variables;
these variables will be used to contain the path to the multimedia file and set
which (if any) controls will be displayed along with the media player at
runtime..
To accomplish this step, create a "Declarations" region
and key in the following variable declarations:
#Region
"Declarations"
Private mFilePath As
String
Private mShowStatusBar As
Boolean
Private mShowControls As
Boolean
Private mShowPositionControls As
Boolean
Private mShowTracker As
Boolean
#End
Region
Once
the variables have been declared, we will need to provide public properties to
expose the control properties to the control user; in order to accomplish this
step, create a "Properties" region and key in the following code:
#Region
"Properties"
<Category("Media
Player")> _
<Browsable(True)>
_
<Description("Set
path to media player source file.")> _
<Editor(GetType(System.Web.UI.Design.UrlEditor),
GetType(System.Drawing.Design.UITypeEditor))> _
Public Property FilePath()
As String
Get
Return mFilePath
End Get
Set(ByVal value
As String)
mFilePath = value
End Set
End Property
<Category("Media
Player")> _
<Browsable(True)>
_
<Description("Show
or hide the tracker.")> _
Public Property ShowTracker()
As Boolean
Get
Return mShowTracker
End Get
Set(ByVal value
As Boolean)
mShowTracker = value
End Set
End Property
<Category("Media
Player")> _
<Browsable(True)>
_
<Description("Show
or hide the position controls.")> _
Public Property ShowPositionControls()
As Boolean
Get
Return mShowPositionControls
End Get
Set(ByVal value
As Boolean)
mShowPositionControls =
value
End Set
End Property
<Category("Media
Player")> _
<Browsable(True)>
_
<Description("Show
or hide the player controls.")> _
Public Property ShowControls()
As Boolean
Get
Return mShowControls
End Get
Set(ByVal value
As Boolean)
mShowControls = value
End Set
End Property
<Category("Media
Player")> _
<Browsable(True)>
_
<Description("Show
or hide the status bar.")> _
Public Property ShowStatusBar()
As Boolean
Get
Return mShowStatusBar
End Get
Set(ByVal value
As Boolean)
mShowStatusBar = value
End Set
End Property
#End
Region
Note
that, in the attributes section of the file path property, the code specifies an

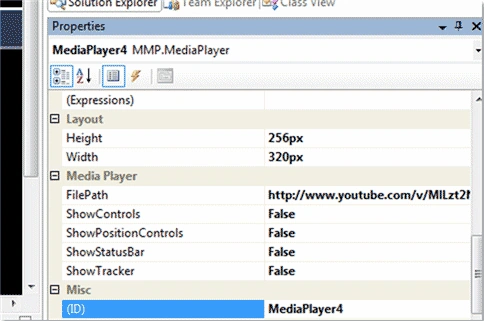

editor and further that the editor specified is defined as the URL Editor.
Adding this attribute to the control specifies to the IDE how the property is to
be edited; in this instance, when the control user sets the File Path property
for the control, the property grid will display a button with an ellipsis in it
at the right hand side of the text box. If the user clicks on the button, the
IDE will open the URL editor and will permit the user to use that editor to
navigate to the multimedia file and set the File Path property through that
editor's dialog. The control user may just key or paste the file path or URL
directly into the space provided without opening the editor. Properties set in
this manner will be persisted within the control user's project.
<Editor(GetType(System.Web.UI.Design.UrlEditor),
_ GetType(System.Drawing.Design.UITypeEditor))>_
The remaining properties are used to set Boolean values
for each media player control related options such as whether or not to show the
controls at all, or to show the track bar, etc. There is no editor associated
with the Boolean values but the user will be limited to supplying either true or
false in the property editor.
At this point, the only thing left to do is to define
how the control will be rendered. To complete this step, create a "Rendering"
region and, within this region, override the RenderContents sub with the
following code (note that this code was cleaned up to fit on the page, the line
breaks used here will not work in the IDE):
#Region
"Rendering"
Protected Overrides
Sub RenderContents(ByVal
writer As
System.Web.UI.HtmlTextWriter)
Try
Dim sb As
New StringBuilder
sb.Append("<object
classid=clsid:22D6F312-B0F6-11D0-94AB-0080C74C7E95 ")
sb.Append("codebase=http://activex.microsoft.com/activex/
controls/mplayer/en/nsmp2inf.cab#Version=5,1,52,701
Width = "
& Width.Value.ToString() & " Height = " &
Height.Value.ToString() &
"type=application/x-oleobject
align=absmiddle")
sb.Append("standby='Loading
Microsoft® Windows®
Media Player
components...' id=mp1 /> ")
sb.Append("<param
name=FileName value=" & FilePath.ToString() &
"> ")
sb.Append("<param
name=ShowStatusBar value=" &
ShowStatusBar.ToString() &
"> ")
sb.Append("<param
name=ShowPositionControls value=" &
ShowPositionControls.ToString() & "> ")
sb.Append("<param
name=ShowTracker value=" &
ShowTracker.ToString() &
"> ")
sb.Append("<param
name=ShowControls value=" &
ShowControls.ToString() &
"> ")
sb.Append("<embed
src=" & FilePath.ToString() & " ")
sb.Append("pluginspage=http://www.microsoft.com/Windows/
MediaPlayer
type=application/x-mplayer2 ")
sb.Append("Width
= " & Width.Value.ToString() & " ")
sb.Append("Height
= " & Height.Value.ToString())
sb.Append("
/></embed></object>")
writer.RenderBeginTag(HtmlTextWriterTag.Div)
writer.Write(sb.ToString())
writer.RenderEndTag()
Catch ex As Exception
' with no
properties set, this will render "Custom MediaPlayer
Control" in a
' a box on
the page
writer.RenderBeginTag(HtmlTextWriterTag.Div)
writer.Write("Custom
Media Player Control")
writer.RenderEndTag()
End Try
End Sub
#End
Region
Within this code there are a few things worth looking
at; first, you can see how the embedded object tag is created and it does not
take too much imagination to figure out that you can embed any valid object
using this same approach. The string builder collects several variables from the
control, the File Path is passed to the object's source, the controls height and
width are also collected and passed to the object tag, and the control related
properties are gathered and passed to the object's parameters.
Having defined the contents of the object tag, the only detail remaining is to
put the control on the rendered page. This is accomplished in the three lines
following the definition of the string builder:
writer.RenderBeginTag(HtmlTextWriterTag.Div)
writer.Write(sb.ToString())
writer.RenderEndTag()
In this example, the HTML writer is set up to place an
opening Div tag, within the Div, the object defined in the string builder is
written to the rendered page, and in the last line, the Div is closed.
The control is now complete. Prior to testing the
control, rebuild the project. Once that has been completed and any errors
encountered are repaired, it is time to test the control. To test the control,
add a new web site project to the web control library project currently open (or
use IIS to create a virtual directory for the included site and view that if you
prefer). Once the test web site has been created, set the test project as the
start up project by right clicking on the web site solution in the solution
explorer and selecting the "Set as Start Up Project" menu option. Next, locate
the Default.aspx page in the web site solution, right click on this page and
select the "Set as Start Page" menu option.
Open the Default.aspx page for editing. Locate the
newly created control in the toolbox (it should be at the top) and drag the
"MediaPlayer" control onto the page (Figure 4).
Figure 4: Custom Control in Toolbox
You may now click on the object control and set its
height, width, control, and file path properties. For this demo, the example
webpage contains four controls each set with valid paths to media (valid as of
November 30, 2006 anyway). Looking at the IDE's property editor, you should see
each of the properties for any given control by clicking on the control:
Figure 5: Setting the Media Player Control's Properties
in the IDE
Build the application and run it; you should now be
looking at multimedia presentations on the page.
Summary
The article demonstrates the creation of a custom
control; the example provided shows an approach to embedding a Windows Media
Player control through a custom control as a means of simplifying the amount of
work necessary to display multimedia content on an ASP.NET web page. The example
code and projects were generated using ASP.NET 2.0 in Visual Studio 2005.
Join the conversation! Your thoughts help the community grow.
