Add Star Rating In Power BI Desktop Using DAX Expression

In this article, we will learn how we can add Star Ratings in Power BI desktop using DAX Expressions.

Overview

In this article, we will learn how we can add Star Ratings in Power BI desktop using a DAX Expression.

I have attached a sample practice file with this article.

Scenario

I have one Product table having two columns:

  • Product Name
  • Rating



Now, I want to represent ratings in the form of Stars.

Let’s get started.

Step 1

Create a new measure column in Power BI Desktop.

Step 2

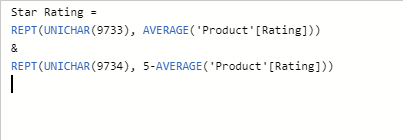

Add the following DAX expression.

  1. Star Rating =
  2. REPT(UNICHAR(9733), AVERAGE('Product'[Rating]))
  3. &
  4. REPT(UNICHAR(9734), 5-AVERAGE('Product'[Rating]))





Now, let’s elaborate on what this DAX expression means.

Here, I have used two DAX functions to achieve this requirement.

  • UNICHAR()
  • REPT()

UNICHAR()

This function returns the Unicode character that is referenced by a given numeric value.

Syntax

UNICHAR(Number)

Example

Suppose I write UNICHAR(65) then it will return ‘A’ because ASCII value of A is 65.

In our case for filled stars, we have used UNICHAR(9733) which will return a filled star.

UNICHAR(9734) will return a hollow star without filling.

We have concatenated both the stars using logic.

REPT()

This function repeats text a given number of times. Use REPT to fill a cell with a number of instances of a text string.

Syntax

  • REPT(Text, NumberOfTimes)
    Suppose my rating is 4 then I need to repeat stars four times. So, I will use:
  • REPT(UNICHAR(9733), AVERAGE('Product'[Rating]))
    The above statement will repeat Filled stars four times.

    Now, I want to show a rating out of five. So, one star will be unfilled. So, I have used the following:
    REPT(UNICHAR(9734), 5-AVERAGE('Product'[Rating]))

Step 3

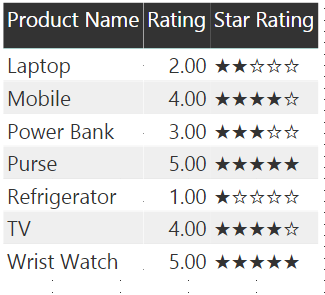

Now let’s drag the fields to a table.

It will look like this.



Conclusion

This is how we can apply Star Rating using DAX expressions.
