Agent-based architecture

Pre-requisite to understand this

• Object-Oriented Programming (OOP): Understanding classes, objects, and encapsulation

• Distributed Systems: Basics of systems running across multiple machines

• Concurrency & Parallelism: Multiple tasks execute simultaneously

• Basic AI/Decision Logic: Rule-based or intelligent decision making

Introduction

Agent-based architecture is a software design pattern where a system is composed of multiple independent, autonomous entities called agents. Each agent is responsible for a specific task, has its own state and decision-making ability, and interacts with other agents to achieve a larger system goal. Unlike monolithic or tightly coupled architectures, agent-based systems emphasize decentralization, flexibility, and collaboration. Agents can operate asynchronously, adapt to changes, and scale dynamically, making this architecture particularly suitable for complex, dynamic, and distributed environments.

What problem we can solve with this?

Modern systems often struggle with scalability, flexibility, and handling dynamic real-world scenarios where decisions must be made independently and concurrently. Traditional centralized architectures can become bottlenecks, making it difficult to handle large-scale interactions or evolving requirements. Agent-based architecture addresses these challenges by distributing responsibilities across multiple autonomous units that can act independently yet collaboratively. This is especially useful in environments where entities behave differently, require localized decision-making, or need to react in real time. By decentralizing control, systems become more resilient to failures and can adapt to changing conditions without impacting the entire system. It also simplifies modeling of real-world systems like marketplaces, traffic systems, or robotics.

Problems it solves:

• Scalability issues: Agents can be added without redesigning the system

• Single point of failure: No central controller reduces system-wide risk

• Complex decision-making: Agents handle local decisions independently

• Dynamic environments: Agents adapt to changes in real time

• Tight coupling: Promotes loose coupling via message-based interaction

• Parallel processing limitations: Enables concurrent execution

How to implement/use this?

To implement agent-based architecture, the system is decomposed into multiple agents, each responsible for a specific domain or task. Each agent is designed with three main capabilities: perception (input handling), decision-making (logic/rules/AI), and action (output/execution). Communication between agents is typically handled via messaging systems such as message queues, event buses, or APIs. Developers define clear protocols for interaction, ensuring agents can collaborate effectively. Agents should be loosely coupled so they can evolve independently. Additionally, monitoring and coordination mechanisms (optional orchestrators) can be added to supervise system behavior. The architecture is often implemented using microservices, actor models, or AI agent frameworks.

Implementation steps:

• Identify agents: Break system into independent functional units

• Define responsibilities: Assign clear roles to each agent

• Design communication: Use messaging protocols or APIs

• Implement decision logic: Add rules or AI behavior per agent

• Ensure autonomy: Agents should operate independently

• Add coordination (optional): Use orchestrators if needed

• Deploy independently: Each agent can run as a separate service

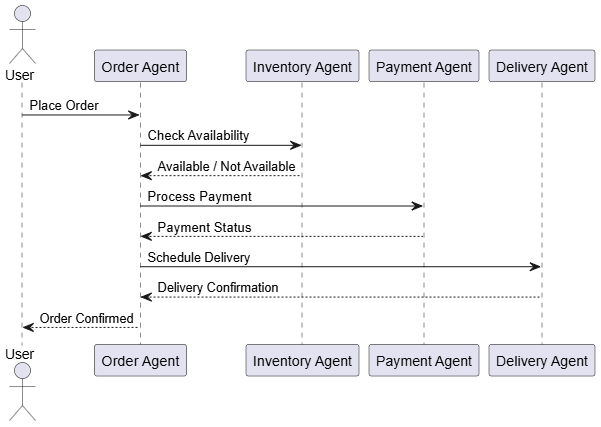

Sequence Diagram

The sequence diagram illustrates how agents interact over time to complete a task. The user initiates the process by placing an order, which is handled by the Order Agent. This agent coordinates with other specialized agents such as Inventory, Payment, and Delivery. Each agent performs its task independently and returns a response. The Order Agent aggregates these responses to complete the workflow. This demonstrates decentralized processing, where no single agent performs all tasks. Instead, collaboration happens through message passing. The system remains flexible, as any agent can be modified or replaced without affecting the overall flow.

Key points:

• User initiates interaction: External trigger starts workflow

• Order Agent coordinates: Acts as a mediator

• Agents communicate via messages: Loose coupling

• Each agent handles a specific task: Clear separation of concerns

• Parallelism possible: Some agents can work simultaneously

• Final response aggregation: Results combined for output

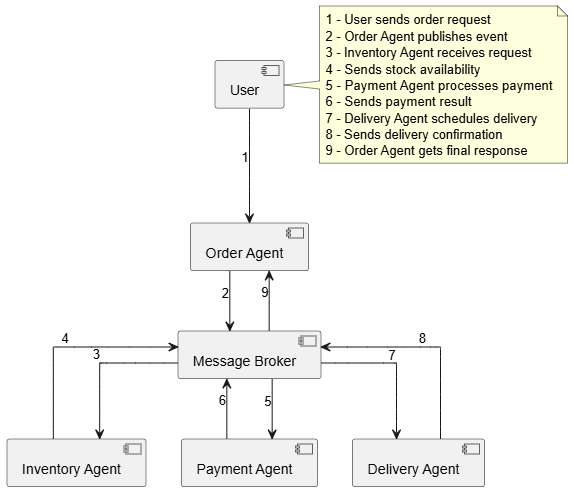

Component Diagram

The component diagram shows the structural organization of the system and how different agents are connected. Each agent is represented as a separate component with a well-defined responsibility. A message broker is introduced to enable asynchronous communication between agents, reducing direct dependencies. The numbered interactions illustrate the sequence of communication steps across components. This architecture ensures that agents do not directly depend on each other, improving modularity. The message broker acts as a central communication hub but does not control logic. This setup enhances scalability, as new agents can be added without modifying existing ones. It also supports event-driven processing.

Key points:

• Agents are independent components: Modular design

• Message broker enables communication: Decouples agents

• Numbered steps show flow: Easy traceability

• Loose coupling maintained: No direct dependencies

• Supports asynchronous messaging: Better performance

• Easily extendable: New agents can be added

Deployment Diagram

The deployment diagram represents how agents are physically distributed across infrastructure. Each agent runs on a separate server or container, highlighting the distributed nature of the system. The frontend application interacts with the Order Agent, which acts as an entry point. Communication between agents happens through a centralized messaging server. This setup allows independent scaling of each agent based on load requirements. For example, the Payment Agent can be scaled separately during peak transactions. The distributed deployment ensures high availability and fault tolerance. If one agent fails, others can continue functioning without disruption.

Key points:

• Agents deployed independently: Separate servers or containers

• Frontend interacts with entry agent: Gateway pattern

• Message broker handles communication: Central messaging layer

• Supports horizontal scaling: Scale individual agents

• Fault isolation: Failure in one agent doesn’t break system

• Cloud-native friendly: Works well with microservices

Advantages

• Scalability: Easily add more agents to handle load

• Flexibility: Modify or replace agents independently

• Resilience: Failure of one agent doesn’t affect entire system

• Parallelism: Multiple agents work simultaneously

• Reusability: Agents can be reused across systems

• Decoupling: Loose coupling improves maintainability

Summary

Agent-based architecture is a powerful approach for designing complex, distributed, and scalable systems by leveraging autonomous, interacting agents. It shifts the focus from centralized control to decentralized collaboration, allowing systems to be more adaptive and resilient. By breaking down responsibilities into smaller, independent units, it improves maintainability and scalability while enabling parallel execution. This architecture is especially useful in domains requiring dynamic decision-making and real-time responsiveness. With proper design and communication strategies, agent-based systems can effectively model real-world complexity and deliver robust, future-ready solutions.
