AJAX DataGrid: An ASP.NET User Control


Introduction:



This DataGrid is a Client Side Control. It is created by JavaScript and uses Ajax.net technology to communicate with ASP.NET code behind, from there, using ADO.NET to access the database and update the database with dataset.



This control has all the features that a DataGrid should have and all the functions work automatically without writing any code after you setup the connection string and table names.



The datagrid support:



  1. Pages.
  2. Sort.
  3. Master - Detail (the detail part also support page and sort)
  4. Customized row color based on the Column condition.
  5. Edit.
  6. Scroll bar without head scroll when no page supported.
  7. Support controls (Image, TextBox, Hyper link, DropdownBox, CheckBox).
  8. Auto split head name.
  9. Automatic validate textbox for Decimal, email and number.

The datagrid can be switched between different modes by right click on the screen to open a popup screen:

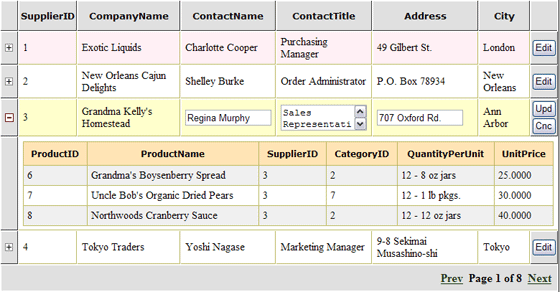

The Datagrid with Page, Master-Detail and Edit function

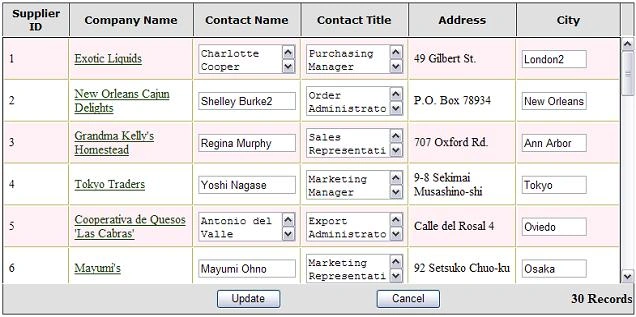

The Datagrid with custom controls and scrollbar with static head



Performance:



The grid is created by javascript on demand and JavaScript is not a compiled language. It is slower than render xtml code directly to the page. If the datagrid contains more than 200 records it is better to use the page mode. Otherwise the performance will slowdown a lot.



The CSS (Cascading Style Sheets) is used to configure the look of the control, so the user can make the change very easily.



Usage:



The user control includes five parts:



  1. User control .ascx file.
  2. JavaScript file.
  3. Database access file.
  4. CSS file.
  5. AJAX.NET dll.

First, Add reference to ajax.dll.



Copy the UserControl directory to your project and add the user control to your ASP.Net page: (see the project in the source code)

<%@ Register TagPrefix="WebDataGridDemo" TagName="WebDataGrid" Src= "UserControl/WebDataGridUserControl.ascx"%>

<WEBDATAGRIDDEMO:WEBDATAGRID id="wdg1" runat="server"> </WEBDATAGRIDDEMO:WEBDATAGRID>

In the Web.config file, setup the connection string. Add reference to Ajax.net dll:



<appSettings>

           <add key="ConnectionString" value="Data Source=(local);Initial Catalog=Northwind;User Id=sa;Password=xxx;" />

</appSettings>



<httpHandlers>

      <add verb="POST,GET" path="

          type="Ajax.PageHandlerFactory, Ajax " />

</httpHandlers>



In the DynamicDataGrid.js file, most parameters have default values that you can overwrite some of them in your webform that use the control.



private void Page_Load(object sender, System.EventArgs e)

{

if(!Page.IsPostBack)

{

WebDataGridUserControl.MainTableName="suppliers";

           WebDataGridUserControl.DetailTableName = "products";



           // optional these values will overwrite default properties

           WebDataGridUserControl.Height =300;

           WebDataGridUserControl.Width = 780;

           WebDataGridUserControl.Editable = 1;

           WebDataGridUserControl.PageSize = 4;

}

}



Configuration:



Also you can modify some parameters in the WebDataGridUserControl.ascx.cs file:



If you don't use page mode, you may need to change the array ResetIfNoEditable and columnWidth to adjust the grid head column size and columns size.



[Ajax.AjaxMethod]

public ArrayList InitializeInfo()

{

...

           // int pageable=1; masterDetail =1;editable = 1;pageSize=10; height=300

           string [] FunctionProperty = {"1", "1", gEdit, gPageSize, gridHeight, gridWidth};

           // ={} no control available; 0 label, 1 image, 2 href link 3 textbox 4 checkbox 5 dropdown

           string [] ColumnControlType = {"0","2","3","3","0","3","4"};

           // indicate which column 3,4,5,7 is editable

           string [] ColumnEditable =   {"0","0","1","1","1","0","1"};



           // following properties only for no page supported

           // this rearrange size of edit button to column 3, 4, 5 with added size 10,10,10

           string [] ResetIfNoEditable = {"0","0","10","10","10", "0"};



           string [] CustomizedHeadZize={"68","140","120","120","120", "0"};

           // Column size needed when no page support is set; you should set one column to "0"

           string [] columnWidth ={"68","140","120","120","120","0"};

           ...

           return al;

}



[Ajax.AjaxMethod]

public ArrayList GetHeadArray()

{

...

           // this array should match with the edit fields column3= Decimal, column4=Email,column5=Number

           string [] ValidateType =   {"","","Decimal","Email","Number"};

           // assign ColumnDisplayName = {}; if don't use customized display name

           string [] ColumnDisplayName = {};

...

}



Thanks Michael Schwarz who created a ajax.net that build the bridge between JavaScript and the .Net.
