AlertDialog In Android Application

Introduction


In this article, I will explain how to use the AlertDialog box in the Android app. It is used to display the dialog message with Yes and No or OK and Cancel buttons. It can be used to ask the user about his/her choice to continue or discontinue.

There are three main components for the AlertDialog,
  1. Title
  2. Content Area (Message)
  3. Action buttons (Yes and No or OK and Cancel)
So to make an alert dialog, we need to make an object of AlertDialogBuilder which is an inner class of AlertDialog while Android AlertDialog is the subclass of Dialog class and syntax is given below to create an alert dialog.
  1. AlertDialog.Builder alertDialogBuilder = new AlertDialog.Builder(this);

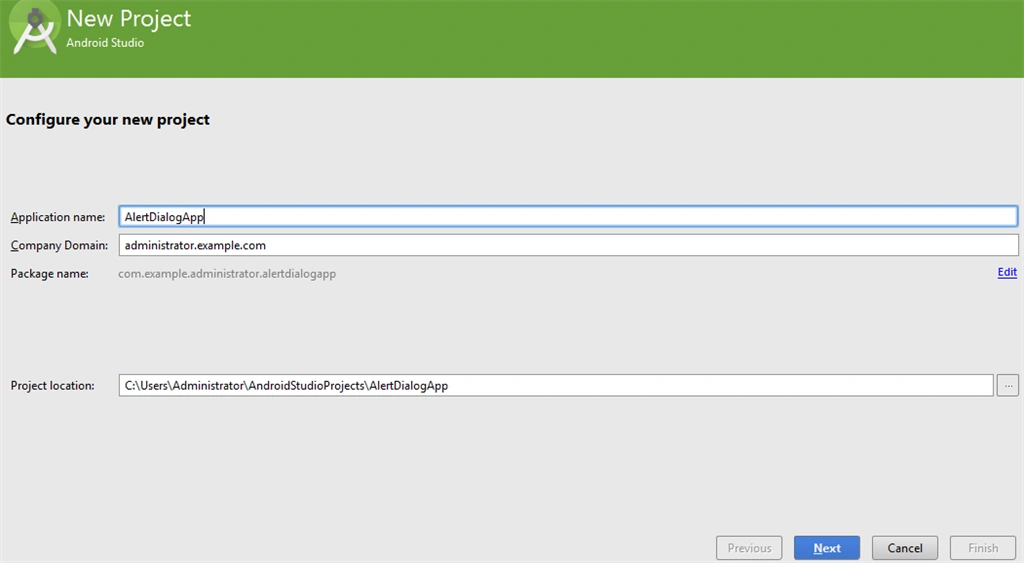

So, I created a new project with a blank activity called MainActivity.

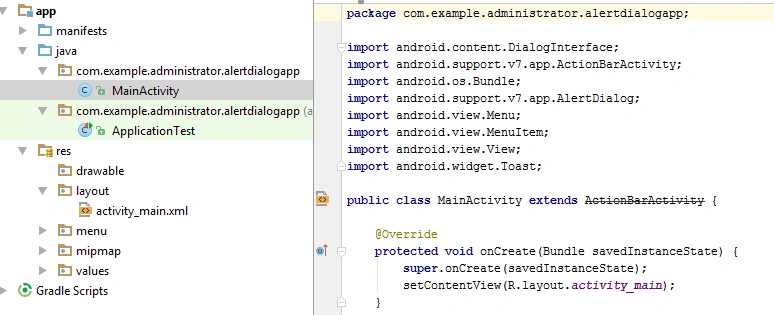

After creating project MainActivity.java will look like the following:


1. Activity_main.xml

In this file, here we have only a Button.
  1. <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
  2.
  3.      xmlns:tools="http://schemas.android.com/tools" android:layout_width="match_parent"
  4.      android:layout_height="match_parent" android:paddingLeft="@dimen/activity_horizontal_margin"
  5.      android:paddingRight="@dimen/activity_horizontal_margin"
  6.      android:paddingTop="@dimen/activity_vertical_margin"
  7.      android:paddingBottom="@dimen/activity_vertical_margin" tools:context=".MainActivity">
  8.
  9.      <Button
  10.          android:layout_width="wrap_content"
  11.          android:layout_height="wrap_content"
  12.          android:text="Alert Dialog"
  13.          android:id="@+id/alertButton"
  14.          android:layout_marginTop="91dp"
  15.          android:layout_marginLeft="80dp"
  16.          android:onClick="openalertdialog"
  17.          />
  18.  </RelativeLayout>

    2. Activity Class

    Here is the code to create and show the AlertDialog.
    1. package com.example.administrator.alertdialogapp;
    2. import android.content.DialogInterface;
    3. import android.support.v7.app.ActionBarActivity;
    4. import android.os.Bundle;
    5. import android.support.v7.app.AlertDialog;
    6. import android.view.Menu;
    7. import android.view.MenuItem;
    8. import android.view.View;
    9. import android.widget.Toast;
    10. public class MainActivity extends ActionBarActivity
    11. {
    12.     @Override
    13.     protected void onCreate(Bundle savedInstanceState)
    14.     {
    15.         super.onCreate(savedInstanceState);
    16.         setContentView(R.layout.activity_main);
    17.     }
    18.     public void openalertdialog(View vw)
    19.     {
    20.         AlertDialog.Builder alertDialogBuilder = new AlertDialog.Builder(this);
    21.         //Set title of Alert Dialog
    22.         alertDialogBuilder.setTitle("Close the App");
    23.         //Set dialog message
    24.         alertDialogBuilder.setMessage("Do u want to quit from the app?");
    25.         alertDialogBuilder.setCancelable(false);
    26.         alertDialogBuilder.setPositiveButton("yes"new DialogInterface.OnClickListener()
    27.         {
    28.             @Override
    29.             public void onClick(DialogInterface dialogInterface, int i)
    30.             {
    31.                 Toast.makeText(MainActivity.this"You quit from the app!", Toast.LENGTH_LONG).show();
    32.                 finish();
    33.             }
    34.         });
    35.         alertDialogBuilder.setNegativeButton("no"new DialogInterface.OnClickListener()
    36.         {
    37.             @Override
    38.             public void onClick(DialogInterface dialogInterface, int i)
    39.             {
    40.                 Toast.makeText(MainActivity.this"You are still in the app!", Toast.LENGTH_LONG).show();
    41.             }
    42.         });
    43.         AlertDialog alertDialog = alertDialogBuilder.create();
    44.         alertDialog.show();
    45.     }
    46.     @Override
    47.     public boolean onCreateOptionsMenu(Menu menu)
    48.     {
    49.         // Inflate the menu; this adds items to the action bar if it is present.
    50.         getMenuInflater().inflate(R.menu.menu_main, menu);
    51.         return true;
    52.     }
    53.     @Override
    54.     public boolean onOptionsItemSelected(MenuItem item)
    55.     {
    56.         // Handle action bar item clicks here. The action bar will
    57.         // automatically handle clicks on the Home/Up button, so long
    58.         // as you specify a parent activity in AndroidManifest.xml.
    59.         int id = item.getItemId();
    60.         //noinspection SimplifiableIfStatement
    61.         if(id == R.id.action_settings)
    62.         {
    63.             return true;
    64.         }
    65.         return super.onOptionsItemSelected(item);
    66.     }
    67. }

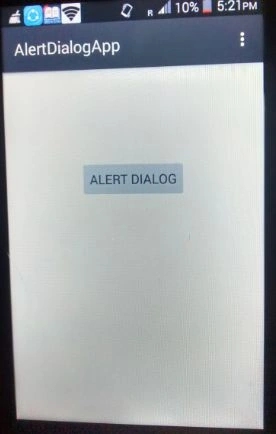

      Run the application on the mobile device and see the output.

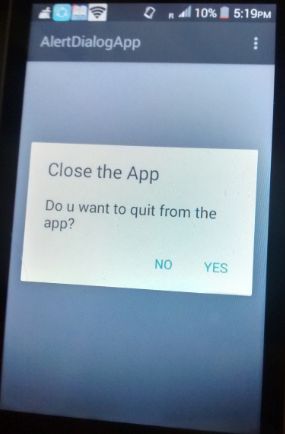

      Click on the Alert Dialog button and you will see two options YES and NO.

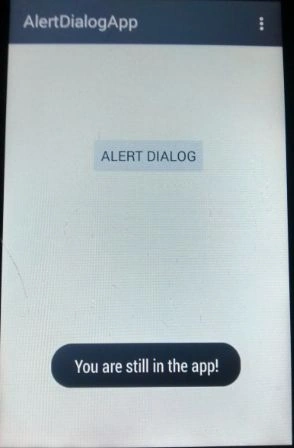

      Select No to still exist in the app.


      Otherwise, quit from the app.
