What is VPN Gateway in Alibaba Cloud?


In today's digital landscape, enterprises increasingly leverage cloud platforms like Alibaba Cloud for scalability, agility, and cost-efficiency. However, securely connecting on-premises data centers, office networks, and remote users to Alibaba Cloud's Virtual Private Cloud (VPC) environment is critical. This is where Alibaba Cloud VPN Gateway comes into play.

VPN Gateway

What is Alibaba Cloud VPN Gateway?

Alibaba Cloud VPN Gateway is a managed service that establishes secure and reliable network connections between your on-premises infrastructure, internet clients, and Alibaba Cloud VPC. It utilizes encrypted tunnels over the public internet to ensure the privacy and integrity of your data during transmission.

Alibaba Cloud VPN Gateway

Related Image: © Alibaba Cloud

Benefits of Alibaba Cloud VPN Gateway

  • Enhanced Security: VPN Gateway leverages industry-standard protocols like IPSec (Internet Protocol Security) and SSL (Secure Sockets Layer) to encrypt data traffic. This encryption safeguards your sensitive information from unauthorized access, even when traversing the public internet.
  • Robust Stability: Alibaba Cloud VPN Gateway boasts a high-availability architecture with active standby redundancy. This ensures automatic failover within seconds in case of any disruptions, minimizing downtime and maintaining consistent network connectivity.
  • Simplified Management: Alibaba Cloud VPN Gateway is designed for ease of use. You can quickly provision and configure VPN connections through a user-friendly interface, eliminating complex configurations on your end.
  • Cost-Effective Solution: VPN Gateway offers a cost-effective approach to securely connecting your on-premises network to Alibaba Cloud. By leveraging the existing internet infrastructure for data transmission, you can avoid the high costs associated with dedicated leased lines.
  • Scalability: VPN Gateway seamlessly scales to accommodate your growing business needs. You can easily adjust bandwidth and connection parameters to ensure optimal performance for your specific data transfer requirements.

Deployment Scenarios for Alibaba Cloud VPN Gateway

Alibaba Cloud VPN Gateway caters to a wide range of use cases, including:

  • Site-to-Site Connectivity: Establish secure connections between your on-premises data center and your Alibaba Cloud VPC for seamless data exchange and application access.
  • Remote User Access: Enable secure remote access to Alibaba Cloud resources for your employees working from home, branch offices, or on the go.
  • Cloud Connectivity: Connect your Alibaba Cloud VPC to another cloud provider's VPC using a VPN Gateway for hybrid cloud deployments.

Types of VPN Connections Supported by Alibaba Cloud VPN Gateway

  • IPSec VPN: IPSec (Internet Protocol Security) is a widely used tunneling protocol that provides robust encryption and secure communication between networks. It is a popular choice for site-to-site connectivity.
  • SSL VPN: SSL (Secure Sockets Layer) VPN offers an alternative solution for secure remote access to Alibaba Cloud resources. It is particularly well-suited for mobile devices or platforms that may not natively support IPSec.

Considerations for Implementing Alibaba Cloud VPN Gateway

  • Network Topology: Carefully assess your network infrastructure and desired connection type (site-to-site or remote access) to determine the optimal VPN Gateway configuration.
  • Security Requirements: Define the necessary encryption levels and authentication protocols to meet your organization's security compliance standards.
  • Bandwidth Needs: Evaluate your anticipated data transfer volume to allocate sufficient bandwidth for your VPN connection to ensure smooth performance.
  • Cost Optimization: Consider factors like bandwidth usage and connection duration to choose the most cost-effective billing plan for your VPN Gateway.

Features of Alibaba Cloud VPN Gateway

Alibaba Cloud VPN Gateway goes beyond just secure connections. Here's a breakdown of its key features:

  • Encryption Protocols: Supports industry-standard IPSec and SSL protocols, ensuring robust encryption for data in transit.
  • High Availability: Boasts active-standby redundancy for automatic failover within seconds, minimizing downtime.
  • Simple Management: A User-friendly interface allows quick provisioning and configuration, eliminating complex setups.
  • Cost-Effectiveness: Leverages public internet for data transmission, offering a cost-effective alternative to leased lines.
  • Scalability: Easily adjust bandwidth and connection parameters to adapt to growing data transfer needs.
  • Deployment Options: Supports various scenarios like site-to-site connectivity, remote user access, and hybrid cloud connections.
  • Connection Types: Provides both IPSec VPN (ideal for site-to-site) and SSL VPN (suitable for remote access) for flexibility.
  • Security Customization: Define encryption levels and authentication protocols to meet your organization's compliance requirements.
  • Billing Options: Choose from various billing plans based on bandwidth usage and connection duration for cost optimization.

These features make Alibaba Cloud VPN Gateway a compelling choice for secure and reliable network connectivity in the cloud.

Secure Site-to-Site Connectivity with Alibaba Cloud VPN Gateway's IPSec-VPN

Alibaba Cloud VPN Gateway offers a secure and reliable solution for establishing encrypted connections between your on-premises network and your Alibaba Cloud Virtual Private Cloud (VPC) – IPSec VPN (Internet Protocol Security VPN). Let's explore the intricacies of IPSec-VPN within Alibaba Cloud's VPN Gateway service.

Understanding IPSec-VPN

IPSec-VPN is a widely adopted protocol that creates secure tunnels over public internet infrastructure. It encrypts data packets at the network layer (IP layer), ensuring the confidentiality and integrity of data in transit between your on-premises network and Alibaba Cloud VPC.

Benefits of IPSec-VPN with Alibaba Cloud VPN Gateway

  • Robust Encryption: IPSec-VPN offers robust encryption algorithms like AES (Advanced Encryption Standard) to safeguard sensitive data during transmission.
  • Site-to-Site Connectivity: IPSec-VPN is ideally suited for establishing secure connections between your on-premises data center and your Alibaba Cloud VPC, enabling seamless data exchange and application access.
  • Centralized Management: Alibaba Cloud simplifies IPSec-VPN configuration and management through its user-friendly interface, eliminating the need for complex on-premise configurations.
  • Scalability: IPSec-VPN connections within Alibaba Cloud VPN Gateway can be easily scaled to accommodate growing bandwidth requirements, ensuring optimal performance for your data transfer needs.
  • Integration with Other Services: Alibaba Cloud VPN Gateway seamlessly integrates with other Alibaba Cloud security services like Security Group and Access Control Lists (ACLs) for a multi-layered defense strategy.

Use Cases for IPSec-VPN

  • Hybrid Cloud Connectivity: Establish secure connections between your on-premises infrastructure and your Alibaba Cloud VPC to create a hybrid cloud environment, enabling workload portability and flexibility.
  • Data Center Consolidation: Facilitate secure data transfer between your primary data center and a disaster recovery (DR) site hosted on Alibaba Cloud VPC for enhanced business continuity.
  • Centralized Application Access: Provide secure access to on-premises applications hosted in your data center for authorized users within your Alibaba Cloud VPC, fostering collaboration and streamlined workflows.

Implementation Considerations for IPSec-VPN

  • Network Topology: Carefully define your network configuration, including IP address ranges and subnet masks, for both your on-premises network and Alibaba Cloud VPC to ensure proper routing of traffic.
  • Preshared Key (PSK) vs. Certificate-Based Authentication: Choose between PSK (simpler to set up) or certificate-based authentication (enhanced security) based on your organization's security needs.
  • VPN Gateway Configuration: Configure VPN Gateway settings within Alibaba Cloud, specifying parameters like encryption algorithms, key lengths, and Perfect Forward Secrecy (PFS) for robust security.
  • Firewall Rules: Configure firewall rules on both your on-premises network and Alibaba Cloud VPC to allow only authorized traffic through the IPSec-VPN tunnel.

Dual-Tunnel vs. Single-Tunnel Mode in IPSec VPNs: Understanding Redundancy and Performance

IPSec VPNs, commonly used for secure site-to-site connectivity, offer two primary modes for data transmission: single-tunnel and dual-tunnel. Here's a breakdown of each mode to help you understand their functionalities and choose the right option for your needs:

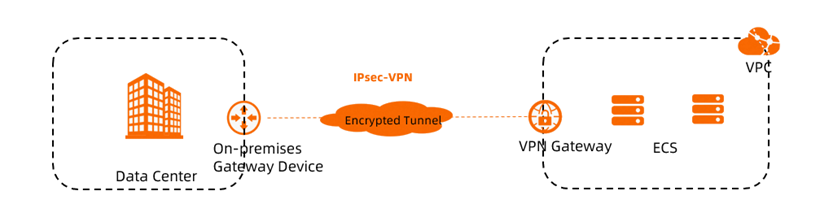

Single-Tunnel Mode

Single-Tunnel Mode

Related Image: © Alibaba Cloud

  • Concept: In single-tunnel mode, all data traffic between your on-premises network and the remote network (e.g., Alibaba Cloud VPC) flows through a single IPSec tunnel. It's a simpler setup, often preferred for smaller deployments or scenarios where redundancy isn't a critical concern.

  • Benefits

    • Simplicity: Easier to configure and manage as there's only one tunnel to establish and maintain.
    • Lower Resource Consumption: Requires less processing power and bandwidth on both ends since only one tunnel is active.
  • Drawbacks

    • Single Point of Failure: If the single tunnel encounters an issue (outage, instability), all data flow between the networks comes to a halt, potentially impacting business operations.
    • Limited Failover: No automatic failover mechanism exists. Reconnecting requires manual intervention to re-establish the tunnel.

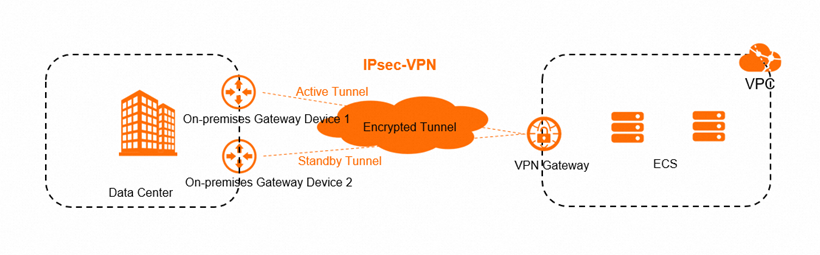

Dual-Tunnel Mode

Dual-Tunnel Mode

Related Image: © Alibaba Cloud

  • Concept: Dual-tunnel mode creates two independent IPSec tunnels between your on-premises network and the remote network. Data traffic is then distributed and balanced across these tunnels, enhancing redundancy and availability.

  • Benefits

    • High Availability: Provides automatic failover capabilities. If one tunnel experiences an outage, data seamlessly reroutes through the other tunnel, minimizing downtime and ensuring business continuity.
    • Improved Performance: Distributing traffic across two tunnels can potentially improve overall data transfer speeds, particularly for high-bandwidth applications.
    • Enhanced Security: Some argue that dual tunnels may add a layer of security by introducing redundancy in the data path.
  • Drawbacks

    • Increased Complexity: Setting up and managing two tunnels requires more configuration effort compared to single-tunnel mode.
    • Higher Resource Consumption: Maintaining two active tunnels consumes more processing power and bandwidth on both ends of the connection.

Choosing the Right Mode

The ideal mode depends on your specific needs:

  • Single-Tunnel Mode: Suitable for simpler deployments where downtime risks are minimal and resource efficiency is a priority.

  • Dual-Tunnel Mode: Recommended for critical applications where high availability and redundancy are paramount. It's also a good choice for high-bandwidth requirements where load balancing across two tunnels can optimize performance.

Additional Considerations

  • Some VPN service providers, like Alibaba Cloud, may offer dual-tunnel mode as an upgrade to their single-tunnel option.
  • It's essential to configure your routing protocols appropriately to ensure proper traffic distribution across both tunnels in dual-tunnel mode.

Ultimately, a thorough evaluation of your organization's security requirements, performance needs, and resource constraints will guide you toward selecting the optimal IPSec VPN tunnel mode for your network connectivity.

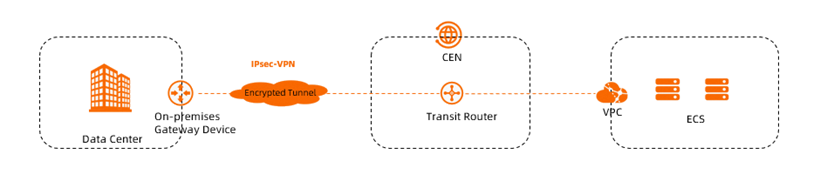

IPsec-VPN connection associated with a transit router

Related Image: © Alibaba Cloud

Secure Remote Access with Alibaba Cloud VPN Gateway's SSL-VPN

Alibaba Cloud VPN Gateway offers not only secure site-to-site connectivity but also a robust solution for remote user access – SSL-VPN (Secure Sockets Layer VPN). Here's a deep dive into its functionalities:

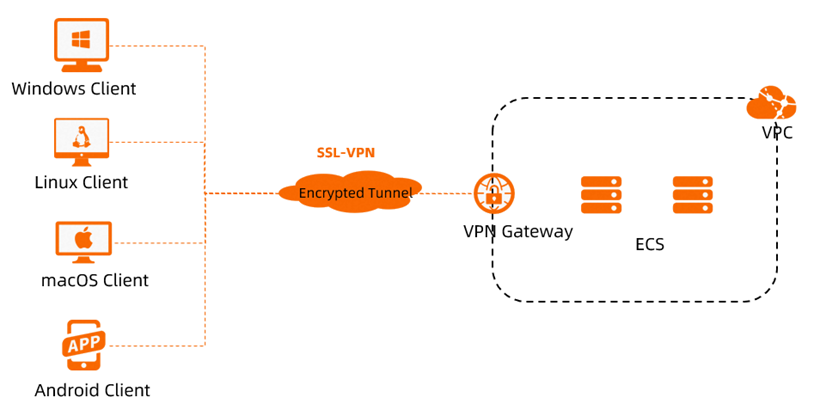

What is SSL-VPN?

SSL-VPN leverages SSL/TLS encryption to establish secure tunnels between remote devices (laptops, smartphones) and your Alibaba Cloud VPC. Unlike IPSec VPN, it doesn't require complex client-side configuration, making it ideal for mobile devices or platforms with limited native VPN support.


Related Image: © Alibaba Cloud

Benefits of SSL-VPN with Alibaba Cloud VPN Gateway

  • Simplified User Access: SSL-VPN provides a user-friendly experience for remote users. They only need to download a lightweight client or access a web portal to establish a secure connection, eliminating the need for intricate configuration on their devices.
  • Device Agnostic: SSL-VPN functions seamlessly across various devices, including laptops, tablets, and smartphones, regardless of their operating system. This flexibility empowers your workforce with secure access from anywhere, on any device.
  • Improved Security: SSL-VPN encrypts all data traffic between the remote device and your Alibaba Cloud VPC, safeguarding sensitive information from unauthorized access on public networks.
  • Reduced Administration: Alibaba Cloud manages the SSL-VPN infrastructure, minimizing the administrative burden on your IT team. They can focus on core tasks while ensuring secure remote access for employees.

Use Cases for SSL-VPN

  • Remote Work: Enable secure access to Alibaba Cloud resources for employees working remotely, fostering increased productivity and collaboration.
  • Branch Office Connectivity: Provide secure remote access to applications and data in your Alibaba Cloud VPC for branch office users, streamlining operations.
  • BYOD (Bring Your Own Device) Security: Offer secure access to corporate resources for employees using their personal devices with the added security of SSL-VPN encryption.

Implementation Considerations for SSL-VPN

  • Client Compatibility: Ensure your chosen SSL-VPN client is compatible with the user's devices and operating systems.
  • Authentication Protocols: Select appropriate authentication protocols (e.g., two-factor authentication) to enhance security for remote access.
  • Network Access Control (NAC): Implement NAC policies to manage and restrict access to your VPC based on user roles and device types.


Alibaba Cloud VPN Gateway emerges as a compelling solution for organizations seeking to securely connect their on-premises infrastructure and remote users to their Alibaba Cloud VPC environment. It offers a robust combination of security, stability, ease of use, and cost-effectiveness, making it a valuable tool for businesses of all sizes. By leveraging Alibaba Cloud VPN Gateway, you can unlock the full potential of the cloud while safeguarding your sensitive data.
