Article Management System Using ASP.NET MVC

In this article, you will learn about Article Management System, using ASP.NET MVC.

Here, I am going to present a project in MVC ASP.NET. This is the first part of my project.

About This Project:

Here, I am going to make a project on Article Management System. Here, the user can post an article, view all articles, add new technology etc. In this first part, I am going to show how we can show all articles in a list. Here, I am going to use Code First approach.

Now, I am going to explain this step by step:

Open Visual Studio 2015 -> Add new project.





Initially in this project, I am going to use two tables.
  1. TBL_ARTICLE (To save the article related information).
  2. TBL_TECHNOLOGY (To save the technology information).

As I told you, I am going to use Code First approach. Hence, there is no need to create a database. It will create automatically, when you will run your Application first.

For each table you need in your project you have to create class in your Application: Right click on Models folder and add new class: Article.cs

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.ComponentModel.DataAnnotations.Schema;
  6. using System.ComponentModel.DataAnnotations;
  7.
  8.
  9. namespace R_ArticleManagementSystem.Models
  10. {
  11.     [Table("TBL_Article")]
  12.     public class Article
  13.     {
  14.         [Key]
  15.         public int ArticleID { get; set; }
  16.
  17.         [MaxLength(500)]
  18.         [Column(TypeName = "varchar")]
  19.         public string ArticleTitle { get; set; }
  20.
  21.         [MaxLength(1000)]
  22.         [Column(TypeName = "text")]
  23.         public string ArticleDescription { get; set; }
  24.
  25.         [Column(TypeName = "text")]
  26.         public string ArticleText { get; set; }
  27.
  28.         public DateTime ArticlePostDate { get; set; }
  29.
  30.         public int TechnologyID { get; set; }
  31.     }
  32. }


Now, again right click on Models folder and add a new class: Technology.cs and execute the code, given below.
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.ComponentModel.DataAnnotations;
  6. using System.ComponentModel.DataAnnotations.Schema;
  7.
  8. namespace R_ArticleManagementSystem.Models
  9. {
  10.     [Table("TBL_Technology")]
  11.     public class Technology
  12.     {
  13.         [Key]
  14.         [Required(ErrorMessage = "Technology is required")]
  15.         public int TechnologyID { get; set; }
  16.
  17.         [MaxLength(25)]
  18.         public string TechnologyName { get; set; }
  19.     }
  20. }


Now, add a context class, which will be responsible for the database activity i.e. ArticleContext.cs and execute the code, given below.
  1. using System.Data.Entity;
  2.
  3. namespace R_ArticleManagementSystem.Models
  4. {
  5.     public class ArticleContext : DbContext
  6.     {
  7.         public ArticleContext() : base("MyConnection")
  8.         {
  9.         }
  10.         public DbSet<Article> Articles { get; set; }
  11.         public DbSet<Technology> Technologys { get; set; }
  12.     }
  13. }


Here, you will notice I am using :base("MyConnection") this MyConnection is my connection string, which should exist in your web.config file, as given below.
  1. <connectionStrings>
  2.     <add name="MyConnection" connectionString="Data Source=.;database = R-ArticleManagement; integrated security=true"
  3.                                                 providerName="System.Data.SqlClient" />
  4.     <add name="DefaultConnection" connectionString="Data Source=(LocalDb)\MSSQLLocalDB;AttachDbFilename=|DataDirectory|\aspnet-R-ArticleManagementSystem-20160919025329.mdf;Initial Catalog=aspnet-R-ArticleManagementSystem-20160919025329;Integrated Security=True"
  5.       providerName="System.Data.SqlClient" />
  6.   </connectionStrings>


Now, run your Application or you can run it after adding your desired controller and views, if you don’t have controller or views to run your Application.

It will create a database and tables in your database Server.

After running your Application, it checks your SQL Server data base.



Now, insert some manual entry in your database, as I am going to show the listing of articles only in this part of the project. In the next part, I will show how we can insert the data in this project.





Now, its time to add a new controller -> Right click on Controller folder -> Add new controller.





Add ArticleController.cs and execute the code, given below.
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.Mvc;
  6. using R_ArticleManagementSystem.Models;
  7.
  8. namespace R_ArticleManagementSystem.Controllers
  9. {
  10.     public class ArticleController : Controller
  11.     {
  12.         ArticleContext db = null;
  13.
  14.         public ArticleController()
  15.         {
  16.             db = new ArticleContext();
  17.         }
  18.
  19.         // GET: Article
  20.         public ActionResult Index()
  21.         {
  22.             List<SelectListItem> technologyCategories = new List<SelectListItem>();
  23.             technologyCategories.Add(new SelectListItem { Text = "Select Category", Value = "0", Selected = true });
  24.             var techCategories = db.Technologys.ToList();
  25.             foreach (var c in techCategories)
  26.             {
  27.                 technologyCategories.Add(new SelectListItem { Text = c.TechnologyName, Value = Convert.ToString(c.TechnologyID) });
  28.             }
  29.             ViewBag.TechnologyList = technologyCategories;
  30.             return View();
  31.         }
  32.
  33.         public JsonResult GetArticleByTechID(int techhId)
  34.         {
  35.             List<Article> articles = new List<Article>();
  36.             articles = db.Articles.Where(x => x.TechnologyID == techhId).Take(10).ToList();
  37.
  38.             return Json(articles, JsonRequestBehavior.AllowGet);
  39.         }
  40.     }
  41. }


Now, right click on Index Action Method -> Add new view.

Index.cshtml
  1. @{
  2.     ViewBag.Title = "Index";
  3.     Layout = "~/Views/Shared/_Layout.cshtml";
  4. }
  5. <script src="~/Scripts/jquery-1.10.2.min.js"></script>
  6. <script type="text/javascript">
  7.     $(document).ready(function () {
  8.         $("#TechnologyList").change(function () {
  9.             $.ajax({
  10.                 type: 'GET',
  11.                 url: '@Url.Action("GetArticleByTechID")',
  12.                 datatype: JSON,
  13.                 data: { 'techhId': $("#TechnologyList").val() },
  14.                 success: function (data) {
  15.                     $('#ArticleLisitngTable tbody').empty();
  16.
  17.                     $.each(data, function (i, item) {
  18.                         var rows = "<tr>"
  19.                 + "<td>" + item.ArticleID + "</td>"
  20.                 + "<td>" + item.ArticleTitle + "</td>"
  21.                 + "<td>" + item.ArticleDescription + "</td>"
  22.                 + "<td>" + item.ArticleText + "</td>"
  23.                 + "</tr>";
  24.                         $('#ArticleLisitngTable tbody').append(rows);
  25.                     });
  26.                 },
  27.                 error: function (data) { }
  28.             });
  29.         });
  30.     });
  31. </script>
  32. <style type="text/css">
  33.     .ArtTable {
  34.         border: solid 1px #DDEEEE;
  35.         border-collapse: collapse;
  36.         border-spacing: 0;
  37.         width: 100%;
  38.         font: normal 13px Arial, sans-serif;
  39.     }
  40.
  41.         .ArtTable thead th {
  42.             background-color: #ff6a00;
  43.             border: solid 1px #DDEEEE;
  44.             color: #ffffff;
  45.             padding: 10px;
  46.             text-align: left;
  47.         }
  48.
  49.         .ArtTable tbody td {
  50.             border: solid 1px #b0ecee;
  51.             color: #ff0000;
  52.             padding: 10px;
  53.         }
  54.
  55.     .ArtTable-rounded {
  56.         border: none;
  57.     }
  58.
  59.         .ArtTable-rounded thead th {
  60.             background-color: #ff6a00;
  61.             border: none;
  62.             color: #ffffff;
  63.         }
  64.
  65.             .ArtTable-rounded thead th:first-child {
  66.                 border-radius: 10px 0 0 0;
  67.             }
  68.
  69.             .ArtTable-rounded thead th:last-child {
  70.                 border-radius: 0 10px 0 0;
  71.             }
  72.
  73.         .ArtTable-rounded tbody td {
  74.             border: none;
  75.             border-top: solid 1px #957030;
  76.             background-color: #ffffff;
  77.         }
  78.
  79.         .ArtTable-rounded tbody tr:last-child td:first-child {
  80.             border-radius: 0 0 0 10px;
  81.         }
  82.
  83.         .ArtTable-rounded tbody tr:last-child td:last-child {
  84.             border-radius: 0 0 10px 0;
  85.         }
  86. </style>
  87. <table style="width:100%;padding:40px; font-weight:bold; font-size:12pt;">
  88.     <tr>
  89.         <td style="padding-top:40px; background-color:#0094ff; color:white; ">
  90.             Select Article Category : @Html.DropDownList("TechnologyList")
  91.         </td>
  92.     </tr>
  93. </table>
  94. <br />
  95. <table id="ArticleLisitngTable" class="ArtTable ArtTable-rounded">
  96.     <thead>
  97.         <tr>
  98.             <th>Id</th>
  99.             <th>Title</th>
  100.             <th>Article Description</th>
  101.             <th>Article Text</th>
  102.         </tr>
  103.     </thead>
  104.     <tbody></tbody>
  105. </table>

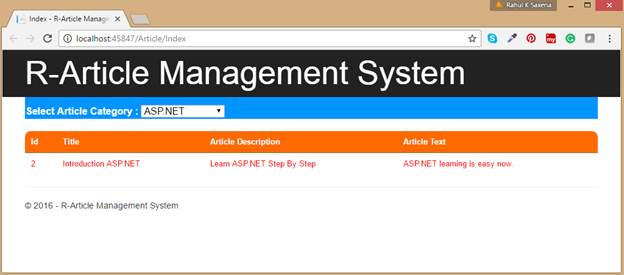

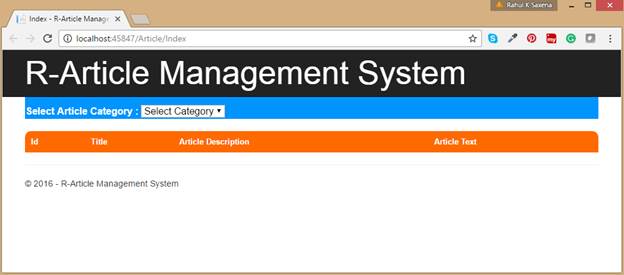

Now, run your Application.









In the next part, I will post complete functionality of this MVC project.
