ASP.NET Core

ASP.NET Core and Microservices Architecture

1. 🌍 What are Microservices?

Microservices architecture is an approach to building applications as a collection of independent, loosely coupled services that communicate over lightweight protocols (like HTTP or gRPC).

Key benefits

  • Independent development & deployment.

  • Technology flexibility (polyglot services).

  • Scalability per service.

  • Fault isolation.

Asp.Net Core is widely used for building microservices because of its performance, cross-platform support, container-friendliness (Docker), and modern API capabilities.

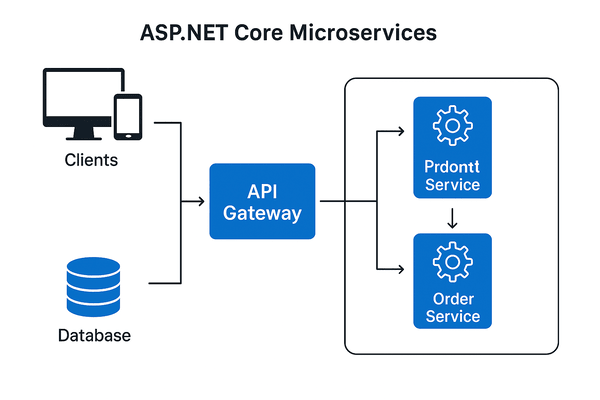

Microservices

2. 🧩 Core Components of ASP.NET Core Microservices

  1. API Gateway

    • A single entry point for clients.

    • Handles routing, load balancing, authentication, and aggregation.

  2. Microservices (independent APIs)

    • Each service owns its data and logic.

    • Examples: Order Service, Product Service, Payment Service.

  3. Database per Service

    • Each service should have its own persistence.

  4. Communication

    • RESTful APIs, gRPC, or messaging (RabbitMQ, Kafka, Azure Service Bus).

  5. Observability

    • Logging, monitoring, and distributed tracing (OpenTelemetry).

3. ⚑ ASP.NET Core Microservice Example

Let’s create a ProductService and an OrderService.

(a) Product Microservice

// Program.cs - Minimal API (ASP.NET Core 10)
var builder = WebApplication.CreateBuilder(args);
var app = builder.Build();

var products = new List<Product>
{
    new Product { Id = 1, Name = "Laptop", Price = 1200 },
    new Product { Id = 2, Name = "Headphones", Price = 150 }
};

app.MapGet("/products", () => products);
app.MapGet("/products/{id}", (int id) =>
    products.FirstOrDefault(p => p.Id == id) is Product product
        ? Results.Ok(product)
        : Results.NotFound());

app.Run();

record Product(int Id, string Name, decimal Price);

πŸ‘‰ This microservice exposes REST APIs for products.

(b) Order Microservice (consumes ProductService)

// Program.cs
using System.Net.Http.Json;

var builder = WebApplication.CreateBuilder(args);
var app = builder.Build();

List<Order> orders = new();

app.MapPost("/orders", async (OrderRequest request) =>
{
    using var client = new HttpClient();
    var product = await client.GetFromJsonAsync<Product>(
        $"http://localhost:5000/products/{request.ProductId}");

    if (product is null)
        return Results.NotFound("Product not found");

    var order = new Order(Guid.NewGuid(), product.Id, product.Price, DateTime.UtcNow);
    orders.Add(order);
    return Results.Ok(order);
});

app.MapGet("/orders", () => orders);

app.Run();

record Order(Guid Id, int ProductId, decimal Amount, DateTime CreatedAt);
record Product(int Id, string Name, decimal Price);
record OrderRequest(int ProductId);

πŸ‘‰ The OrderService calls the ProductService using HttpClient.

4. πŸ”— Communication with gRPC

Asp.Net Core supports gRPC, which is faster and strongly-typed.

product.proto

syntax = "proto3";

service ProductService {
  rpc GetProductById(ProductRequest) returns (ProductReply);
}

message ProductRequest {
  int32 id = 1;
}

message ProductReply {
  int32 id = 1;
  string name = 2;
  double price = 3;
}

With this, OrderService can call GetProductById using gRPC instead of REST.

5. πŸšͺ API Gateway with Ocelot

Install package:

dotnet add package Ocelot

ocelot.json

{
  "Routes": [
    {
      "DownstreamPathTemplate": "/products",
      "DownstreamScheme": "http",
      "DownstreamHostAndPorts": [
        { "Host": "localhost", "Port": 5000 }
      ],
      "UpstreamPathTemplate": "/api/products",
      "UpstreamHttpMethod": [ "GET" ]
    },
    {
      "DownstreamPathTemplate": "/orders",
      "DownstreamScheme": "http",
      "DownstreamHostAndPorts": [
        { "Host": "localhost", "Port": 6000 }
      ],
      "UpstreamPathTemplate": "/api/orders",
      "UpstreamHttpMethod": [ "POST", "GET" ]
    }
  ]
}

πŸ‘‰ This way, clients just call /api/products or /api/orders from a single entry point.

6. πŸ›’οΈ Database per Microservice

Example with Entity Framework Core for ProductService:

public class ProductDbContext : DbContext
{
    public ProductDbContext(DbContextOptions<ProductDbContext> options)
        : base(options) { }

    public DbSet<Product> Products => Set<Product>();
}

record Product(int Id, string Name, decimal Price);

In Program.cs

builder.Services.AddDbContext<ProductDbContext>(opt =>
    opt.UseSqlServer(builder.Configuration.GetConnectionString("ProductsDb")));

Each service has its own schema to avoid coupling.

7. πŸ“Š Observability & Monitoring

Add OpenTelemetry

builder.Services.AddOpenTelemetry()
    .WithTracing(b =>
    {
        b.AddAspNetCoreInstrumentation()
         .AddHttpClientInstrumentation()
         .AddConsoleExporter();
    });

This helps trace requests across microservices.

8. 🐳 Containerization with Docker

Dockerfile

FROM mcr.microsoft.com/dotnet/aspnet:10.0 AS base
WORKDIR /app
EXPOSE 80

FROM mcr.microsoft.com/dotnet/sdk:10.0 AS build
WORKDIR /src
COPY . .
RUN dotnet publish -c Release -o /app

FROM base AS final
WORKDIR /app
COPY --from=build /app .
ENTRYPOINT ["dotnet", "ProductService.dll"]

πŸ‘‰ Each microservice gets its own container. You can orchestrate them with Docker Compose or Kubernetes.

9. πŸ† Best Practices

  • Keep services small and focused.

  • Each service owns its data.

  • Use async communication where possible (message queues).

  • Centralize logging and monitoring.

  • Use API Gateway for cross-cutting concerns.

  • Automate deployments with CI/CD pipelines.

πŸ”‘ Summary

Asp.Net Core 10.0 makes building microservices easier with:

  • Minimal APIs for lightweight services.

  • gRPC support for efficient communication.

  • API Gateway (Ocelot/YARP) for routing.

  • Container-first design with Docker/Kubernetes.

  • OpenTelemetry for observability.

Together, these features make ASP.NET Core + Microservices a powerful combo for modern cloud-native apps.
