Automatic Light Control System Using LDR and Arduino - IoT

Introduction

This project shows how to make a simple system that turns lights on and off by itself. It uses an Arduino (a small computer) and an LDR (Light Dependent Resistor). The light comes on when it is dark and turns off when it is bright.

How It Works

We need three main parts

  • Arduino Uno – the "brain" that controls everything

  • LDR (Light Dependent Resistor) – a sensor that changes value when light changes

  • LED (Light Emitting Diode) – the light that turns on or off

The Circuit

  • The LDR is connected to pin A0 on the Arduino. It works with another resistor to measure light.

  • The LED is connected to pin 11 with a small resistor so it doesn't burn out.

  • The Arduino checks how bright it is and then decides if the LED should be ON or OFF.

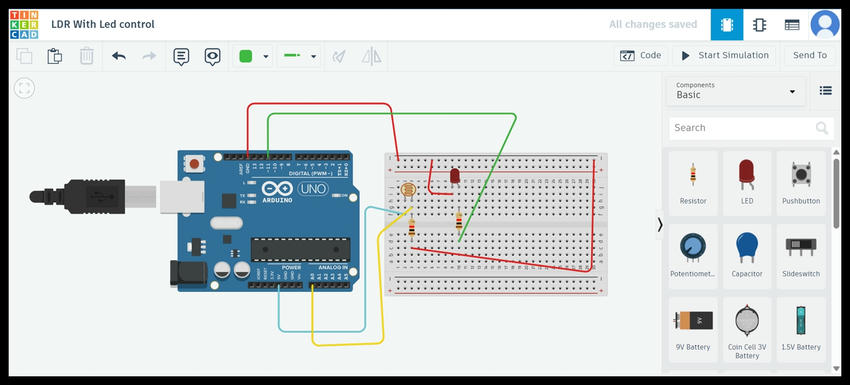

Circuit

The Code (Explained Simply)

  • The Arduino reads the light level from the LDR.

  • If it is dark, the Arduino turns the LED ON.

  • If it is bright, the Arduino turns the LED OFF.

const int LEDPin = 11;   // LED connected to PWM pin 11
const int LDRPin = A0;   // LDR connected to analog pin A0
int threshold = 500;     // Adjust based on your environment

void setup() {
  Serial.begin(9600);
  pinMode(LEDPin, OUTPUT);
}

void loop() {
  int lightLevel = analogRead(LDRPin);  // Read light level (0-1023)

  if (lightLevel <= threshold) {       // Dark condition
    digitalWrite(LEDPin, HIGH);
    Serial.print("Dark - LED ON: ");
  } else {                             // Bright condition
    digitalWrite(LEDPin, LOW);
    Serial.print("Light - LED OFF: ");
  }

  Serial.println(lightLevel);  // Display value for calibration
  delay(500);                  // Stabilize readings
}

Code Breakdown

1. Initialization

  • We set which pin is for the LED and which is for the LDR.

  • We choose a "threshold value" that tells the Arduino when it is dark enough to turn the light on.

2. Setup Function

  • Start serial communication so we can see values on the computer.

  • Tell the Arduino that the LED pin is an output.

3. Main Loop

  • The Arduino reads the light level from the LDR.

  • It compares the light value to the threshold.

  • If it is dark → turn the LED ON.

  • If it is bright → turn the LED OFF.

  • Show the light value and LED status on the serial monitor.

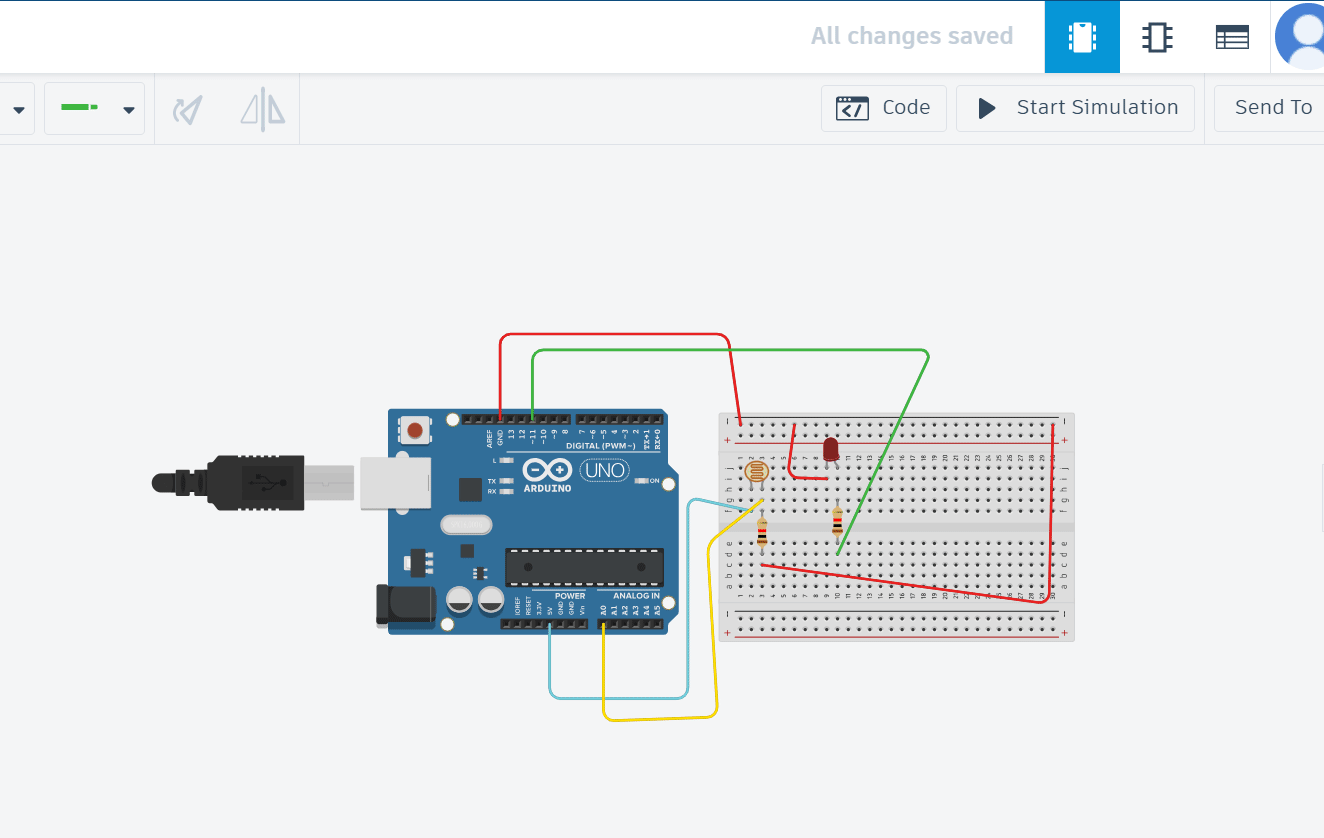

2025-09-29_21h41_36

Practical Uses

This simple project can be used in many ways

  • Street Lights → Street lamps turn on at night by themselves.

  • Home Automation → Garden lights, night lamps, or security lights.

  • Save Energy → Lights only work when needed.

  • Photography → Control studio lights based on brightness.

How to Improve It

To make the system work better

  • Change the Threshold - Test values in your environment and adjust.

  • Add Hysteresis - Prevent the light from switching on and off too quickly when brightness is close to the threshold.

  • Use More Sensors - For more accurate results.

  • Use PWM - Instead of only ON/OFF, make the LED dim or brighten slowly.

What You Learn

By doing this project, you practice

  • Reading values from sensors

  • Using if-else conditions in code

  • Making a system that reacts to the environment

  • Problem-solving and fine-tuning

  • Basics of automation

Conclusion

This LDR and LED project is a great way to start learning electronics and automation. With just a few parts, you can make a "smart" light that reacts to brightness. It shows how simple ideas can be used in real life to save energy and add convenience.

By understanding this system, you can build more advanced projects that make our homes and cities smarter.
