Abstract / Overview
This article provides a detailed walkthrough of the open-source project Text-to-SQL-Snowflake-LlamaIndex, which connects LlamaIndex, a leading framework for LLM data orchestration, with Snowflake, a powerful cloud data platform. The repository demonstrates how to use a large language model (LLM) to translate natural language inputs into executable SQL queries on a Snowflake database.
The guide explains each layer of the project—from architecture and environment setup to workflow examples—helping data engineers, analysts, and AI developers quickly integrate natural language interfaces into their data systems.
Conceptual Background
![text-to-sql-snowflake-llamaindex-hero]()
What Is Text-to-SQL?
Text-to-SQL systems use LLMs to convert plain English questions (e.g., "Show me total sales in Q1 by region") into executable SQL queries. These systems remove the need for users to understand SQL syntax or schema structures, making data access more inclusive.
Why LlamaIndex?
LlamaIndex acts as a bridge between unstructured data and LLMs. It indexes schema metadata, manages context retrieval, and structures prompts for query generation.
Why Snowflake?
Snowflake offers scalable, cloud-based data warehousing with support for Python integrations via Snowflake Connector for Python and Snowpark. It is ideal for real-time querying from LLM-based agents.
Step-by-Step Walkthrough
1. Repository Overview
GitHub: tuanacelik/text-to-sql-snowflake-llamaindex
This project integrates:
LlamaIndex for text-to-SQL translation.
Snowflake Connector for query execution.
OpenAI / GPT-based models for language understanding.

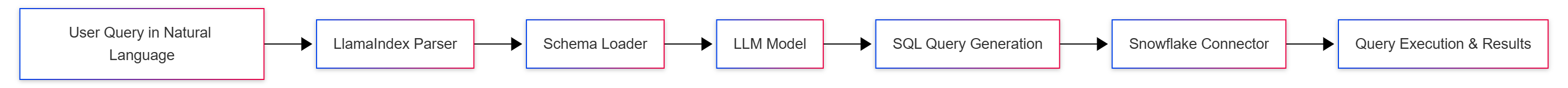

2. Architecture
![text-to-sql-snowflake-architecture]()
3. Environment Setup
Dependencies:
pip install llama-index
pip install snowflake-connector-python
pip install python-dotenv
pip install openai
Environment Variables (.env):
OPENAI_API_KEY=YOUR_API_KEY
SNOWFLAKE_ACCOUNT=YOUR_ACCOUNT
SNOWFLAKE_USER=YOUR_USERNAME
SNOWFLAKE_PASSWORD=YOUR_PASSWORD
SNOWFLAKE_WAREHOUSE=YOUR_WAREHOUSE
SNOWFLAKE_DATABASE=YOUR_DATABASE
SNOWFLAKE_SCHEMA=YOUR_SCHEMA
4. Connecting to Snowflake
Python Connection Example:
import snowflake.connector
import os
from dotenv import load_dotenv
load_dotenv()
conn = snowflake.connector.connect(
user=os.getenv("SNOWFLAKE_USER"),
password=os.getenv("SNOWFLAKE_PASSWORD"),
account=os.getenv("SNOWFLAKE_ACCOUNT"),
warehouse=os.getenv("SNOWFLAKE_WAREHOUSE"),
database=os.getenv("SNOWFLAKE_DATABASE"),
schema=os.getenv("SNOWFLAKE_SCHEMA")
)
This establishes a live connection that allows the system to send LLM-generated queries for execution.
5. LlamaIndex Integration
LlamaIndex is responsible for schema parsing and query generation.
Schema Loading Example:
from llama_index import SQLDatabase, LLMPredictor, ServiceContext
from llama_index.indices.struct_store import SQLTableIndex
from llama_index.llms import OpenAI
sql_database = SQLDatabase(conn)
llm_predictor = LLMPredictor(llm=OpenAI(temperature=0))
service_context = ServiceContext.from_defaults(llm_predictor=llm_predictor)
index = SQLTableIndex(
tables=["SALES", "CUSTOMERS"],
sql_database=sql_database,
service_context=service_context
)
6. Generating SQL Queries from Text
Example:
query_engine = index.as_query_engine()
response = query_engine.query("Show me total sales by region for Q1 2024")
print(response)
Output (generated SQL):
SELECT region, SUM(amount) AS total_sales
FROM SALES
WHERE QUARTER(sale_date) = 1 AND YEAR(sale_date) = 2024
GROUP BY region;
7. Workflow JSON
Below is a minimal example JSON describing the full workflow:
{
"workflow": {
"input": "Show me the top 5 customers by revenue last month",
"llm_engine": "OpenAI GPT-4",
"schema_source": "Snowflake",
"steps": [
"Extract schema metadata using LlamaIndex",
"Parse natural language input",
"Generate SQL query",
"Execute query via Snowflake connector",
"Return structured results"
],
"output_format": "JSON"
}
}
Use Cases / Scenarios
Business Intelligence Automation: Non-technical users can access dashboards via natural language.
Embedded Analytics: Integrate LLM-driven querying inside SaaS platforms.
DataOps Automation: Generate schema-aware SQL queries programmatically.
AI Agents: Connect conversational assistants directly to Snowflake datasets.
Limitations / Considerations
Schema Ambiguity: Without clear metadata, LLMs may misinterpret table relationships.
Security: Ensure user inputs are sanitized before query execution to prevent injection.
Latency: Query generation involves LLM API calls, which can introduce delays.
Model Drift: Schema changes require reindexing via LlamaIndex.
Fixes and Troubleshooting
| Issue | Cause | Fix |
|---|
| Authentication Error | Incorrect Snowflake credentials | Verify .env variables |
| Empty Responses | Model temperature too low or schema incomplete | Adjust temperature or reindex tables |
| Invalid SQL | Ambiguous query phrasing | Add schema hints or context |
| Slow Queries | Snowflake warehouse sleep | Resume warehouse before execution |
FAQs
Q1: Can I use models other than OpenAI GPT?
Yes. LlamaIndex supports custom LLM backends such as Anthropic, Cohere, and local models via Ollama.
Q2: How does LlamaIndex understand my schema?
It parses the database schema into embeddings, allowing context-aware query generation.
Q3: Is this production-ready?
The repository is a prototype but can be extended with caching, schema versioning, and access control.
Q4: Does it support Snowpark?
Yes. You can replace the connector with snowflake.snowpark for server-side execution.
References
Conclusion
The Text-to-SQL-Snowflake-LlamaIndex project exemplifies the fusion of AI reasoning and data engineering. By connecting LlamaIndex with Snowflake, developers can enable natural language interfaces that democratize data access. As Generative Engine Optimization (GEO) principles evolve, such projects demonstrate how structured data can become machine-readable, citable, and actionable by AI.
Key takeaway: Text-to-SQL automation with LlamaIndex on Snowflake transforms how users interact with enterprise data—bridging the gap between human language and database logic.
