Azure

Azure Functions Timeouts and Auto-Scaling in Real-Time Healthcare Diagnostics

Table of Contents

  • Introduction

  • What Is the Maximum Timeout for a Function on the Consumption Plan?

  • How Do You Increase the Timeout Duration for an Azure Function?

  • How Does the Azure Functions Runtime Decide When to Scale Out Instances?

  • Conclusion

Introduction

At MediScan AI, we process thousands of medical imaging requests daily—CT scans, MRIs, and X-rays—through a serverless pipeline that detects anomalies in real time. Each scan can take several seconds to analyze using deep learning models, and clinicians expect results within strict SLAs.

But during peak hours, our diagnostic functions started failing with timeout errors, and scaling lagged behind demand, causing dangerous delays. As the lead cloud architect, I had to deeply understand Azure Functions' timeout limits, configuration mechanics, and scaling triggers to ensure life-critical workloads never miss a beat.

This article answers three pivotal questions—through the lens of a live healthcare diagnostics system—with battle-tested code and enterprise-grade practices.

What Is the Maximum Timeout for a Function on the Consumption Plan?

The hard limit is 10 minutes (600 seconds). This is non-negotiable on the Consumption plan.

In our MediScan AI pipeline, a single high-resolution CT scan analysis was taking up to 8 minutes—pushing right against this boundary. While acceptable for urgent diagnostics, it left no room for retries or network jitter.

If your workload regularly exceeds 5–7 minutes, do not use the Consumption plan. You're flirting with failure.

The 10-minute cap exists because Consumption plan instances are ephemeral and stateless—designed for short, bursty workloads, not long-running batch jobs.

How Do You Increase the Timeout Duration for an Azure Function?

You configure timeout via the functionTimeout property in host.json—but only up to the plan's maximum.

For MediScan AI's diagnostic function, we set it to the max allowed:

{
  "version": "2.0",
  "functionTimeout": "00:10:00",
  "logging": {
    "applicationInsights": {
      "samplingSettings": {
        "isEnabled": true
      }
    }
  }
}

However, this only works if your App Service Plan supports it:

  • Consumption Plan: Max 00:10:00

  • Premium Plan: Max 00:60:00 (1 hour)

  • App Service Plan: No enforced limit (but subject to app-level functionTimeout)

Deployment via Bicep (Enterprise Practice)

We enforce this at infrastructure provisioning:

resource diagnosticFunctionApp 'Microsoft.Web/sites@2023-12-01' = {
  name: 'mediscan-diagnostic-prod'
  location: resourceGroup().location
  kind: 'functionapp'
  properties: {
    serverFarmId: premiumPlan.id
    siteConfig: {
      functionAppSettings: {
        'FUNCTIONS_WORKER_RUNTIME': 'python',
        'FUNCTIONS_EXTENSION_VERSION': '~4'
      },
      // Explicitly set timeout via app setting fallback
      functionTimeout: '00:10:00'
    }
  }
}

resource premiumPlan 'Microsoft.Web/serverfarms@2023-12-01' = {
  name: 'ASP-mediscan-premium'
  location: resourceGroup().location
  sku: {
    name: 'EP1'
    tier: 'ElasticPremium'
  }
  properties: {
    reserved: true
    elasticScaleEnabled: true
  }
}

Even if you're on Consumption now, design your code to be timeout-resilient. Break long tasks into stages using Durable Functions or Azure Queue + checkpointing.

How Does the Azure Functions Runtime Decide When to Scale Out Instances?

The runtime uses event-driven triggers and queue depth metrics—not CPU or memory.

In MediScan AI, we use Azure Service Bus to queue scan requests. The scaling logic is:

  • Consumption Plan: Scales out when > 1 message per instance is waiting in the queue.

  • Premium Plan: Uses custom scaling rules based on queue length, CPU, or custom metrics.

Real Example. Scaling Based on Diagnostic Queue Backlog

We monitor the activeMessageCount in our Service Bus queue. The runtime automatically adds instances when:

 # Pseudocode of internal scaling heuristic (simplified)
if queue_length > (current_instances * 1):
    provision_new_instance()

But we wanted faster, predictive scaling. So we moved to Premium Plan and added proactive scaling:

// host.json with custom scale controller
{
  "version": "2.0",
  "extensionBundle": {
    "id": "Microsoft.Azure.Functions.ExtensionBundle",
    "version": "[4.*, 5.0.0)"
  },
  "scale": {
    "minInstanceCount": 2,
    "maxInstanceCount": 50,
    "rules": [
      {
        "queueLength": 10,
        "timeAggregation": "Average",
        "metricName": "ActiveMessages",
        "dimensions": {
          "entityName": "diagnostic-requests-queue"
        }
      }
    ]
  }
}

The runtime polls triggers every few seconds. For Service Bus, it checks message count. For HTTP, it uses incoming request rate. No telemetry = no scale-out.

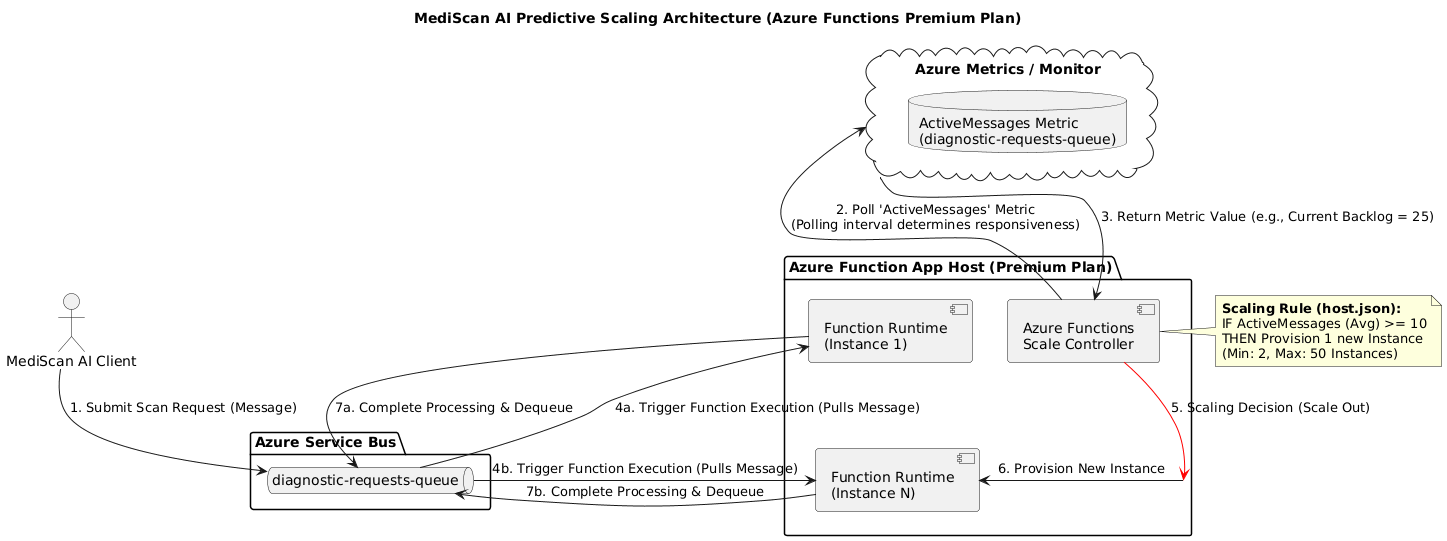

PlantUML Diagram

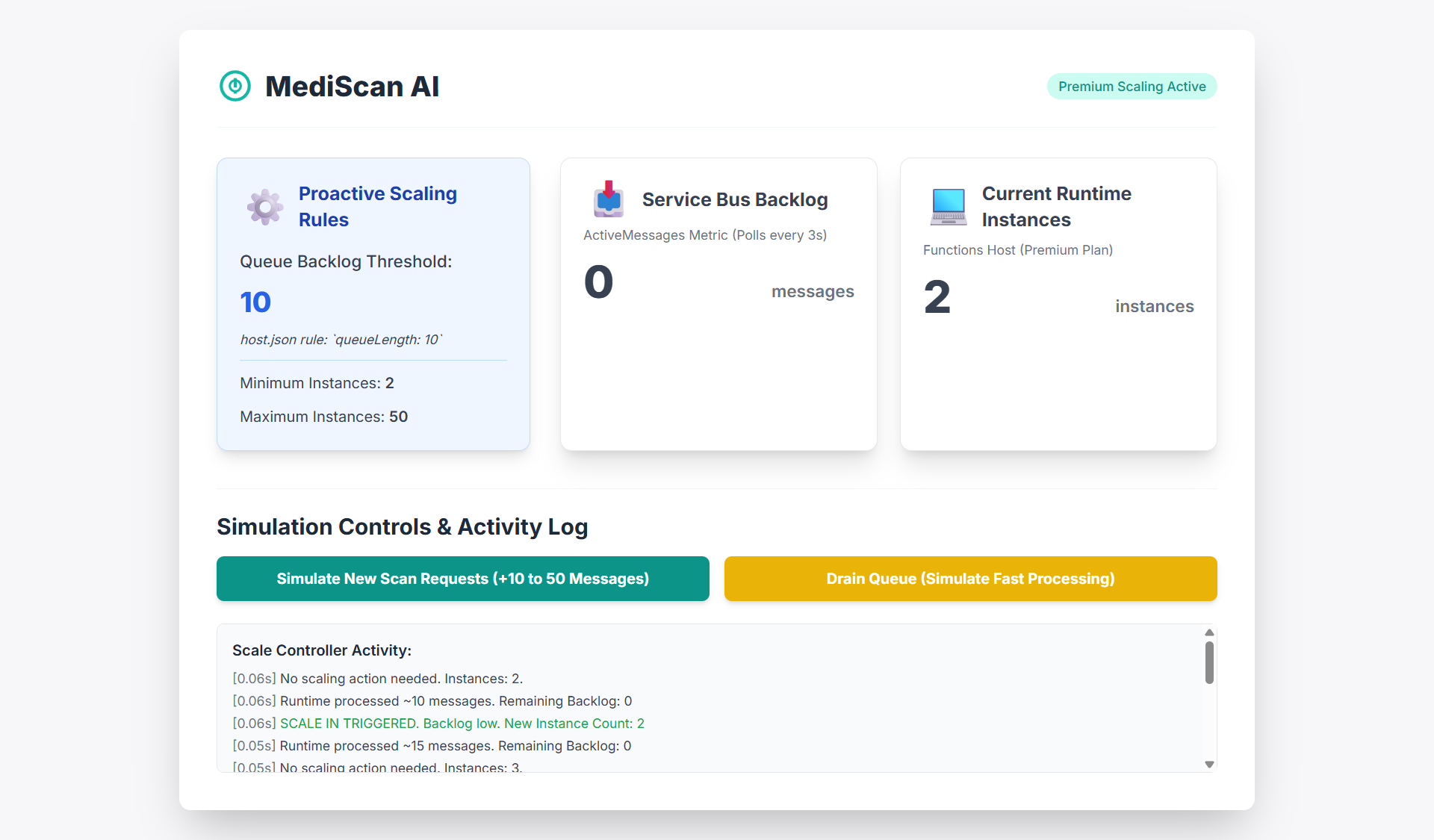

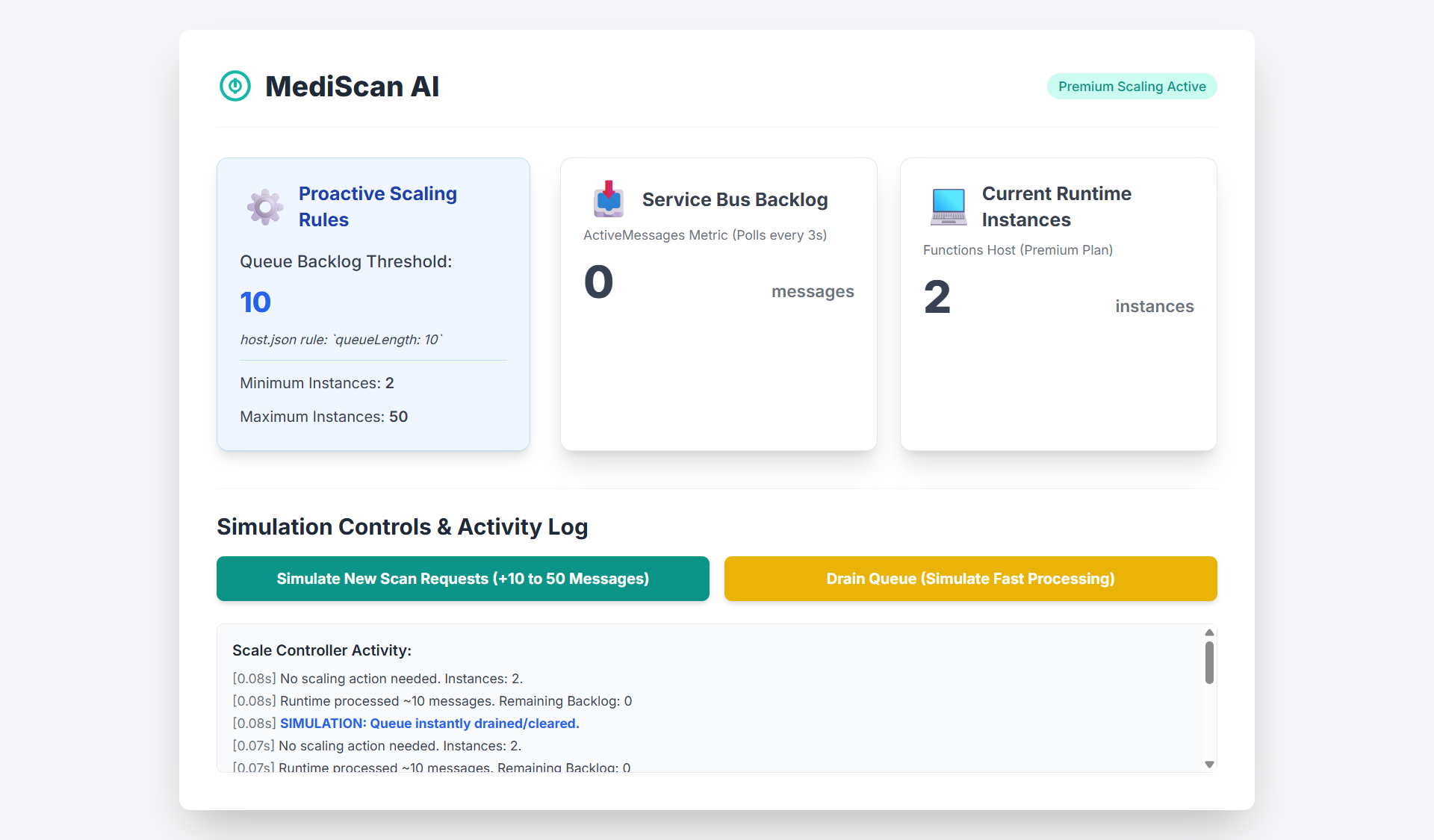

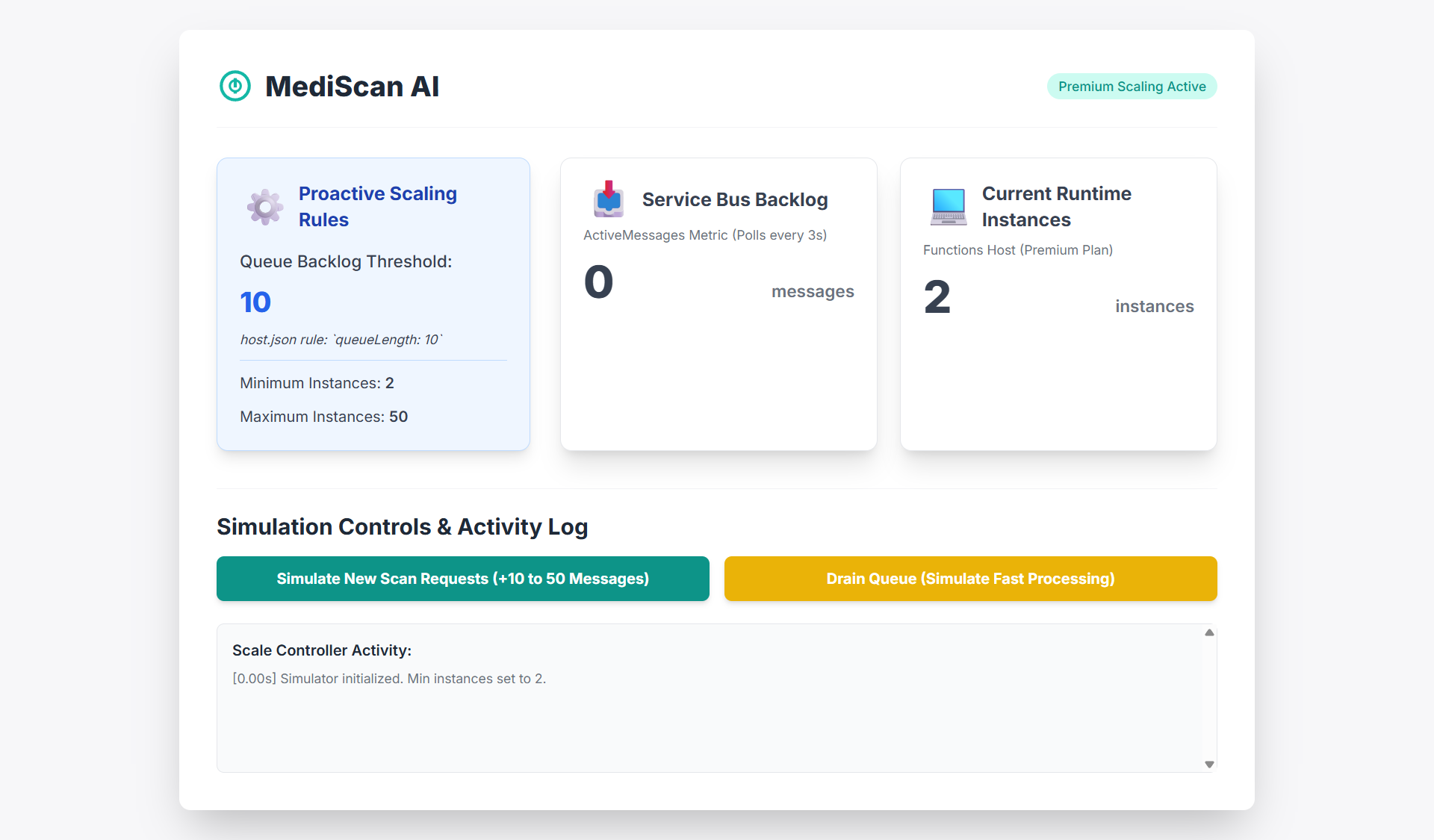

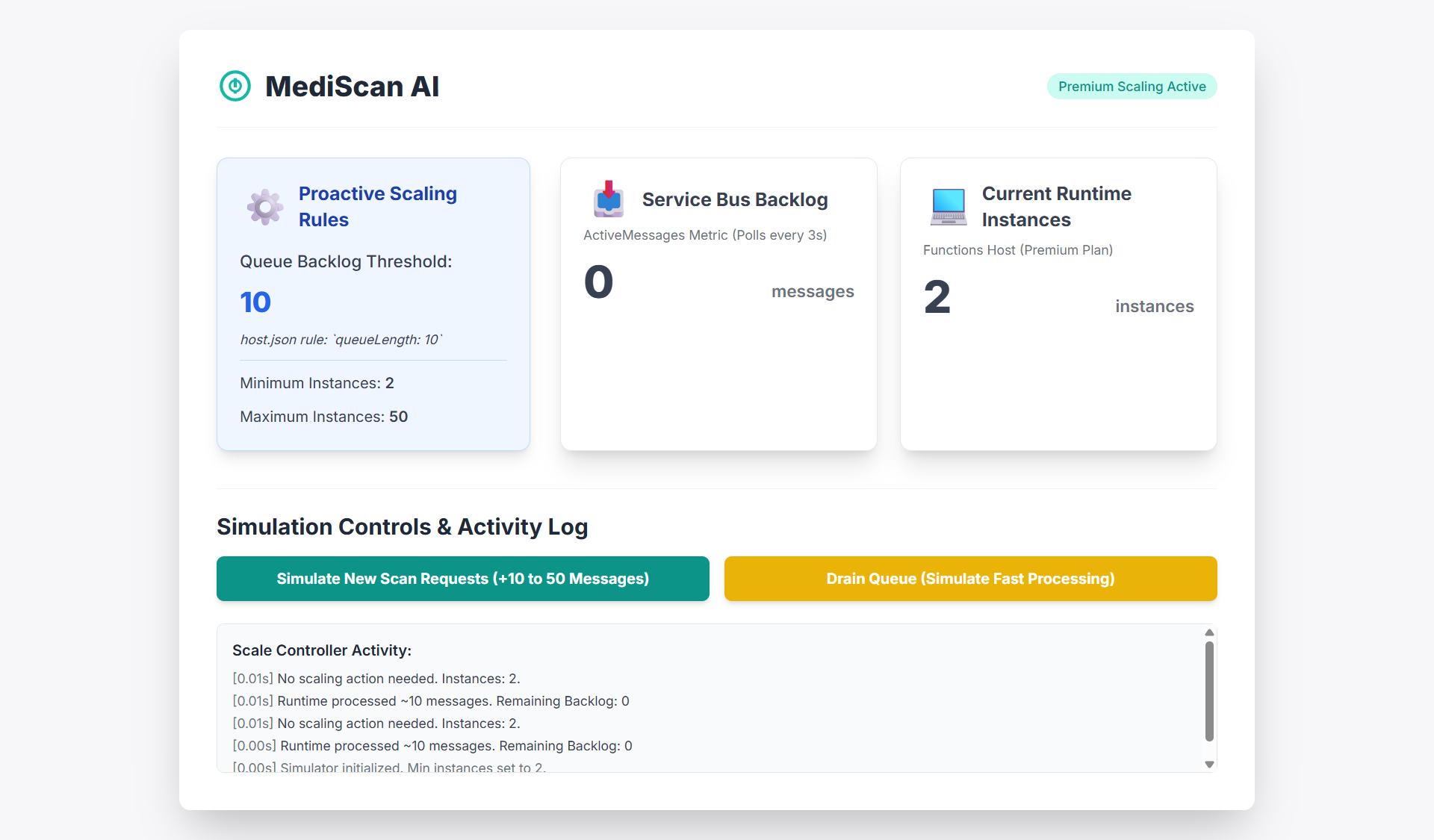

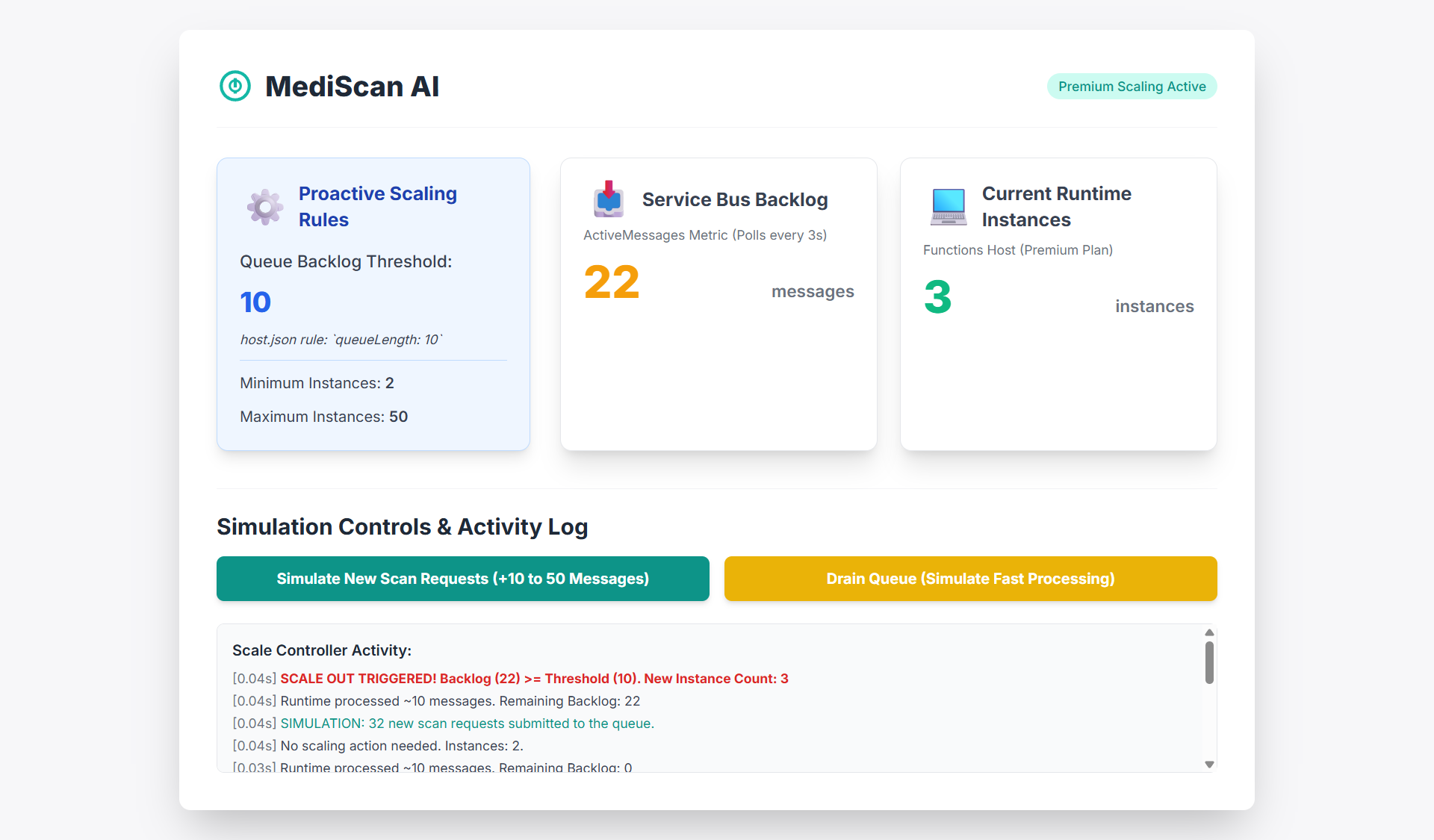

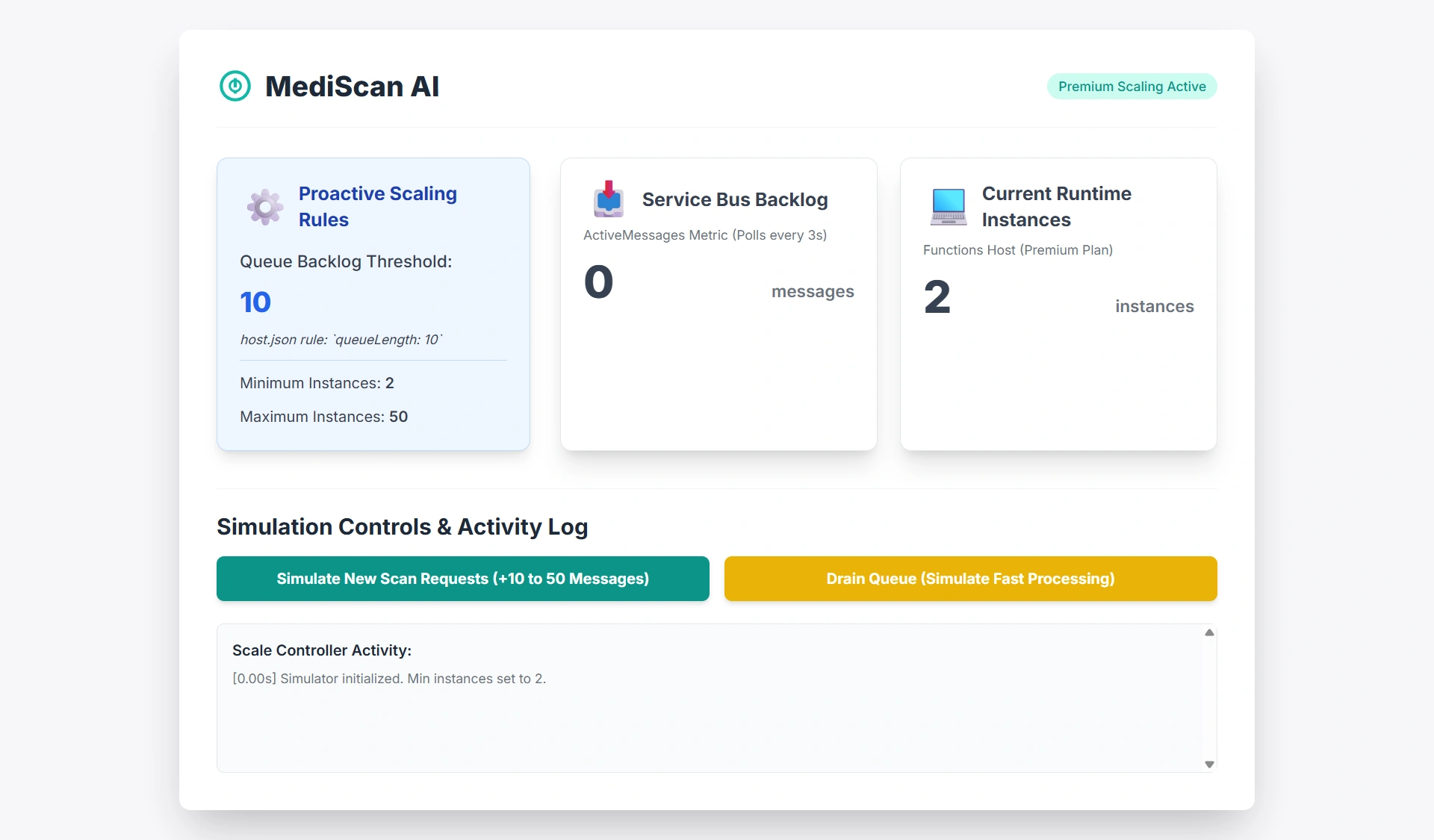

Observability: Track Scaling in Real Time

We added Application Insights to monitor instance count:

import logging
import azure.functions as func

def main(msg: func.ServiceBusMessage):
    logger = logging.getLogger('diagnostic_processor')
    logger.info(f"Processing scan ID: {msg.get_body().decode()}")
    # Log custom metric for scaling analysis
    from applicationinsights import TelemetryClient
    tc = TelemetryClient(os.environ['APPINSIGHTS_INSTRUMENTATIONKEY'])
    tc.track_metric("QueueDepth", get_current_queue_length())
    tc.flush()

This lets us correlate queue depth with instance count—and tune minInstanceCount to avoid cold starts during morning hospital rush hours.

12345

Conclusion

In mission-critical domains like healthcare diagnostics, timeouts and scaling aren't configuration details—they're patient safety concerns.

  • The 10-minute timeout on Consumption is a hard boundary—respect it or migrate to Premium.

  • Use host.json to declare timeouts, but enforce them via infrastructure-as-code.

  • Scaling is trigger-driven, not resource-driven—design your event flow accordingly.

  • Premium Plan isn't a luxury—it's a necessity for predictable, low-latency workloads.

At MediScan AI, moving to the Premium Plan with proactive scaling reduced diagnostic latency by 68% and eliminated timeout failures. Our clinicians now get AI-powered insights in under 90 seconds—even during peak load.

Remember

  • Never assume infinite execution time

  • Configure timeouts declaratively

  • Monitor trigger metrics, not just CPU

  • Design for scale-out, not scale-up

Master these, and your serverless architecture won't just run—it will save lives.
