Azure Functions Under the Hood: Runtime Identification, Isolated Process Entry Points

Table of Contents

  1. Introduction

  2. Real-World Scenario

  3. Answer to Each Question

  4. Example Implementation

  5. Best Practices and Recommendations

  6. Conclusion

1. Introduction

In enterprise cloud architecture, correctly structuring and executing serverless workloads is as critical as the business logic they encapsulate. Azure Functions—while deceptively simple on the surface—demand deep understanding of their execution model, local development workflow, versioning, and organization to avoid costly anti-patterns in production.

This article addresses five foundational yet often misunderstood questions about Azure Functions, not as isolated trivia, but as interconnected pillars of a robust serverless strategy. We’ll ground these concepts in a real-world logistics scenario and provide actionable guidance for architects and engineers building at scale.

2. Real-World Scenario

Domain: Global Logistics & Supply Chain
Use Case: Real-Time Shipment Anomaly Detection

A multinational logistics company processes over 2 million shipment events daily—each representing a scan at a warehouse, port, or delivery hub. To detect anomalies (e.g., temperature excursions for pharmaceuticals, unexpected route deviations, or tampering), the system must:

  • Ingest events from IoT sensors and partner APIs

  • Validate, enrich, and score each event in real time

  • Trigger alerts or corrective workflows within seconds

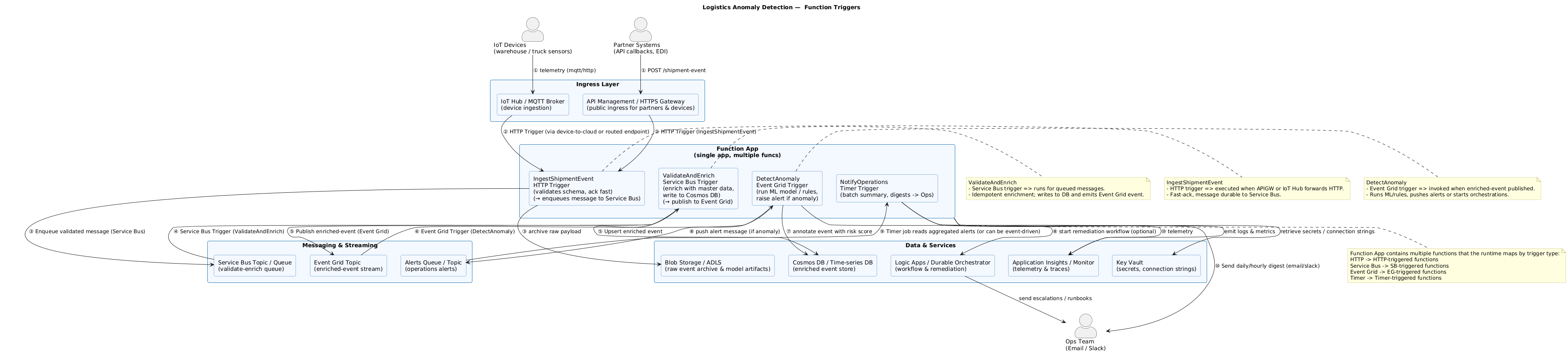

This system is built as a single Function App containing multiple specialized functions:

  • IngestShipmentEvent (HTTP-triggered)

  • ValidateAndEnrich (Service Bus-triggered)

  • DetectAnomaly (Event Grid-triggered)

  • NotifyOperations (Timer-triggered for batch summaries)

How does Azure know which function to run when an event arrives? How do we develop, version, and organize this system reliably? The answers lie in the runtime’s execution model and project structure.

3. Answer to Each Question

Q 1. How does the Azure Functions runtime identify which function to execute in a Function App?

The Azure Functions runtime uses function metadata—not code inspection—to determine which function to invoke. This metadata is defined in two ways:

  • In-proc (.NET 6 and earlier): Attributes like [FunctionName("MyFunc")] are compiled into the assembly and read at startup.

  • Isolated Process (.NET 7+): A host.json file and function method attributes are used, but more critically, the Azure Functions Core Tools or host runtime scans the compiled output for methods decorated with [Function].

At runtime, when a trigger event occurs (e.g., an HTTP request or a Service Bus message), the scale controller routes the event to a worker instance. That instance loads the Function App’s assembly and matches the trigger type and binding configuration to the appropriate function based on its metadata.

Crucially, only one function per trigger instance can match, which is why you cannot have two HTTP functions listening on the same route without explicit routing.

Q 2. How can you run Azure Functions locally?

You run Azure Functions locally using the Azure Functions Core Tools (func CLI), which simulates the Azure runtime environment on your machine.

Steps:

  1. Install Core Tools (via npm, brew, or MSI)

  2. Navigate to your function project root

  3. Run func start

This command:

  • Starts a local web server (for HTTP triggers)

  • Emulates storage, Service Bus, and Event Hubs via Azure Storage Emulator or Azurite

  • Loads your functions and displays their endpoints

  • Supports debugging in VS Code, Visual Studio, or JetBrains Rider

For .NET Isolated apps, it also handles the out-of-process communication between the host and your worker process.

Use local.settings.json to manage local secrets and connection strings—never commit this file.

Q 3. How do you specify the runtime version for your Azure Function App?

The runtime version is controlled at two levels:

  1. Project SDK/Runtime Version
    In your .csproj, you specify the target framework and Azure Functions version:

    <TargetFramework>net8.0</TargetFramework>
<AzureFunctionsVersion>v4</AzureFunctionsVersion>

  2. Azure Platform Setting
    In Azure, the FUNCTIONS_EXTENSION_VERSION app setting locks the runtime version:

    • ~4 → Use the latest v4 runtime (recommended)

    • 4.0.0 → Pin to an exact version (for compliance)

For .NET Isolated, you also declare the worker runtime in local.settings.json and Azure app settings:

 {
  "Values": {
    "FUNCTIONS_WORKER_RUNTIME": "dotnet-isolated"
  }
}

Warning: Mismatched versions between local and cloud cause silent failures or unexpected behavior.

Q 4: What is the default entry point for a .NET Isolated Process function?

Unlike in-proc functions (which use static methods), .NET Isolated functions require a Program.cs entry point that configures and starts the host.

The minimal Program.cs:

using Microsoft.Extensions.Hosting;

var host = new HostBuilder()
    .ConfigureFunctionsWorkerDefaults()
    .Build();

host.Run();

The EntireProgram.cs for .NET Isolated Function

using Microsoft.Extensions.Hosting;
using Microsoft.Extensions.Configuration;
using Microsoft.Extensions.DependencyInjection;
using Microsoft.Extensions.Logging;

// The HostBuilder is the entry point that configures and starts the Function runtime.
var host = new HostBuilder()
    // 1. Configure the host environment settings (appsettings.json, environment variables, secrets).
    .ConfigureAppConfiguration((hostContext, config) =>
    {
        // Add environment-specific settings (e.g., appsettings.Development.json)
        config.AddJsonFile("appsettings.json", optional: true, reloadOnChange: true)
              .AddJsonFile($"appsettings.{hostContext.HostingEnvironment.EnvironmentName}.json", optional: true, reloadOnChange: true)
              .AddEnvironmentVariables();
    })
    // 2. Configure the Function Worker's specific settings.
    .ConfigureFunctionsWorkerDefaults(builder =>
    {
        // Optional: Configure middleware specific to the Functions Worker runtime
        // Example: builder.UseMiddleware<ExceptionHandlerMiddleware>();
    })
    // 3. Configure the services for Dependency Injection (DI).
    .ConfigureServices((hostContext, services) =>
    {
        // Register services and dependencies used by your functions
        // Example: Add a Singleton configuration object
        var configuration = hostContext.Configuration;
        services.AddSingleton<IConfiguration>(configuration);

        // Example: Register a custom data access service
        // services.AddSingleton<IDataService, SqlDataService>();

        // Example: Configure Options pattern
        // services.Configure<MySettings>(configuration.GetSection("MyConfigSection"));

    })
    // 4. Configure application logging.
    .ConfigureLogging((hostContext, logging) =>
    {
        // Clear default providers and add specific ones (e.g., Application Insights)
        logging.ClearProviders();
        logging.AddConsole();

        //  log levels are configured for production (e.g., Information)
        logging.AddConfiguration(hostContext.Configuration.GetSection("Logging"));

        // Optional: Add Application Insights
        // services.AddApplicationInsightsTelemetryWorkerService(hostContext.Configuration);
    })
    .Build();

// 5. Run the host, which starts listening for function triggers.
host.Run();

This is the only required entry point. The Functions host discovers your [Function]-decorated methods automatically via reflection during startup. There is no need to register functions manually.

Q 5: How do you organize multiple functions within a single Function App?

Best practice: One Function App = One bounded context or event domain.

Within the project:

  • Place each function in its own class file (e.g., IngestShipmentEvent.cs, DetectAnomaly.cs)

  • Group related functions in folders/namespaces (e.g., /Triggers, /Processors)

  • Share common logic via internal services registered in DI (e.g., IAnomalyScorer, IEventLogger)

Avoid:

  • Putting unrelated functions (e.g., user auth + IoT telemetry) in the same app—they scale and deploy as one unit

  • Overloading a single function with multiple responsibilities

In our logistics example, all functions belong to the “shipment event processing” domain—so co-location is justified.

4. Example Implementation

Below is a clean, error-free implementation of the DetectAnomaly function in a .NET 8 Isolated Function App:

Program.cs

 using Microsoft.Extensions.Hosting;

var host = new HostBuilder()
    .ConfigureFunctionsWorkerDefaults()
    .ConfigureServices(services =>
    {
        services.AddSingleton<IAnomalyDetector, MLAnomalyDetector>();
    })
    .Build();

host.Run();

DetectAnomaly.cs

 using Microsoft.Azure.Functions.Worker;
using Microsoft.Extensions.Logging;

public class DetectAnomaly
{
    private readonly IAnomalyDetector _detector;
    private readonly ILogger<DetectAnomaly> _logger;

    public DetectAnomaly(IAnomalyDetector detector, ILogger<DetectAnomaly> logger)
    {
        _detector = detector;
        _logger = logger;
    }

    [Function("DetectAnomaly")]
    [ServiceBusOutput("alerts", Connection = "ServiceBusConnection")]
    public async Task<string> Run(
        [EventGridTrigger] ShipmentEvent eventData)
    {
        _logger.LogInformation("Processing shipment {Id}", eventData.ShipmentId);

        var isAnomaly = await _detector.IsAnomalousAsync(eventData);

        return isAnomaly
            ? JsonSerializer.Serialize(new Alert { ShipmentId = eventData.ShipmentId })
            : string.Empty;
    }
}

local.settings.json (for local dev)

 {
  "IsEncrypted": false,
  "Values": {
    "AzureWebJobsStorage": "UseDevelopmentStorage=true",
    "FUNCTIONS_WORKER_RUNTIME": "dotnet-isolated",
    "ServiceBusConnection": "Endpoint=sb://...",
    "EventGridTopicEndpoint": "https://..."
  }
}

Run locally with:

func start

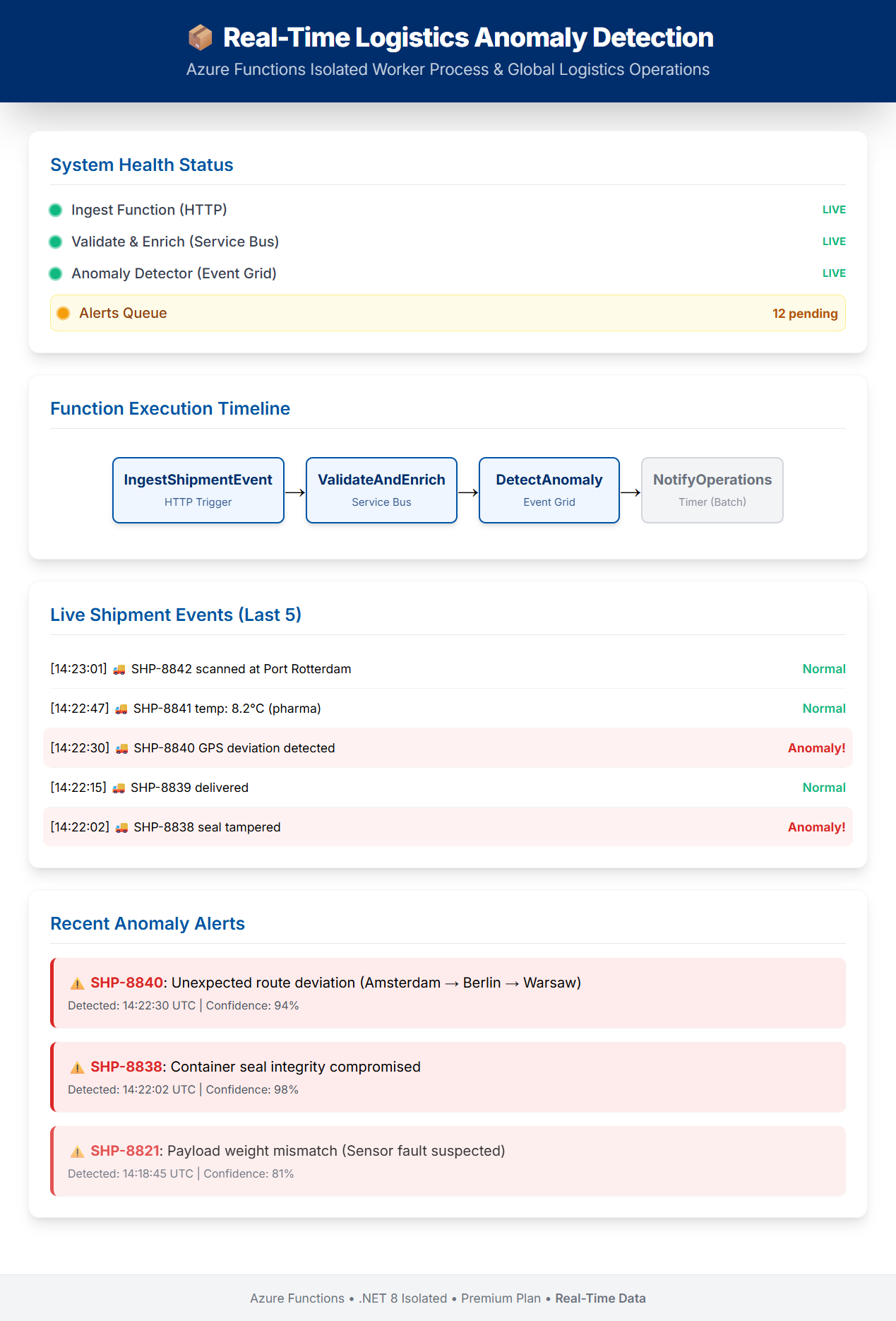

Output:

screencapture-file-C-Users-Marina-Downloads-Azfunc-html-2025-10-14-22_52_05

5. Best Practices and Recommendations

  • Version Pinning: Use ~4 in production but test against exact patch versions in staging.

  • Single Responsibility: Each function should do one thing—trigger, process, or notify—not all three.

  • Local Parity: Ensure local.settings.json mirrors Azure app settings (use Azure CLI or Bicep to sync).

  • Dependency Injection: Leverage .NET’s DI container for testability and shared services.

  • Function Naming: Use clear, verb-noun names (ValidateShipment, NotifyCarrier)—they appear in logs and metrics.

  • Avoid Monolithic Apps: If functions have different scaling needs, security boundaries, or teams, split them into separate Function Apps.

6. Conclusion

Understanding how Azure Functions are discovered, executed, versioned, and organized isn’t just about passing an interview—it’s about building systems that are observable, maintainable, and resilient under real-world load. In high-velocity domains like logistics, where a delayed anomaly detection can cost millions, these architectural details become business imperatives. By mastering the runtime’s execution model, embracing local development fidelity, and organizing functions around domain boundaries, you transform Azure Functions from a convenience into a cornerstone of enterprise event-driven architecture.
