Azure service bus integration with .NET 8 - Read & Write

In this article, we will discuss the Azure Service Bus, how to configure it in the Azure Portal, and how to create a .NET Core Web API to send and receive messages from a queue.

Agenda

• What is Azure Service Bus?

• Configure the Azure Service Bus on the Azure portal.

• Create a web API to enqueue the message.

• Create a Web API to read the message from the queue.

What is Azure Service Bus?

Microsoft Azure Service Bus is a cloud-based message broker that enables asynchronous communication between applications.

It helps in:

• Decoupling sender and receiver applications

• Improving reliability

• Supporting distributed systems

• Handling high-volume message traffic

In simple words:

Instead of Application A directly calling Application B, it sends a message to the Service Bus. Application B reads it whenever it is ready.

This makes the system loosely coupled and scalable.

Types of Azure Service Bus (High level)

In Azure Service Bus we can work with three types of messaging entities.

1. Queue (point to point)

2. Topic (publish - subscribe)

3. Subscription (Child of Topic)

• Queue (point to point)

One message -> processed by only ONE consumer. Multiple consumers can exist, but only one receives each message

Producer → Queue → Consumer

• Topic (publish - subscribe)

One message → delivered to MULTIPLE consumers. Multiple consumers can exist, and each message serves to each and every consumer.

Producer → Topic
→ Subscription A → Consumer A
→ Subscription B → Consumer B

• Subscription (Child of Topic)

A subscription acts as a logical receiver inside a topic. Each subscription behaves like a virtual queue.

Configure Azure Service Bus in Azure Portal

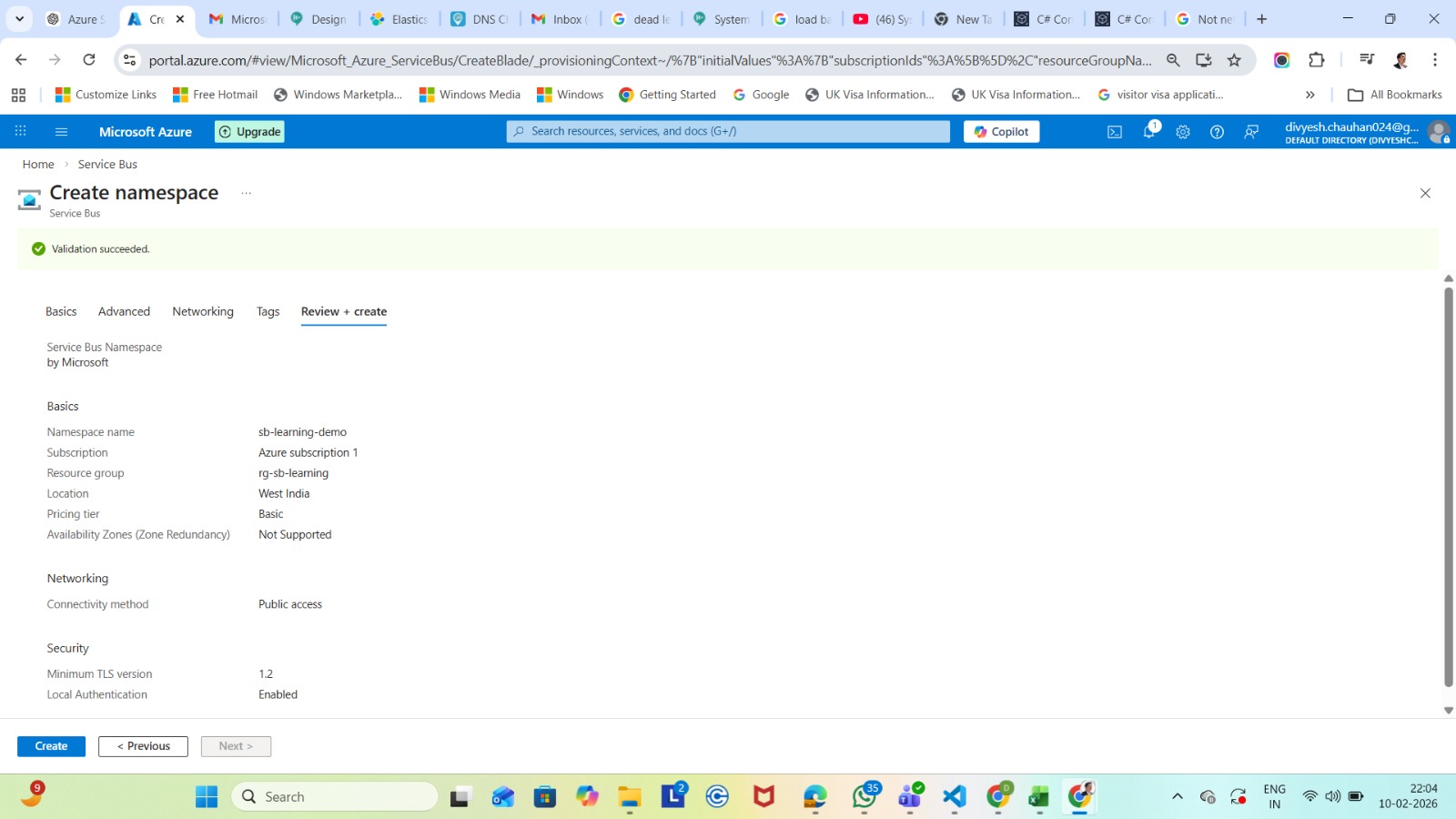

Step 1: Create Namespace

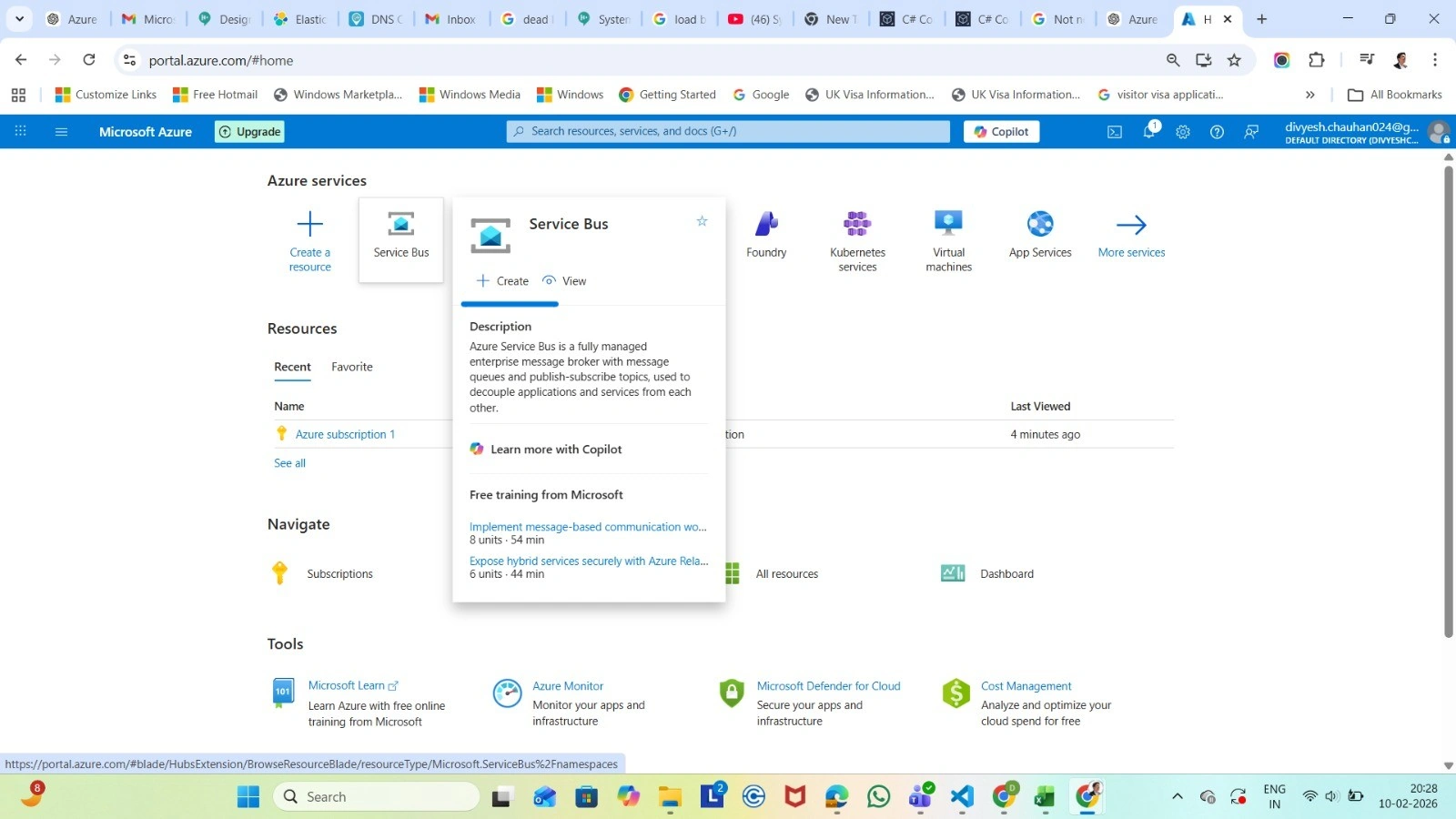

1. Go to Azure Portal

2. Click Create Resource

3. Search for Azure Service Bus

4. Click Create

5. Provide:

   • Subscription

   • Resource Group

   • Namespace Name

   • Pricing Tier (Basic / Standard / Premium)

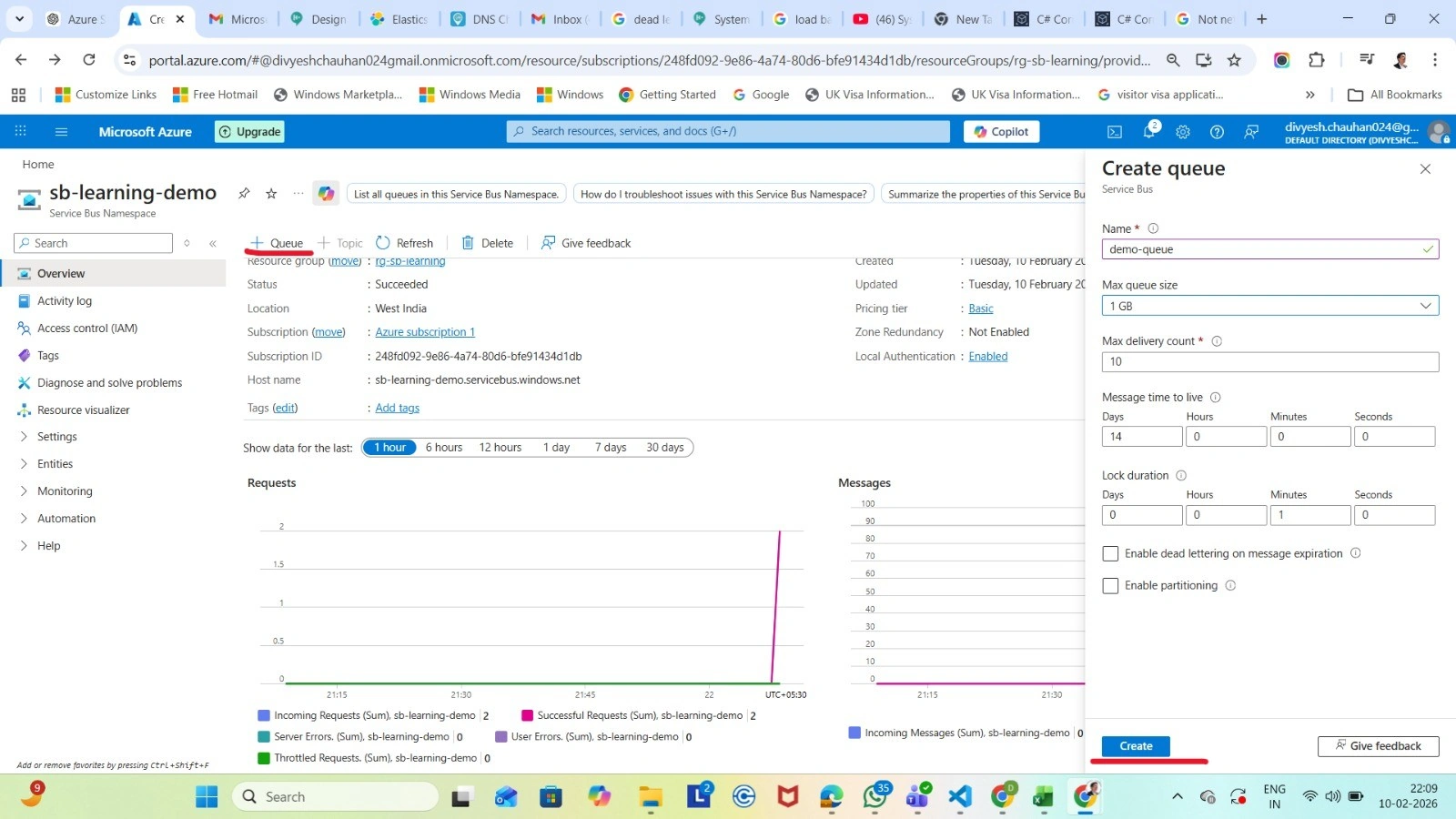

Step 2: Create a Queue

1. Open your Namespace

2. Click Queues

3. Click + Queue

4. Provide queue name

5. Click Create

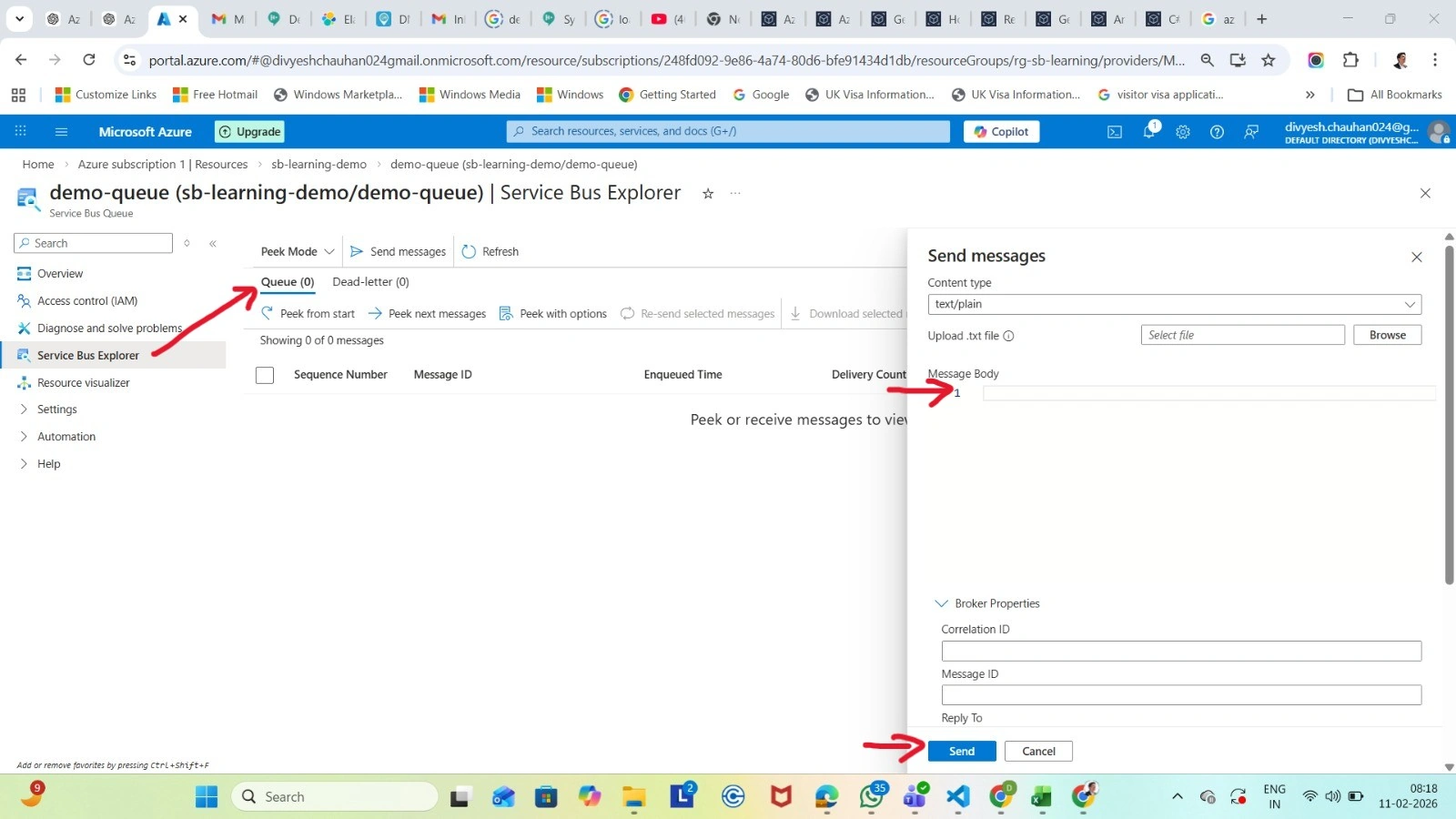

6. If you want you can send a sample message. Write the message in message body; keep everything else as it is and click send.

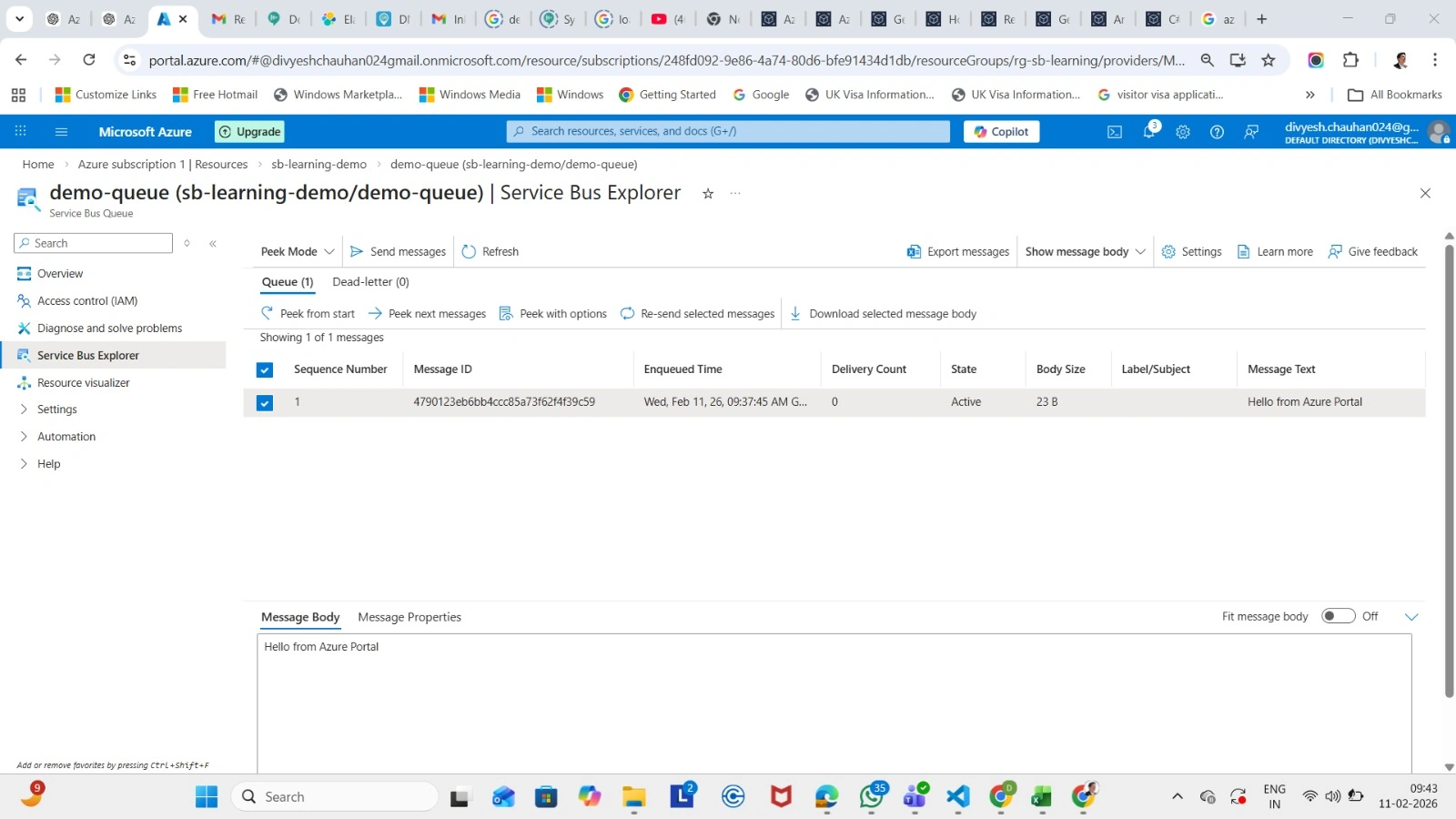

7. Now you can seen the message, which is available in the queue.

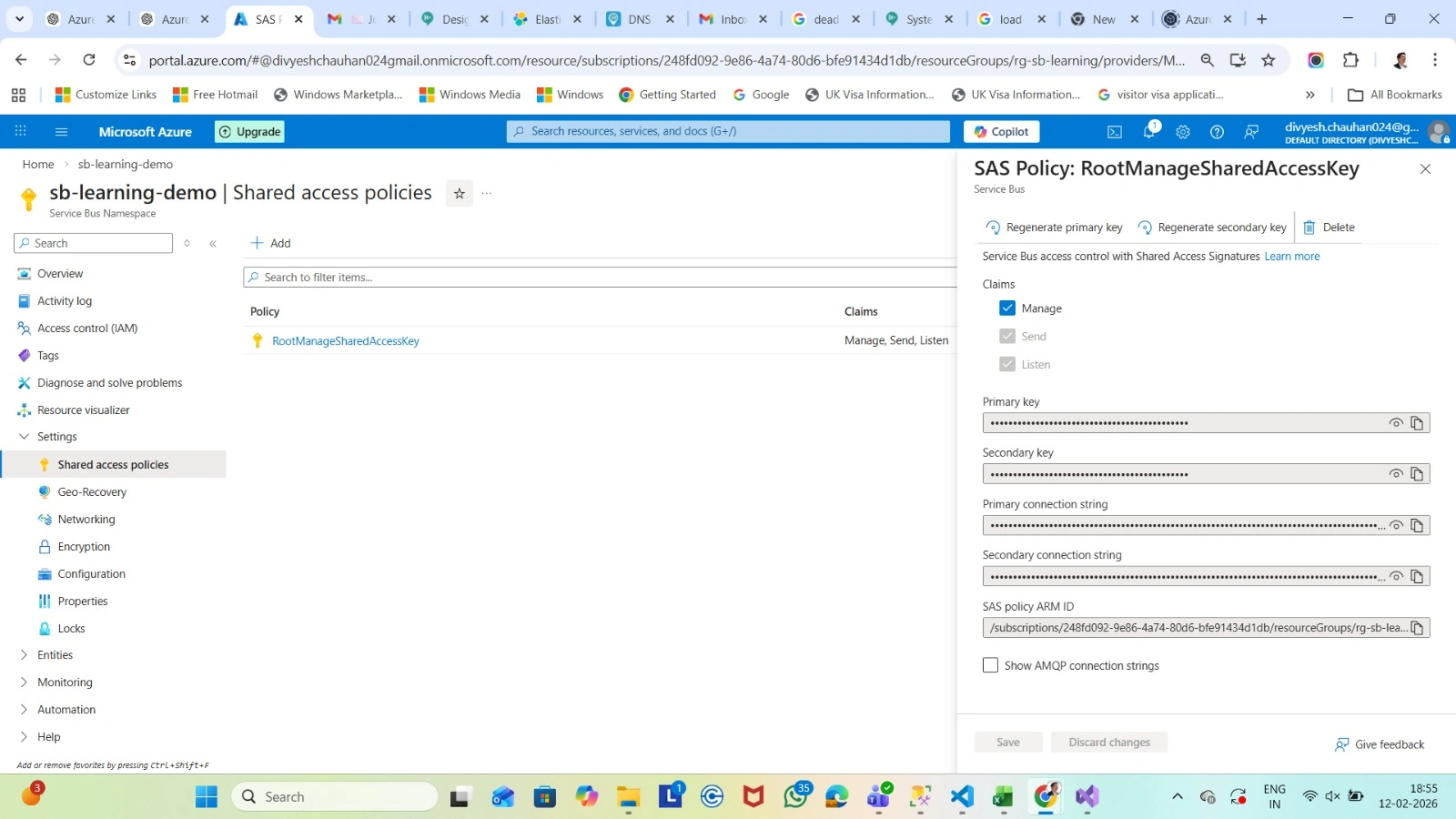

Step 3: Get Connection String

1. Go to Namespace

2. Click Shared Access Policies

3. Click RootManageSharedAccessKey

4. Copy Primary Connection String

Create .NET Core Web API

• Open Visual Studio and create a new project ASP.NET Core Web API.

Step 1: Install NuGet Package

dotnet add package Azure.Messaging.ServiceBus

Step 2: Add Configuration in appsettings.json

{
  "ServiceBus": {
    "ConnectionString": "YOUR_CONNECTION_STRING",
    "QueueName": "samplequeue"
  }
}

Step 3: Update program.cs file

using AzureServiceBus.Services;

var builder = WebApplication.CreateBuilder(args);

// Add services to the container.

builder.Services.AddControllers();
// Learn more about configuring Swagger/OpenAPI at https://aka.ms/aspnetcore/swashbuckle
builder.Services.AddEndpointsApiExplorer();
builder.Services.AddSwaggerGen();
builder.Services.AddSingleton<ServiceBusSenderService>();
var app = builder.Build();

// Configure the HTTP request pipeline.
if (app.Environment.IsDevelopment())
{
    app.UseSwagger();
    app.UseSwaggerUI();
}

app.UseHttpsRedirection();

app.UseAuthorization();

app.MapControllers();

app.Run();

Step 4: Create ServiceBusSenderService Service class

using Azure.Messaging.ServiceBus;

namespace AzureServiceBus.Services
{
    public class ServiceBusSenderService
    {
        private readonly ServiceBusSender _sender;
        private readonly ServiceBusReceiver _receiver;

        public ServiceBusSenderService( IConfiguration config)
        {
            var connectionString = config["ServiceBus:ConnectionString"];
            var queueName = config["ServiceBus:QueueName"];

            var client = new ServiceBusClient(connectionString);
            _sender = client.CreateSender(queueName);
            _receiver = client.CreateReceiver(queueName);

        }

        public async Task SendMessageAsync(string messageBody)
        {
           var message = new ServiceBusMessage(messageBody);
            // Optional metadata
            message.ApplicationProperties["Source"] = "WebAPI";
            await _sender.SendMessageAsync(message);
        }

        public async Task<string> ReceiveMessagesAsync()
        {
            var message = await _receiver.ReceiveMessageAsync(
                TimeSpan.FromSeconds(5)
                );
            if(message == null)
            {
                Console.WriteLine("No messages received.");
                return null;
            }
            string body = message.Body.ToString();
            await _receiver.CompleteMessageAsync(message);
            return body;
        }
    }
}

Step 5: Create Controller to Send Message and Receive Message from the Queue

using AzureServiceBus.Services;
using Microsoft.AspNetCore.Http;
using Microsoft.AspNetCore.Mvc;

namespace AzureServiceBus.Controllers
{

    [ApiController]
    [Route("api/messages")]
    public class MessageController : ControllerBase
    {
        private readonly ServiceBusSenderService _service;

        public MessageController(ServiceBusSenderService service)
        {
            _service = service;
        }

        [HttpPost]
        public async Task<IActionResult> SendMessage([FromBody] string message)
        {
            await _service.SendMessageAsync(message);
            return Ok(new { Status = "Message sent successfully" });
        }
        [HttpGet]
        public async Task<IActionResult> ReceiveMessage()
        {
            var message = await _service.ReceiveMessagesAsync();
            if (message == null)
            {
                return NotFound(new { Status = "No messages available" });
            }
            return Ok(new { Status = "Message received successfully", Message = message });
        }

    }
}

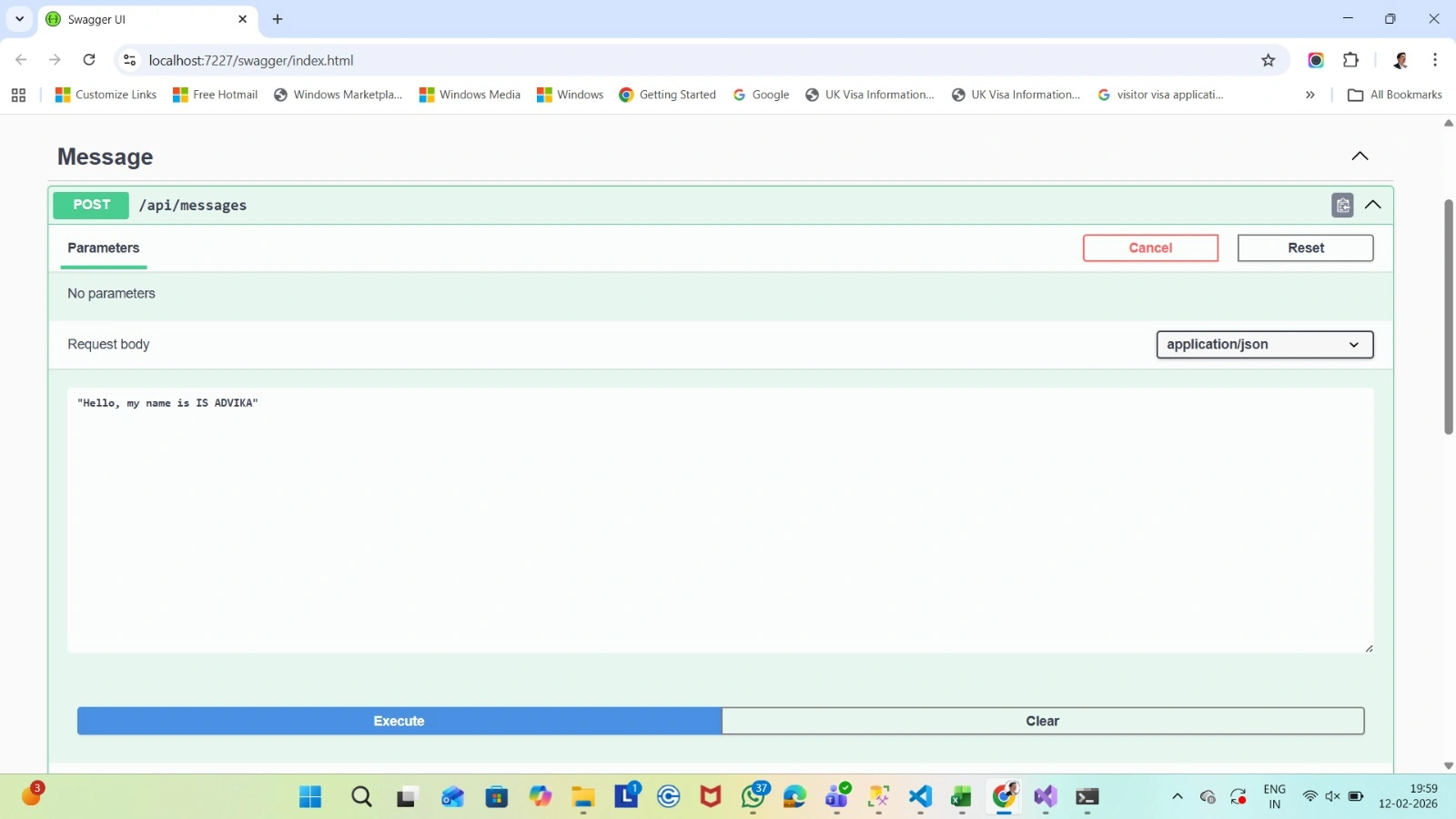

Send Message to Queue

• Call the API and send your message in request body

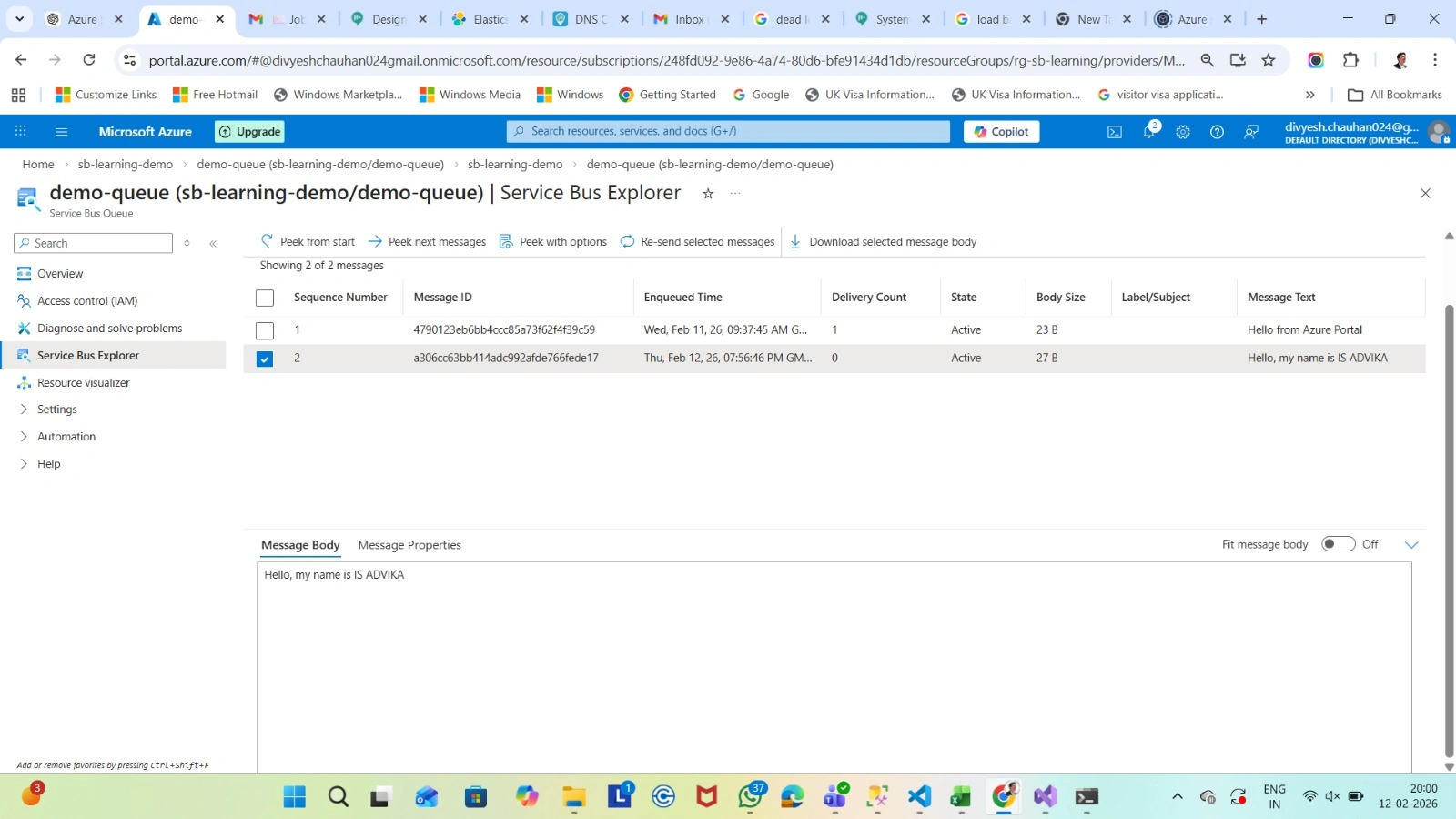

• You can see the message inside Service Bus Explorer.

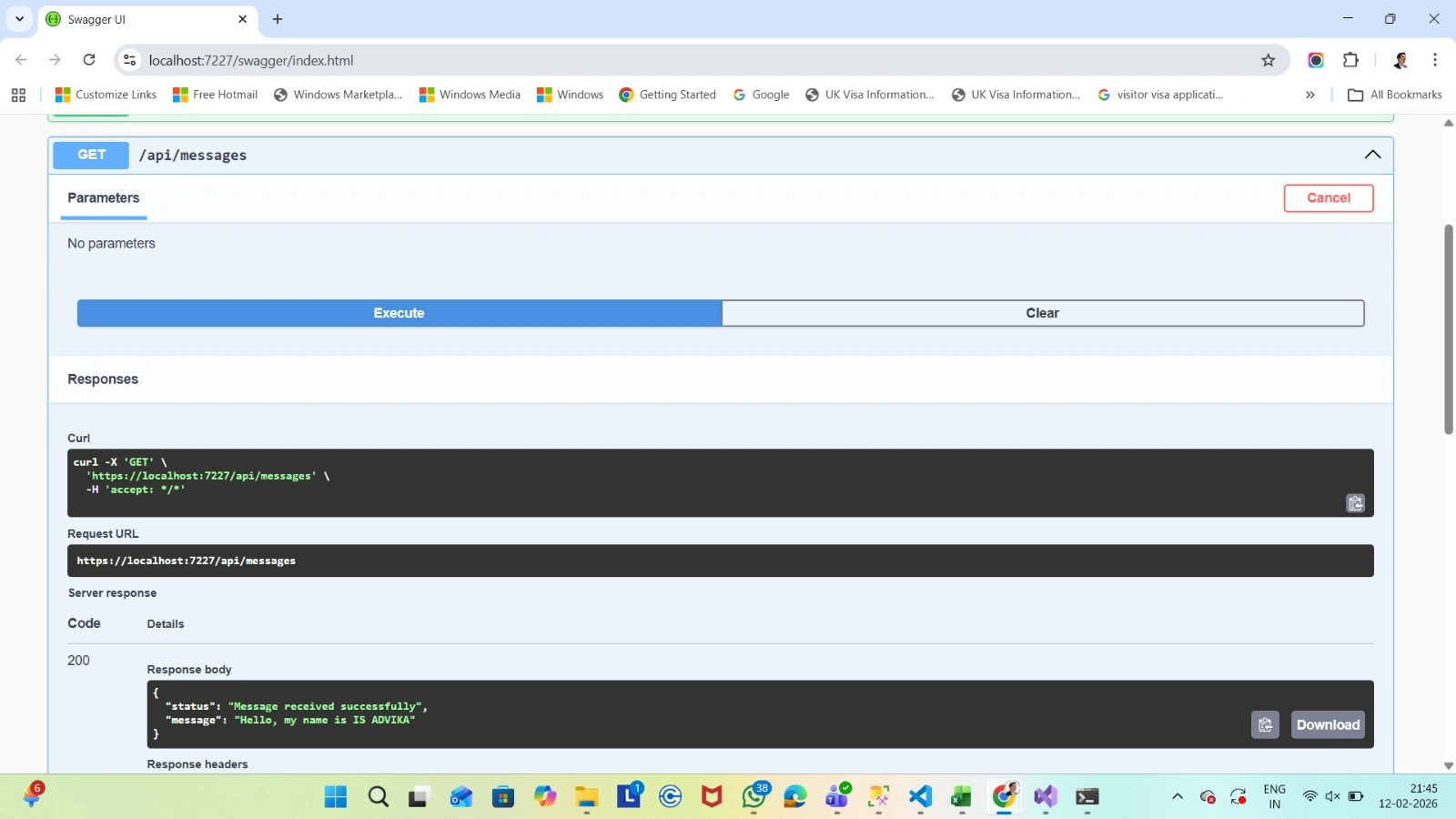

  Read Message from the Queue

• Read the message from the queue. Call GET API

  Conclusion

  Azure Service Bus is a powerful cloud messaging system that

  • Enables asynchronous communication

  • Decouples services

  • Improves scalability

  • Supports microservice architecture

  Using .NET Core Web API, we can easily integrate Service Bus for sending and receiving messages.

Thank you so much for reading this article. Happy coding!!
