Best Practices for Azure Table Storage

Azure Table Storage is a NoSQL key-value store designed for large-scale structured data storage. It offers a flexible, schema-less design and is ideal for applications that require high availability, scalability, and cost-effectiveness. In this article, we will explore best practices for using Azure Table Storage efficiently, along with a step-by-step guide on setting it up and performing basic operations such as inserting, querying, and deleting data.

Key Features of Azure Table Storage

NoSQL Data Storage: Stores structured, non-relational data in key-value format.
Scalability: It handles large amounts of structured data efficiently.
High Availability: Built on Azure's robust infrastructure.
Cost-Effective: Pay only for what you use.
Security: Supports Azure Active Directory (AAD) and Shared Key authorization.
Partitioning for Performance: Data is automatically partitioned based on the Partition Key, improving query performance and scalability.
RESTful API Access: Provides APIs for accessing data from any platform using standard REST calls.

Setting Up Azure Table Storage in the Azure Portal

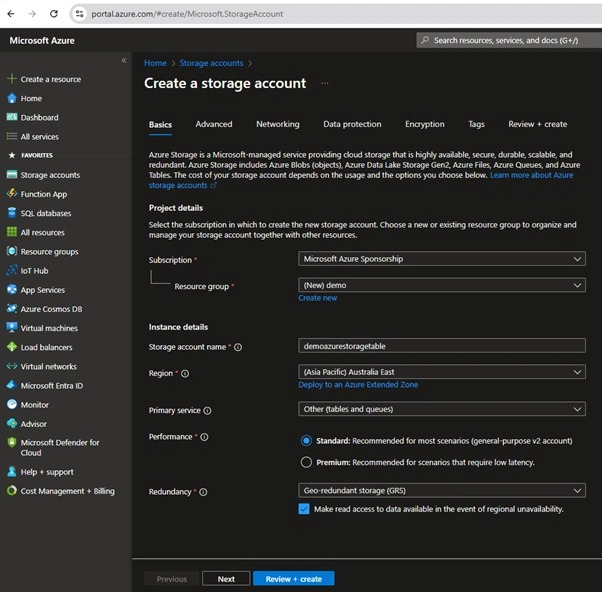

Step 1. Create a Storage Account.

Sign in to Azure Portal: Go to Azure Portal and log in.
Create a new storage account.
- Click on Create a resource > Storage > Storage account.
- Choose a Subscription and Resource Group.
- Enter a unique Storage account name.
- Select Region, Performance (Standard or Premium), and Redundancy.
- Click Review + Create and then Create.

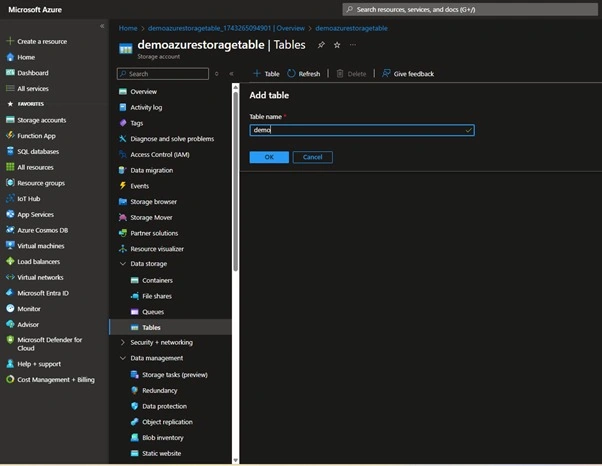

Step 2. Create a Table.

Navigate to your newly created Storage Account.
Under the Data Storage section, select Tables.
Click + Table and provide a Table Name.
Click OK to create the table.

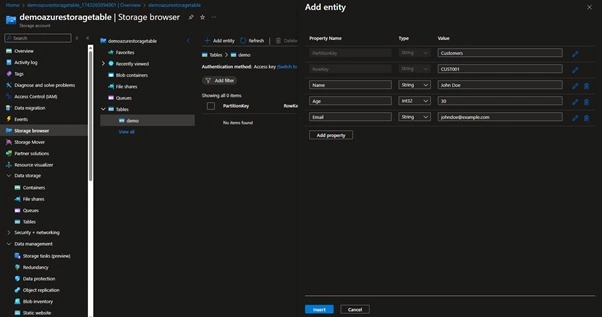

Step 3. Insert Data into the Table.

Open the created table.
Click Add Entity.
Provide the Partition Key (used for logical grouping of entities). Example.
- Partition Key: "Customers" (All customer data will be grouped under this key).
Provide the Row Key (a unique identifier within a partition). Example.
- Row Key: "CUST001" (Unique ID for the customer record).

Add additional properties like Name, Age, Email, etc. Example.

Partition Key: "Customers"
Row Key: "CUST001"
Name: "John Doe"
Age: 30
Email: "[email protected]"

Click OK to save the entity.

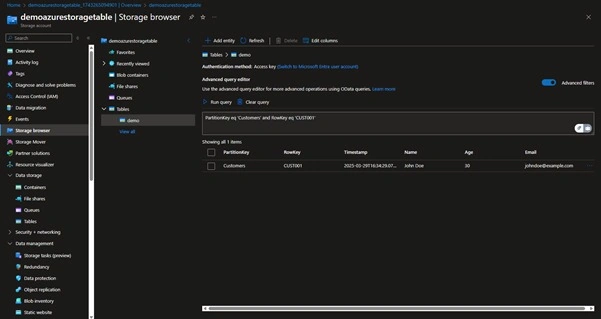

Step 4. Query Data in Azure Table Storage.

Navigate to the Tables section in your storage account.
Select your table and click Query.
Use the Partition Key and Row Key filters to search for specific records.

Enter your query filter. Example.

PartitionKey eq 'Customers' and RowKey eq 'CUST001'

Click Run Query to retrieve matching records.
The results will display only the records that match both the Partition Key and Row Key.

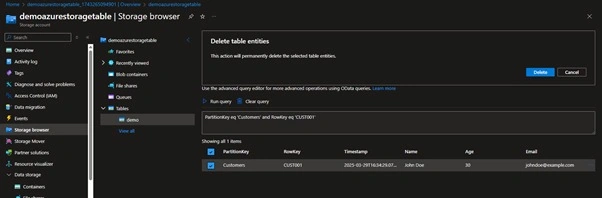

Step 5. Delete Data from the Table.

Open your table and find the record to delete.
Click the Delete option next to the entity.
Confirm deletion when prompted.

Advanced Features of Azure Table Storage

Batch Transactions: Perform multiple operations in a single batch for improved efficiency.
ETag for Concurrency Control: Ensures data integrity when multiple users update the same entity.
Geo-Redundant Storage (GRS): Provides disaster recovery by replicating data across multiple regions.
Integration with Azure Functions: Automate tasks by triggering Azure Functions when data changes.

Use Cases of Azure Table Storage

IoT Data Storage: Store sensor data for real-time analysis.
Log Data: Maintain application logs for troubleshooting.
User Profiles: Store user details with quick lookups.
Metadata Storage: Save metadata for cloud applications.
Session State Management: Stores user sessions for web applications.
Audit Trails: Maintain history logs for compliance and security purposes.

Best Practices for Using Azure Table Storage

Use Partition Key Wisely: Choosing an appropriate Partition Key improves query performance and scalability.
Optimize Queries: Retrieve only necessary data by filtering queries efficiently.
Leverage Caching: Use caching mechanisms to reduce read latency.
Monitor Usage: Azure Monitor is used to track performance and optimize costs.
Design for High Availability: Distribute data across partitions to avoid hot spots.
Limit Entity Size: Keep entity sizes small for faster access and lower costs.
Implement Retry Logic: Use exponential backoff strategies to handle transient failures.

Conclusion

Azure Table Storage is a powerful and cost-effective solution for structured NoSQL data storage. With its easy setup via the Azure portal, developers can quickly store and retrieve large amounts of data efficiently. By following the best practices outlined in this article, you can optimize performance, scalability, and security for your cloud applications, ensuring efficient data storage and retrieval.
