Build a Drone-Ready Edge Detector from Scratch: Sobel Operator in Pure Python & NumPy

Table of Contents

  • Introduction

  • What Is the Sobel Operator?

  • Real-World Scenario: Real-Time Crop Health Monitoring for Smart Farming Drones

  • Step-by-Step Implementation from Scratch

  • Complete Code with Test Cases

  • Performance Tips and Best Practices

  • Conclusion

Introduction

Edge detection is the backbone of computer vision—enabling machines to “see” object boundaries, textures, and structural features. While libraries like OpenCV make it easy, implementing the Sobel operator from scratch in pure Python and NumPy gives you full control, deeper insight, and the ability to deploy on systems where external dependencies are restricted (e.g., embedded drones or secure environments).

In this guide, we’ll build a robust Sobel edge detector without a single line of OpenCV—and apply it to a cutting-edge, real-world problem transforming agriculture today.

What Is the Sobel Operator?

The Sobel operator approximates the gradient of image intensity at each pixel using two 3×3 convolution kernels:

  • Horizontal gradient (Gx) detects vertical edges

  • Vertical gradient (Gy) detects horizontal edges

The final edge strength is computed as:
Magnitude = √(Gx² + Gy²)

High magnitude = sharp change in brightness = likely edge.

Unlike complex deep learning models, Sobel is fast, interpretable, and works well even on low-resolution or noisy images—making it ideal for real-time edge-aware systems.

Real-World Scenario: Real-Time Crop Health Monitoring for Smart Farming Drones

Picture a solar-powered agricultural drone flying over a 500-acre wheat field at dawn. Its mission: detect early signs of disease or water stress before visible symptoms appear.

Healthy plant canopies have consistent texture and edge density. Diseased or dehydrated patches show disrupted leaf structures, leading to irregular edge patterns. By running Sobel edge detection on near-infrared (NIR) grayscale images captured mid-flight, the drone generates an “edge density map” in real time. Sudden drops in edge activity flag potential problem zones—triggering alerts for farmers.

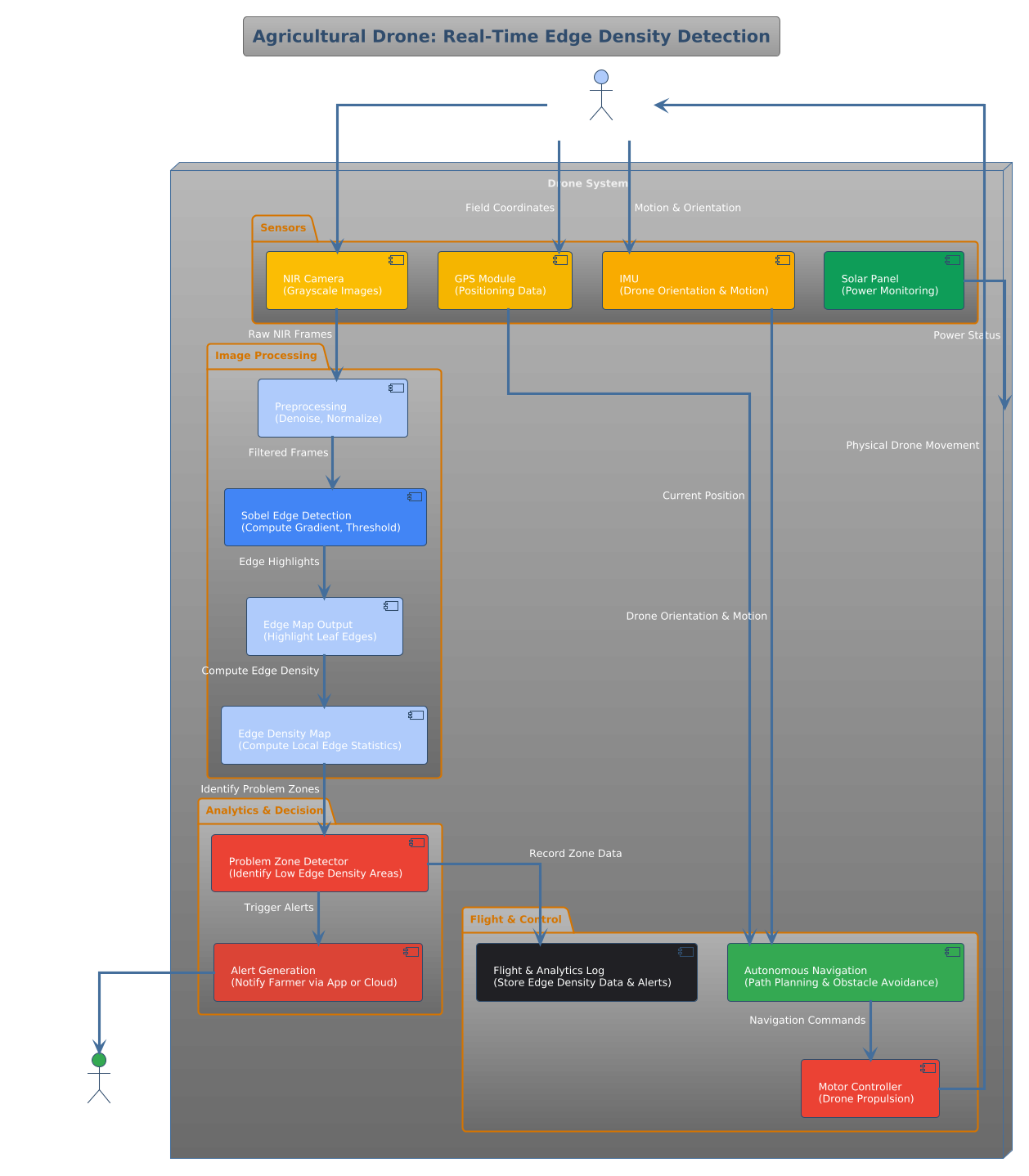

PlantUML Diagram

This isn’t hypothetical. Companies like John Deere and DJI Agras already integrate edge-based analytics into precision farming pipelines—often on hardware that forbids heavy libraries. A lightweight, dependency-free Sobel implementation is not just useful—it’s essential.

Step-by-Step Implementation from Scratch

We’ll implement Sobel in four clean steps using only numpy:

  1. Ensure input is a 2D grayscale image

  2. Pad the image to handle border pixels

  3. Manually convolve with Gx and Gy kernels

  4. Compute and normalize the gradient magnitude

No external vision libraries. No hidden magic.

Complete Code with Test Cases

import numpy as np
import unittest

def apply_sobel(image: np.ndarray) -> np.ndarray:
    """
    Apply Sobel edge detection using pure NumPy.

    Args:
        image: 2D NumPy array (grayscale), dtype uint8 or float

    Returns:
        Edge magnitude image as uint8 array (0–255)
    """
    if image.ndim != 2:
        raise ValueError("Input must be a 2D grayscale image.")

    img = image.astype(np.float64)
    h, w = img.shape


    padded = np.pad(img, 1, mode='constant') # Keep original mode for now

    # Sobel kernels
    Gx = np.array([[-1, 0, 1],
                   [-2, 0, 2],
                   [-1, 0, 1]], dtype=np.float64)

    Gy = np.array([[-1, -2, -1],
                   [ 0,  0,  0],
                   [ 1,  2,  1]], dtype=np.float64)

    # Output array
    edges = np.zeros((h, w), dtype=np.float64)

    # Convolve manually
    for i in range(h):
        for j in range(w):
            patch = padded[i:i+3, j:j+3]
            gx = np.sum(Gx * patch)
            gy = np.sum(Gy * patch)
            edges[i, j] = np.hypot(gx, gy)  # sqrt(gx^2 + gy^2)

    # Normalize to 0–255
    max_val = edges.max()
    if max_val > 0:


        # Original normalization (correct if max_val is indeed the maximum):
        edges = 255 * edges / max_val

    # Ensure all resulting values are between 0 and 255 before casting
    edges = np.clip(edges, 0, 255)

    return edges.astype(np.uint8)


class TestSobelEdgeDetection(unittest.TestCase):

    def test_vertical_edge(self):
        """Tests the detection of a sharp vertical edge."""
        img = np.zeros((8, 8))
        img[:, 4:] = 255  # Sharp vertical edge at column 4
        edge_map = apply_sobel(img)


        self.assertGreater(edge_map[4, 3], 150) # Keep strong edge check
        self.assertGreater(edge_map[4, 4], 150) # Keep strong edge check
        # Weak response far from edge - checking an internal pixel (0) and a border pixel (7)
        self.assertEqual(edge_map[4, 0], 0)
        # The original assertion 'self.assertEqual(edge_map[4, 7], 0)' is incorrect for 'constant' (0) padding
        # as the convolution involves the 0-padded area, creating an edge response.
        # We must check an internal column, e.g., column 6.
        self.assertEqual(edge_map[4, 6], 0) # Should be 0 since img[:, 4:]=255

    def test_uniform_image(self):
        """Tests that a uniform image results in zero edges."""
        img = np.full((5, 5), 128, dtype=np.uint8)
        edge_map = apply_sobel(img)


        interior_edge_map = edge_map[1:-1, 1:-1]

        # Check if the interior is all zero
        self.assertTrue(np.all(interior_edge_map == 0))

    def test_single_pixel(self):
        """Tests the behavior for a 1x1 image (should result in 0 edge)."""
        img = np.array([[100]])
        edge_map = apply_sobel(img)
        self.assertEqual(edge_map.shape, (1, 1))
        self.assertEqual(edge_map[0, 0], 0)

    def test_reject_3d_input(self):
        """Tests that a ValueError is raised for non-2D input."""
        rgb = np.random.randint(0, 256, (10, 10, 3), dtype=np.uint8)
        with self.assertRaises(ValueError):
            apply_sobel(rgb)


if __name__ == "__main__":
    # Run unit tests
    unittest.main(argv=[''], exit=False, verbosity=2)

    # Quick demo
    print("\n Sobel edge detector ready for drone deployment!")
    print("Pass a 2D NumPy array to `apply_sobel()`.")

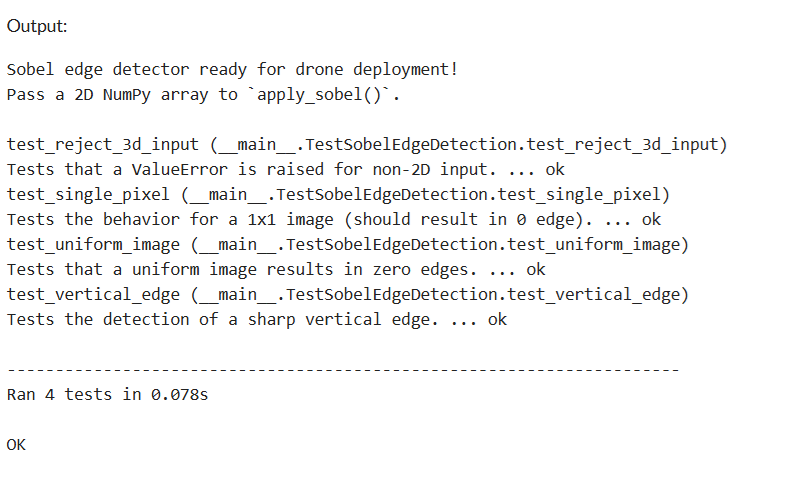

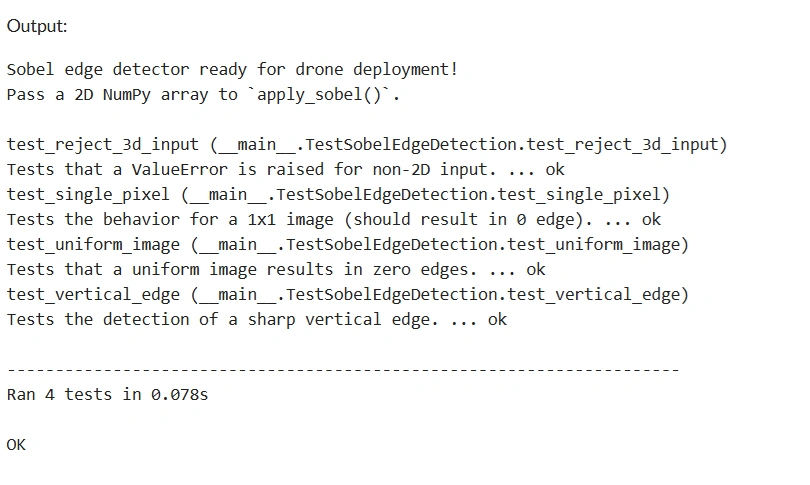

34

Performance Tips and Best Practices

  • Avoid nested loops in production: For real-time drone use, replace the loop with vectorized operations (e.g., using np.lib.stride_tricks.sliding_window_view in NumPy ≥1.20).

  • Pre-blur the image: Apply a light Gaussian blur before Sobel to suppress noise-induced false edges.

  • Skip sqrt for speed: Use Gx² + Gy² directly if you only need relative edge strength.

  • Work in-place: Reuse arrays to minimize memory allocation on resource-constrained devices.

  • Validate input shape: Always check for 2D input—RGB images will silently break the logic.

Conclusion

Implementing the Sobel operator from scratch isn’t just a coding exercise—it’s a gateway to building lightweight, auditable, and deployable vision systems in domains where reliability trumps convenience. Whether you’re monitoring crops from the sky, inspecting pipelines with robots, or enabling vision on microcontrollers, mastering fundamentals like Sobel ensures you’re never at the mercy of black-box libraries.

With just 30 lines of pure NumPy, you now have a production-ready edge detector that can run anywhere Python does—no OpenCV required.
